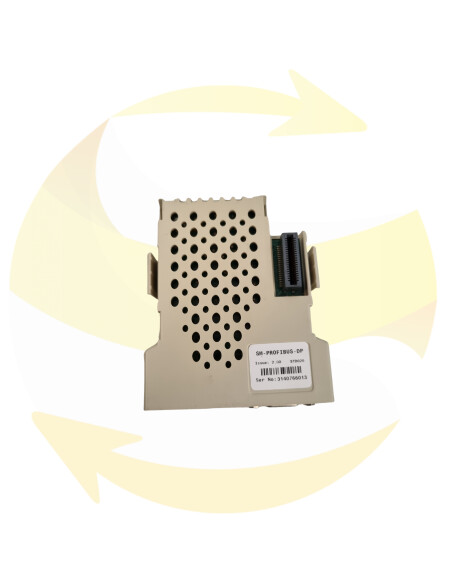

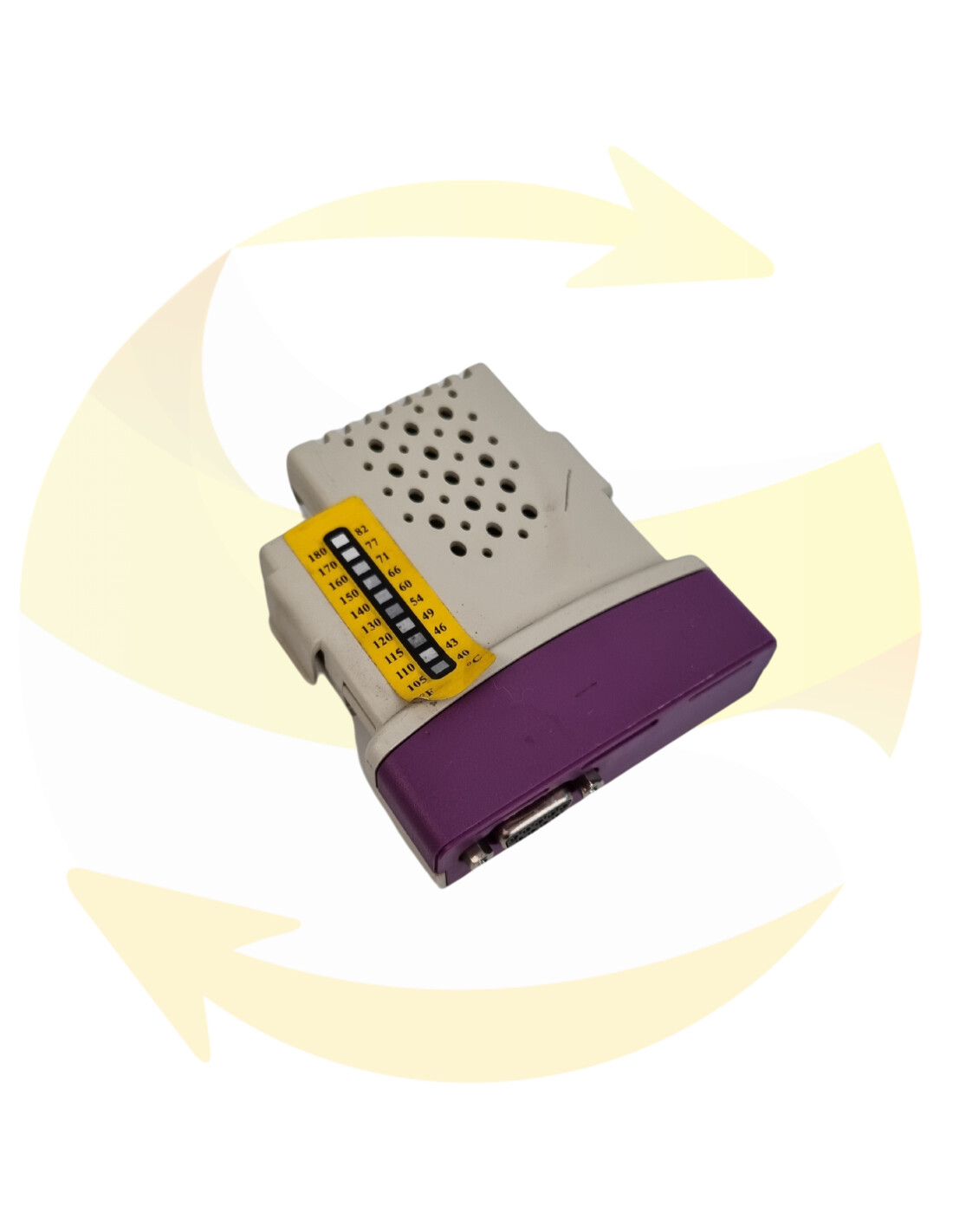

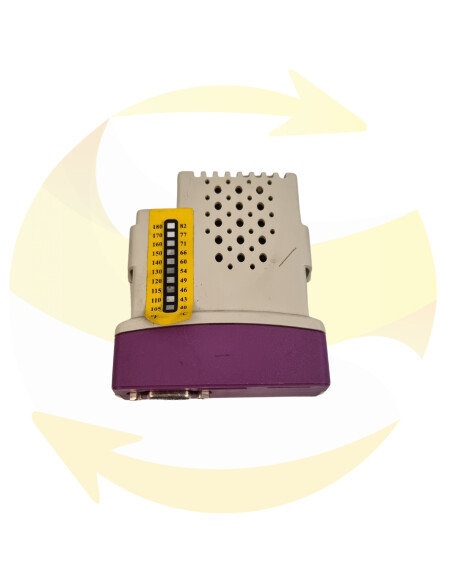

SM-PROFIBUS DP - Interface module - CONTROL TECHNIQUES
This SM-PROFIBUS DP interface module from Control Techniques is a programming console from the UNIDRIVE range.
Module compatible with Unidrive SP, Quantum MP, Digitax ST, Mentor MP drives.
This SM-PROFIBUS DP Control techniques interface module is at your disposal to replace your defective equipment and has a guarantee adapted to your needs.
SM-PROFIBUS-DP
Control Techniques’ SM-PROFIBUS-DP Option Module follower.
SM-Profibus-DP Features include:
-Profibus protocol up to specification DP-V0 and DP-V1
-Up to 125 nodes on a network
-Data rates up to 12Mbps, automatically detected by the module
-Cyclic data sizes of up to 32 words in/out
-Non-cyclic access available by mapping a non-cyclic channel into the cyclic data
-DP-V1 adds a non-cyclic channel
-Vendor-independent profile for variable speed drives, PROFIdrive
What is PROFIBUS-DP?
PROFIBUS-DP (Decentralized Peripheral) is a networking system that falls into the generic category of fieldbus. Fieldbuses are generally defined as industrial networking systems that are intended to replace traditional wiring systems.
The SM-PROFIBUS DP-V1 is a fieldbus Solutions Module that can be installed to the expansion slot(s) in any of the following drives to provide PROFIBUS-DP slave connectivity:
• Unidrive SP
• Commander SK
• Affinity
• Digitax ST
• Mentor MP
With the exception of the Commander SK drive, it is possible to use more than one SMPROFIBUS DP-V1 or a combination of SM-PROFIBUS DP-V1 and other Solution Modules to add additional functionality such as extended I/O, gateway functionality, or additional PLC features
Control Techniques is a leading manufacturer of AC and DC speed variation, servo motors and power conversion technologies for commercial and industrial applications. Their innovative products are used in the most demanding applications, requiring performance, reliability and energy efficiency.
Nidec Control Techniques has been at the forefront of industrial-driven drive technology for more than 40 years. They are dedicated to the advancement of automation. From product development to their headquarters to their 45 automation centers around the world, Nidec Control Techniques provides industry-relevant solutions. They guarantee high performance, reliability and energy efficiency in all applications.
