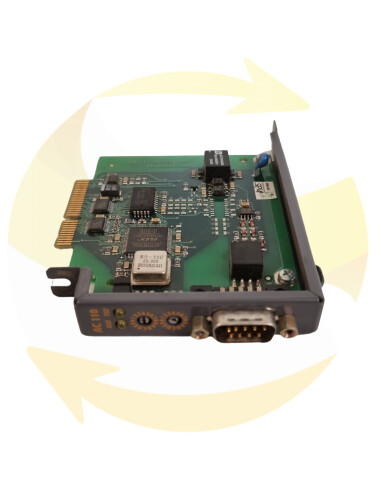

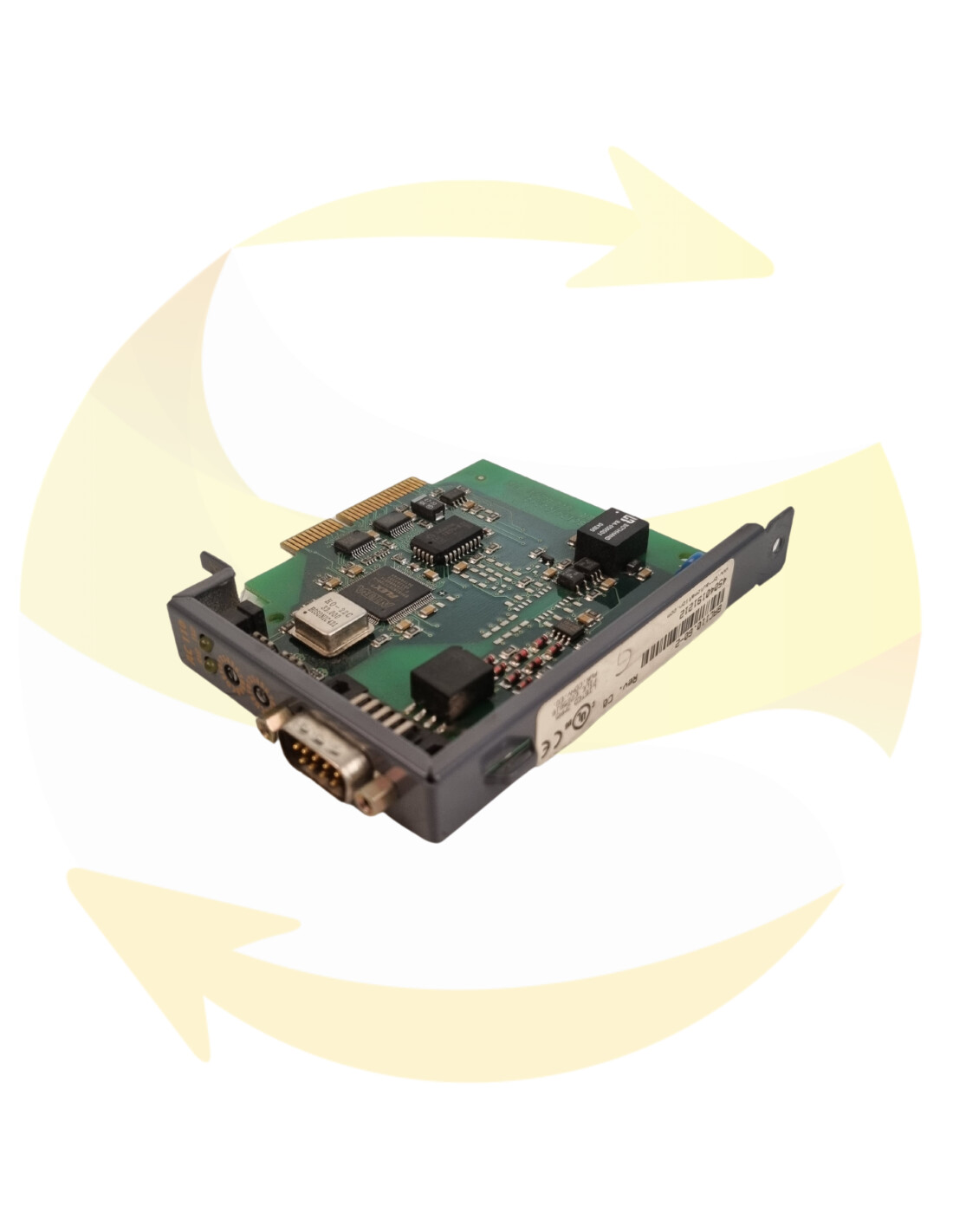

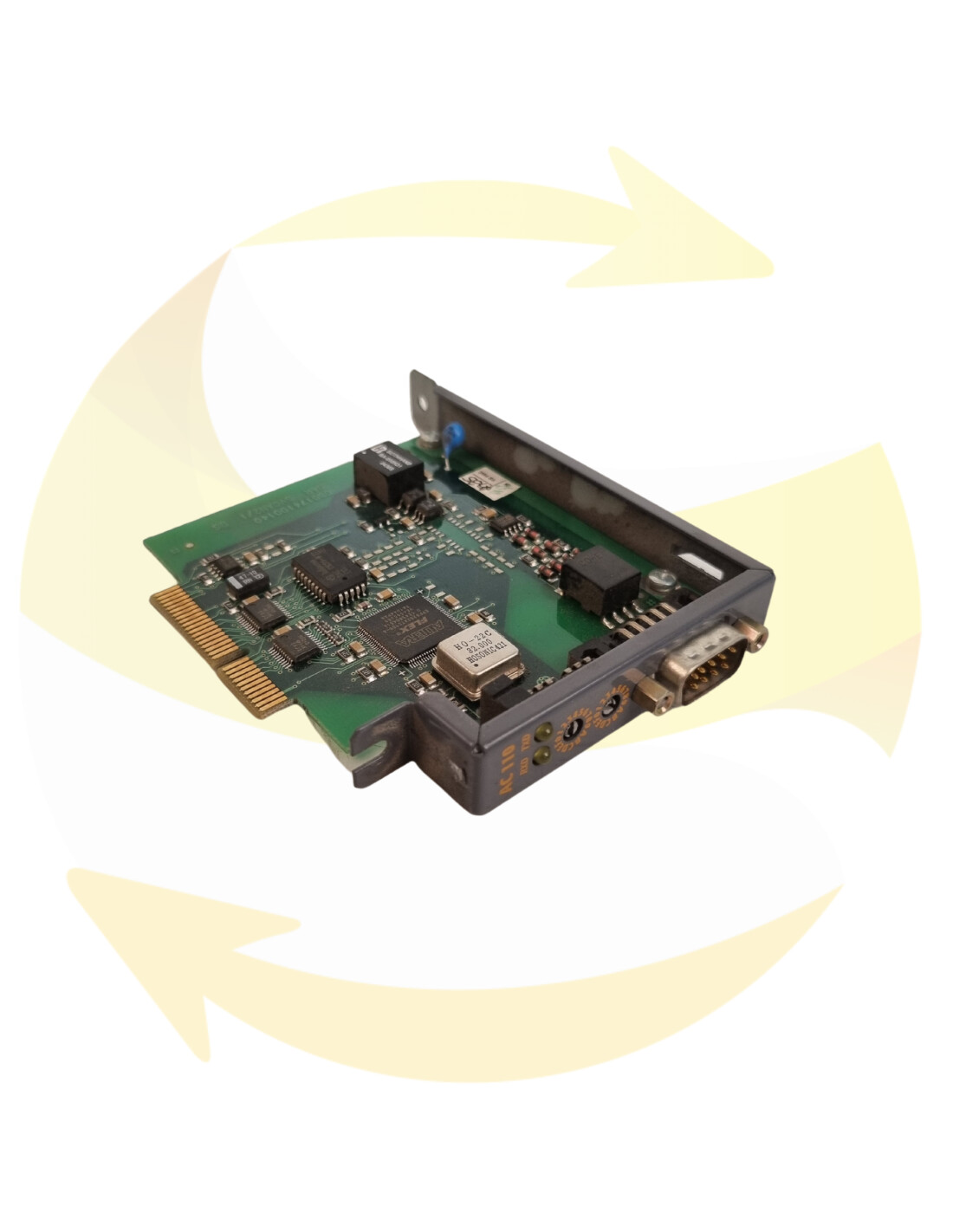

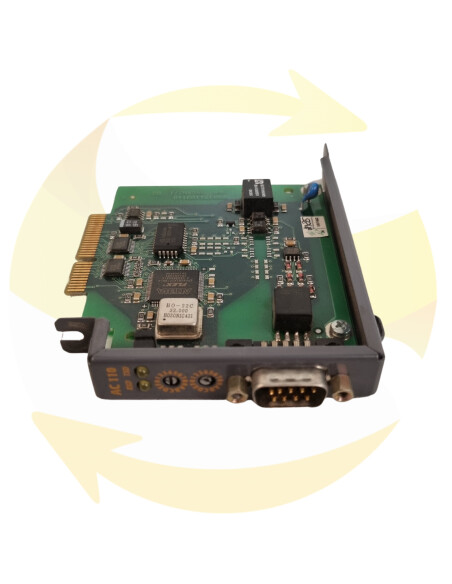

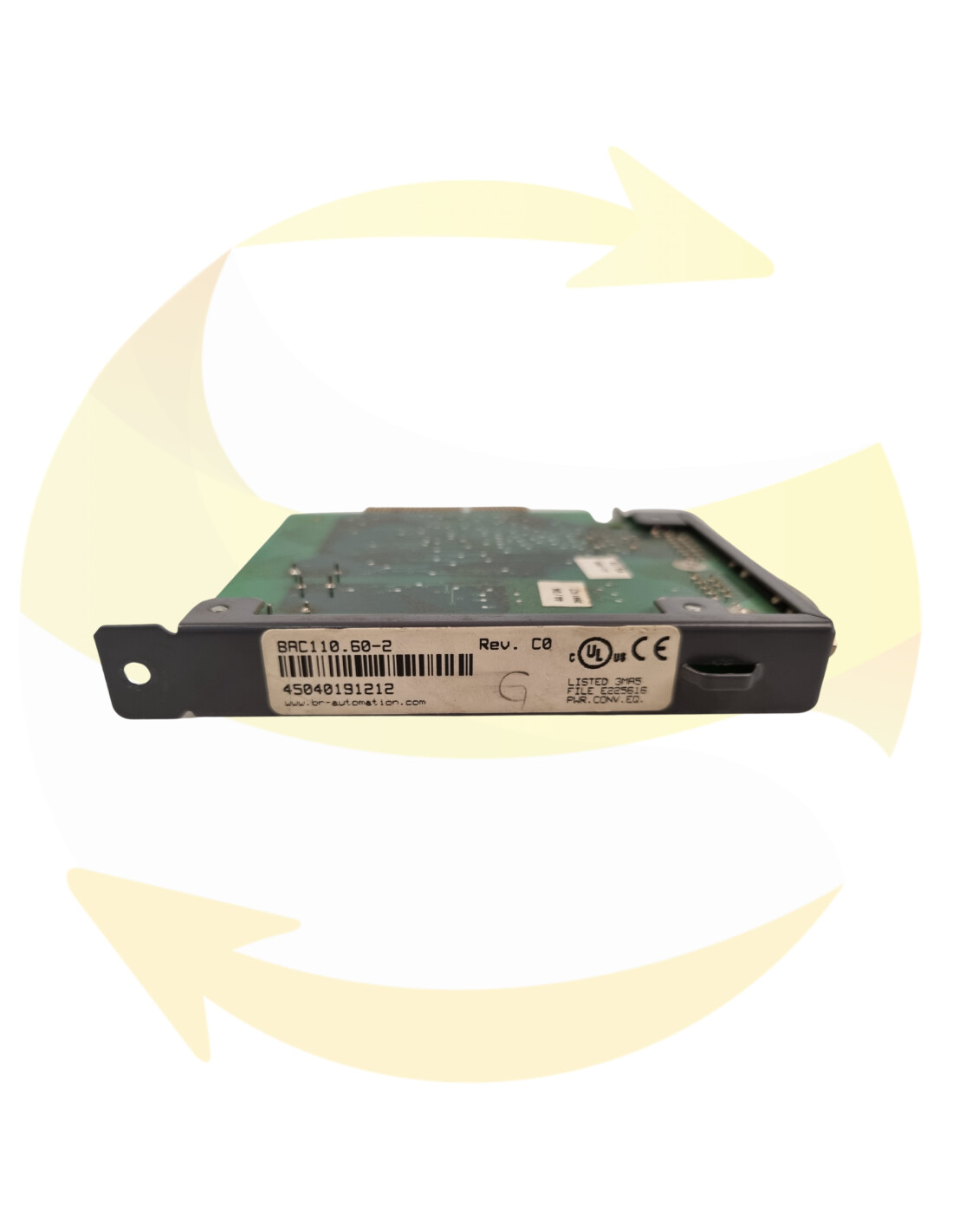

8AC110.60-2

This B&R plug-in module is part number 8AC110.60-2. It corresponds to the ACOPOS range for servo drives of the same range.

CAN interface for installation in ACOPOS servo drives

B&R module reconditioned and tested on a manufacturer's test bench (100% test).

In stock, ready to ship.
State
  • Refurbished Supply
Warranty
€155.00
VAT excluded

System options

Exchange service with a refurbished unit

Standard Exchange Service

Reconditioned and tested systems

From 6 to 12
month warranty

Exchange service with a new unit

Standard Exchange Service

New systems

From 12 to 24
month warranty

Supply of a refurbished unit

Supply Service

Reconditioned and tested systems

From 6 to 12
month warranty

Supply of a new unit

Supply Service

New systems

From 12 to 24
month warranty

For parts only

Supply Service

Sold for parts – no warranty

Repair

Repair service

Repair will be made to damaged and defectiv units

From 3 to 18
month warranty

Livraison rapide

Fast
delivery

Livraison rapide

guaranteed
products

Livraison rapide

Secure
payment



The ACOPOS servo family was thoroughly tested during the development phase. Under difficult conditions, such as heavy vibrations or increased temperatures, the devices were subject to loads that greatly exceed the values that occur in normal everyday operation.

The I/O channels needed to operate a servo axis are part of thestandard equipment for ACOPOS servo drives.
The user is provided two trigger inputs for tasks requiring precise measurements or registration mark control.

Further configuration of the ACOPOS servo drive to meet the respective application-specific demands takes place using plug-in modules. Plug-in modules are available to establish network connections with other drives, controllers and visualization devices as well as for the connection of encoders, sensors and actuators. Additionally, CPU modules for controller and drive integration are also available for drive-based automation.

ACOPOS servo drives can be configured for demanding positioning tasks such as electronic gears or cam profiles.
Based on long-term cooperation with customers from all over the world, B&R shares its know-how in the form of compact function blocks for many applications. Industry-specific functionality can be quickly and easily implemented in an application program.

ACOPOS servo drives include several technology-specific functions with performance, flexibility and capability in the field which has been remarkably proven in countless applications. The ACOPOS functions listed below are basic functions that the user can switch between as needed within 400 μs. In addition, manipulations such as changes in product length, registration mark control, overlying torque control, brief process adaptations and quality checks can be carried out at any time.
• Point-to-point movements
• Electronic gears
• Electronic differential gears
• Cutting units
• Electronic cam profiles
• Flying saws
• Line shafts
• CNC

ACOPOS servo drives can be used in various configurations depending on the network type and the requirements of the application. The functions listed above are available to the user in each of the topology examples shown.
Response speeds are not influenced by the network and control system being used if technology functions are processed directly on the ACOPOS servo drive. Additional sensors and actuators must be integrated in the control system for more complex processes. In these cases, the level of performance depends mostly on the type of network and control system being used.

Controlling your power transmission system with B&R ACOPOS servo drives allows you to fully use the advantages of an optimized system architecture. Applications that require additional positioning tasks such as torque limitation or torque control can be created quickly and elegantly. The flexible system concept for B&R servo drives is made possible by coordinated hardware and software components. You can select the optimal system configuration for your application and increase your competitiveness.
• Perfect integration in all B&R product families
• Object-oriented axis programming minimizes development time and increases reusability
• Integrated technology functions for industry-specific tasks
• Operation of synchronous and induction motors possible
• Current controller scan time up to 50 µs
• Reduced commissioning and service times using "embedded motor parameter chip"
• CAN bus and POWERLINK network connection
• Input voltage range from 400 - 480 VAC (±10%) for many areas of use
• Connection possibilities for all standard encoder systems
• Up to two free slots for optional technology modules
• Electronic secure restart inhibit integrated
• Optionally available as version with partially-coated circuit boards – more robust with regard to environmental influences

Height
8 cm / 3,1 in
Width
2 cm / 0,7 in
Length
8 cm / 3,1 in
Weight
0,2 kg / 0,4 lb
Family
ACOPOS
Reference
8AC110.60-2
Refurbished

B&R is an Austrian company founded in 1979 by Erwin Bernecker and Josef Rainer in Eggelsberg near Salzburg.

B&R provides complete solutions in industrial automation.

Range of extended products programmed and configured using Automation Studio software.
