JUSP-RCP01AAC - Power Supply Module - YASKAWA

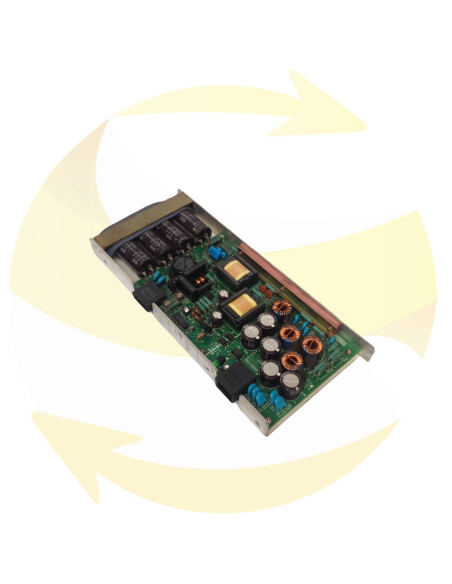

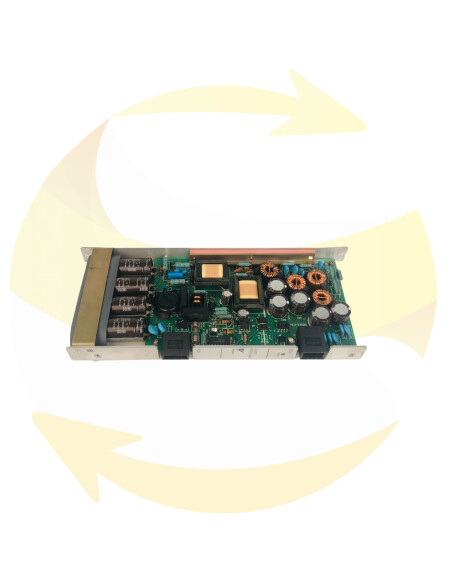

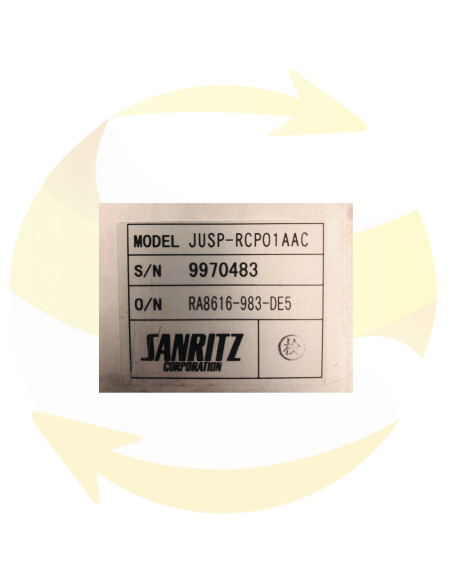

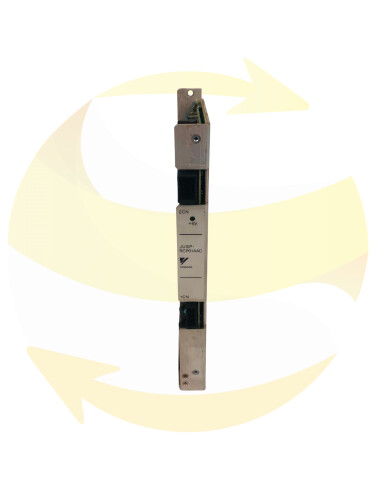

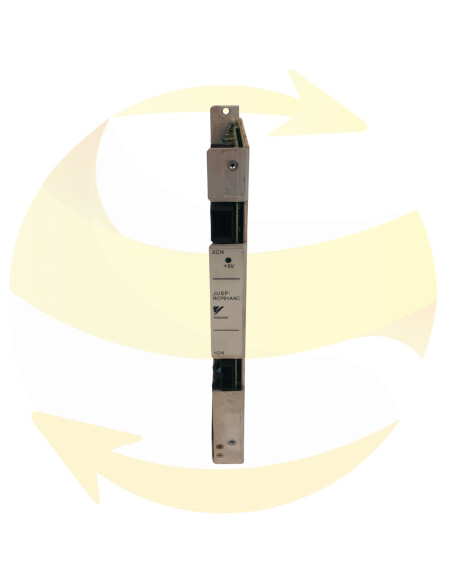

This YASKAWA power supply module is reference JUSP-RCP01AAC. It is used several YASKAWA servopacks.
This power supply module generates a DC power supply (+ 5V, + 7V, ± 15V) for servo control. The AC input (single phase: 200/220 VAC) is provided by the power supply.
This YASKAWA module is at your disposal to replace your defective equipment.
A SERVOPACK includes a servo control circuit board (JASP-WRCA01), a servo control power supply (JUSP-RCP01AA-), a converter and an amplifier.
For the high capacity type, the converter and the servo power supply are separated.
- Servo Control Circuit Board (JASP-WRCA01)
This is a circuit board that controls the six-axis servomotors of the manipulator. This board controls the converter, amplifiers, and the power supply unit (JZRCR-XSU02). The power source is provided by a servo power supply.
- Power supply for servo control (JUSP-RCP01AA-)
This unit generates a DC power supply (+ 5V, + 7V, ± 15V) for servo control. The AC input (single phase: 200/220 VAC) is provided by the power supply.
- Converter
This exchanges the power source (three phase: 200 / 220VAC) supplied by the power supply for a DC power source and supplies the amplifiers with energy for each axis.
- amplifier
It exchanges the DC power source supplied by a converter against a three-phase power source and is transmitted to each servomotor.
- Speed Control Card (JANCD-XFC01)
This monitors the speed of movement of the robot and sends a speed error signal to the servo control board (JASP-WRCA01) if the speed exceeds the set value.
