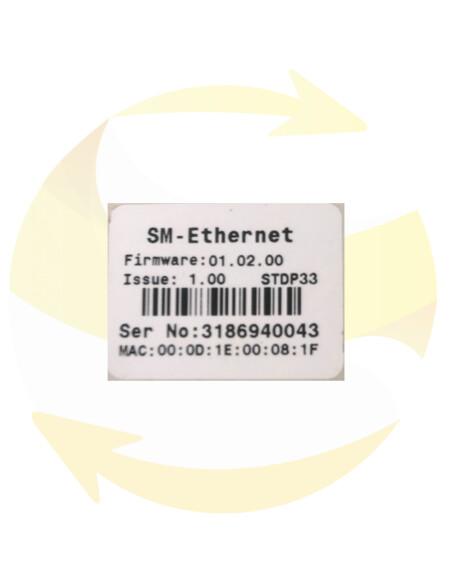

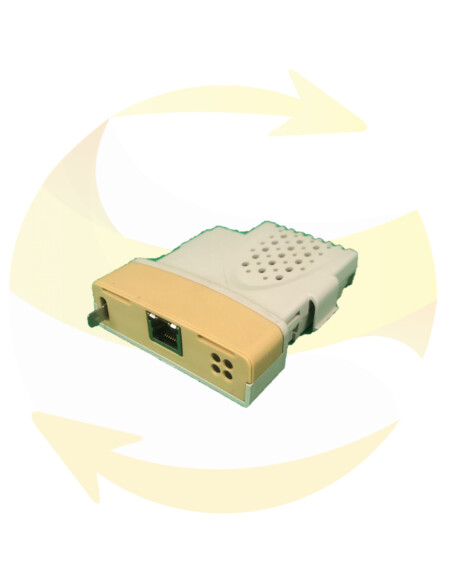

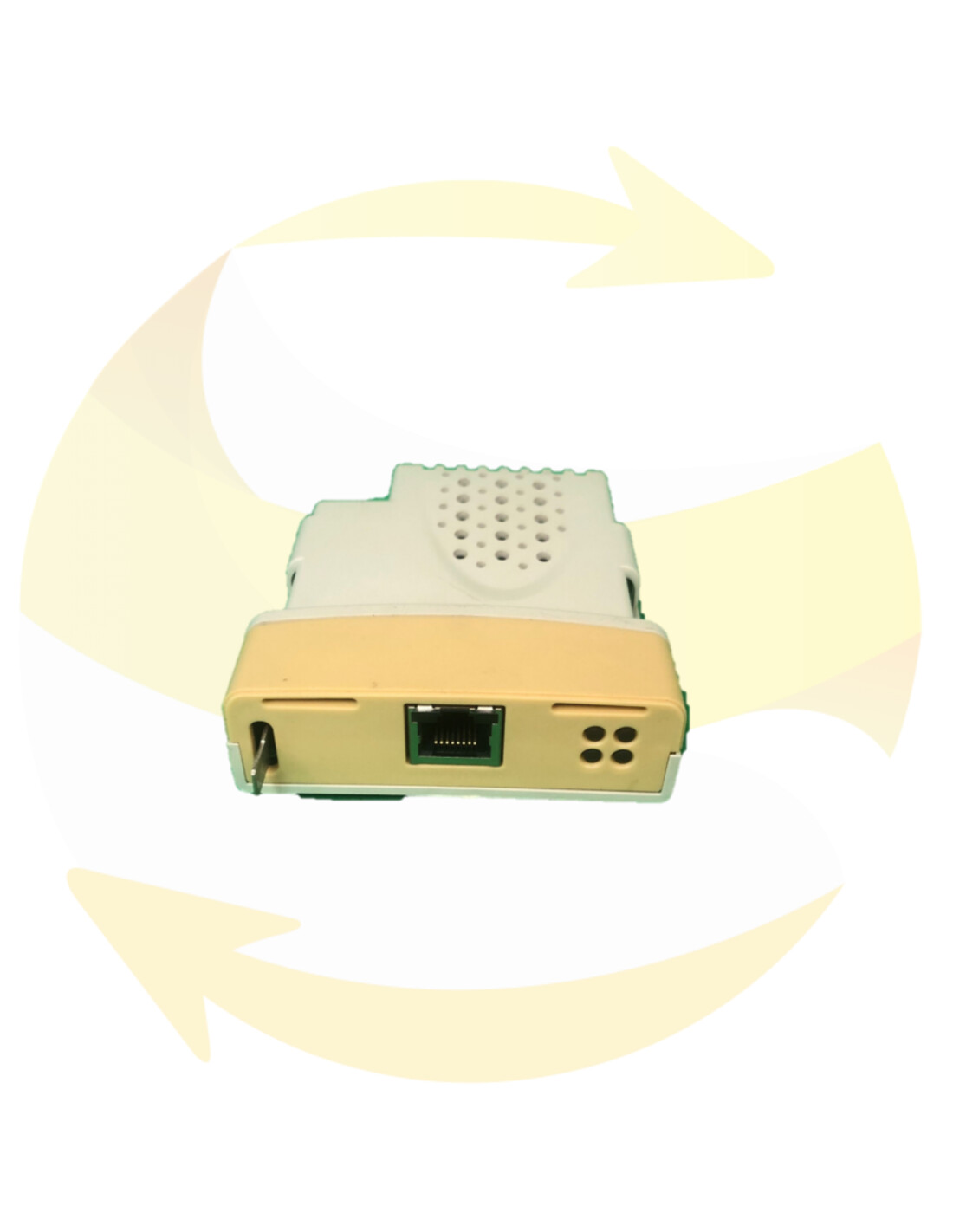

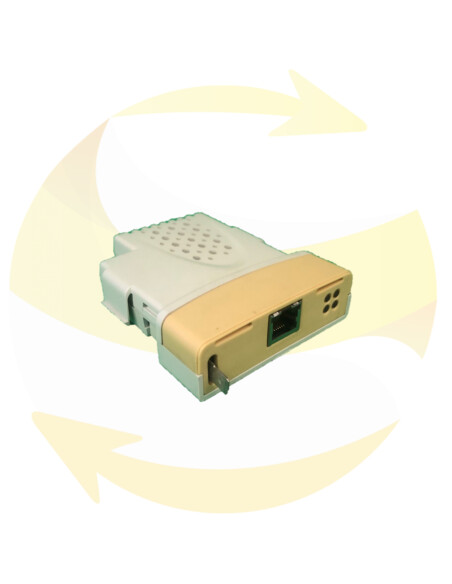

Reference SM-ETHERNET

This SM-ETHERNET interface module from Control Techniques is a programming console from the UNIDRIVE range.

Module compatible with Unidrive SP, Quantum MP, Digitax ST, Mentor MP drives.

This SM-ETHERNET Control techniques interface module is at your disposal to replace your defective equipment and has a guarantee adapted to your needs.

In stock, ready to ship.

State

Refurbished Supply

Warranty

€420.00

VAT excluded

System options

Fast
delivery

guaranteed
products

Secure
payment

SM Ethernet

The SM-Ethernet Option Module supports Ethernet/IP and Modbus TCP/IP and has a built-in web server that can generate emails. The module can be used to provide high-speed drive access, global connectivity and integration with IT network technologies such as wireless networking.

The SM-Ethernet is a Solutions Module that can be used on the following products to provide Ethernet slave connectivity:

• Unidrive SP

• Commander SK

In the case of Unidrive SP it is possible to use more than one SM-Ethernet module or a combination of SM-Ethernet and other Solutions Modules to add additional functionality such as extended I/O, gateway functionality, or additional PLC features. The following list gives an overview of the functionality available within SM-Ethernet.

• Single RJ45 connectivity with support for shielded twisted pair.

• 10/100Mbs Ethernet with auto-negotiation.

• Full and half duplex operation with auto-negotiation.

• Auto crossover detection.

• TCP/IP.

• Modbus TCP/IP.

• EtherNet/IP.

• Embedded web pages for configuration.

• Event driven E-mail generation.

• SyPTPro over Ethernet.

• OPC server over Ethernet.

• CTSoft over Ethernet.

• Static IP configuration or DHCP client.

• SMTP.

• SNTP.

• Firmware updates over Ethernet using web pages.

• User defined web pages.

• Integrated security.

• 4kV impulse isolation.

• Help files integrated into the module.

• Multiple language support.

SM-Ethernet is powered from the host drive’s internal power supply and draws 280mA from the supply

Features include:

-Connectivity with Control Techniques software tools

-Modbus TCP/IP, Ethernet/IP, e-mail, web pages, SNTP

-IP-based addressing

-Data rates 10Mbps/100Mbps

-Cyclic data sizes of up to 80 words in/out

-Explicit messaging supported

-Non-vendor specific AC drive profile supported

Height: 4 cm / 1,5 in
Width: 7 cm / 2,7 in
Length: 10 cm / 3,9 in
Weight: 0,4 kg / 0,8 lb
Family: UNIDRIVE
Reference: SM-ETHERNET
