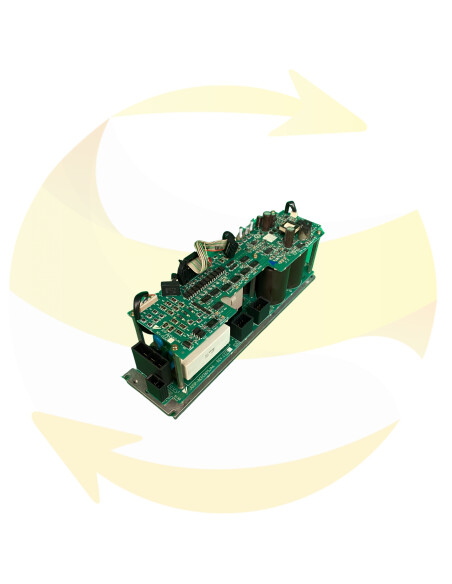

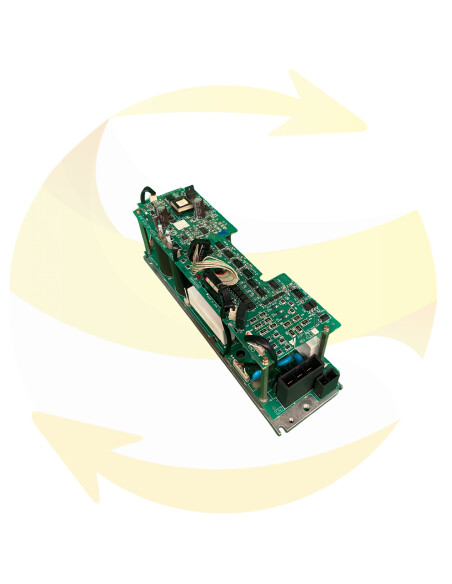

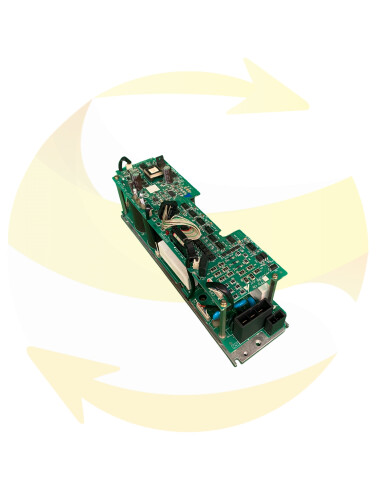

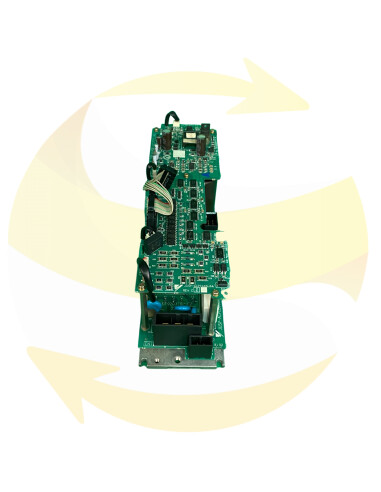

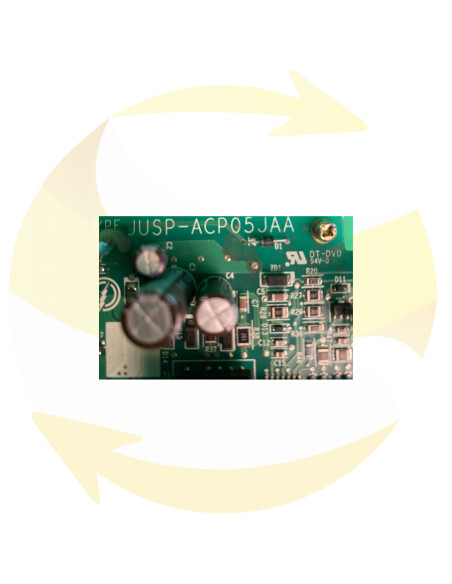

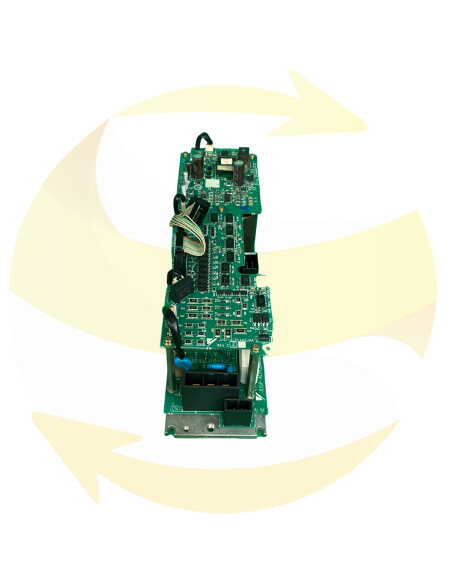

JUSP-ACPA05JAA + JUSP-ACPCB05JAA - Converter - YASKAWA
This YASKAWA converter is composed of 2 modules: JUSP-ACPA05JAA + JUSP-ACPCB05JAA. It is used in CACR-SV3AAA servopacks, CACR-UP6AAC, CACR-SK16AAC, CACR-UP20AAA.
Capacity of 5A.
This YASKAWA converter is at your disposal to replace your defective equipment.
It is sold with a guarantee of operation adapted to your needs.
A SERVOPACK includes a servo control circuit board (JASP-WRCA01), a servo control power supply (JUSP-RCP01AA-), a converter and an amplifier.
For the high capacity type, the converter and the servo power supply are separated.
- Servo Control Circuit Board (JASP-WRCA01)
This is a circuit board that controls the six-axis servomotors of the manipulator. This board controls the converter, amplifiers, and the power supply unit (JZRCR-XSU02). The power source is provided by a servo power supply.
- Power supply for servo control (JUSP-RCP01AA-)
This unit generates a DC power supply (+ 5V, + 7V, ± 15V) for servo control. The AC input (single phase: 200/220 VAC) is provided by the power supply.
This exchanges the power source (three phase: 200 / 220VAC) supplied by the power supply for a DC power source and supplies the amplifiers with energy for each axis.
It exchanges the DC power source supplied by a converter against a three-phase power source and is transmitted to each servomotor.
- Speed Control Card (JANCD-XFC01)
This monitors the speed of movement of the robot and sends a speed error signal to the servo control board (JASP-WRCA01) if the speed exceeds the set value.
