TSXSCM2116 - Communication Coupler - TELEMECANIQUE Expand

TSXSCM2116 - Communication Coupler - TELEMECANIQUE

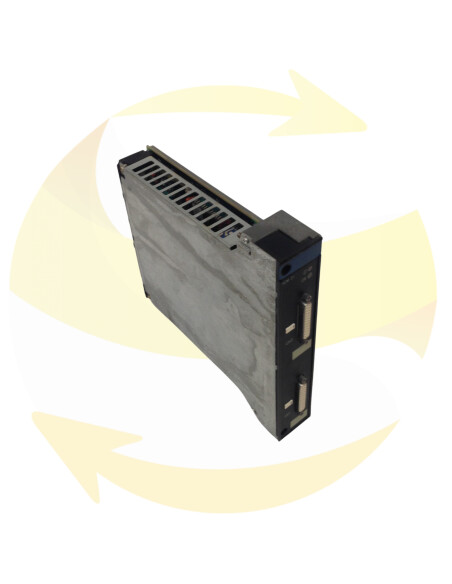

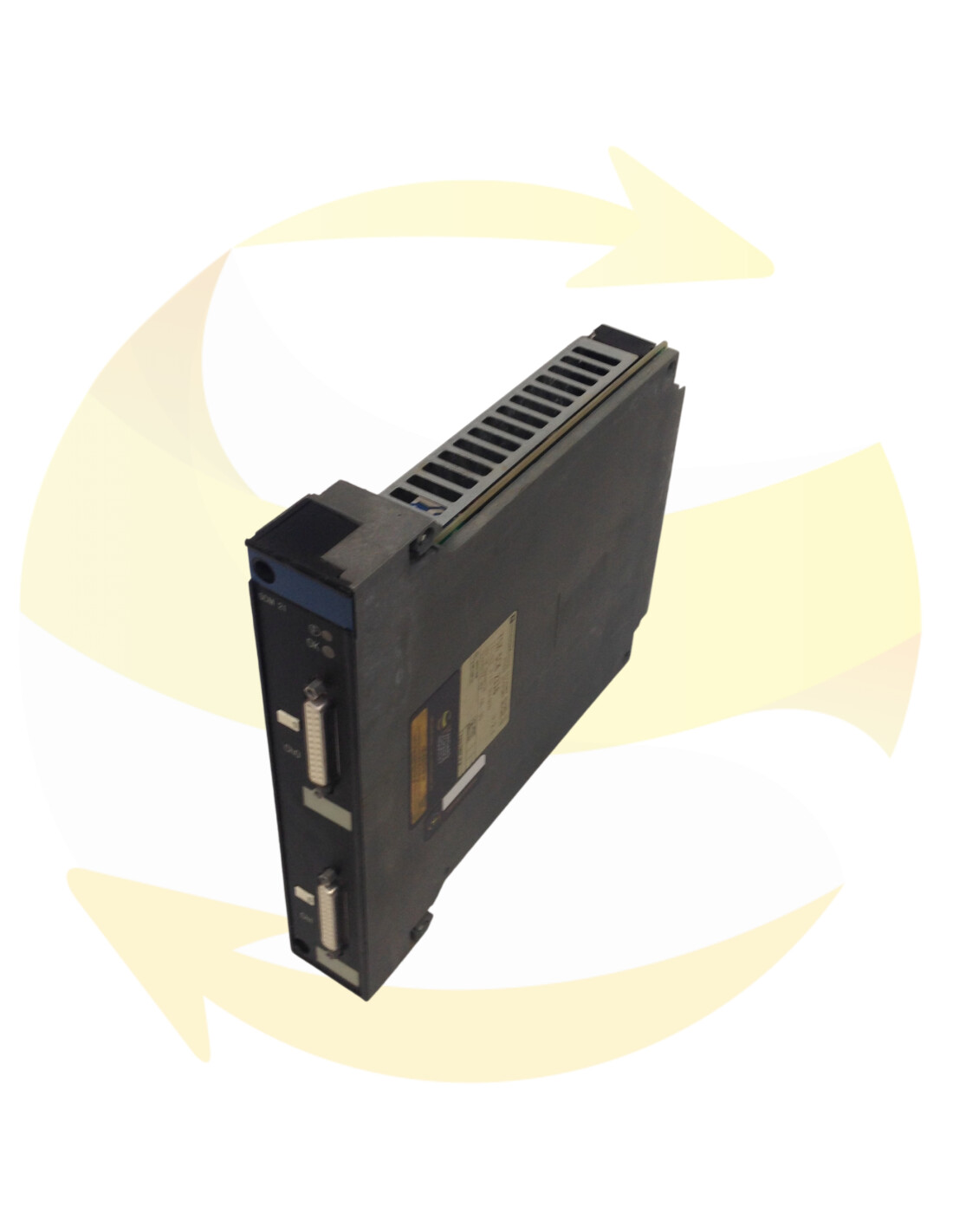

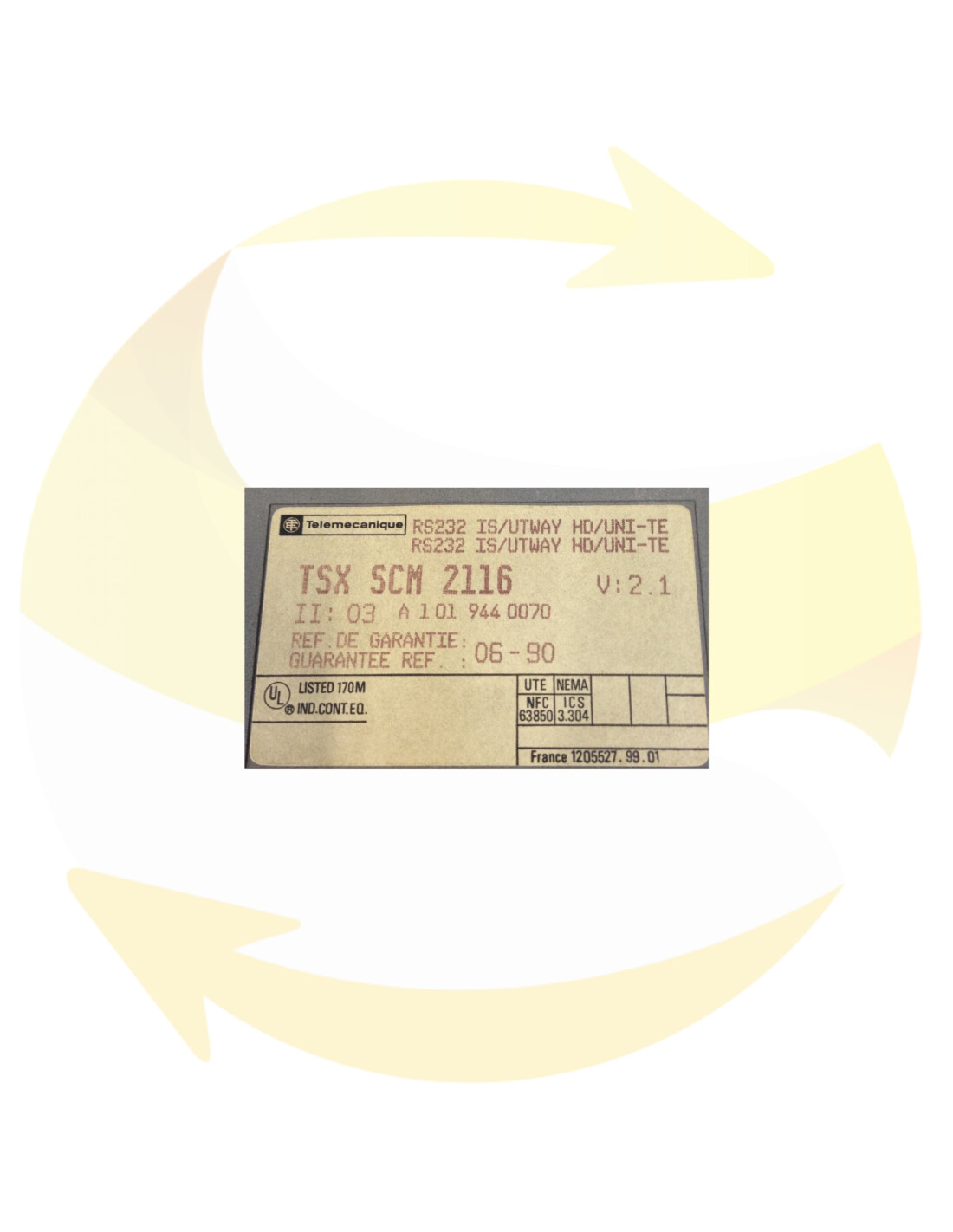

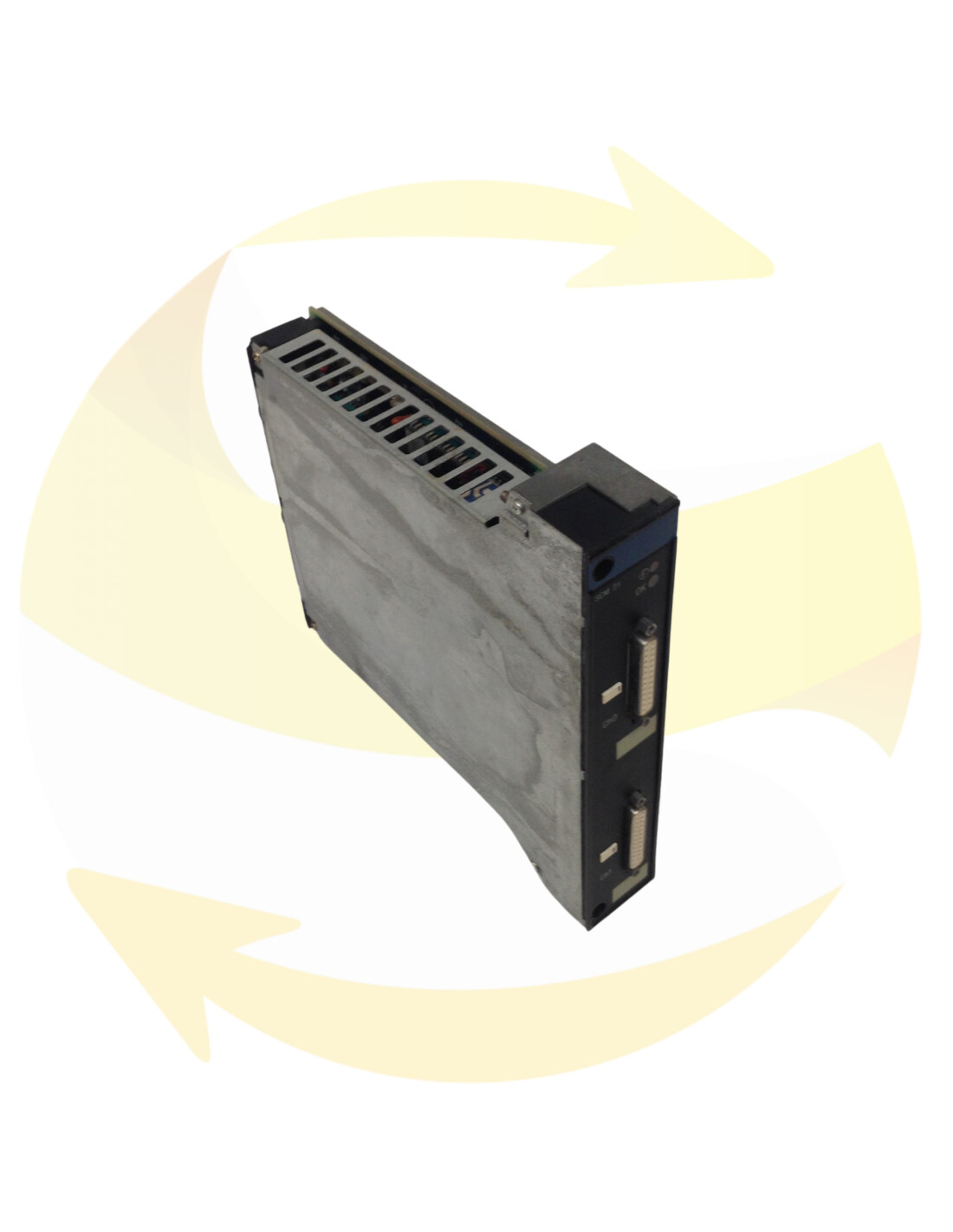

This TELEMECANIQUE communication module is reference TSXSCM2116. It is part of the TSX Series 7 series.

Channel 0: Isolated RS232 C, Channel 1: UNI-TELWAY.

This TELEMECANIQUE communication module is at your disposal to replace your defective equipment and has a guarantee adapted to your needs.

Module reconditioned and tested on a test bench (100% test).

More details

In stock, shipping within 24h.

430,00 €

livraison-2.pngQuick delivery

garantis2.pngWarranted systems

paiement-securise-SEI_1.jpgSecure Payment

Product options

standard exchange refurbished

Standard exchange service

Reconditioned and tested systems
6 to 12 months warranty

new systems

Standard exchange service

New systems
12 to 24 months warranty

supply refurbished

Supply service

Reconditioned and tested systems
6 to 12 months warranty

supply new

Supply service

New systems
12 to 24 months warranty

supply in the state

Supply service

Systems sold in the state
without warranty

The READ_VAR function is used to read the value of one or more language objects: internal bit, internal word, system bit, system word, constant word, internal double word, constant double word, structured objects (timer, monostable, counter, registers, cyclic programmer).
The read objects must always be consecutive. They can be located in a remote central unit or in equipment connected to a communication channel of ETHERNET type TCP / IP, FIPWAY, Uni-telway, terminal port, Modbus, Modbus Plus, Modem.
The response must contain a maximum number of bytes depending on the protocol and the type of destination product.
At the end of the read operation, the length of the received data is stored
in word 4 of the management parameter.
The READ_VAR function can read up to 1000 consecutive bits in a remote device, regardless of this device and whatever protocol is used (Uni-telway or Modbus / Jbus).

In PL7, the input of object types must be consistent. The writing must be done in all lowercase letters or all capital letters otherwise the function returns a report equal to 16 # 06 (specific parameters incorrect).
For TSX Micro or TSX Premium PLCs, access to read internal bits (via Uni-telway) has the following particularity:
- the bit priority value is returned in the response.
- the reading of 1 bit therefore comprises two bytes of response:
- the first contains the value of the 8 bits from the one requested.
- the second contains the indication of the forcing of these bits.
- to read one of the last 8 bits of the memory it is obligatory to read the 8
last, otherwise the function returns a 16 # 01 operation report.

Height 21 cm / 8,2 in
Width 22 cm / 8,6 in
Length 4 cm / 1,5 in
Weight 1,1 kg / 2,4 lbs
Family SERIE 7
Reference TSXSCM2116
