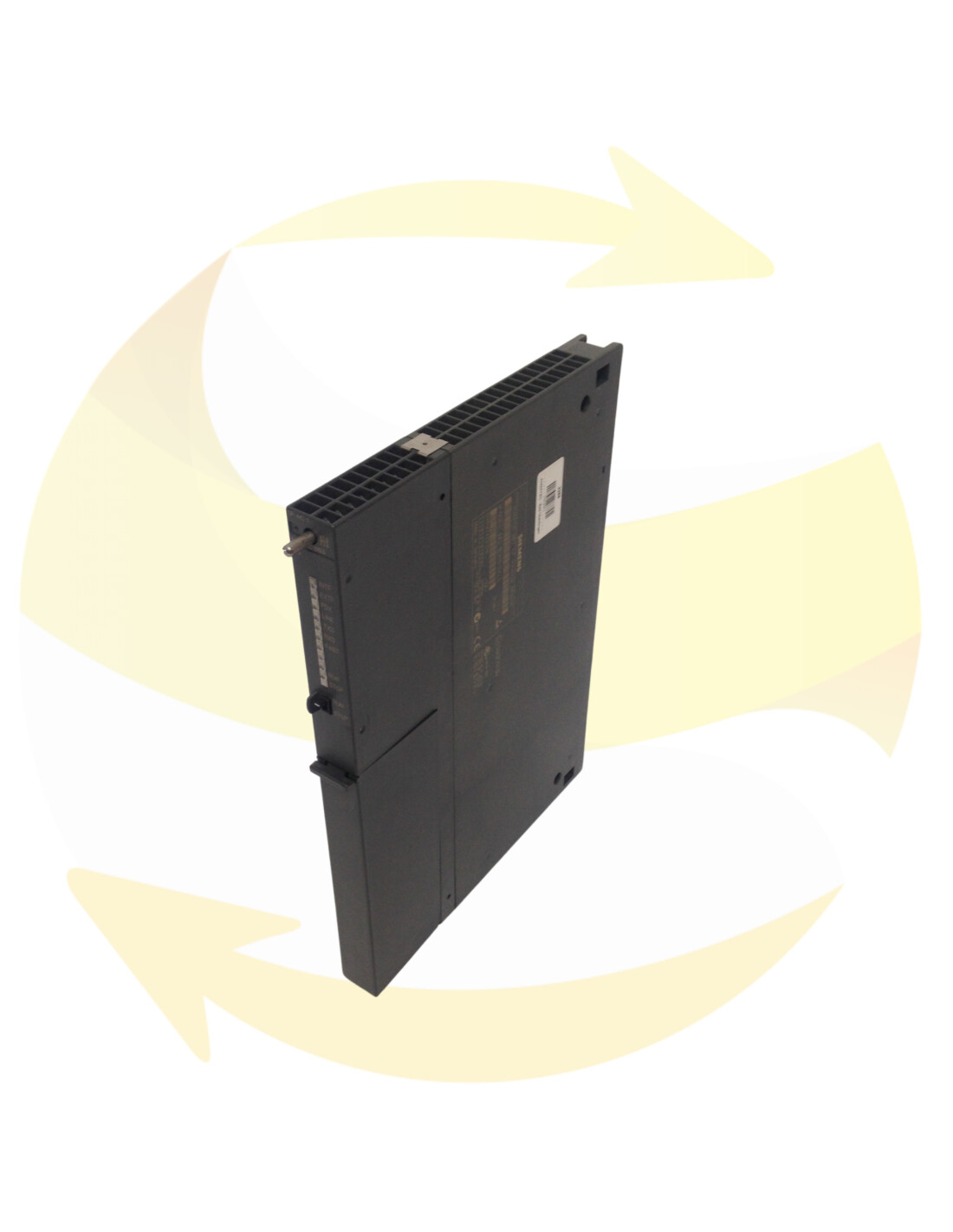

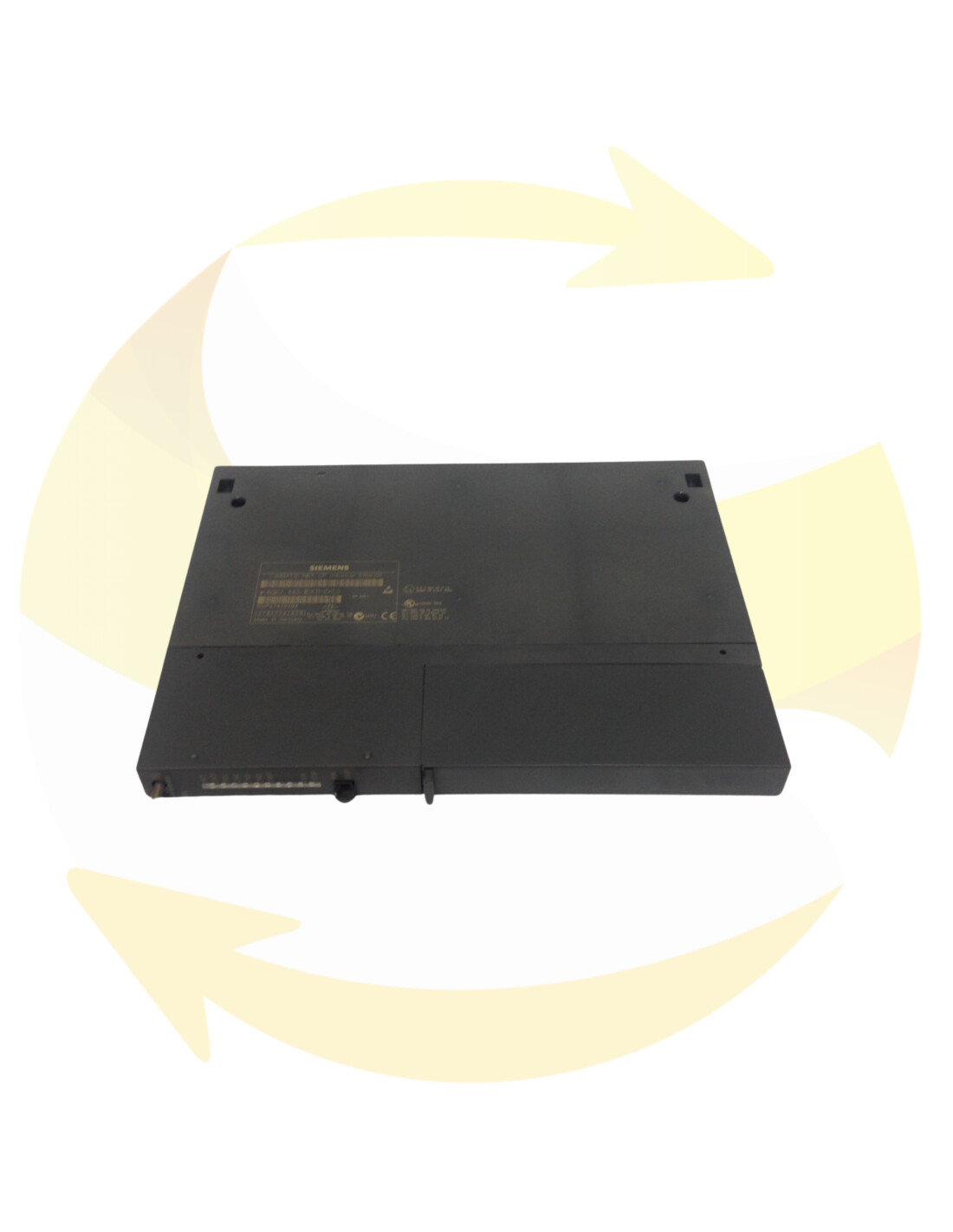

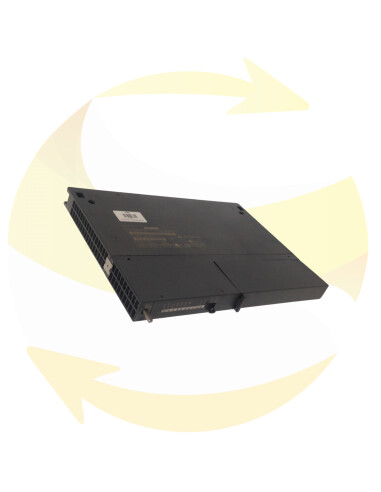

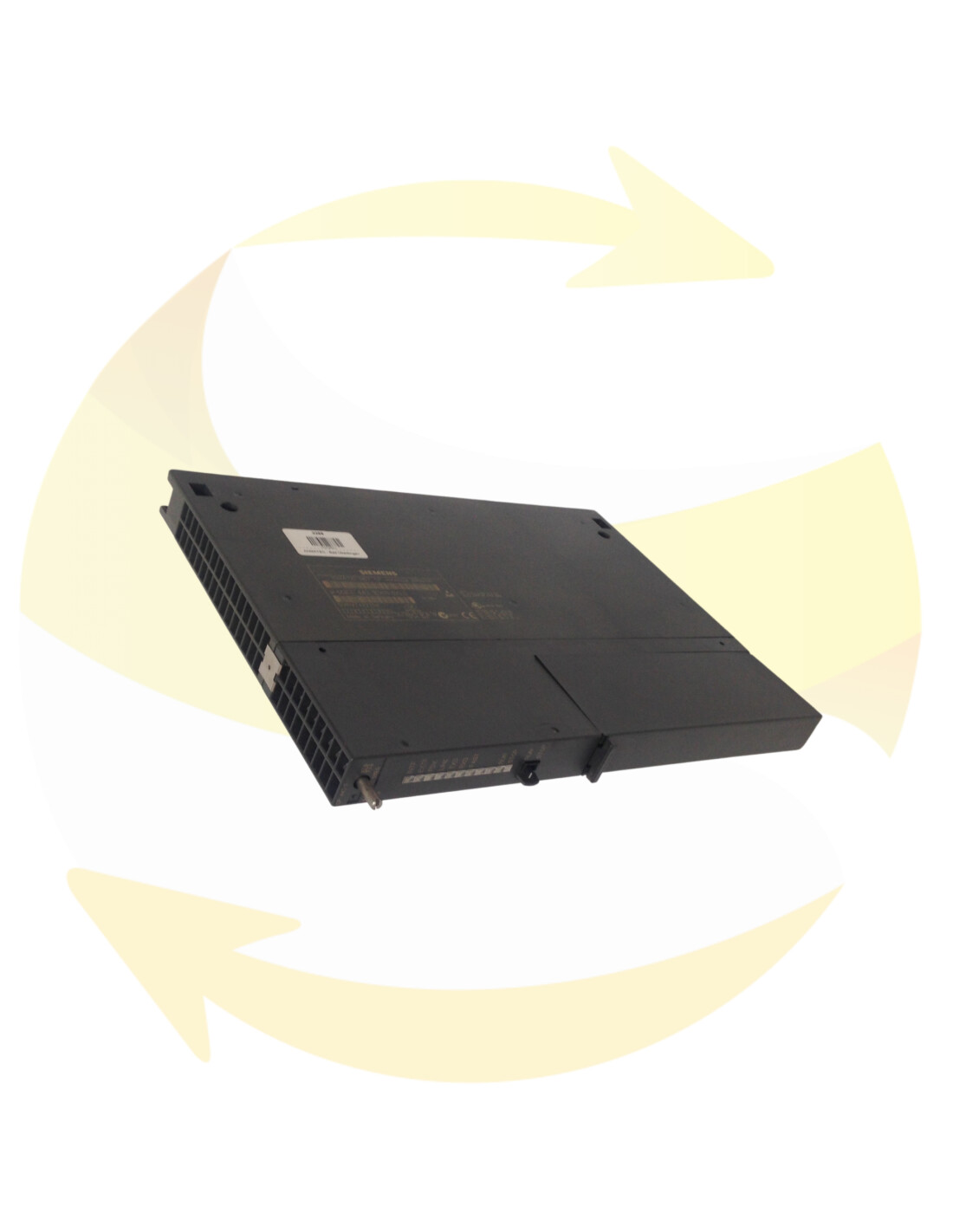

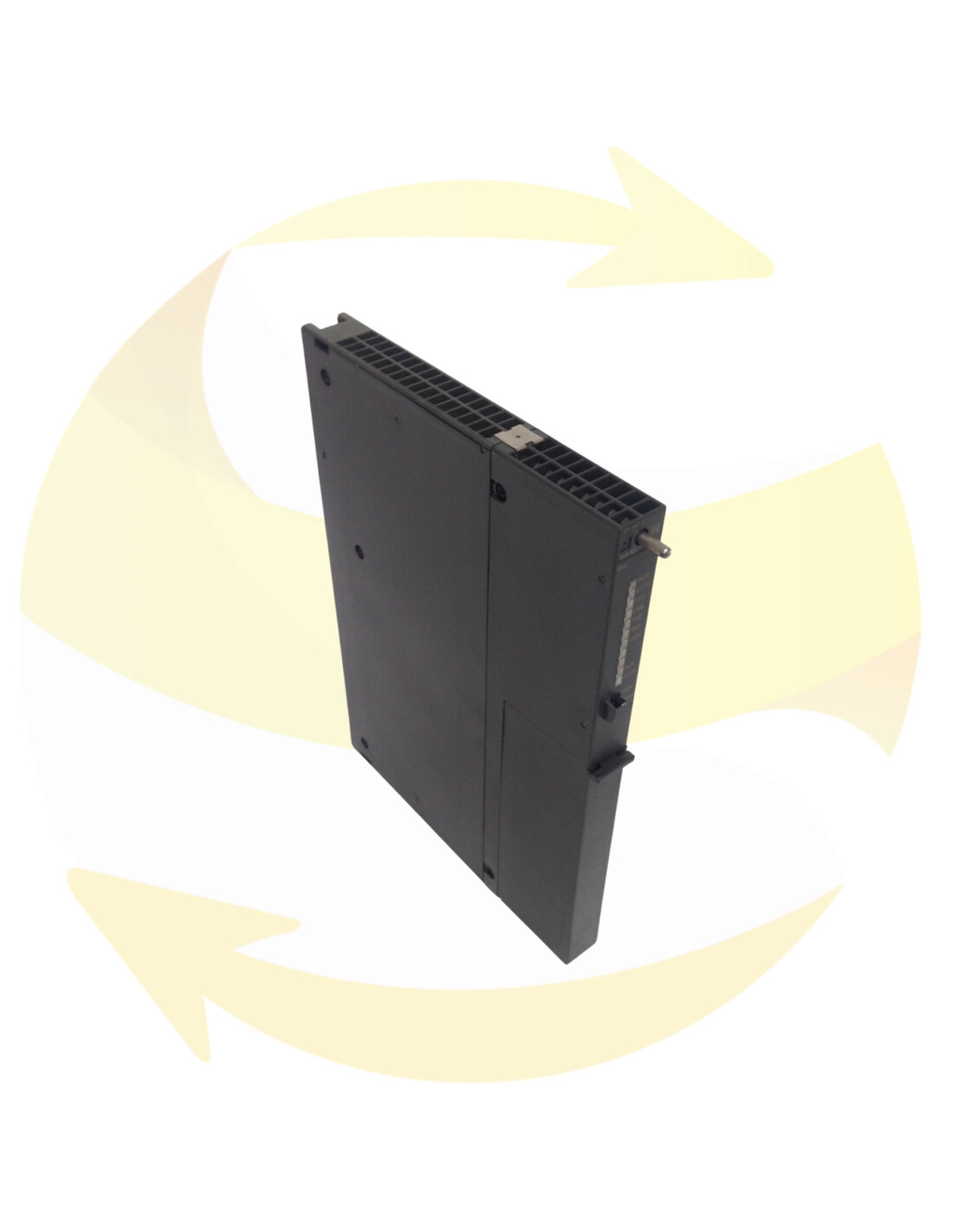

6GK7443-1EX11-0XE0

This reference communication processor 6GK7443-1EX11-0XE0 and brand SIEMENS is part of the SIMATIC S7-400 range.

CP 443-1 - COMMUNICATION PROCESS CP443-1 FOR THE CONNECTION OF SIMATIC S7-400 W. IND. ETHERN., ISO / TCP / IP AND UDP COMM. S7.

This SIEMENS communication processor is at your disposal to replace your defective equipment and has a guarantee adapted to your needs.

In stock, ready to ship.
State
  • Refurbished Supply
Warranty
€310.00

System options

Exchange service with a refurbished unit

Standard Exchange Service

Reconditioned and tested systems

From 6 to 12
month warranty

Exchange service with a new unit

Standard Exchange Service

New systems

From 12 to 24
month warranty

Supply of a refurbished unit

Supply Service

Reconditioned and tested systems

From 6 to 12
month warranty

Supply of a new unit

Supply Service

New systems

From 12 to 24
month warranty

For parts only

Supply Service

Sold for parts – no warranty

Repair

Repair service

Repair will be made to damaged and defectiv units

From 3 to 18
month warranty

Livraison rapide

Fast
delivery

Livraison rapide

guaranteed
products

Livraison rapide

Secure
payment



The CP 443-1 communications processor is designed for operation in an S7-400 (standard) and S7-400H (fault-tolerant system) programmable logic controller. It allows the S7-400 / S7-400H to be attached to Industrial Ethernet.

The CP 443-1 supports the following communication services:

S7 communication with
- PG functions
- Operator monitoring and control functions
- Data exchange on S7 connections (fault-tolerant S7 connections also possible)

S5-compatible communication with

- SEND/RECEIVE interface via ISO transport connections
- SEND/RECEIVE interface via ISO-on-TCP and UDP connections
- SEND/RECEIVE interface via TCP connections
- With the SEND/RECEIVE interface via TCP connections, the CP 443-1 supports the socket interface to TCP/IP available on practically every end system.
- Multicast over UDP connection
The multicast mode is made possible by selecting a suitable IP address when configuring connections.
- FETCH/WRITE services (server; corresponding to S5 protocol) via ISO transport connections, ISO-on-TCP connections and TCP connections
Here, the SIMATIC S7-400 with the CP 443-1 is always the server (passive connection establishment) while the fetch or write access (client function with active connection establishment) is always initiated by a SIMATIC S5 or a device from another range.
- LOCK/UNLOCK with FETCH/WRITE services (depending on the CPU)

Time-of-day synchronization over Industrial Ethernet according to the following defined procedure:

- SIMATIC mode
The CP receives MMS time-of-day messages and synchronizes its local time;
or
- NTP mode (NTP: Network Time Protocol)
The CP sends time queries to an NTP server at regular intervals.

- Can be addressed using a factory-set MAC address
The CP can be reached using the factory-set MAC address to allow IP address assignment; the CP supports the PST function (Primary Setup Tool).

Height
29 cm / 11,4 in
Width
22 cm / 8,6 in
Length
2,5 cm / 0,9 in
Weight
0,7 kg / 1,5 lb
Family
SIMATIC S7
Reference
6GK7443-1EX11-0XE0
Refurbished
3001823103456
300941347357

Siemens is an international group of German origin specializing in high technology and present in the sectors of industry, energy and health. It was founded in 1847 by Werner von Siemens.
