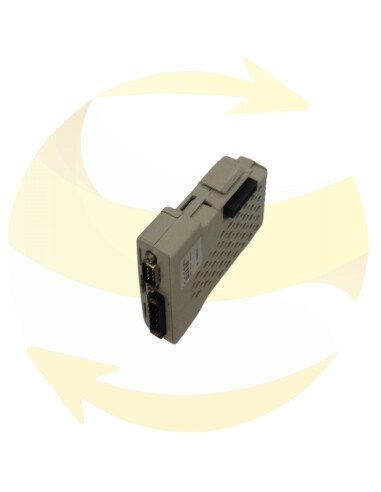

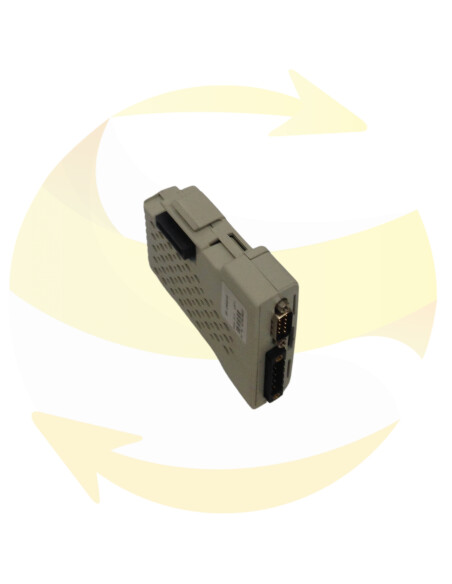

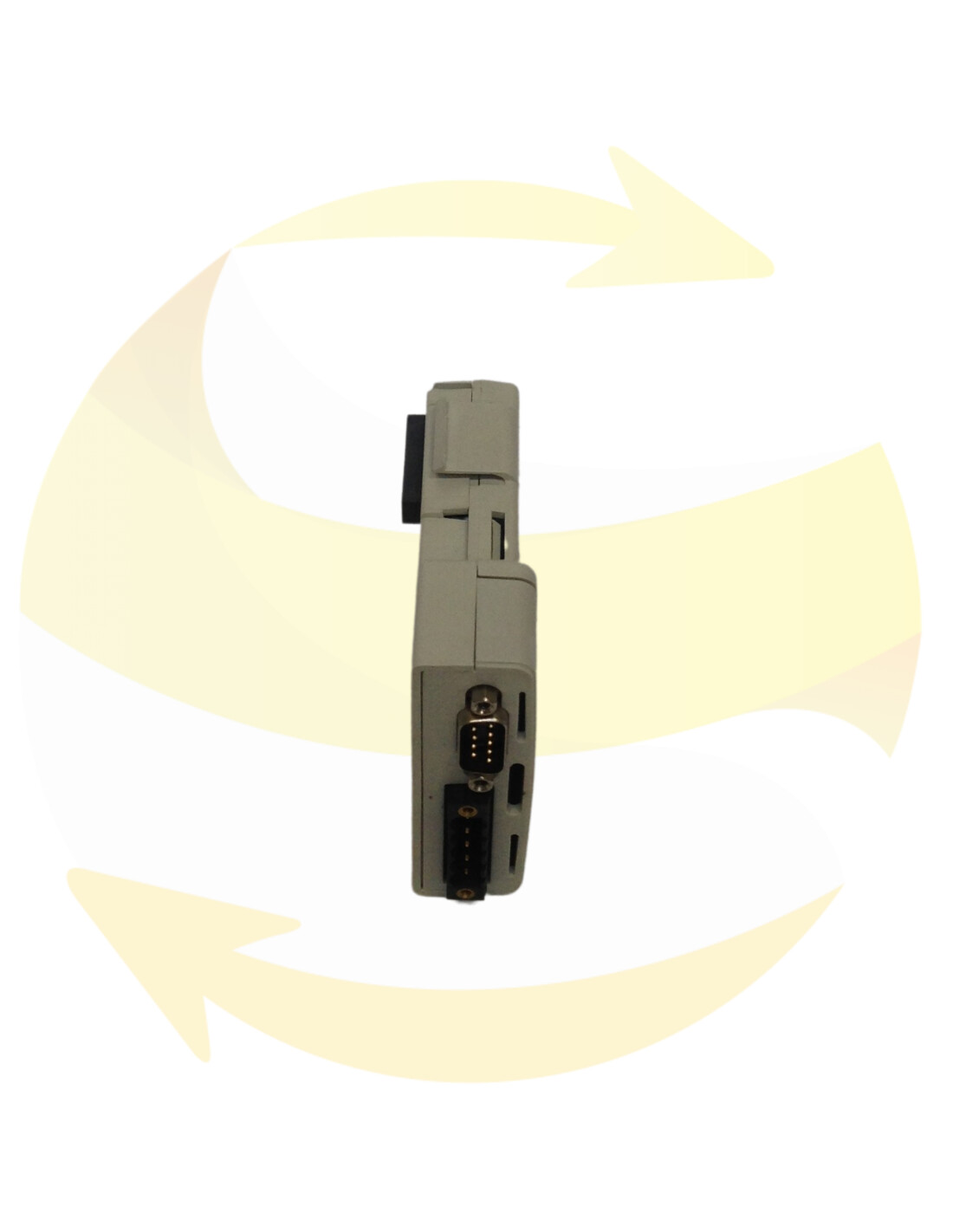

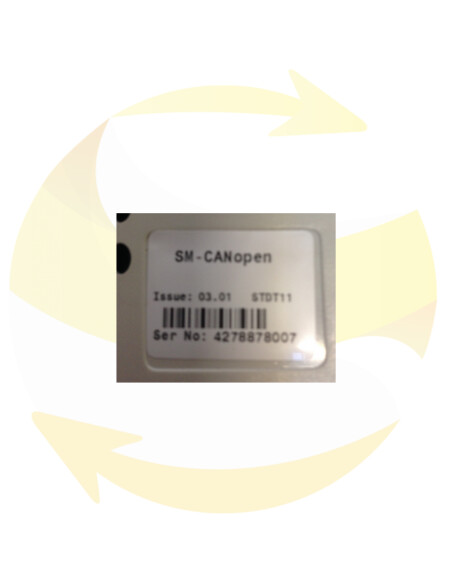

SM-CANopen - Interface module - CONTROL TECHNIQUES
SM-CANopen
This SM-CANopen interface module from Control Techniques is a programming console from the UNIDRIVE range.
Module compatible with Unidrive SP, Quantum MP, Digitax ST, Mentor MP drives.
This SM-CANopen Control techniques interface module is at your disposal to replace your defective equipment and has a guarantee adapted to your needs.
Standard Exchange Service
Reconditioned and tested systems
From 6 to 12
month warranty
Standard Exchange Service
New systems
From 12 to 24
month warranty
Supply Service
Reconditioned and tested systems
From 6 to 12
month warranty
Supply Service
New systems
From 12 to 24
month warranty
Supply Service
Sold for parts – no warranty
Repair service
Repair will be made to damaged and defectiv units
From 3 to 18
month warranty
Fast
delivery
guaranteed
products
Secure
payment
What Is CANopen?
CANopen is a networking system that falls into the generic category of Fieldbus. Fieldbuses are generally defined as industrial networking systems that are intended to replace traditional wiring systems
SM-CANopen is a fieldbus Solutions Module that can be installed to the expansion slot(s) in any of the following drives to provide CANopen connectivity.
• Unidrive SP
• Mentor MP
• Commander SK
• Digitax ST
• Affinity
In some drives it is possible to use more than one SM-CANopen or a combination of SM-CANopen and other Solutions Modules to add additional functionality such as extended I/O, gateway functionality, or additional PLC features.
SM-CANopen
Control Techniques’ SM-CANopen Option Module interface supports various profiles including several drive profiles.
Features include:
-Up to 127 nodes can be on a network
-Data rates up to 1Mbps, automatically detected by the module
-Up to 4 cyclic data channels, each containing up to 4 words in/out
-Non-cyclic data available: SDO non-cyclic protocol or mapping non-cyclic channel into the cyclic data
-Vendor-independent profile supported: DS-402 profile supported (drives and motion control)
-A Control Techniques-specific drive synchronization mechanism implemented for synchronization of position loops between drives on CANopen network
-Object dictionary extendible with an SM-Applications Option Module
- Height
- 4 cm / 1,5 in
- Width
- 7 cm / 2,7 in
- Length
- 10 cm / 3,9 in
- Weight
- 0,4 kg / 0,8 lb
- Family
- UNIDRIVE
- Reference
- SM-CANopen
Refurbished
Control Techniques is a leading manufacturer of AC and DC speed variation, servo motors and power conversion technologies for commercial and industrial applications. Their innovative products are used in the most demanding applications, requiring performance, reliability and energy efficiency.
Nidec Control Techniques has been at the forefront of industrial-driven drive technology for more than 40 years. They are dedicated to the advancement of automation. From product development to their headquarters to their 45 automation centers around the world, Nidec Control Techniques provides industry-relevant solutions. They guarantee high performance, reliability and energy efficiency in all applications.
