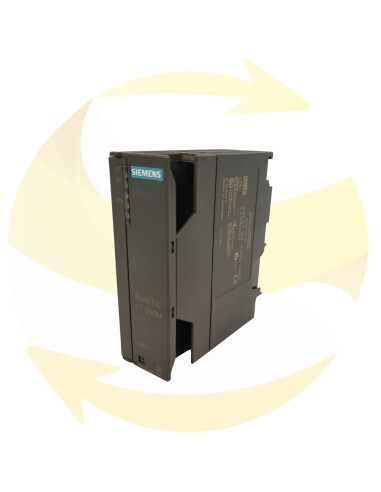

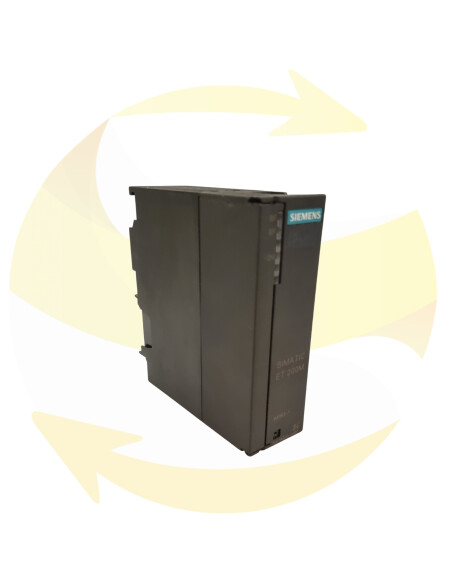

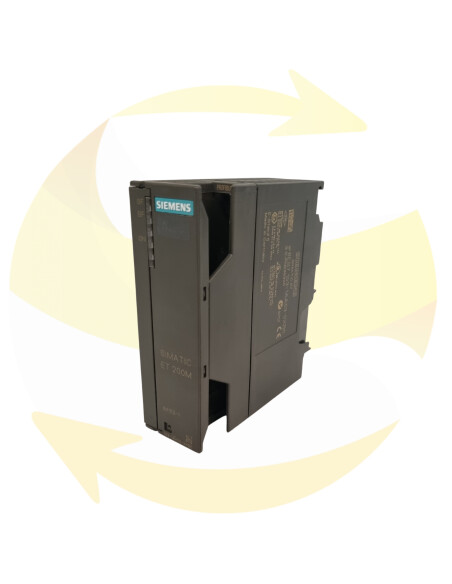

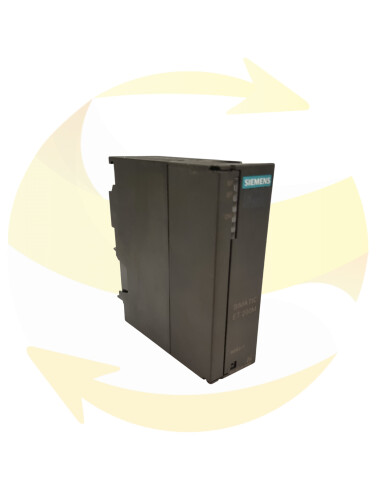

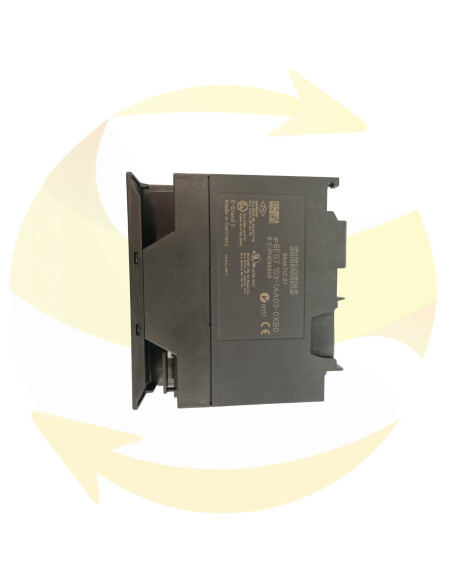

6ES7153-1AA02-0XB0

This interface module BUS (ET200M) IM 153-1 reference 6ES7153-1AA02-0XB0 and brand SIEMENS is a module for the S7-300 range, FM350 to FM352, FM355, CP341.

ET200M, MODULE INTERFACE IM153-1 SIMATIC DP, IM 153-1 INTERFACE, FOR ET 200M, FOR MAX. 8 S7-300 MODULES

This SIEMENS module is at your disposal to replace your defective equipment and has a guarantee adapted to your needs.

In stock, ready to ship.
State
  • Refurbished Service Exchange
  • Refurbished Supply
Warranty
€95.00

System options

Exchange service with a refurbished unit

Standard Exchange Service

Reconditioned and tested systems

From 6 to 12
month warranty

Exchange service with a new unit

Standard Exchange Service

New systems

From 12 to 24
month warranty

Supply of a refurbished unit

Supply Service

Reconditioned and tested systems

From 6 to 12
month warranty

Supply of a new unit

Supply Service

New systems

From 12 to 24
month warranty

For parts only

Supply Service

Sold for parts – no warranty

Repair

Repair service

Repair will be made to damaged and defectiv units

From 3 to 18
month warranty

Livraison rapide

Fast
delivery

Livraison rapide

guaranteed
products

Livraison rapide

Secure
payment



The IM 153-1 as of 6ES7 153-1AA02-0XB0, version 05 performs differently when the DP standard master is restarted with response monitoring switched off:

When response monitoring is switched off, the outputs of the ET 200M keep their set values when the DP master fails.

When the DP master is restarted without resetting the DP slave these initial values remain valid until new output data is received from the DP master.
If the DP slave is not reset, it is not enabled for other DP masters. Bit 6 of ”Octet 1: Station_status, Unlock_Req” has the value ”0” in the parameter assignment frame (for example, in the DP master of the
SIMATIC 505).

In the case of previous versions: When the DP master is restarted, the outputs of the ET 200M are briefly set to ”0”, until they are reset by the DP master.

When response monitoring is switched on, the IM 153-1AA02 as of E05 behaves like the previous versions.

You can upgrade the IM 153-2 (order number 6ES7 153-2AA02-0XB0; version 06) to version 07 for a charge.
You can upgrade the IM 153-2 FO (order number 6ES7 153-2AB01-0XB0, version 05) to version 06 for a charge.

For more information, get in touch with your Siemens partner.

Height
12.5 cm / 4.9 in
Width
11 cm / 4,3 in
Length
4 cm / 1,5 in
Weight
0,4 kg / 0,8 lb
Family
SIMATIC S7
Reference
6ES7153-1AA02-0XB0
Refurbished
3004116031627
300690640228

Siemens is an international group of German origin specializing in high technology and present in the sectors of industry, energy and health. It was founded in 1847 by Werner von Siemens.
