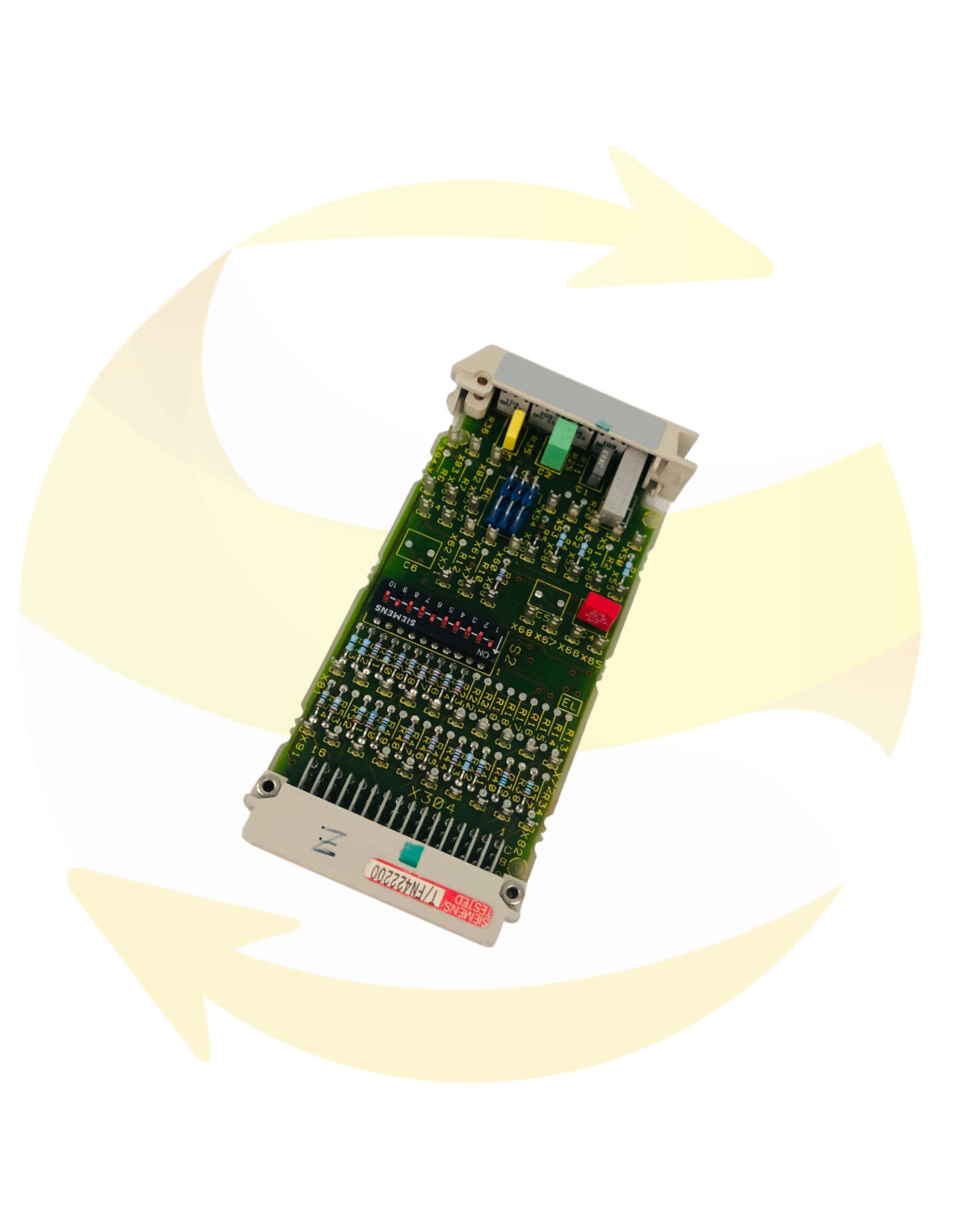

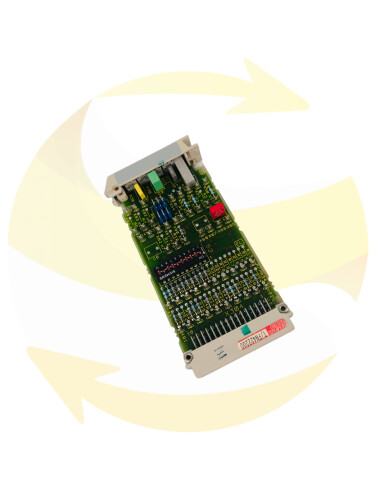

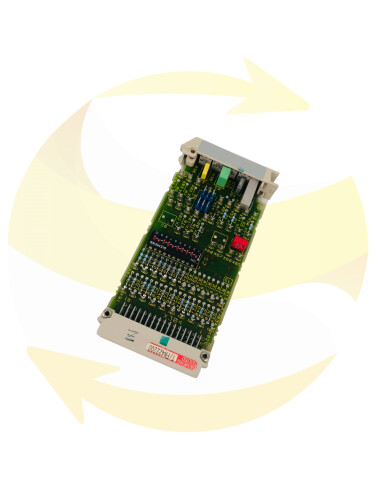

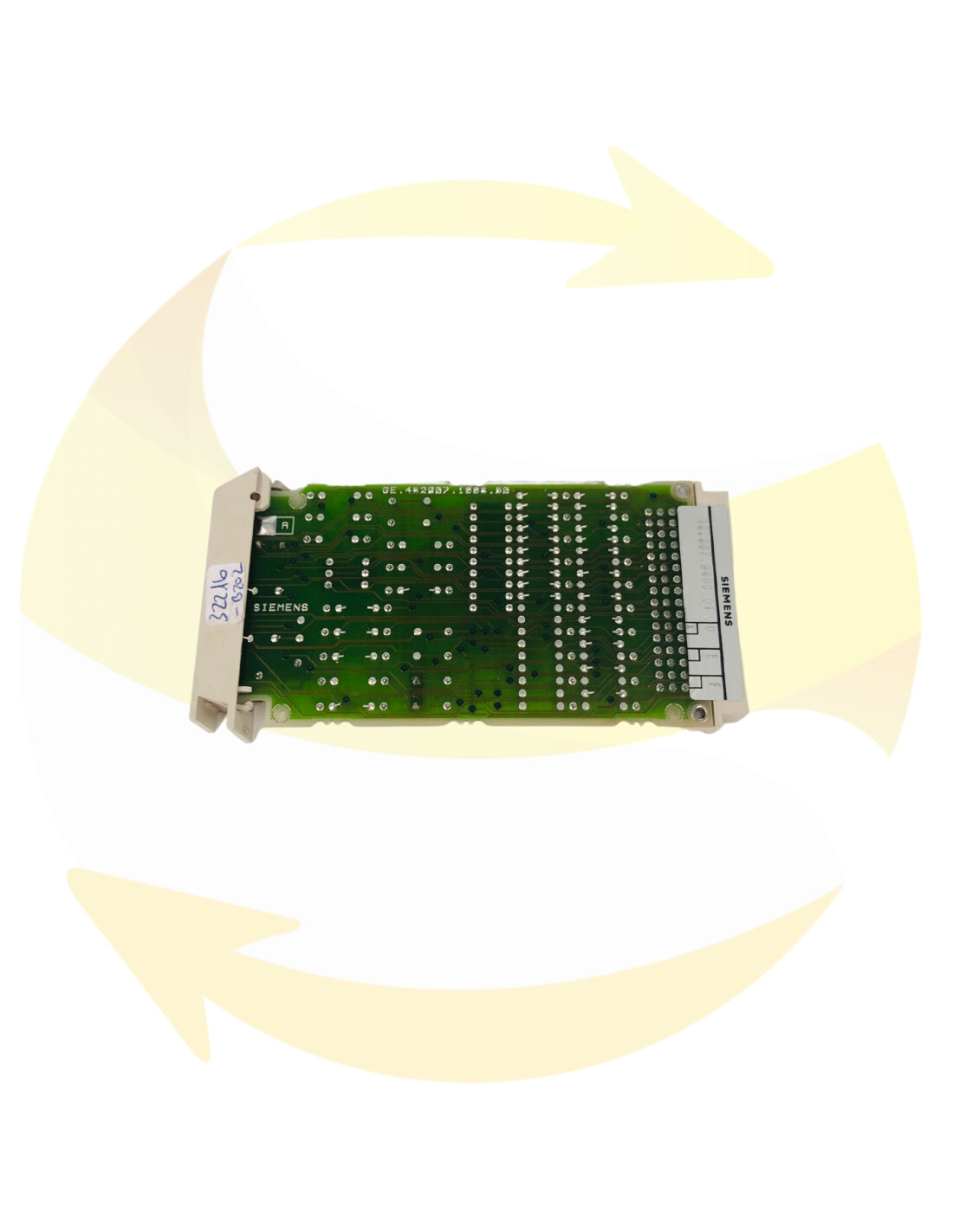

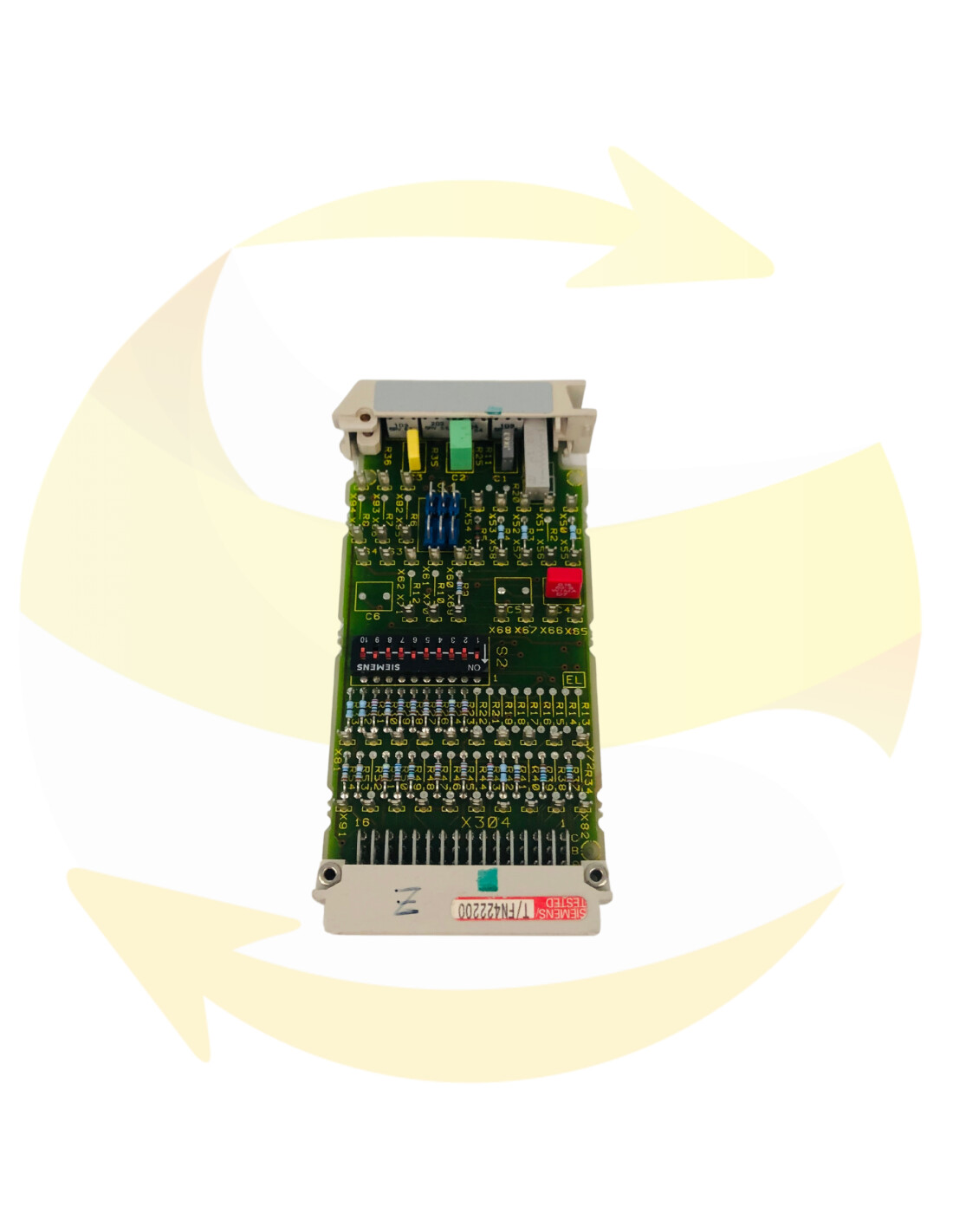

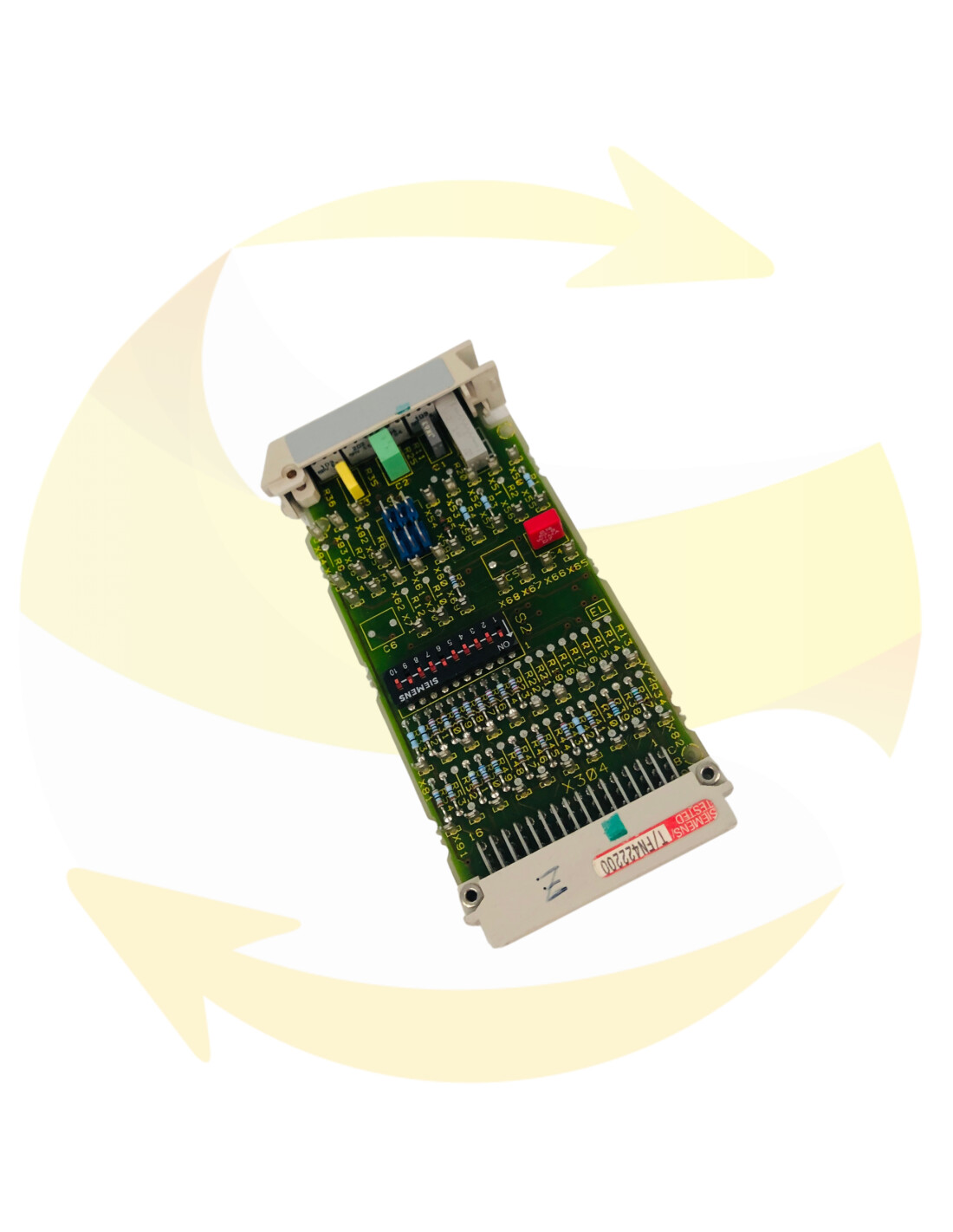

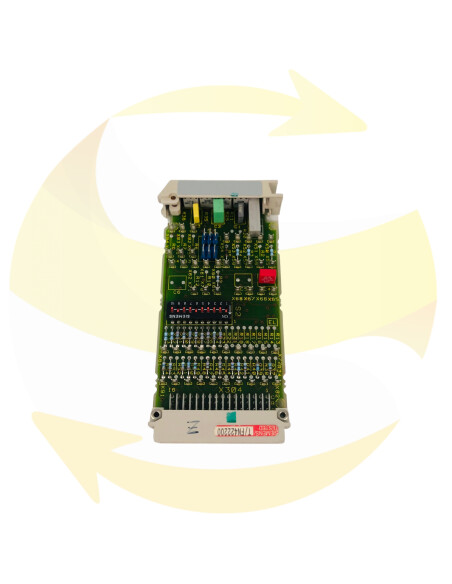

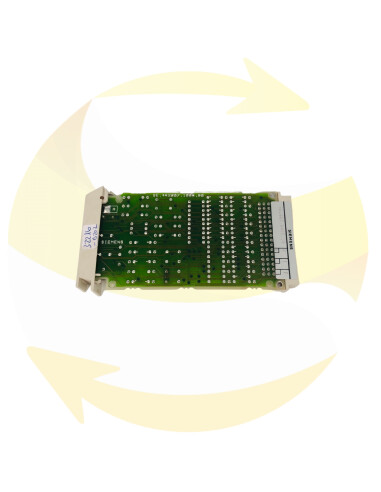

6SN1114-0AA01-0AA0 - Option Card - SIEMENS Expand

6SN1114-0AA01-0AA0 - Option Card - SIEMENS



Optional expansion card for SIEMENS 6SN1114-0AA01-0AA0 reference terminals for SIMODRIVE 611 card.

6SN1114-0AA01-0AA0 SIEMENS SIMODRIVE 611-A ADJUSTMENT BGR F. POWER MODULE, COMFORT INTERFACE For withdrawable units 6SN1118-0AA11-0AA0 ..... 1

Card refurbished and tested under full load (test duration) on 611D bench coupled to 1 drive and 1 SIEMENS power supply.

More details

In stock, shipping within 24h.

69,00 €

livraison-2.pngQuick delivery

garantis2.pngWarranted systems

paiement-securise-SEI_1.jpgSecure Payment

Product options

standard exchange refurbished

Standard exchange service

Reconditioned and tested systems
6 to 12 months warranty

new systems

Standard exchange service

New systems
12 to 24 months warranty

supply refurbished

Supply service

Reconditioned and tested systems
6 to 12 months warranty

supply new

Supply service

New systems
12 to 24 months warranty

supply in the state

Supply service

Systems sold in the state
without warranty

The control board has the following features:

X - Control board

- Order No. (MLFB):

1) before SW 5.1: 6SN1118-0NH10-0AAV (”SIMODRIVE 611 universal E” control board) Space retainer for hardware function.
2) from SW 5.1: 6SN1118-0NH11-0AA0 (”SIMODRIVE 611 universal E HR” control board)
3) from SW 9.1: 6SN1118-0NH11-0AA1 (”SIMODRIVE 611 universal E HRS” control board)

- 2-axis for encoders with sin/cos 1Vpp

- with memory module for n-set

X - Optional PROFIBUS-DP3 module.

- Order No. (MLFB): 6SN1114-0NB01-0AA0 S

X - The parameters can be set as follows:

1) using the ”SimoCom U” parameterizing and start-up tool on an external PG/PC.
2) using the display and operator unit on the front panel.
3) using PROFIBUS-DP (parameter area, PKW area).

X - Software and data

The software and the user data are saved on an interchangeable
memory module.

X - Terminals and operator control elements
- 2 analog inputs and 2 analog outputs per drive
- 2 digital inputs and 2 digital outputs per drive
- 2 test sockets
- POWER-ON RESET button with integrated LED
- Display and operator unit

X - Safe start inhibit
Detailed information about this function is provided in
Reference: /PJU/, SIMODRIVE 611,
Configuration Manual, Drive Converters

X - Serial interface (RS232)

Height 2 cm / 0,7 in
Width 11 cm / 4,3 in
Length 5,5 cm / 2,1 in
Weight 0,1 kg / 0,2 lb
Reference 6SN1114-0AA01-0AA0
