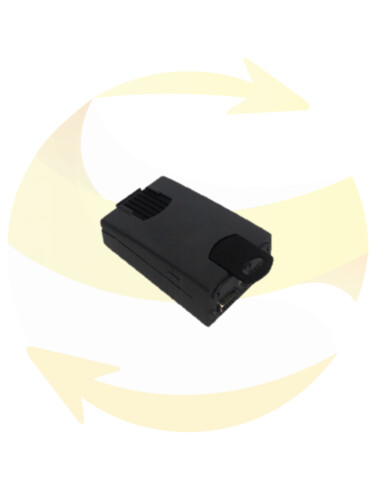

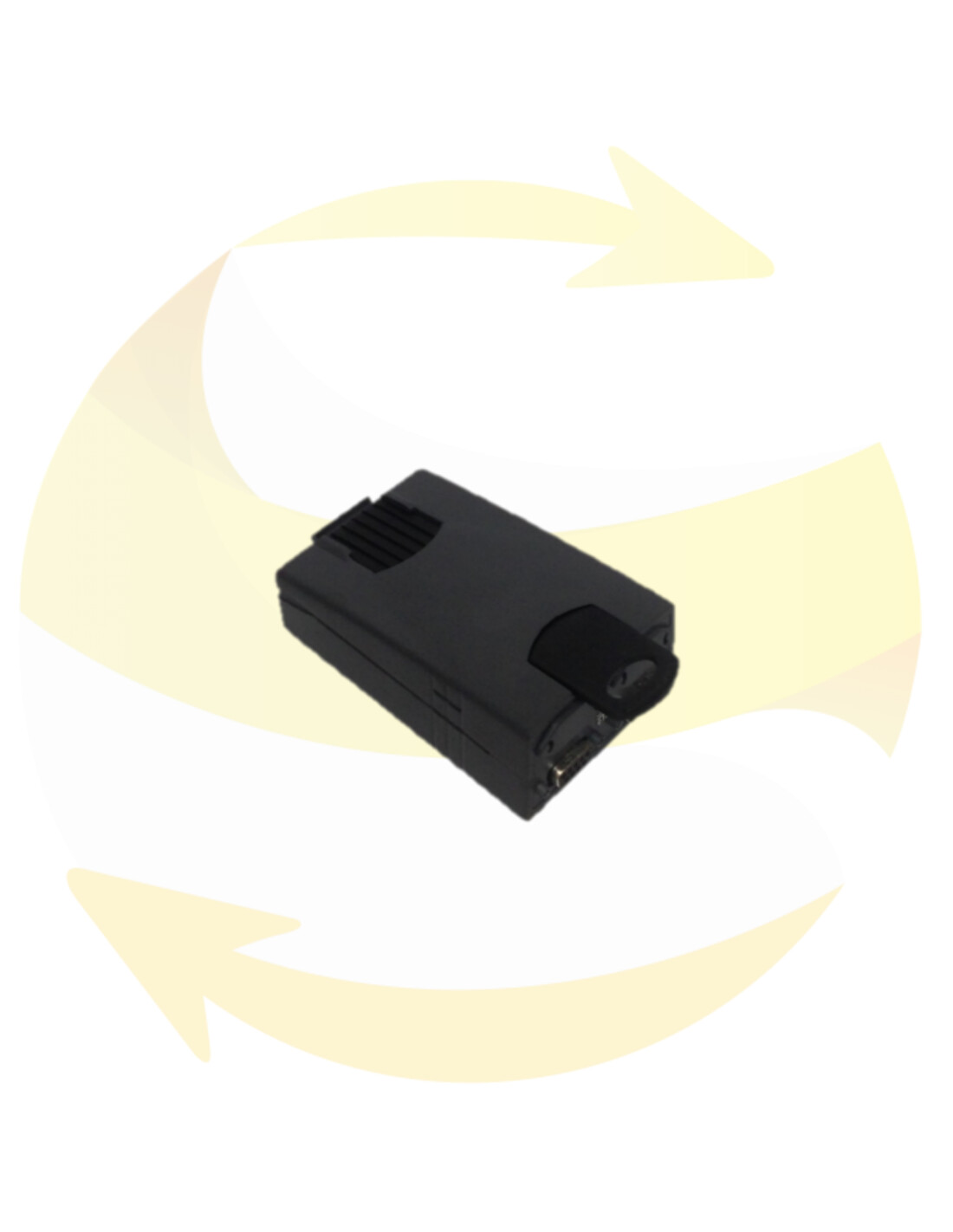

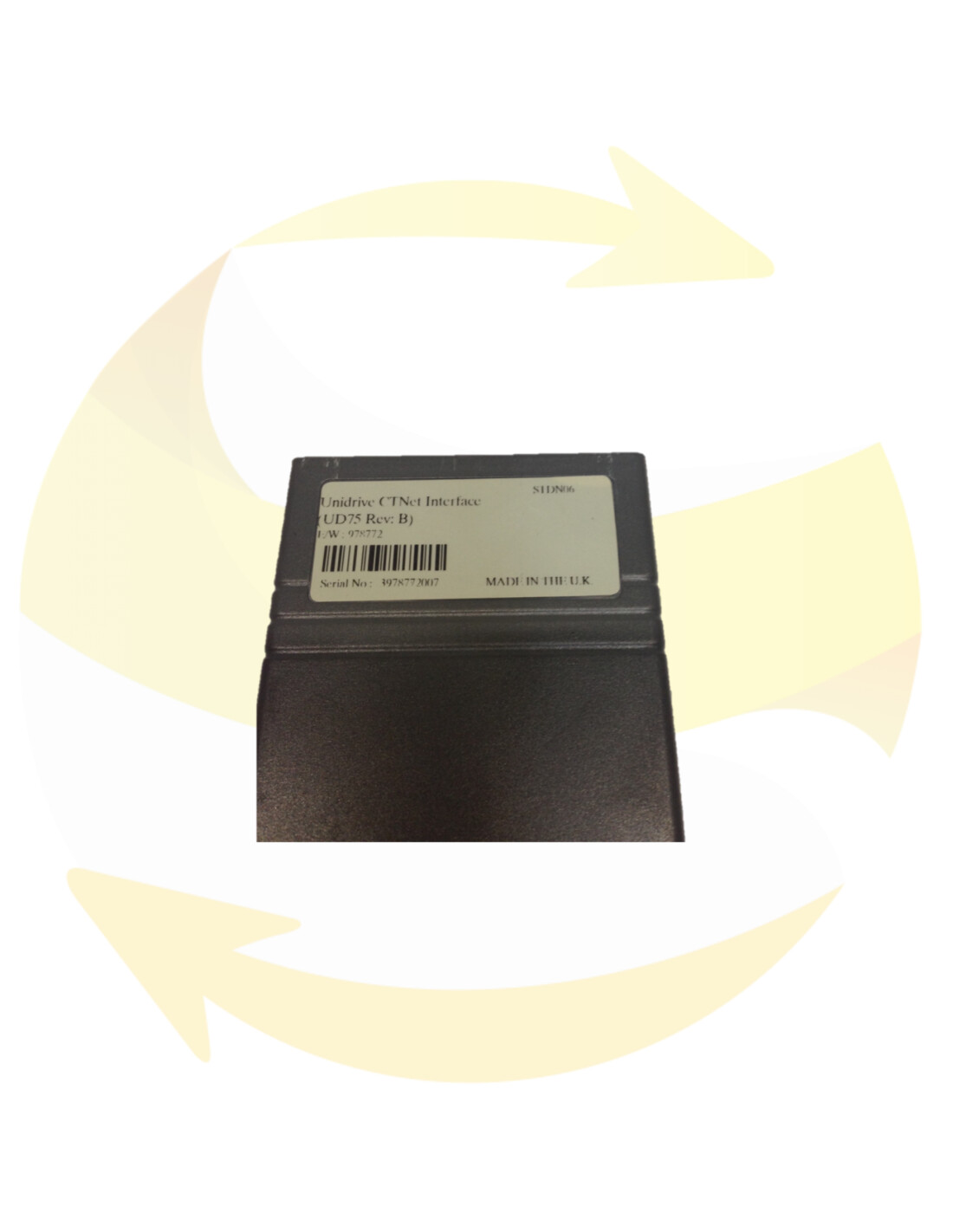

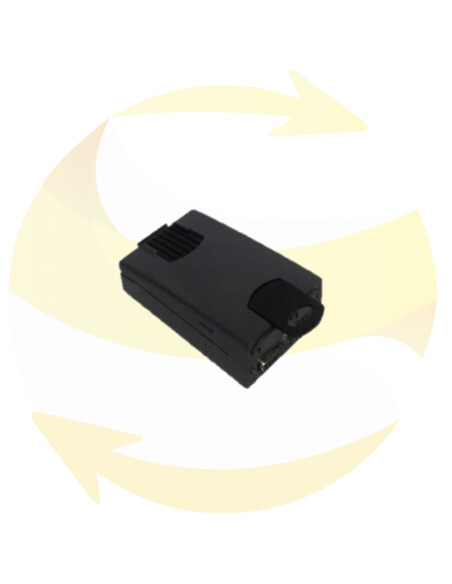

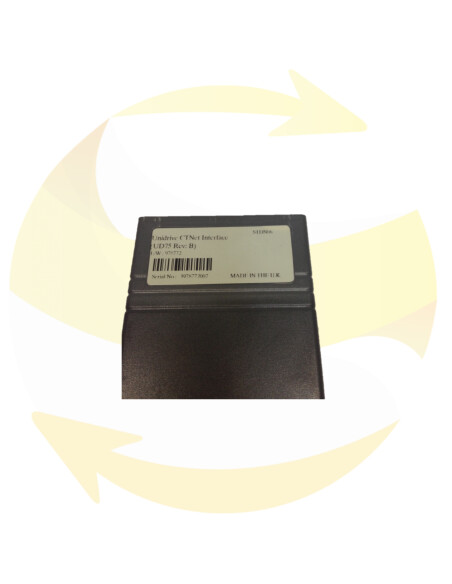

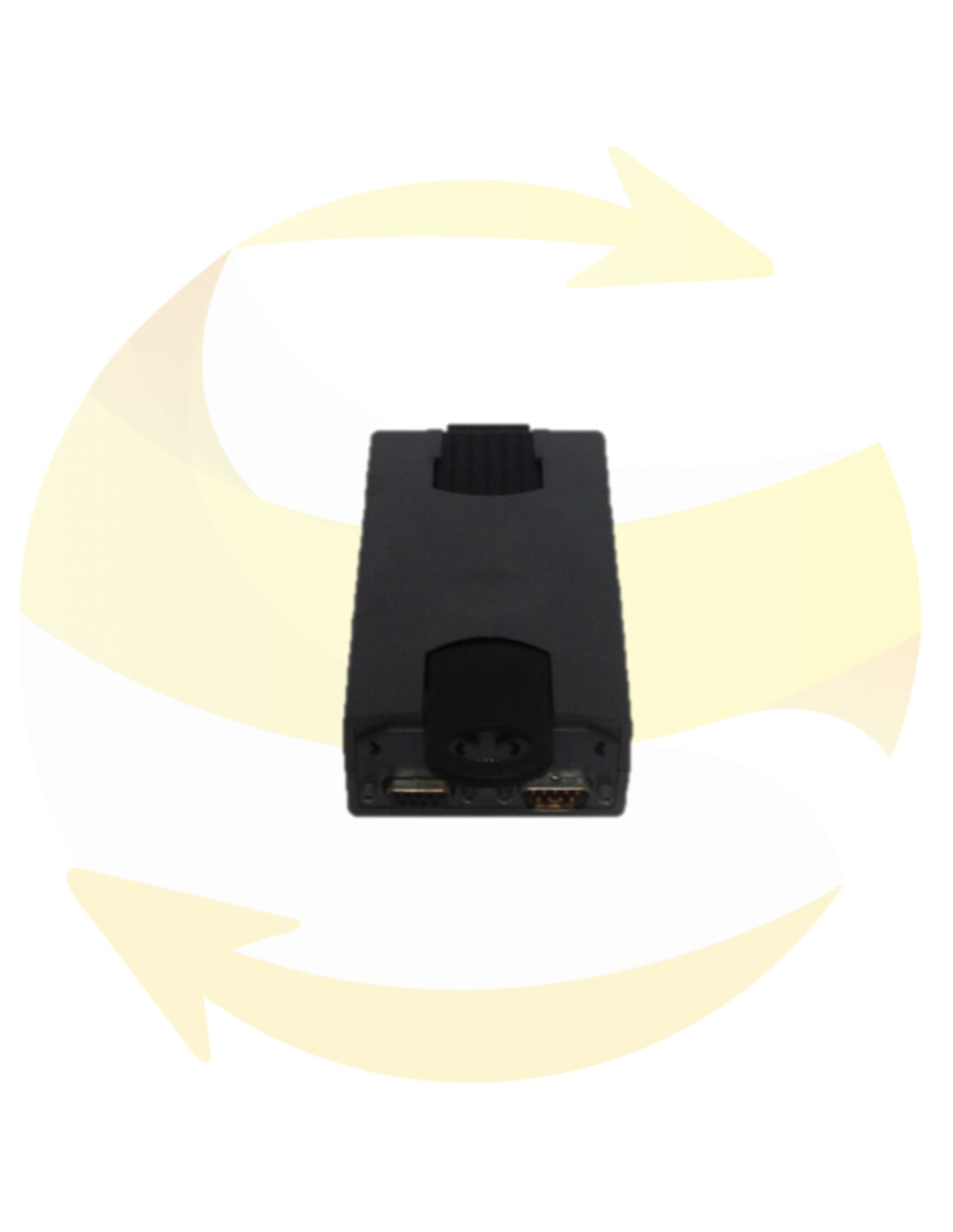

UD75 - CTNet Interface Card - LEROY SOMER
This LEROY SOMER UD75 reference interface board is part of the UNIDRIVE range.
May be marketed under the brand name CONTROL TECHNIQUES or EMERSON.
This interface card LEROY SOMER UD75 is available to you in standard supply or exchange to replace your defective equipment and has a warranty.
The UD75 CTNet Interface card for Unidrive is supplied in a large option module. It is an add-on card for the UD70 Applications card. The UD70 processor and operating system handles all network activity, and uses a Dual-Port RAM interface to transfer data between itself and the drive.
The UD70 retains full functionality, allowing the user to download normal DPL application programs. No program modifications are required to allow existing DPL programs to run. A different UD70 operating system file (“UD70NET.SYS”) is used, and the UD70 has this system file pre-loaded.
1. Isolate the drive from the mains supply and allow 5 minutes for the DC Bus capacitors to discharge.
2. Insert Large Option Module as shown below. Ensure that it is correctly inserted. The module will click firmly into place.
3. To remove the module, pull on the black tab, and the module will disengage from the connector and pull out of the drive.
The MD29AN CTNet Interface card for Mentor II is single add-on card. It fits onto the 40 pin header on the MDA-2B card on the Mentor II itself.
The MD29AN processor and operating system handles all network activity, and uses a Dual-Port RAM interface to transfer data between itself and the drive.
The MD29AN retains full functionality, allowing the user to download normal DPL application programs. No program modifications are required to allow existing DPL programs to run. A different MD29 operating system file (“M2NET.SYS”) is used, and the MD29AN has this system file pre-loaded.
