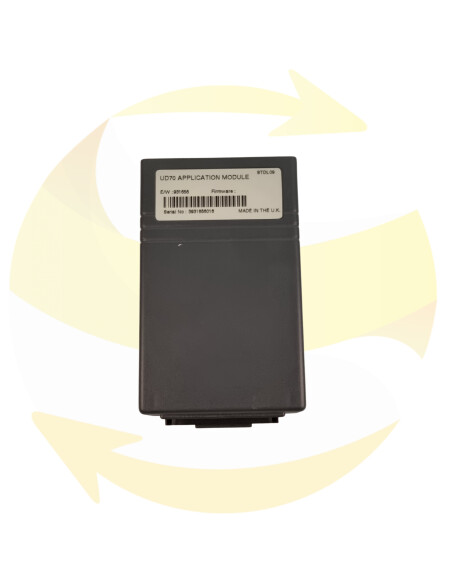

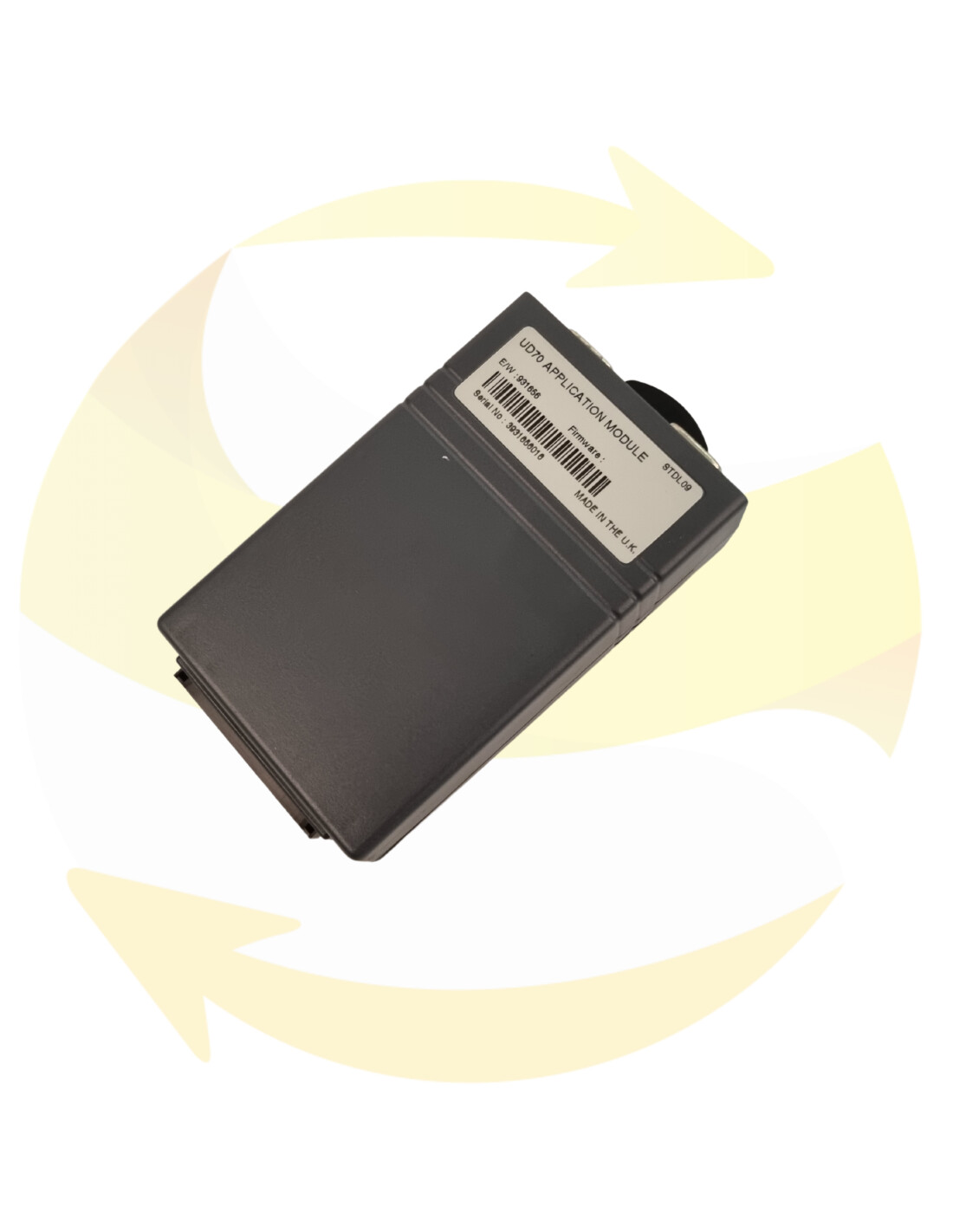

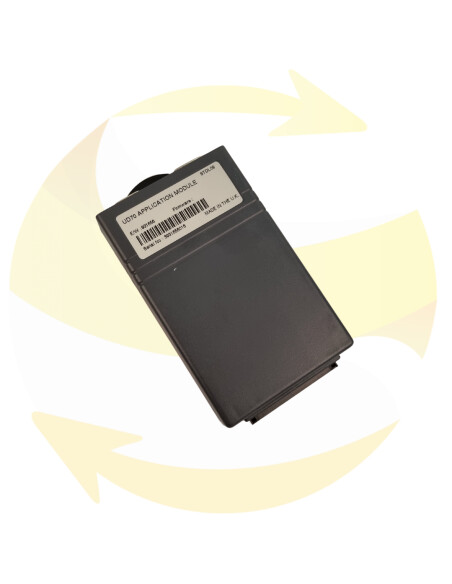

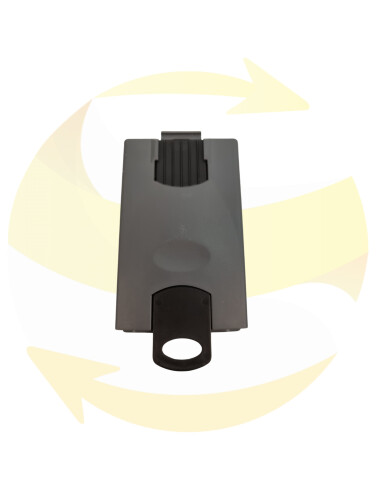

UD70 - Option module - CONTROL TECHNIQUES
This CONTROL TECHNIQUES option module reference UD70 is a module for the UNIDRIVE range
The UD70 is a compact microcomputer contained in a large option module for easy installation in any size Unidrive.
This CONTROL TECHNIQUES interface module is available as a supply to replace your defective equipment and has a guarantee
On a Unidrive type variable speed drive, the timing functions necessary for the correct operation of the power devices is ensured by its own microprocessor operating in real time. This places limits on the microprocessor when performing other tasks, resulting in reduced drive flexibility. To maximize this flexibility, a second processor can be used to run application-specific software. This second microprocessor is the UD70 which makes it easy to adapt the drive to applications by software programming in the UD70.
Insight
The UD70 is a compact microcomputer contained in a large option module for easy installation in any size Unidrive. With the DPL Toolkit, the UD70 allows the programmer to write software or use pre-written software to enhance the flexibility of a Unidrive.
Technical characteristics of the UD70
32-bit Intel 960 RISC processor
96 KB of user program storage
8 KB user RAM
16MHz clock
RS232 port for programming (IBM AT compatible)
Optically isolated RS485 port for permanent serial communications
Control Techniques is a leading manufacturer of AC and DC speed variation, servo motors and power conversion technologies for commercial and industrial applications. Their innovative products are used in the most demanding applications, requiring performance, reliability and energy efficiency.
Nidec Control Techniques has been at the forefront of industrial-driven drive technology for more than 40 years. They are dedicated to the advancement of automation. From product development to their headquarters to their 45 automation centers around the world, Nidec Control Techniques provides industry-relevant solutions. They guarantee high performance, reliability and energy efficiency in all applications.
