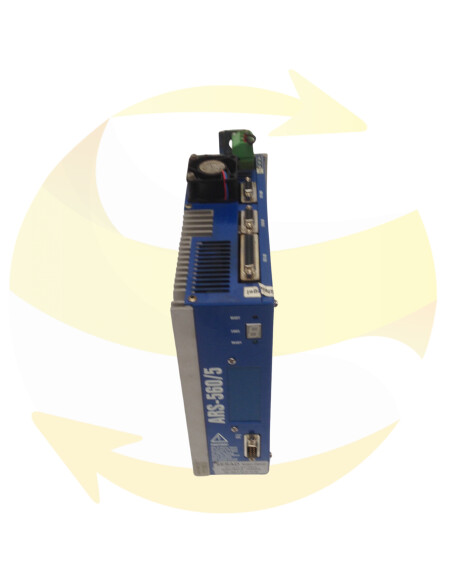

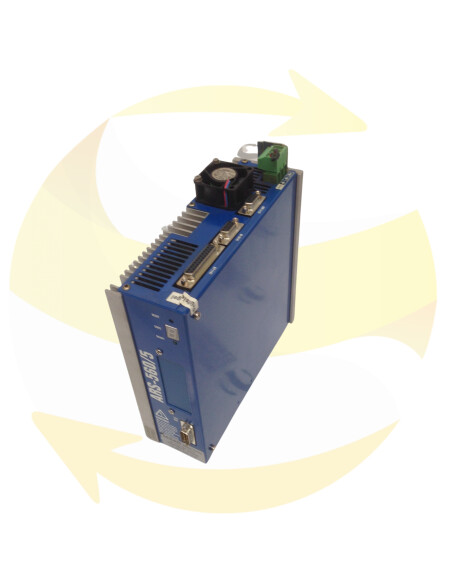

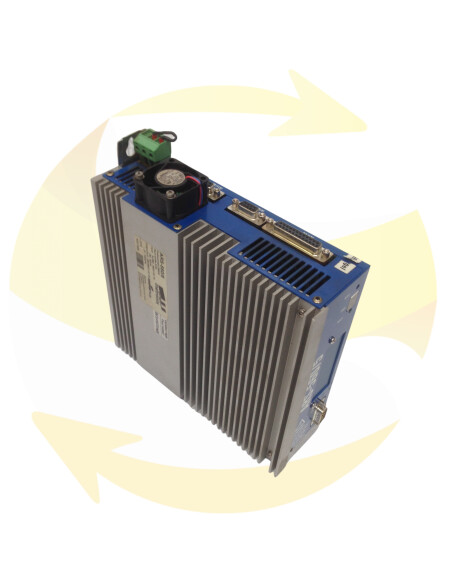

ARS-560/5 - Servo Drive - METRONIX
This METRONIX inverter, reference ARS-560/5 is a servo drive that belongs to the ARS range of METRONIX.

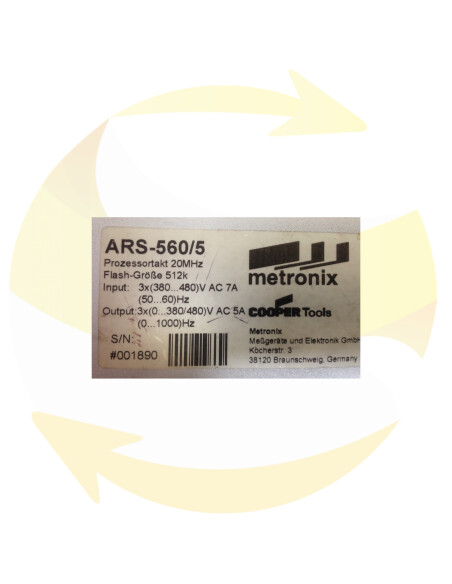

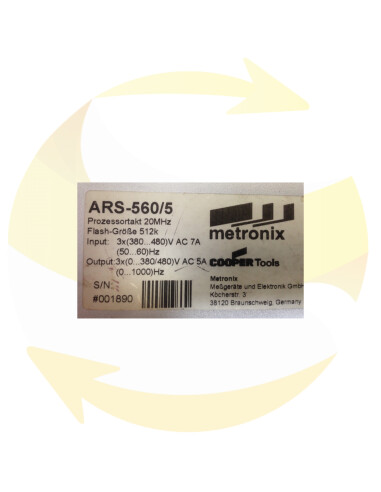

Servo drive METRONIX 5A / 11A. 3 kVA - 3x400 VAC.
This ARS-560/5 inverter is at your disposal to replace your defective hardware and has a warranty adapted to your needs.
The ARS-560 / xx-M (series servo, xx = 20: 20A rated current, xx = 40: 40A rated current, M = modernized version) is a fully digital AC servo controller with technology expansion slot Can be adapted to a variety of different application possibilities. The ARS-560 / xx-K is the successor to the ARS-560 / xxK family. For example, an ARS-560/20-M is much the same size as an ARS-560 / 20K (see chapter 2.2 ).
The ARS-560/20-M and ARS-560/40-M drive controllers differ only slightly from the ARS-560/8, ARS-560/5 and ARS-560 / 2.5 devices: The ARS- 560 / xx-M have already integrated a CAN bus interface as well as a 12 bit ADU. In addition, the PBI Profibus module can be plugged into the new ARS-E. However, the "old" technology modules for the ARS-310/5, ARS-560/5, etc. no longer fit into the ARS-560 / xx-M as their functionality is already in the ARS-560 / xx-M Is integrated.
Because of the much higher output power, the ARS-560 / xx-M differ significantly from the ARS-560/5 in terms of electromechanical design and performance of the ARS-560/5 (as already mentioned, an ARS-560/20-M has approximately the same size ARS-560/20-M, ARS-560/20-M has almost twice the width of an ARS-560/20-M)
All control connections are functionally and largely pin-compatible. Due to the high output capacities, the control electronics and the power section are implemented on separate boards, which are mounted in a modular housing. The outside dimensions also differ from the other ARS devices.
The device has the following features:
• Full integration of all components for the controller and power section,
The encoder evaluation is implemented as a plug-in module
• Technology slot for extensions. As a standard extension is a
CAN fieldbus module available.
• Integrated breaker for continuous power up to 110W / 220W (ARS-
560/20-M / ARS-560/40-M) and peak power ratings up to 12kW / 24kW. For
Large braking energies are special network modules with mains supply in the
Development.
• Interchangeable intermittent frequency: Either 5kHz for maximum performance
Or 10kHz for virtually noiseless operation with some limited
peak currents
About Metronix
When applications require highest dynamics, precision and power reserves, the Metronix products are in use. More than 70.000 servo drives are leaving the plant in Braunschweig every year. The focus is on central switch cabinet servo drives and decentral servo drives.
All products are built-up on a main hardware platform and, based on the Metronix standard devices, can be quickly adapted to customer-specific requirements. This customizing offers the user a high level of freedom. Motivated teams in all areas ensure the future success. Embedded in the worldwide operating Apex Tool Group with more than 8.000 employees in 30 countries Metronix is supporting its customers with the global sales and service structure.
