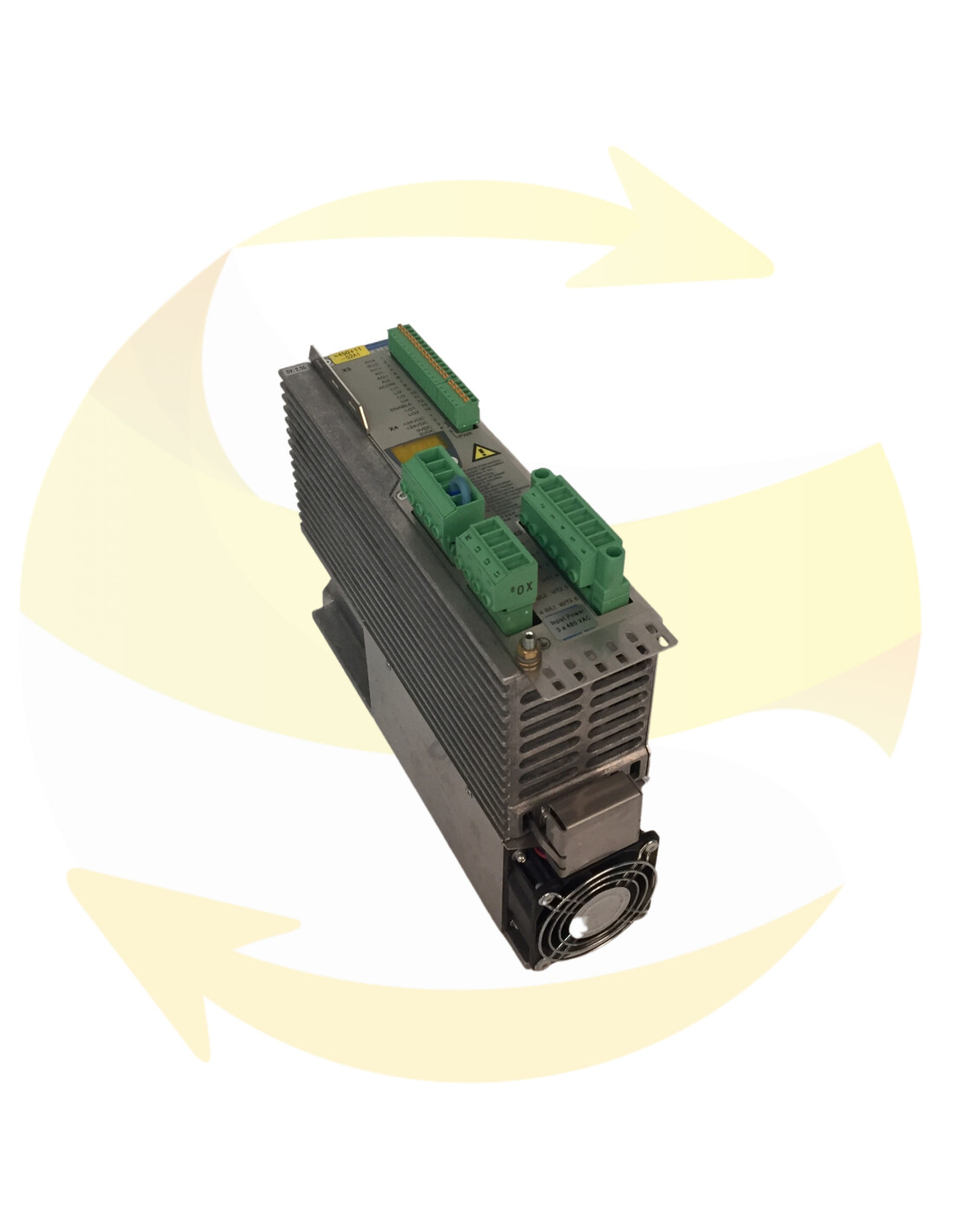

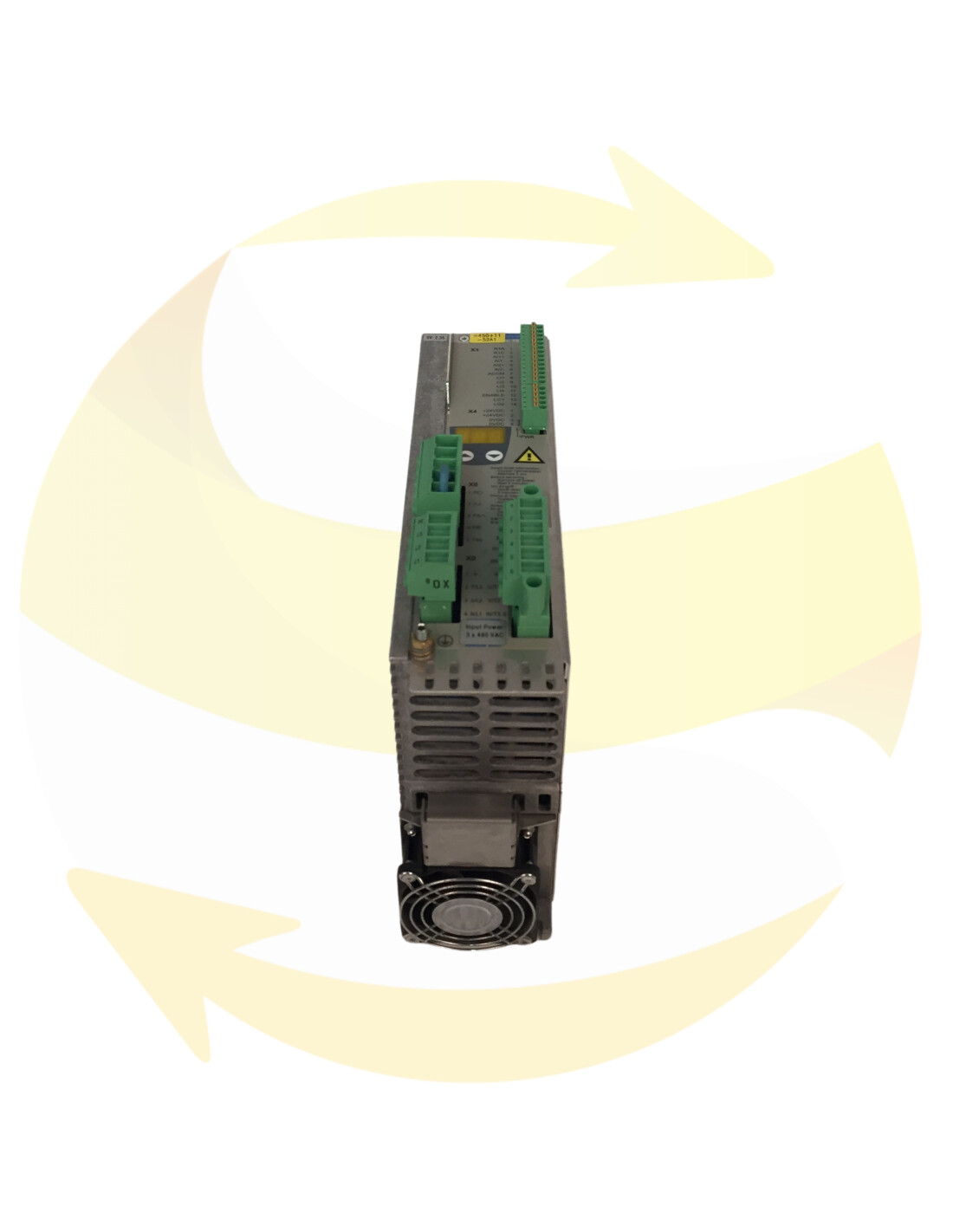

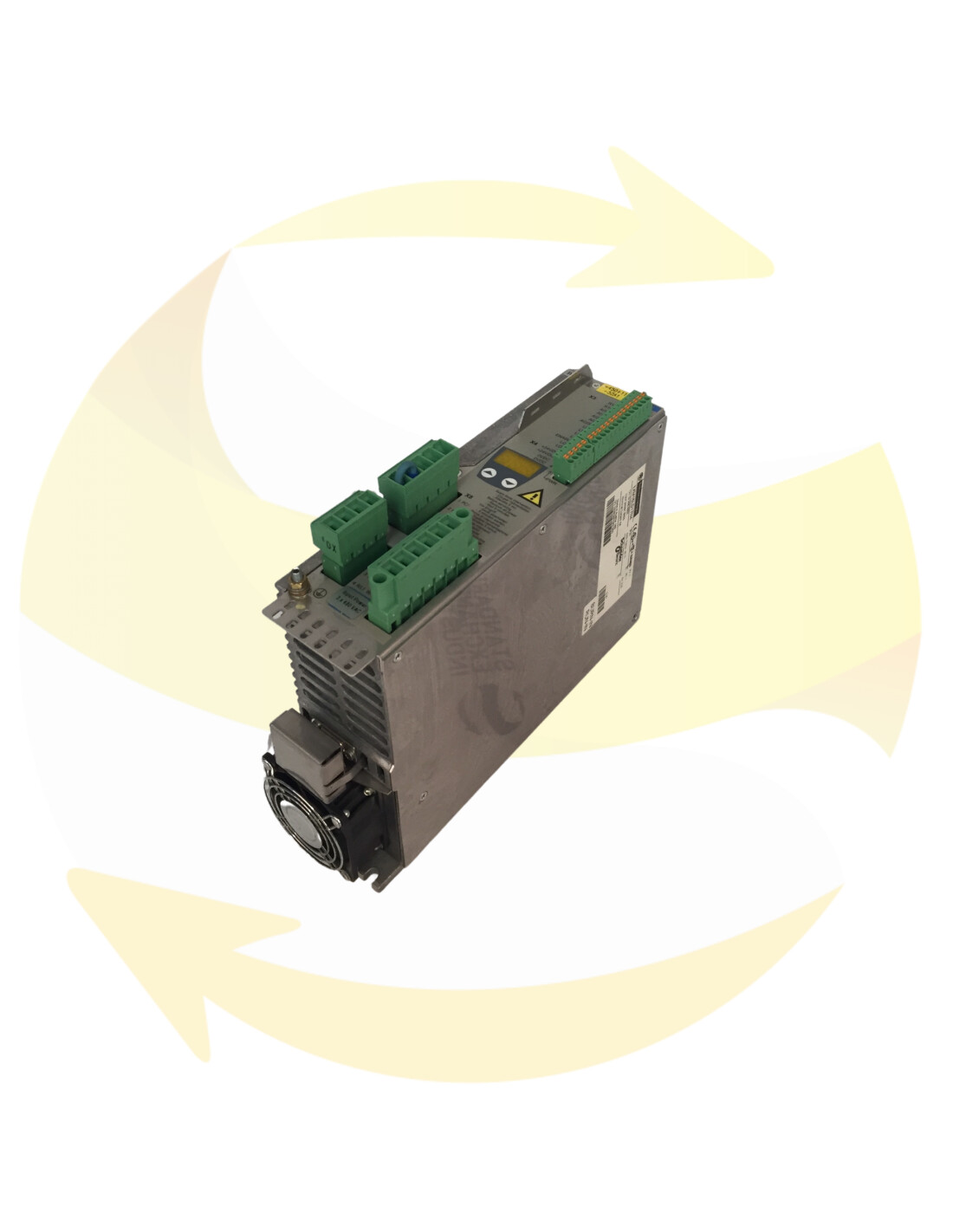

LXM15LU60N4 - Motion servo drive - SCHNEIDER ELECTRIC
This servo drive for motion control SCHNEIDER ELECTRIC reference LXM15LU60N4 is an AC servo drive for universal control. LXM15 series
Motion servo drive LEXIUM 15 LP : 200 - 240V, 50/60Hz. With integrated EMC filter. Three phase supply : 1.1 kW. 1.5A.
This motion servo drive LXM15LU60N4 is at your disposal to replace your defective equipment and has a guarantee adapted to your needs.
The small footprint of the Lexium 15 servo drives combined with the wide range of power and power supply types makes it possible to meet the needs of all types of machines.
This range is intended for the regulation of torque, speed and / or position of the BSH and BDH servo motors.
These motor-drive units are dedicated to high-performance applications requiring highly accurate and dynamic position tracking algorithms.
The Lexium 15 servo drive range is designed to meet the needs of applications:
- monoaxis:
the positioner integrated in the Lexium 15 servo drive can control the operation of a single axis,
- master / slave:
the electric shaft mode synchronizes the movements of several axes. For these two types of application, the numerous connection possibilities on CANopen, Fipio, Modbus Plus, PROFIBUS DP and Modbus TCP communication buses and networks allow the integration in a distributed automation architecture.
For multi-axis applications, you have the possibility:
- to connect a Lexium Controller motion controller which extends the operating possibilities of Lexium 15 servo drives to applications requiring the complex synchronization of several axes (on-the-fly cutting, rotating knife, grouping / unbundling, clamping with torque control, .. .)
- to add a SERCOS option card which, combined with the TSX CSY motion control modules on Premium PLC, enables servo drives
Lexium 15 to meet the performance requirements of complex applications.
Operating modes
Lexium 15 servo drives incorporate a large number of operating modes:
- traditional adjustment modes:
- homing,
- manual movement,
- operating modes of positioning:
- point-to-point mode,
- movement tasks,
- electric shaft,
- a speed operation mode:
- speed regulation,
- a couple exploitation mode:
- torque regulation
The range of Lexium 15 servo drives associated with the ranges of
servo motors BSH and BDH is an offer adapted to the different requirements of your applications.
This offer covers a wide range of supply voltage and power. To limit costs and easily adapt to different applications, the Lexium 15 servo drive range consists of 3 models:
- Lexium 15 LP servo drives:
- 200 ... 240 V single-phase, from 0.9 kW to 1.2 kW (LXM 15LDppM3),
- 200 ... 240 V three-phase, from 1 kW to 3.4 kW (LXM 15LDppM3),
- 208 ... 480 V three-phase, from 1.1 kW to 4.3 kW (LXM 15LpppN4)
- Lexium 15 MP servo drives:
- 208 ... 480 V three-phase, from 5.7 kW to 11.4 kW (LXM 15MDppN4),
- Lexium 15 HP servo drives:
- 208 ... 480 V three-phase, from 22.3 kW to 42.5 kW (LXM 15HCppN4X)
The Lexium 15 motion control offering is complemented by GBX planetary gearboxes. Simple to install, lubricated for life, they are available in 15 reduction ratios ranging from 3: 1 to 100: 1 for BSH servo motors and in 12 reduction ratios ranging from 3: 1 to 40: 1 for BDH servo motors. . Economical, GBX gearboxes are designed for applications with high inertia.
