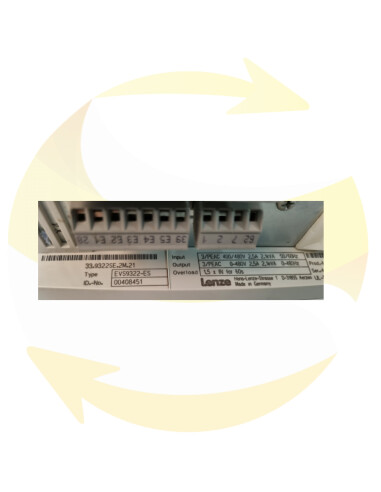

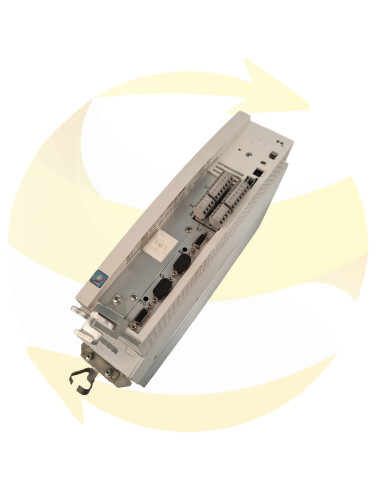

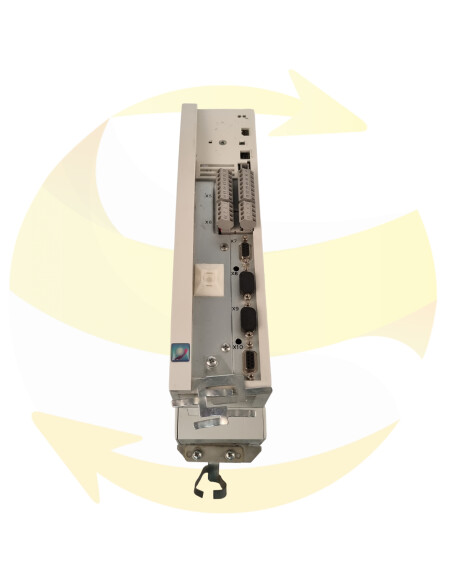

EVS9322-ES - Servo controller - LENZE

LENZE EVS9322-ES Brushless Controller - 9300 Series

The LENZE EVS9322-ES brushless controller belongs to the 9300 series, designed for industrial drives requiring accurate regulation of speed, torque and position. This reference is aimed at maintenance managers, automation engineers and integrators operating machines with brushless motors who need a reliable, easy-to-integrate and durable servo drive. The three-phase 400/480 V, 50/60 Hz supply range, the rated power 0.75 kW (approx. 1 HP) and a rated current of 2.5 A ensure direct compatibility with many industrial synchronous motors. Vector control provides a stable and repeatable response, useful for axis control, indexed conveying or continuous processes. The 9300 series design emphasizes robustness, consistency of parameters and scalability via modules, to maintain equipment availability while optimizing control quality. Standard protection functions against overcurrent, overvoltage and overheating, combined with guided commissioning, help reduce the risk of unplanned stops and simplify preventive maintenance.

Technical specifications

• Référence constructeur : EVS9322-ES
• Gamme : Lenze 9300
• Constructeur : LENZE
• Type : Contrôleur brushless, servo-variateur de positionnement
• Tension d’alimentation : 400 à 480 V AC triphasé, 50/60 Hz
• Puissance nominale : 0,75 kW (≈ 1 CV)
• Courant de sortie nominal : 2,5 A
• Tension de sortie : triphasée variable, de 0 jusqu’à la tension réseau
• Mode de commande : vectoriel, régulation de vitesse, de couple et de position
• Fonctions d’entraînement : profils de mouvement et asservissement d’axes selon la configuration de la série 9300
• Communication et I/O : intégration aux architectures d’automatisation via modules et interfaces disponibles sur la série 9300
• Identifiants observés : Id.-No. 00450919, 45484575 (références commerciales relevées chez des distributeurs)
• Catégorie produit : Contrôleurs brushless

Overview of the Lenze 9300 series

The Lenze 9300 series groups servo drives intended for brushless synchronous drives and applications requiring precise, repeatable control. Widely used across industry, this range remains relevant for modernising existing axes and maintaining production lines. It is characterised by a consistent parameterisation philosophy, extension modules for functional adaptation, and broad compatibility with various motor configurations. The architecture prioritises control stability and operational safety, with integrated protection mechanisms and accessible diagnostics to reduce downtime. Typical application logic for the series covers optimized speed regulation, torque control for sensitive processes and sequenced positioning, while remaining straightforward for maintenance teams.

• Positioning and axis synchronization : management of motion profiles and precise stops for packaging, handling and assembly machines.
• Vector speed and torque regulation : suited to continuous processes with stable speed references and controlled torque for conveying, pumping and ventilation.

The EVS9322-ES sits at the heart of this concept, with a 0.75 kW power rating suited to small-to-medium axes and vector control that provides the dynamics needed for rapid changes while maintaining the precision required for product quality. Its 400/480 V supply simplifies deployment on standard industrial networks and its 2.5 A rated current makes it relevant for a wide range of compact synchronous motors.

Industrial applications

This brushless controller is suitable for workshops and lines where trajectory control and speed repeatability are priorities. It offers reliable integration into existing automation chains for servo tasks, with a response adapted to load variations and high cycle rates.

• Smart conveyors : cadence tracking, controlled ramps, multi-axis synchronization.
• Pumps and ventilation : precise speed adjustment for energy efficiency and process stability.
• Machine tools and CNC machining : auxiliary axes, feed motions and repeatable positioning functions.
• Packaging : indexing, flying cuts, unwinding and rewinding with tension control.
• Material handling and intralogistics : translation, light lifting, shuttles and automated sorting.

Integration and communication

The EVS9322-ES integrates into automation architectures via the cards and modules available for the 9300 series, enabling connection to major shopfloor environments and programmable logic controllers. This flexibility allows networking of drives and coordinated axis control, in conjunction with numerical control or the supervision system. I/O signals and safety functions are handled according to the chosen hardware configuration to align interlock levels with the site's HSE policy.

Commissioning is performed through a methodical parameterisation procedure, with tuning of control loops and acceleration profiles. The configuration tools provided by Lenze for the 9300 series simplify parameter import and backup, which eases troubleshooting and fast replacement during maintenance. Integrated diagnostics help identify causes of electrical or thermal alarms and document corrective actions.

Availability and warranty

Standard Exchange Industry offers the LENZE EVS9322-ES as refurbished or as standard exchange, bench-tested and delivered with warranty. Shipping within 24 to 72 hours to over 120 countries depending on stock. Our technical team assists in qualifying motor compatibility and the automation environment to secure recommissioning. Alternatively, a repair service is available when retaining the original drive is required. This approach limits obsolescence, stabilises the fleet and preserves parameters validated in production. Contact us to identify the configuration suited to your application, confirm the 0.75 kW power, 400/480 V supply and vector control strategy, and to schedule supply, exchange or repair according to the urgency of your line downtime.
