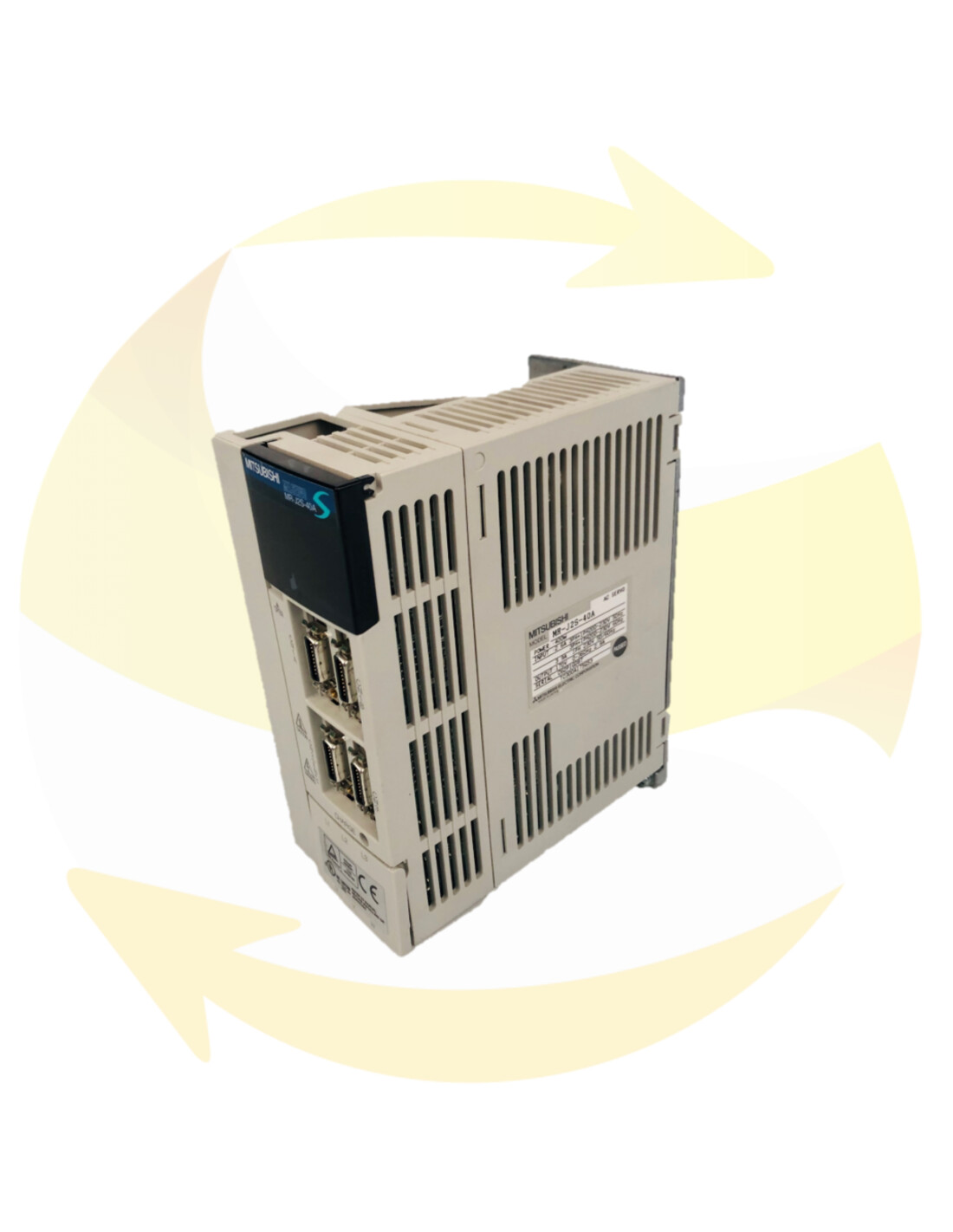

MR-J2S-40CL - Servo Amplifier - MITSUBISHI
This MITSUBISHI servo amplifier, reference MR-J2S-40CL is an AC servo drive. It belongs to the MELSERVO-J2-Super series.
0,4 kW Mitsubishi AC servo drive for HC-KFS43, HF-MFS43, HC-UFS43 servo motors.
This MR-J2S-40CL servo amplifier is at your disposal to replace your defective equipment and has a warranty adapted to your needs.
Servo amplifier 100% tested on MITSUBISHI motors.
The MR-J2S-CL is a compact and economical servo solution with built-in positioning controls.
The MR-J2S-CL program-compatible AC servo amplifier is based on the MR-J2S-CP AC servo amplifier with built-in positioning functions and incorporates program-driven, single-axis positioning functions.
These functions perform positioning operation by creating the position data (target positions), servo motor speeds, acceleration and deceleration time constants, etc. as a program and executing the program. The servo amplifier is the most appropriate to configure a simple positioning system or to simplify a system, for example.
Up to 16 programs can be created. The program capacity is 120 steps as a total of all programs. All servo motors are equipped with an absolute position encoder as standard. An absolute position detection system can be configured by merely adding a battery to the servo amplifier. Once the home position has been set, home position return is not required at power on, alarm occurrence, etc.
You can arrange any configurations from a single-axis to max. 32-axis systems. Further, the connector
pins in the interface section allow you to assign the optimum signals to respective systems.
The MR Configurator (Servo configuration Software) and personal computer are required to change or assign devices.
