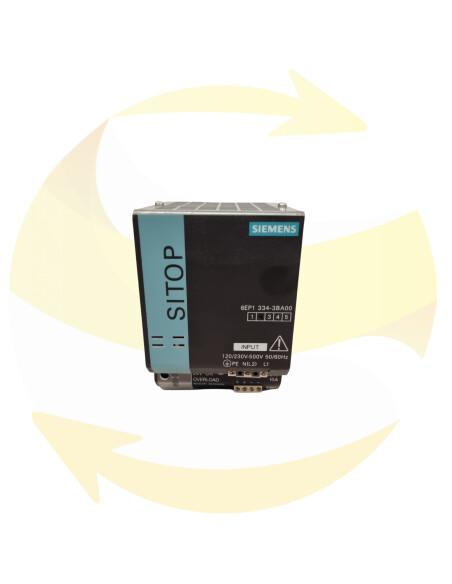

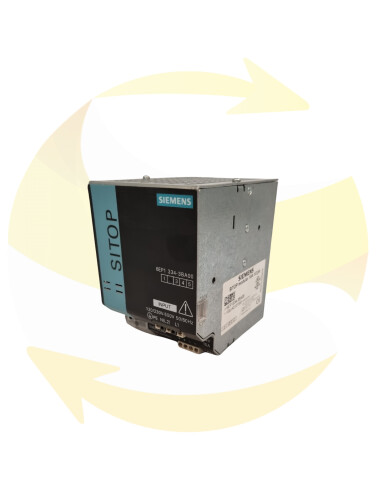

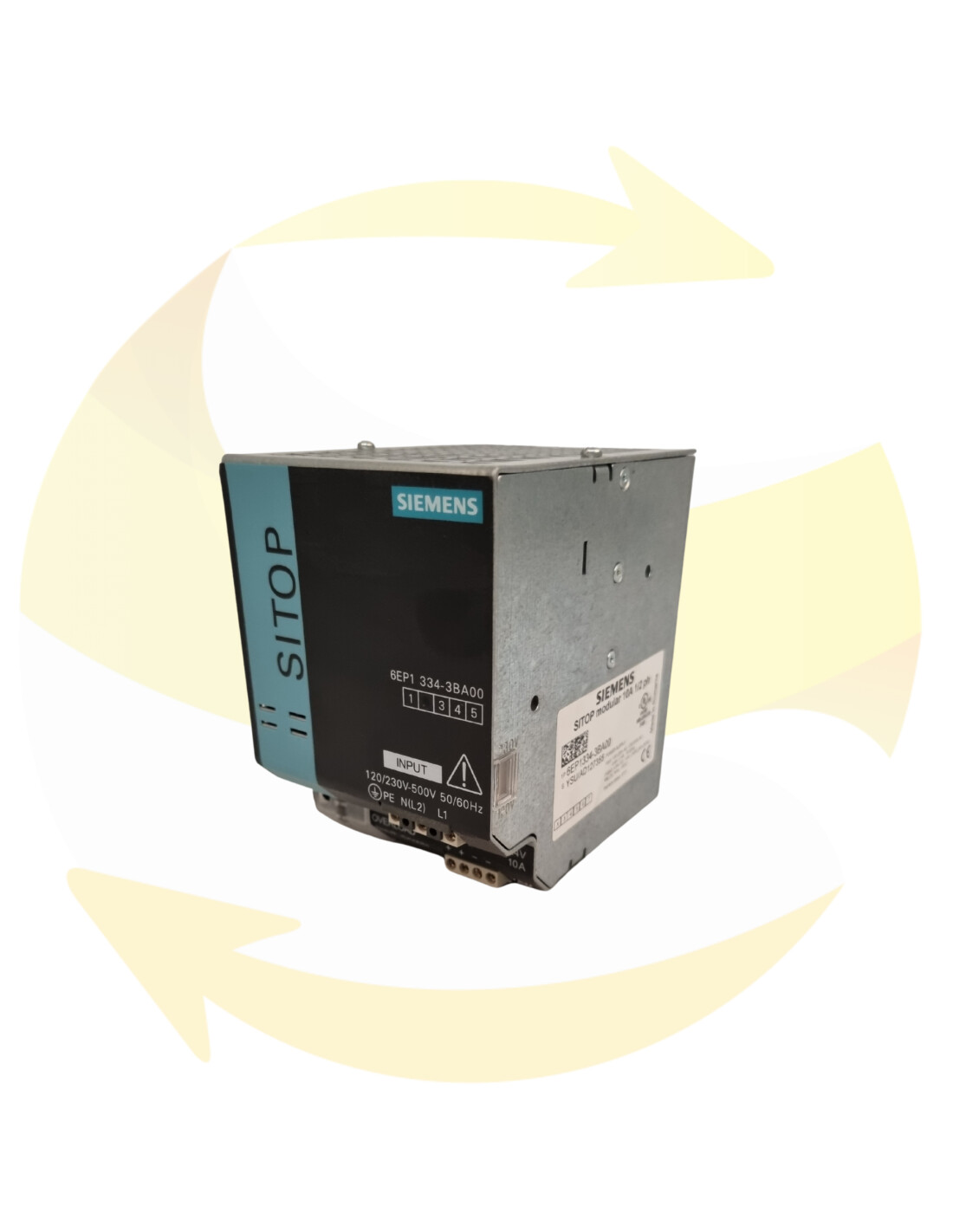

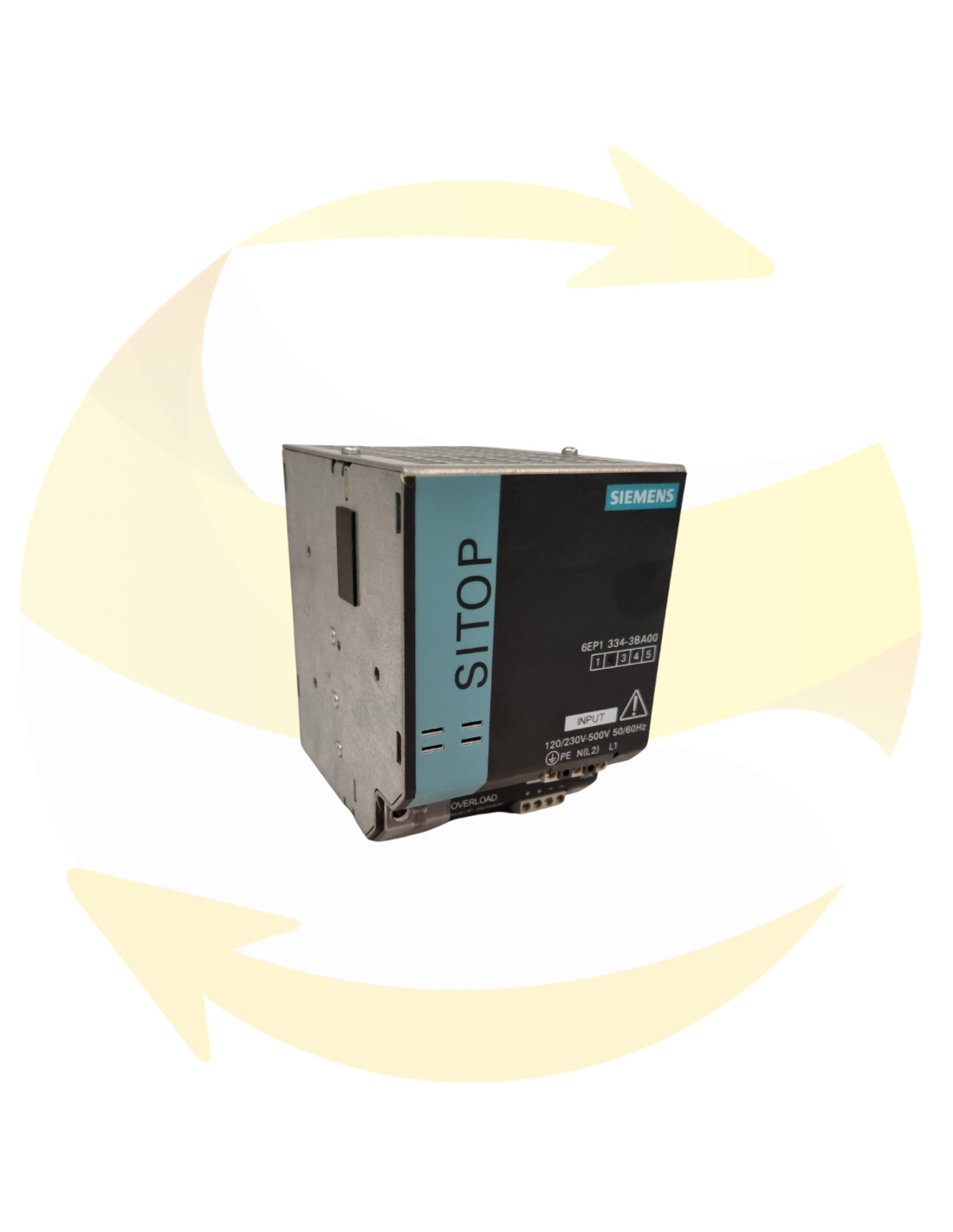

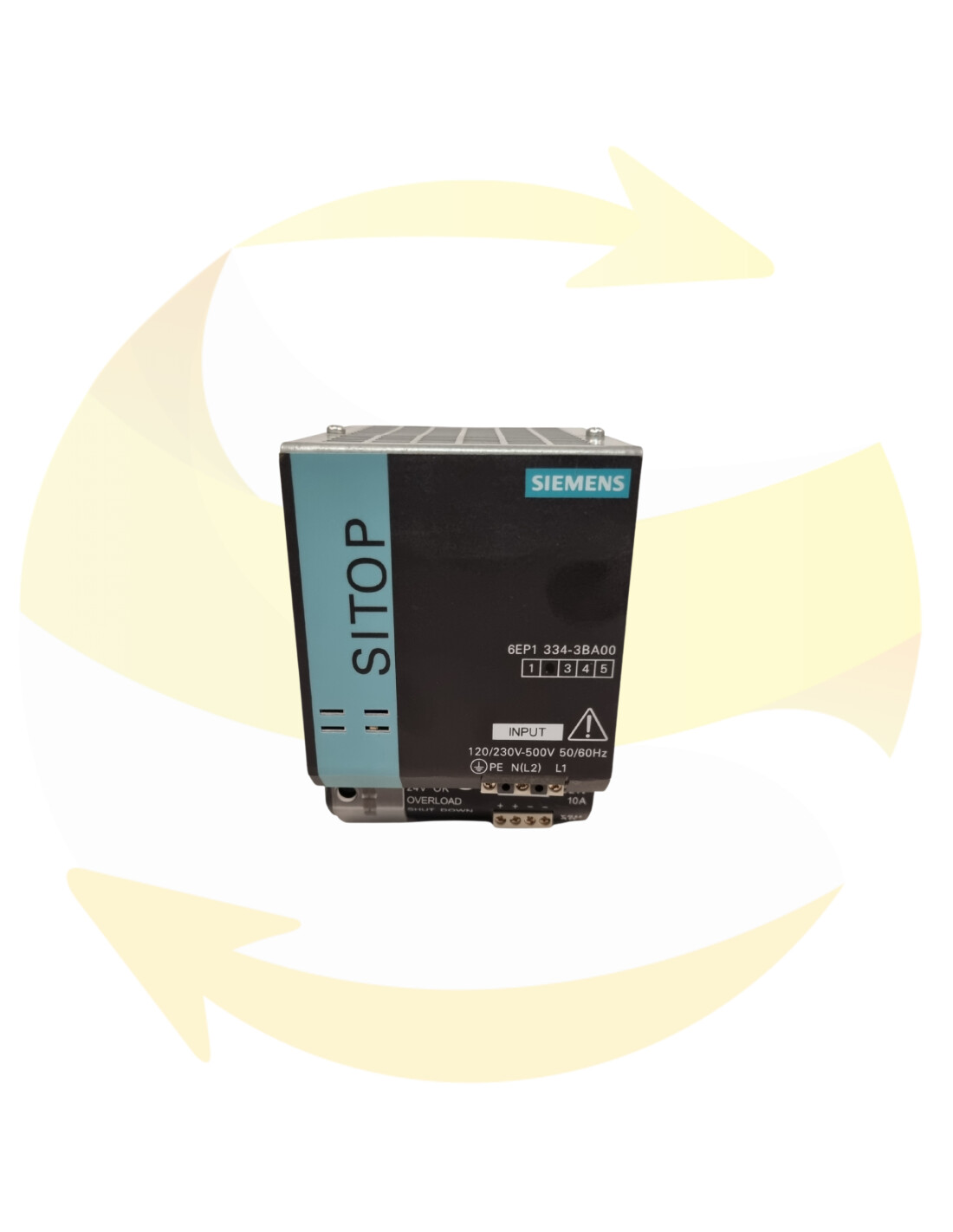

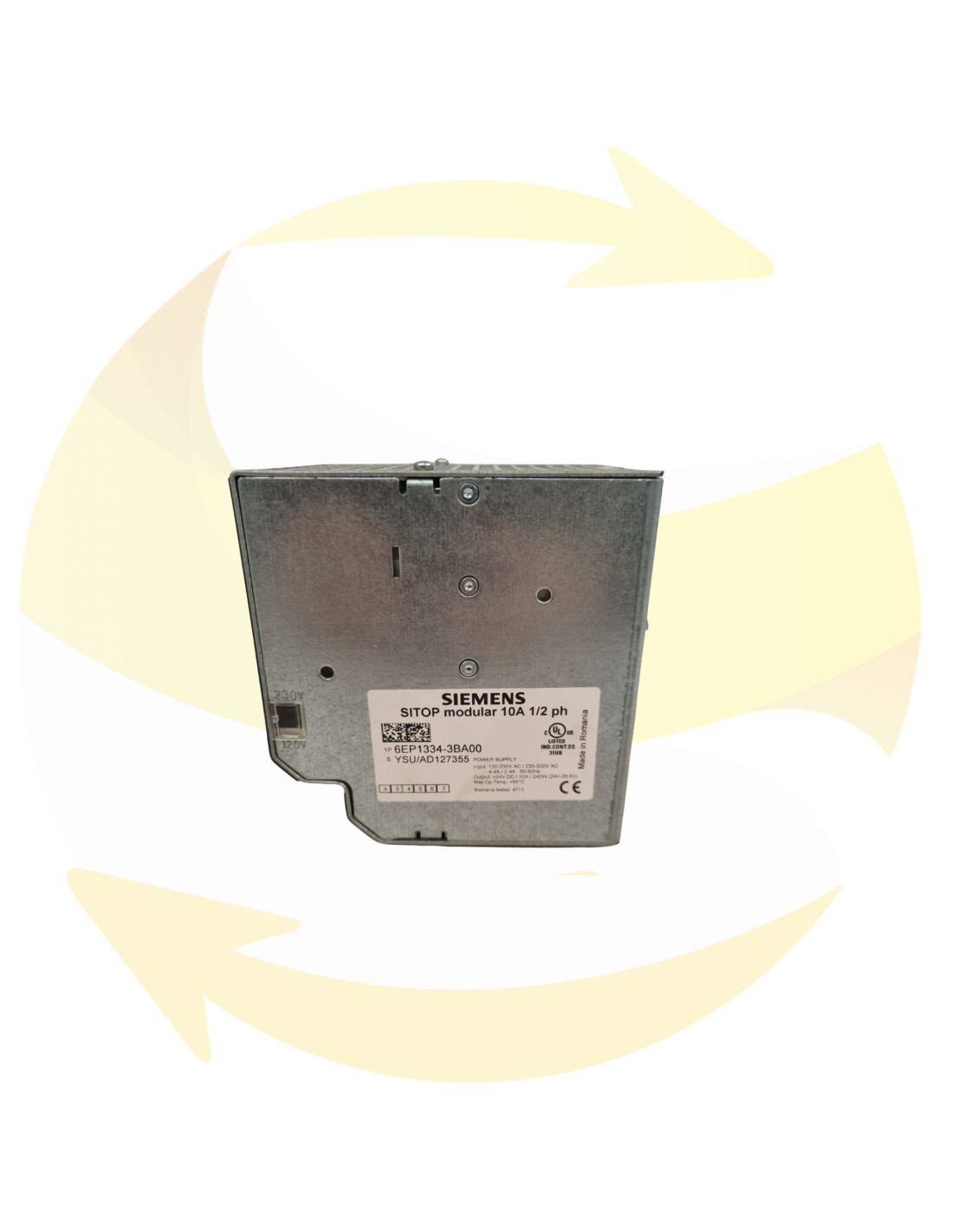

6EP1434-3BA00 - Power Supply - SIEMENS Expand

6EP1434-3BA00 - Power Supply - SIEMENS

SIEMENS SIEMENS

Refurbished

This SIEMENS power supply reference 6EP1434-3BA00 is part of the SITOP modular range.

SITOP PSU200M 10 A STABILIZED POWER SUPPLY INPUT: 120 / 230-500 V AC OUTPUT: 24 V DC / 10 A

This power supply 6EP1434-3BA00 is at your disposal in standard supply or exchange to replace your defective equipment and has a guarantee.

More details

In stock, shipping within 24h.

80,00 €

Livraison : 1 à 3 semaines

livraison-2.pngQuick delivery

garantis2.pngWarranted systems

paiement-securise-SEI_1.jpgSecure Payment


Product options

standard exchange refurbished

Standard exchange service

Reconditioned and tested systems
6 to 12 months warranty

new systems

Standard exchange service

New systems
12 to 24 months warranty

supply refurbished

Supply service

Reconditioned and tested systems
6 to 12 months warranty

supply new

Supply service

New systems
12 to 24 months warranty

supply in the state

Supply service

Systems sold in the state
without warranty

SITOP modular single-phase, two-phase and three-phase power supplies are the technological power supplies for demanding solutions. They offer maximum functionality and reliability for use in complex installations and machines. The wide-range input allows connection to any network in the world and provides high security, even in the event of large voltage fluctuations.

High-performance power supplies offer excellent overload behavior: Power-Boost delivers fast up to three times the rated current when triggering protection devices. And with 50% more power, it is possible to safely switch loads with a high inrush current. In case of overload, you have the choice between constant current and cut with memorization.

The very high efficiency guarantees low energy consumption and low heat dissipation in the cabinet. The compact metal housing with no lateral deviations required also saves space on the DIN rail. To further increase availability, SITOP modular power supplies can be combined with buffer modules, DC UPS modules, redundancy and selective power modules.

◾ Technological power supplies from 5 to 40A for demanding applications
◾ Compact and robust metal housing
◾ No side mounting space required
◾ Power-Boost for triggering protection devices
◾ Extra Power for high inrush currents
◾ Behavior on treadable short circuit
◾ Possibility to select symmetrical load distribution for parallel connection
◾ Very high performance up to 94%
◾ The Remote On / Off feature allows energy saving through standby mode
◾ 3LED status signal and signaling contact
◾ Wide ambient temperature range -25 to +70 ° C
◾ Numerous certifications like cULus, ATEX, Class I Div2, IECEx, GL and ABS
◾ Can be extended with buffer, redundancy, selective shutdown and DC UPS modules to increase availability.

Height 13 cm / 5,1 in
Width 9 cm / 3,5 in
Length 13 cm / 5,1 in
Weight 1,5 kg / 3,3 lbs
Family SITOP
Reference 6EP1434-3BA00

If Service exchange, thank you describe below the defect found on your defective part.
Allowed file formats are: GIF, JPG, PNG

loader

* required fields

No customer reviews for the moment.

Write a review

Siemens is an international group of German origin specializing in high technology and present in the sectors of industry, energy and health. It was founded in 1847 by Werner von Siemens.
