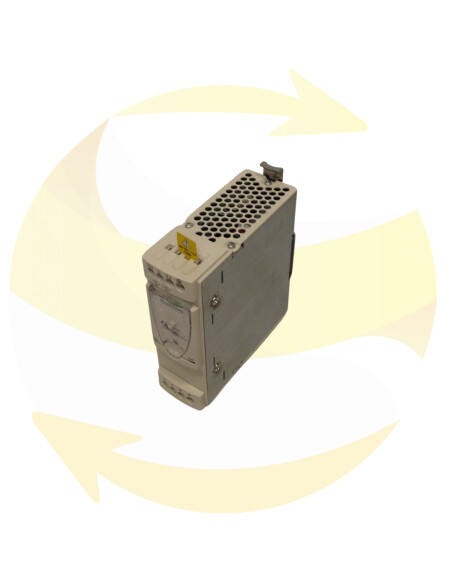

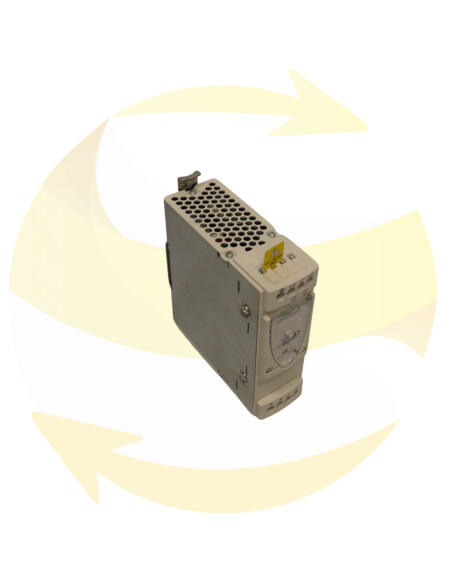

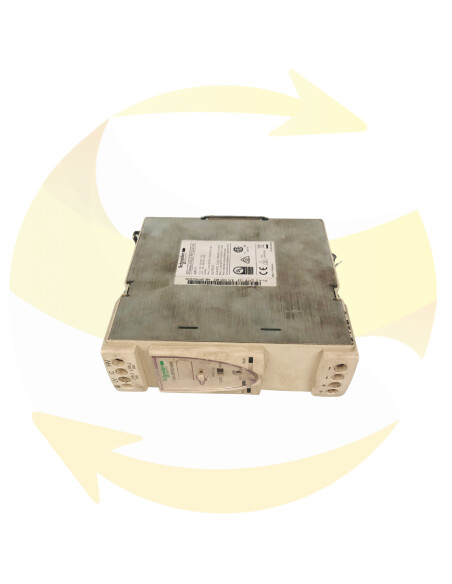

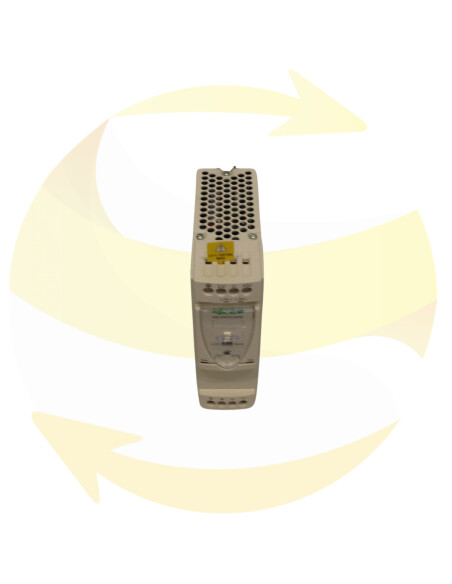

ABL8RPS24050 - Power Supply - SCHNEIDER ELECTRIC
This SCHNEIDER ELECTRIC reference power supply ABL8RPS24050 is part of the PHASEO range.
Operates in Phaseo - Compact regulated switching mode. Regulated output of 24 VDC / 5A. Power: 120W
This power supply ABL8RPS24050 is at your disposal in standard supply or exchange to replace your defective equipment and has a guarantee.
The supply of Phaseo switching power supplies is intended to supply the DC voltage required for the control circuits of the PLC and the automation equipment. b Phaseo controlled industrial switching power supplies are available in 3 ranges:
ABL8MEM / ABL7RM (Modular),
ABL8REM / ABL7RP (Optimum) and
ABL8RP / ABL8WP (Universal).
Phaseo switching power supplies are fully electronic and their output voltage is regulated. The use of electronics significantly improves the performance of the power supply. They offer:
- integrated protection against overloads, short circuits, overvoltages and undervoltages,
- wide input voltage range for the ABL8RP / ABL8WP (Universal) range, - output voltage stability,
- and LED diagnostics on the front panel or relay contact remote diagnosis for the ABL8RP / ABL8WP (Universal) range.
Phaseo power supplies deliver a stabilized output voltage c with an accuracy of 3%, regardless of the load from a network, in the ranges of:
- 100 to 240 V connected between phase and neutral (N-L1) or between two phases (L1-L2) for the ABL8MEM / ABL7RM (Modular) and ABL8REM / ABL7RP (Optimum) ranges
- 85 to 550 V connected between phase and neutral (N-L1) or between two phases (L1-L2) for the ABL8RP / ABL8WP range (Universal);
- 360 to 550 V connected between three phases (L1-L2-L3) for the ABL8RP / ABL8WP (Universal) range.
- They comply with IEC standards and are UL, CSA, TÜV and C-Tick certified for industrial use. The integration of overload and short-circuit protections makes downstream protections unnecessary if selectivity is not required. To obtain selectivity, it is recommended to use selective electronic downstream protection modules.
Phaseo power supplies include:
- A potentiometer for adjusting the output voltage to possibly compensate for online voltage drops in extended installations.
- Direct mounting on 35 mm (1.37 in.) Profle 5, optional on ABL1REM / 1RPM range and 75 mm (2.95 in.) Profleys 5 on the ABL8REM / ABL7RP range (Optimum).
