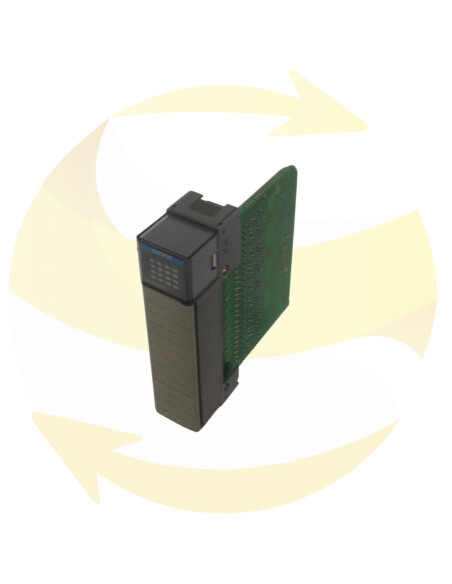

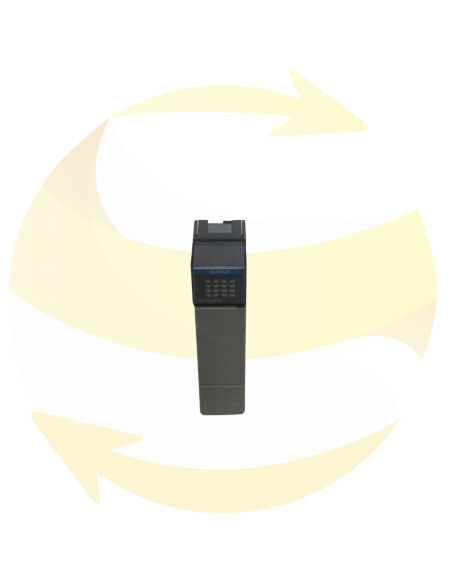

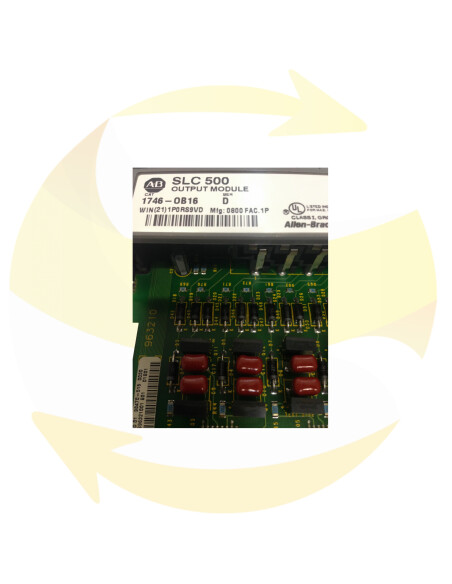

1746-OB16 - Digital Ouput Module - ALLEN BRADLEY
This 1746-OB16 and ALLEN BRADLEY reference digital output module is a module with 16 digital outputs for the SLC 500 range.
SLC 500, DIGITAL OUTPUT 24V DC signal output. 16 outputs. 0.280A.
This ALLEN BRADLEY module is at your disposal to replace your defective equipment and has a guarantee.
Digital I/O modules are available with 4, 8, 16, or 32 channels and in a wide variety of I/O voltages (including AC, DC, and TTL). Combination modules with 2 inputs/2 outputs, 4 inputs/4 outputs, and 6 inputs/6 outputs are also available.
Terminals on the 4, 8, 12, and 16-channel modules have self-lifting pressure plates that accept two 14 AWG (2 mm2) wires. LED indicators on the front of each module display the status of each I/O point.
32-channel I/O modules are equipped with a 40-pin, MIL-C-83503 type header and a removable wiring connector (1746-N3). The connector can be assembled with the wire type and length of your choice.
Output modules are available with solid-state AC, solid-state DC, and relay contact type outputs. High current solid-state output modules, catalog numbers 1746-OBP16, -OVP16, and -OAP12, have fused commons with a blown fuse LED indication. The 1746-OB16E, -OB6EI, and -OB32E modules provide electronic protection from short circuit and overload conditions.
Wiring of 16 and 32-channel modules can also be accomplished with a bulletin 1492 interface module and pre-wired cable. All 16-channel I/O modules and catalog numbers 1746-OX8, -OBP8, -OAP12, 1746-IO12 are equipped with color- coded removable terminal blocks.
Allen-Bradley is the brand-name of a line of Factory Automation Equipment manufactured by Rockwell Automation. The company, with revenues of approximately US $6.4 billion in 2013, manufactures programmable logic controllers (PLC), human-machine interfaces, sensors, safety components and systems, software, drives and drive systems, contactors, motor control centers, and systems of such products.
Rockwell Automation also provides asset-management services including repair and consulting. Rockwell Automation's headquarters is in Milwaukee, Wisconsin.
