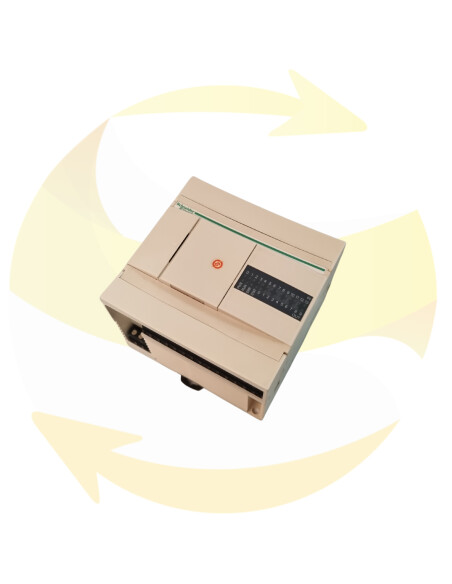

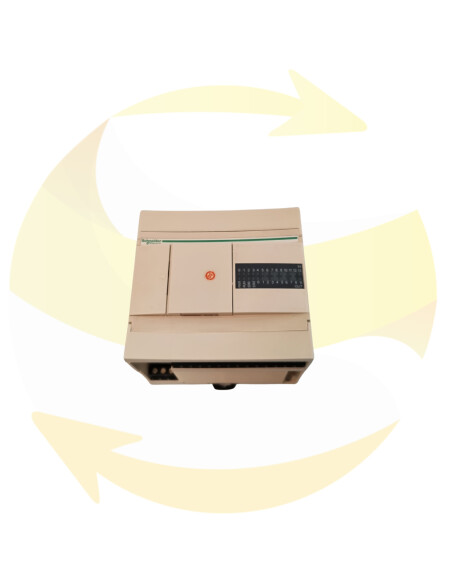

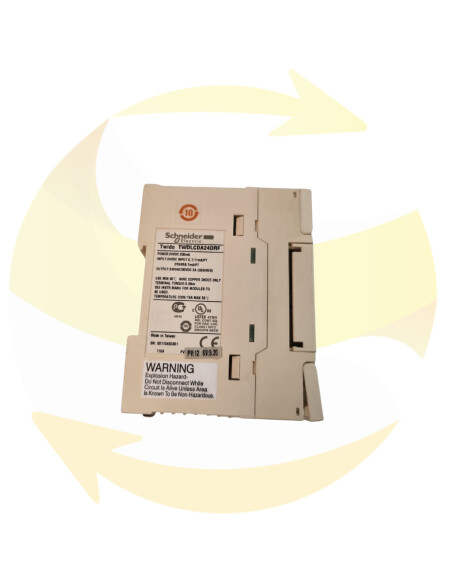

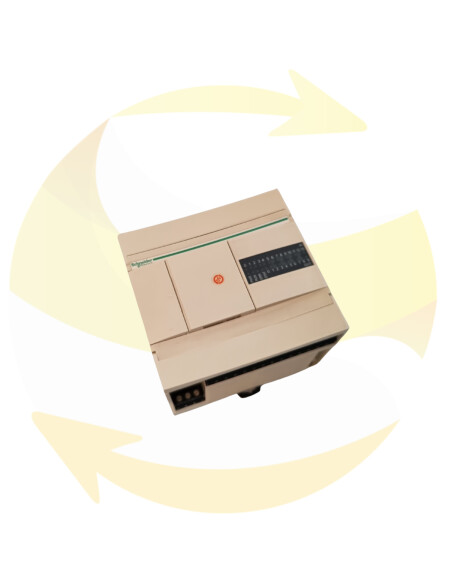

TWDLCDA24DRF - PLC - TELEMECANIQUE
This PLC TWDLCDA24DRF and TELEMECANIQUE brand is a compact 24 inputs / outputs. This controller belongs to the TWIDO range.
14 inputs / 10 outputs.
Input / Output Type: 24 V DC, Relay.
Power supply: 24 V DC
This PLC TWDLCDA24DRF Telemecanique is at your disposal to replace your defective equipment and has a guarantee adapted to your needs.
There are two models of Twido bases:
- Compact bases
- Modular bases
Compact bases are available with 10, 16, 24 or 40 I / O.
Modular bases are available with 20 or 40 I / O.
Additional I / O can be added to the bases using modules
I / O expansion. These are the following modules:
- 15 expansion modules of digital I / O type or relay;
- 10 expansion modules of analog I / O type.
It is also possible to add several options to the PLC databases, as shown in the table in the section - Database Options
In addition to these options, you can also add the following options:
Digital I / O cables
Telefast pre-wired systems with I / O interfaces.
The connection to an AS-Interface bus interface module can also be used to manage up to 62 slave devices. Use the following module:
- AS-Interface bus master module V2: TWDNOI10M3.
Compact 24 I / O and 40 I / O bases and all modular bases can be connected to a CANopen fieldbus interface module. The CANopen master module can manage up to 16 CANopen slave devices (not exceeding 16Transmit-PDOs (TPDO) and 16Receive-PDOs (RPDO)). Use the following module:
- master module CANopen fieldbus interface: TWDNCO1M.
Advanced integrated features are available on compact bases TWDLC •• 40DRF:
- Integrated 100Base TX Ethernet network port: TWDLCAE40DRF and TWDLCDE40DRF only;
- built-in time stamp (RTC): TWDLC •• 40DRF;
- fourth fast counter (FC): TWDLC •• 40DRF;
- External battery support: TWDLC •• 40DRF.
Since its creation, the Telemecanique brand has been pursuing an innovation policy, which has become one of the world’s first references in automatism management.
The story of Telemécanique is read through that of its inventions, initiated with the launch of the first contactor on bars. A patent filed the same year of its acquisition, in 1924! It will develop contactors D became world reference. The 1980s marked the acquisition of Telemechanics by Schneider Electric (1988).
