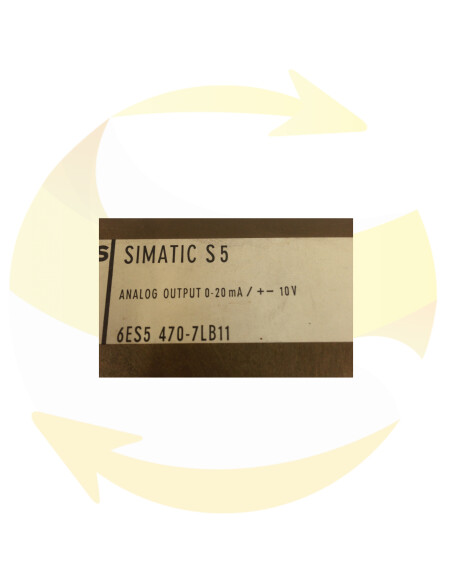

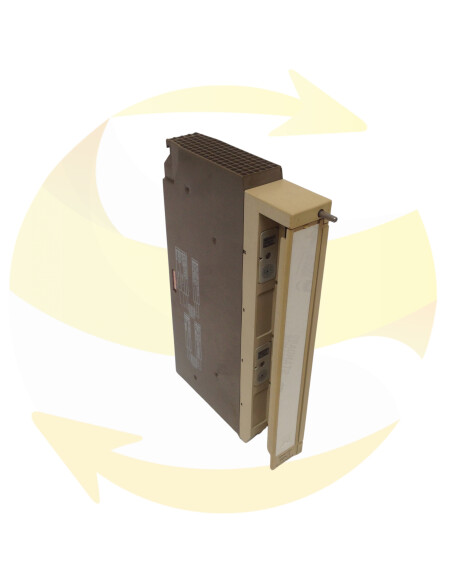

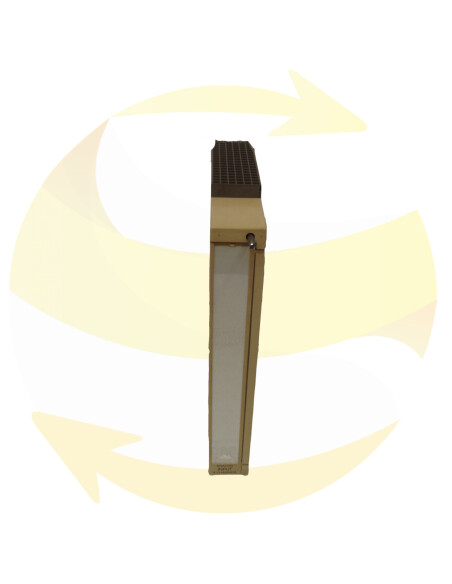

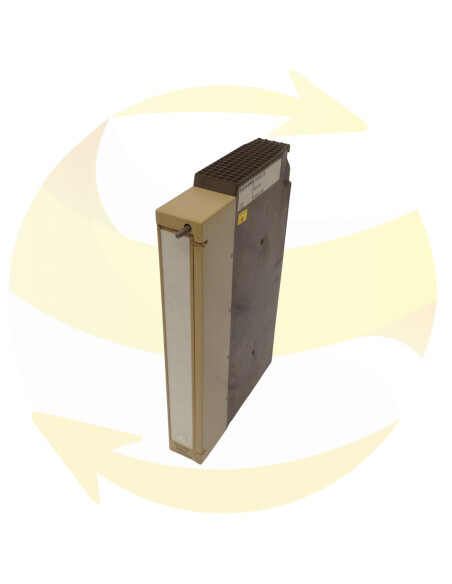

6ES5470-7LB11 - Analog Output Module - SIEMENS Expand

6ES5470-7LB11 - Analog Output Module - SIEMENS



This SIEMENS reference module 6ES5470-7LB11 is part of the SIMATIC S5 range. S5-115U.


This analog output module 6ES5470-7LB11 is at your disposal in supply to replace your defective equipment and has a guarantee adapted to your needs.

More details

In stock, shipping within 24h.

440,00 €

livraison-2.pngQuick delivery

garantis2.pngWarranted systems

paiement-securise-SEI_1.jpgSecure Payment

Product options

standard exchange refurbished

Standard exchange service

Reconditioned and tested systems
6 to 12 months warranty

new systems

Standard exchange service

New systems
12 to 24 months warranty

supply refurbished

Supply service

Reconditioned and tested systems
6 to 12 months warranty

supply new

Supply service

New systems
12 to 24 months warranty

supply in the state

Supply service

Systems sold in the state
without warranty

The analog output modules convert digital values from the programmable controller into the analog signals required by the process.

Three analog output modules are available with 8 outputs each and a range of output voltages. The modules each require one slot.

The signal leads must be connected with front connec tors. They can be labelled in the fields on the front panel. The modules and front connectors can be inserted and removed under power. The module address (byte parameter when pro gramming) is slot dependent and need therefore not be set on the module.

The CPU of the central con troller transmits output values in digital form to the pro cessor of the analog output module. These are converted to analog voltages by a digital analog converter and a sample and hold procedure.

A voltage current converter is also used to generate the corresponding output currents.The voltage and current output ranges for each module are fixed.

All the analog output modules of the S5 135U/155U programmable controllers can be used in the S5115U with adapter casings.

Height 31 cm / 12,2 in
Width 19 cm / 7,4 in
Length 4,5 cm / 1,7 in
Weight 0,7 kg / 1,5 lb
Reference 6ES5470-7LB11
