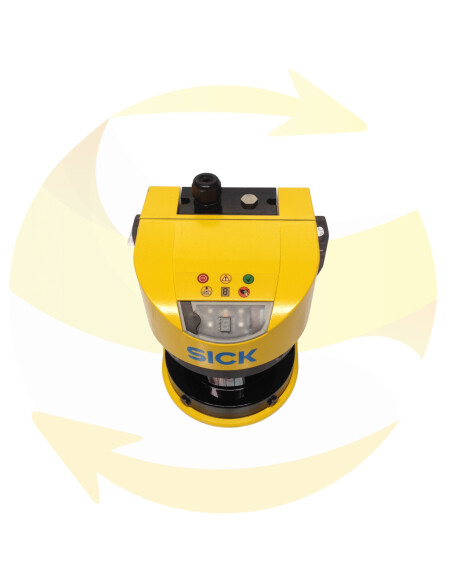

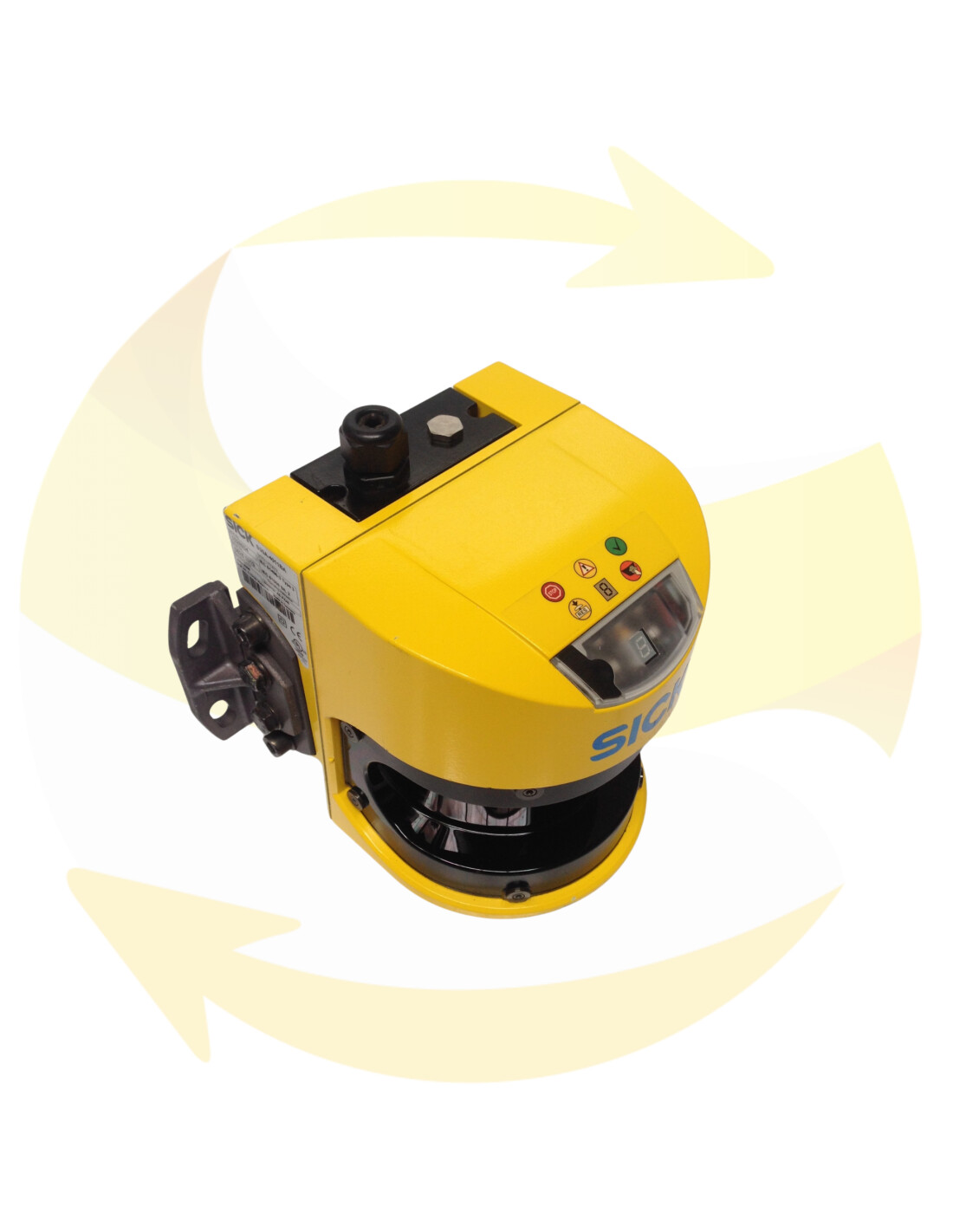

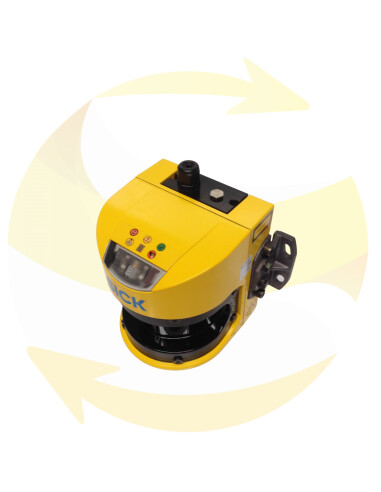

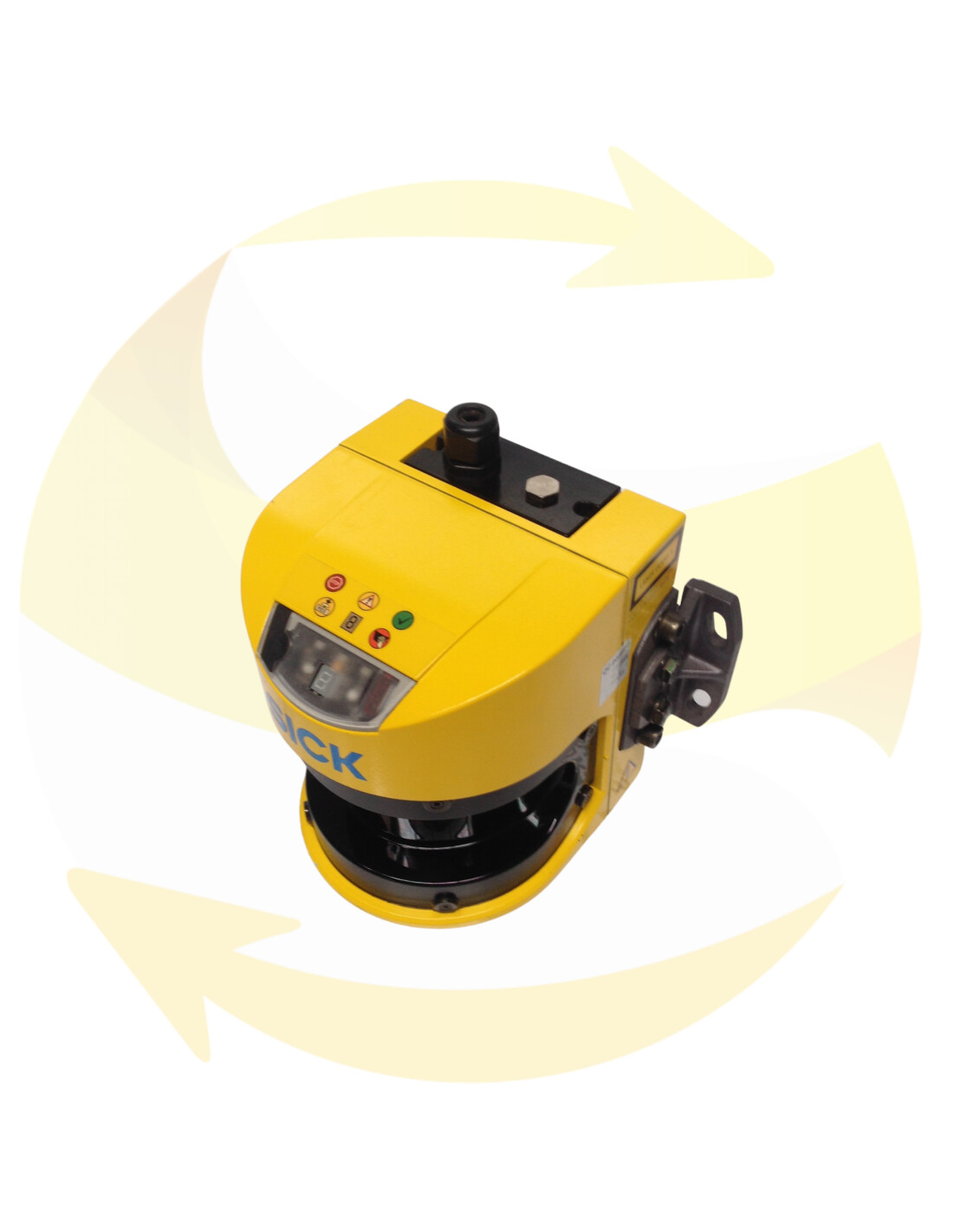

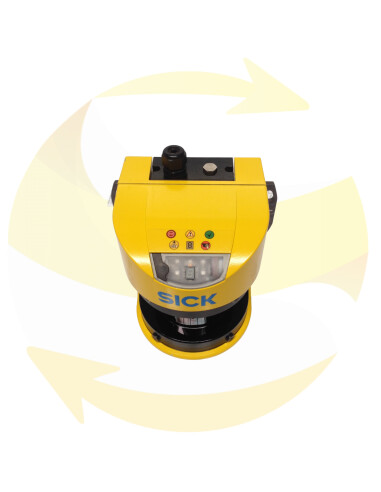

S30A-6011EA - Laser Scanner - SICK
This safety laser scanner can only be used in combination with the EFI system group, eg. with a Flexi Soft safety control system or another S300 or S3000 safety laser scanner.
Range: 5.5 m
This SICK S30A-6011EA scanner is at your disposal to replace your defective equipment.
Use Only usable in combination with the EFI group of systems, eg. with a Flexi Soft safety control system or another S300 or S3000 safety laser scanner.
Range of the protection field 5.5 m
Range of alarm field 49 m (20 m for 20% retransmission)
Distance measuring range 49 m
Number of protective fields simultaneously controlled ≤ 4
Fieldplay type Prism field games, dual field games
Number of field sets 32
Number of fields 64
Number of alert scenarios 32
190 ° sweep angle
Resolution (configurable) 30 mm, 40 mm, 50 mm, 70 mm, 150 mm
Angular resolution 0.5 °, 0.25 °, depending on resolution and range
Response time 60 ms
Protection field added 100 mm
Number of scans 2 ... 16, configurable
Auto reset timeout: 2 s ... 60 s, configurable
