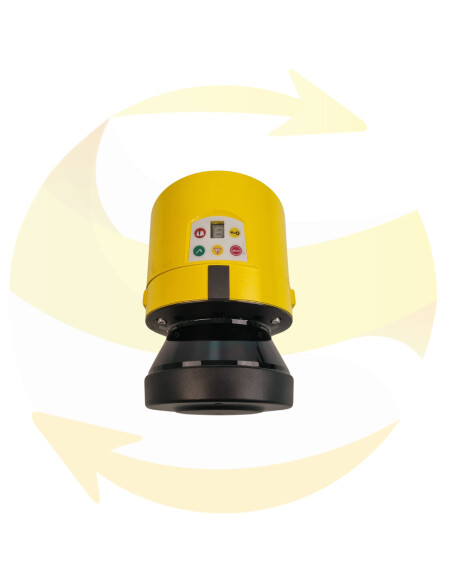

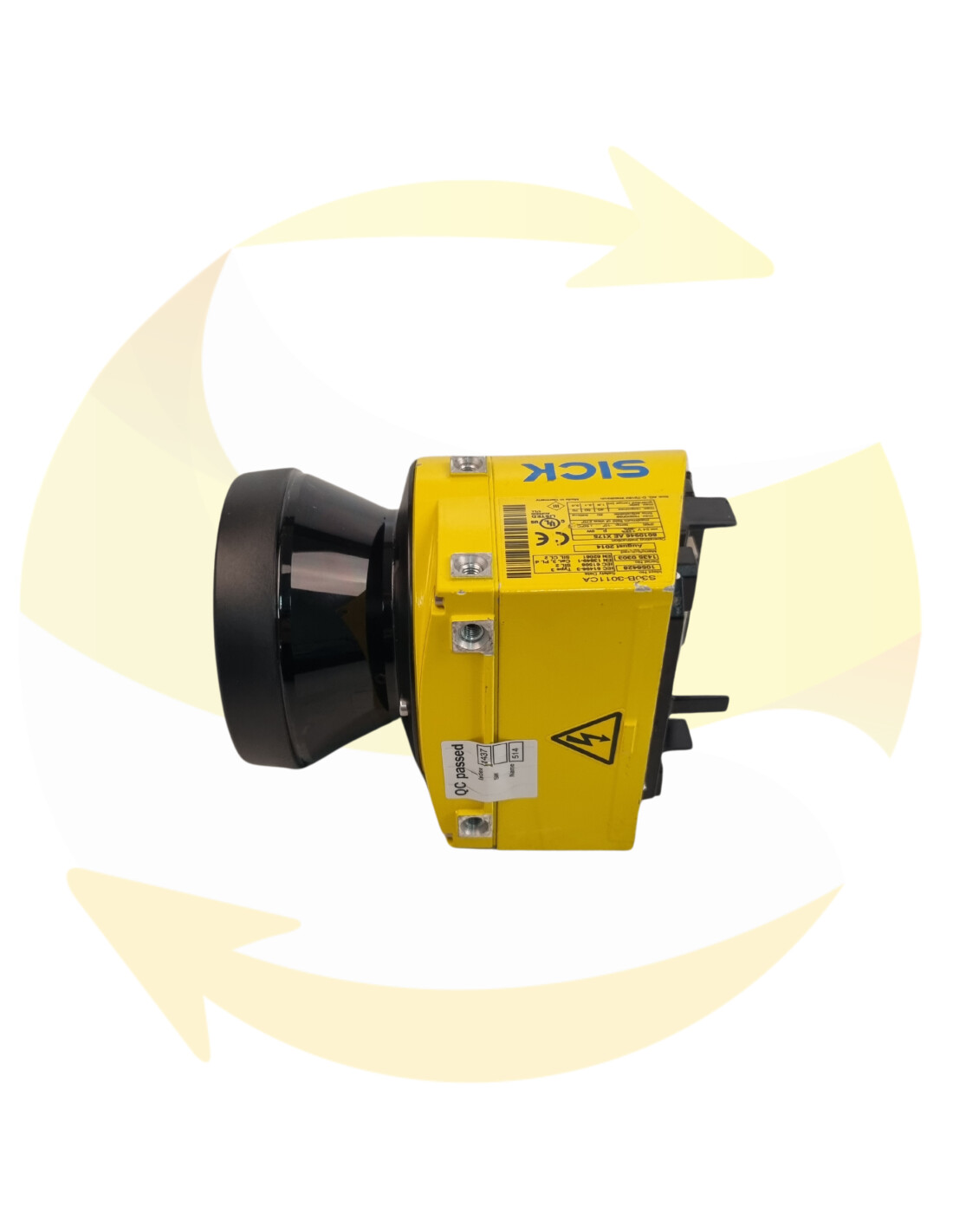

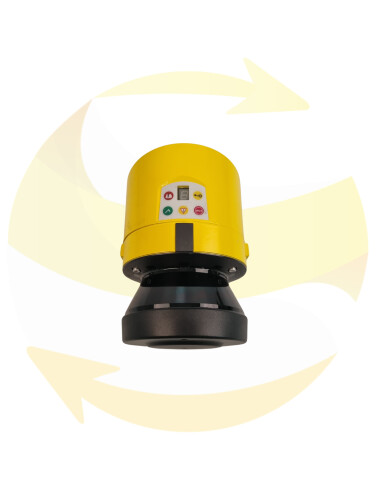

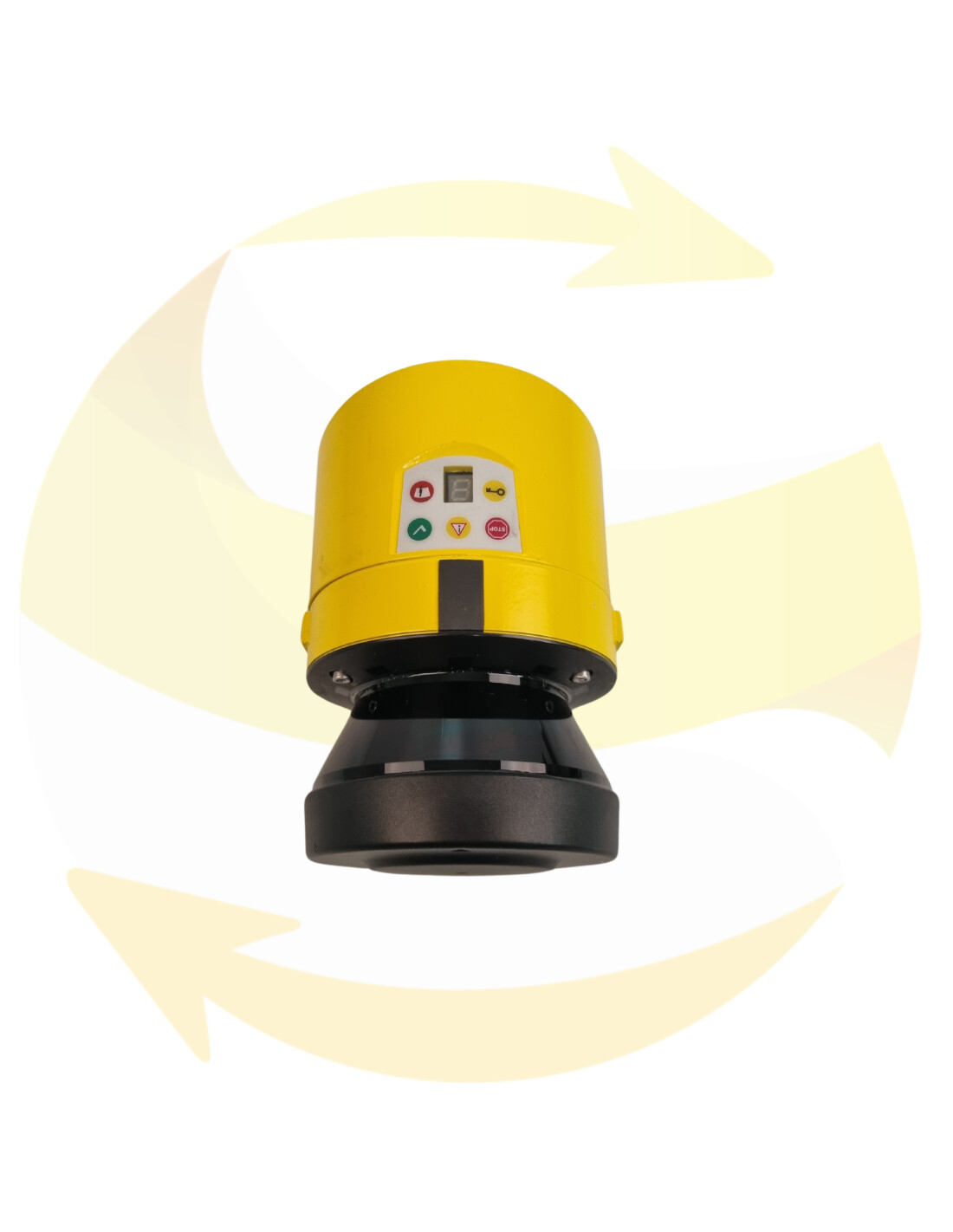

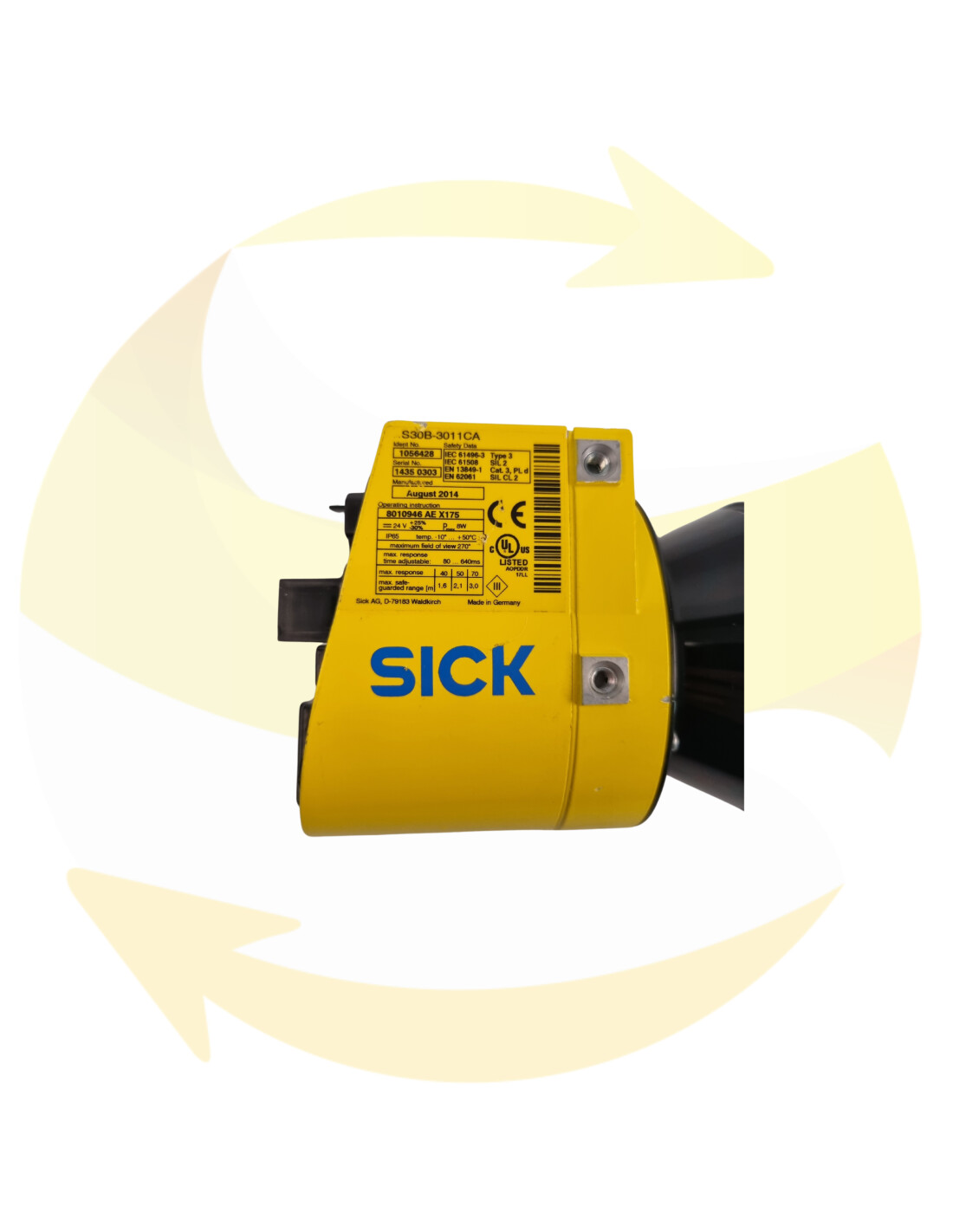

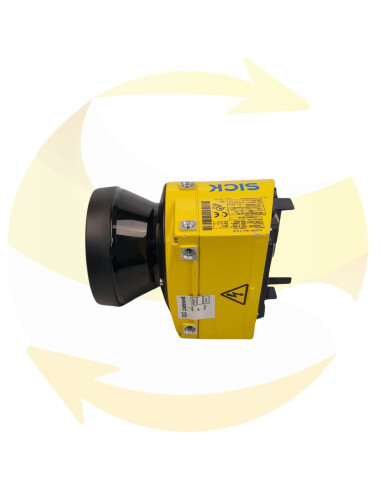

S30B-3011CA - Laser Scanner - SICK

• 270° scanning range

• Higher dust and particle tolerance thanks to anti-glare and particle algorithms

• Product variants with ranges of up to 2 m or 3 m (maximum protective field radius)

• Configuration via PC or laptop with SICK Configuration & software

Diagnostic Software

• Saving the configuration in the system connector. When replacing a device, the existing configuration is automatically transferred to the newly connected safety laser scanner. This significantly reduces downtime.

• The field set includes a protective field and up to 2 alarm fields.

• Monitoring of protective field contours when using a single alarm field

• 5 universal I/O connections

• Integrated controlled contactor control (EDM)

• Integrated configurable reset/reset delay function

• Secure bus connection via EFI for operation in a system combination with other safety laser scanners, with products from the sen:Control product group or with a Flexi Soft safety control system.

• Compatibility mode for interoperability with older generation safety laser scanners

From S300 Advanced

• Up to 4 sets of fields

• Switching of warning scenarios via static or EFI inputs

From S300 Professional

• Up to 8 field sets

• Switching of warning scenarios via dynamic inputs with an incremental encoder

• Speed ​​routing using a Flexi Soft safety control system

S300 Expert

• Up to 16 field sets

• CMS function for detection of reflectors as artificial landmarks

The safety laser scanner includes 3 components:

• The sensor with the optoelectronic detection system, the display LEDs and the 7-segment display

• The optical cover with the light exit window

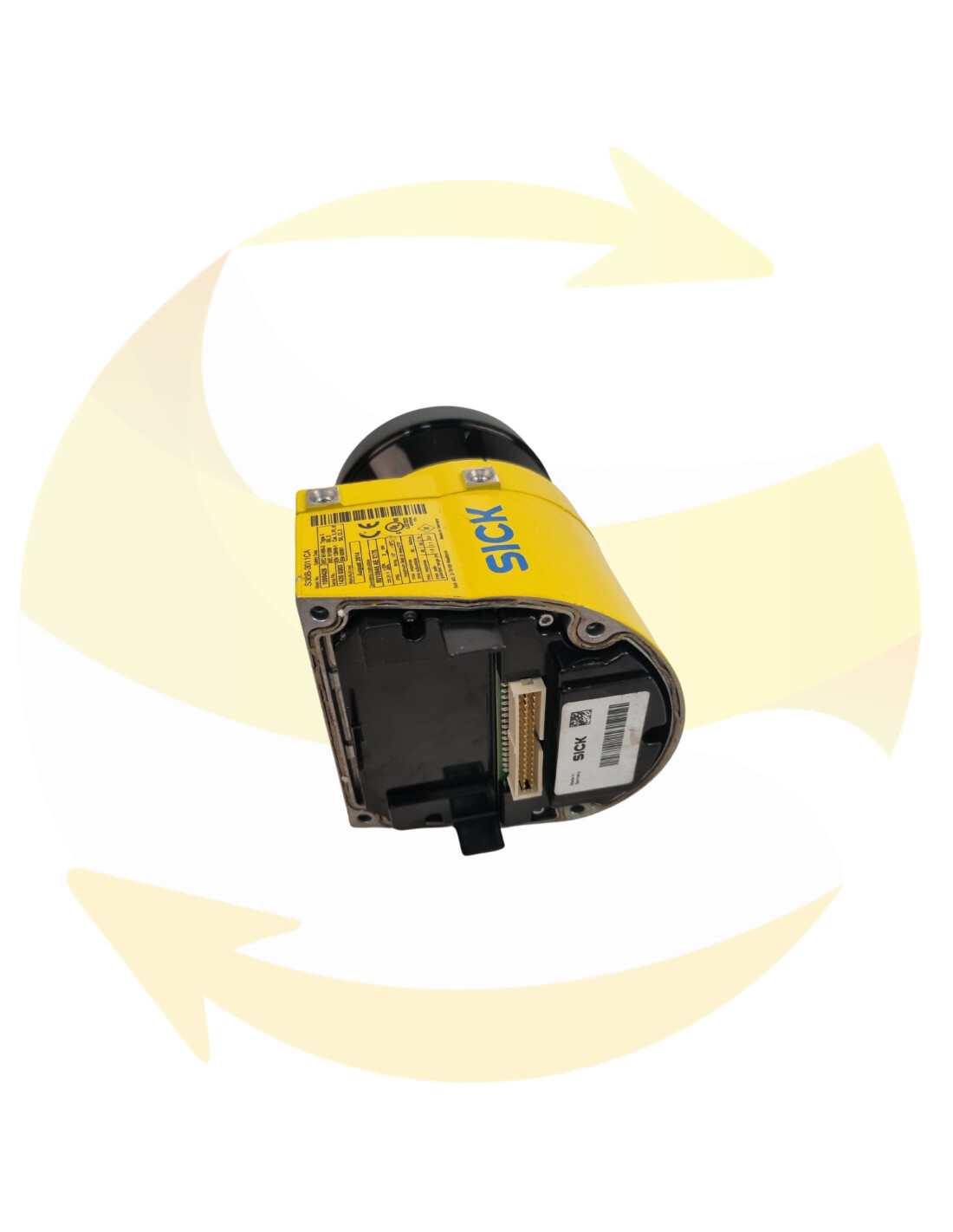

• The system connector with configuration memory. The system connector has all electrical connections except the configuration interface.
