ROD426 250 03S12-03

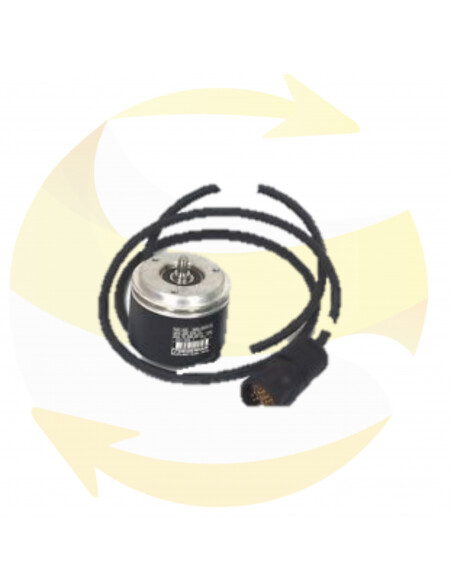

This rotary encoder HEIDENHAIN ROD426 250 03S12-03 is an encoder with integrated bearing for separate shaft coupling.

This HEIDENHAIN encoder belongs to the ROD426 range.

It has 250 points for rotary measurement of an axis or motor.

This HEIDENHAIN encoder is at your disposal to replace your defective equipment and has a guarantee adapted to your needs.

In stock, ready to ship.
State
  • New Supply
Warranty
€315.00
VAT excluded

System options

Exchange service with a refurbished unit

Standard Exchange Service

Reconditioned and tested systems

From 6 to 12
month warranty

Exchange service with a new unit

Standard Exchange Service

New systems

From 12 to 24
month warranty

Supply of a refurbished unit

Supply Service

Reconditioned and tested systems

From 6 to 12
month warranty

Supply of a new unit

Supply Service

New systems

From 12 to 24
month warranty

For parts only

Supply Service

Sold for parts – no warranty

Repair

Repair service

Repair will be made to damaged and defectiv units

From 3 to 18
month warranty

Livraison rapide

Fast
delivery

Livraison rapide

guaranteed
products

Livraison rapide

Secure
payment



ROC/ROQ/ROD rotary encoders have integrated bearings and a solid shaft. The encoder shaft is connected with the measured shaft through a separate rotor coupling.

The coupling compensates axial motion and misalignment (radial and angular offset) between the encoder shaft and measured shaft. This relieves the encoder bearing of additional external loads that would otherwise shorten its service life.

Diaphragm and metal bellows couplings designed to connect the rotor of the ROC/ROQ/ROD encoders are available.


ROC/ROQ/ROD 400 series rotary encoders permit high bearing loads. They can therefore also be mounted directly onto mechanical transfer elements such as gears or friction wheels.

If the encoder shaft is subject to relatively high loads, for example from friction wheels, pulleys, or sprockets, HEIDENHAIN recommends mounting the ECN/EQN/ ERN 400 with a bearing assembly.

Height
6 cm / 2,3 in
Width
5,5 cm / 2,1 in
Length
6 cm / 2,3 in
Weight
0,3 kg / 0,6 lb
Reference
ROD426 250 03S12-03
New product
3009557941795
300251748066

The company HEIDENHAIN develops and manufactures linear and angular measurement systems, dimensions visualizations and digital controls for a high requirement of positioning. HEIDENHAIN products are primarily intended for high-precision machine tools and equipment for the production and processing of electronic components.
