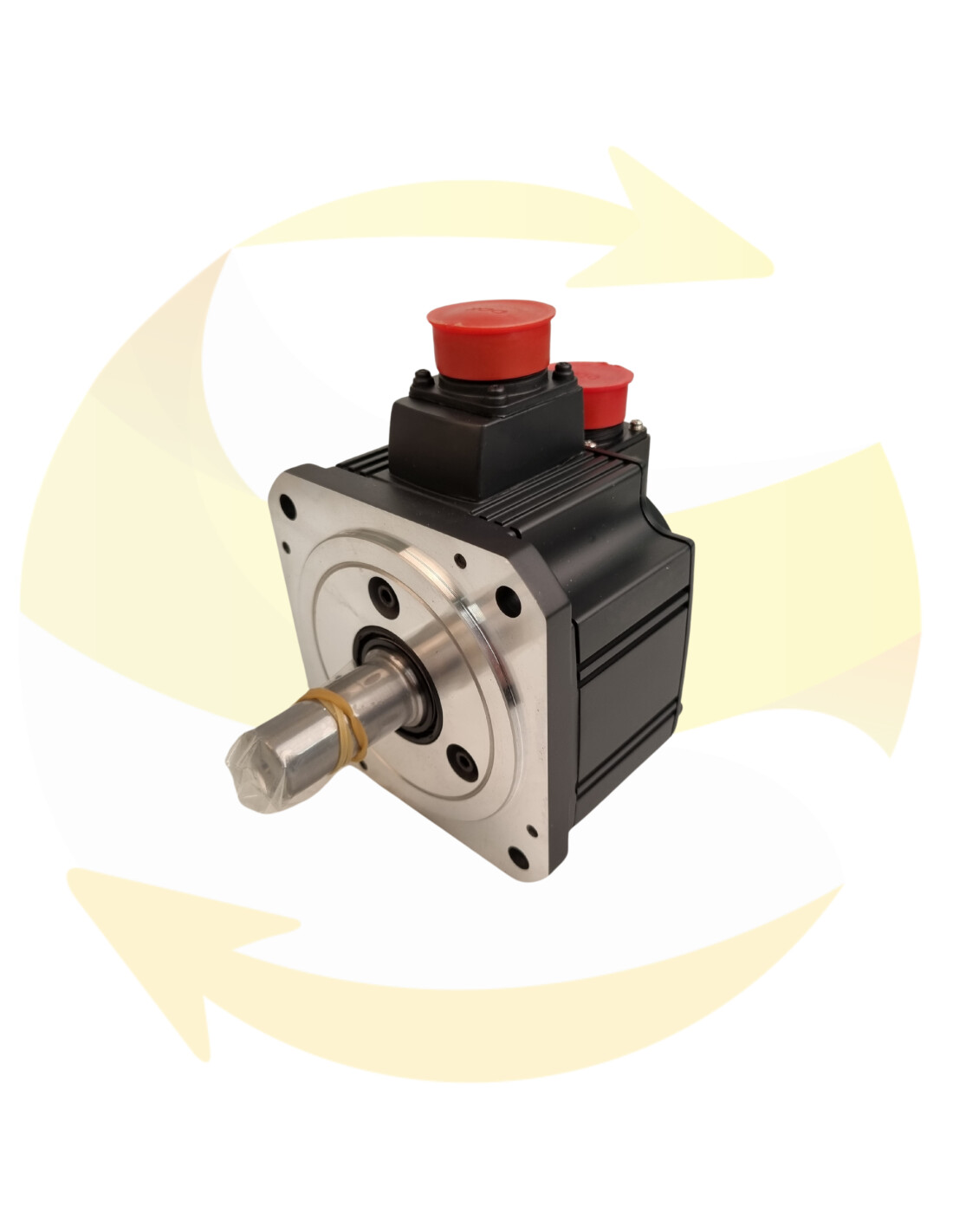

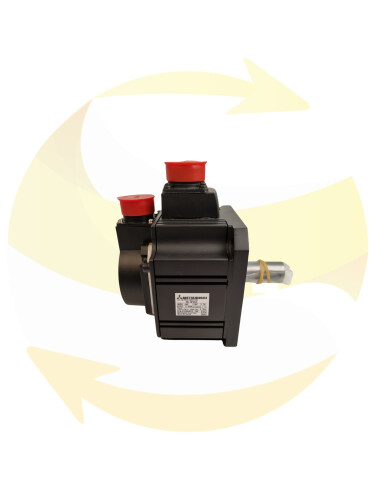

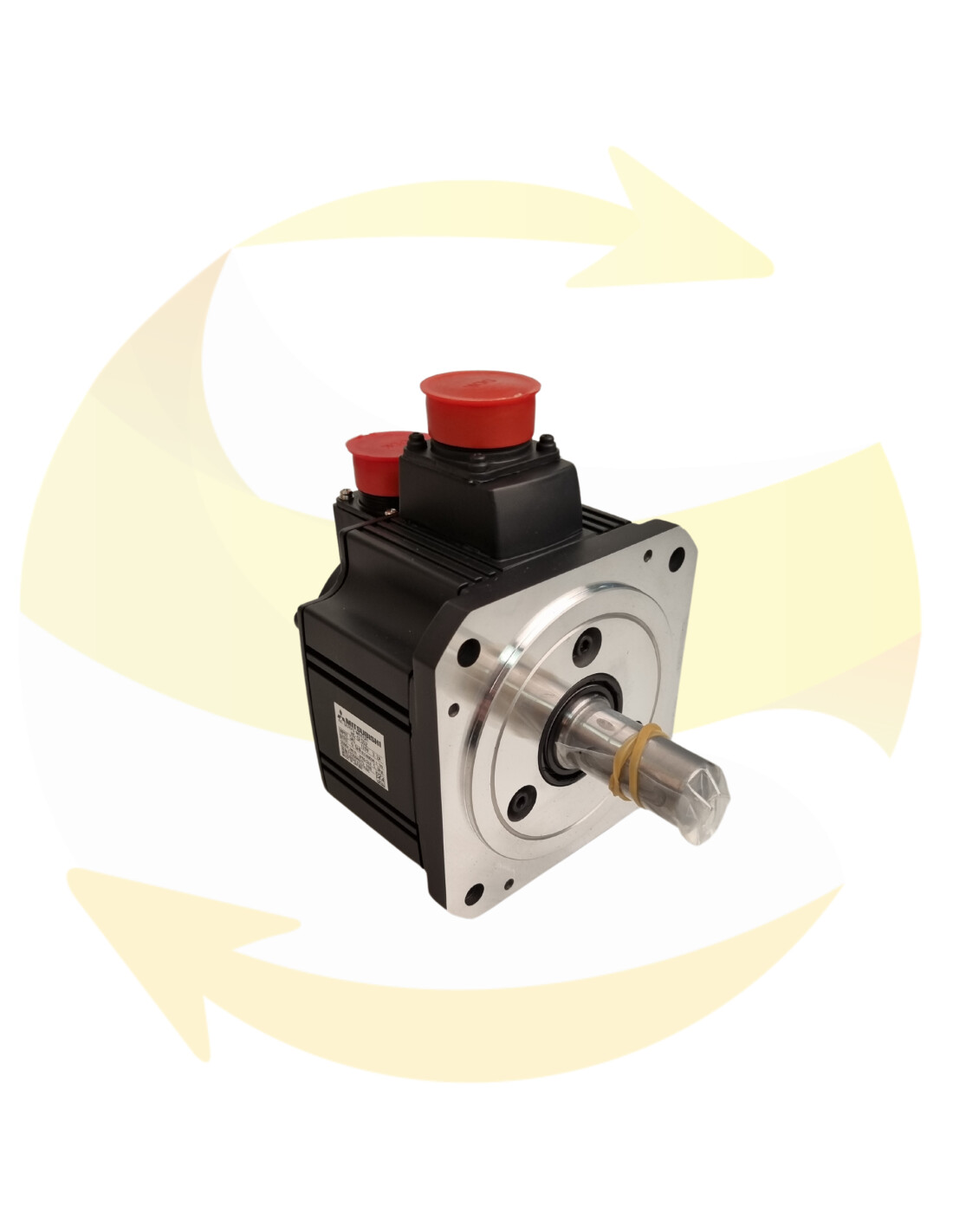

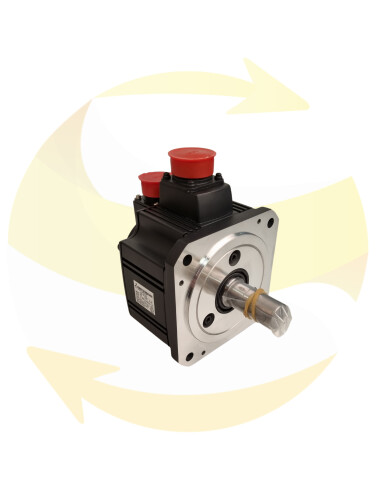

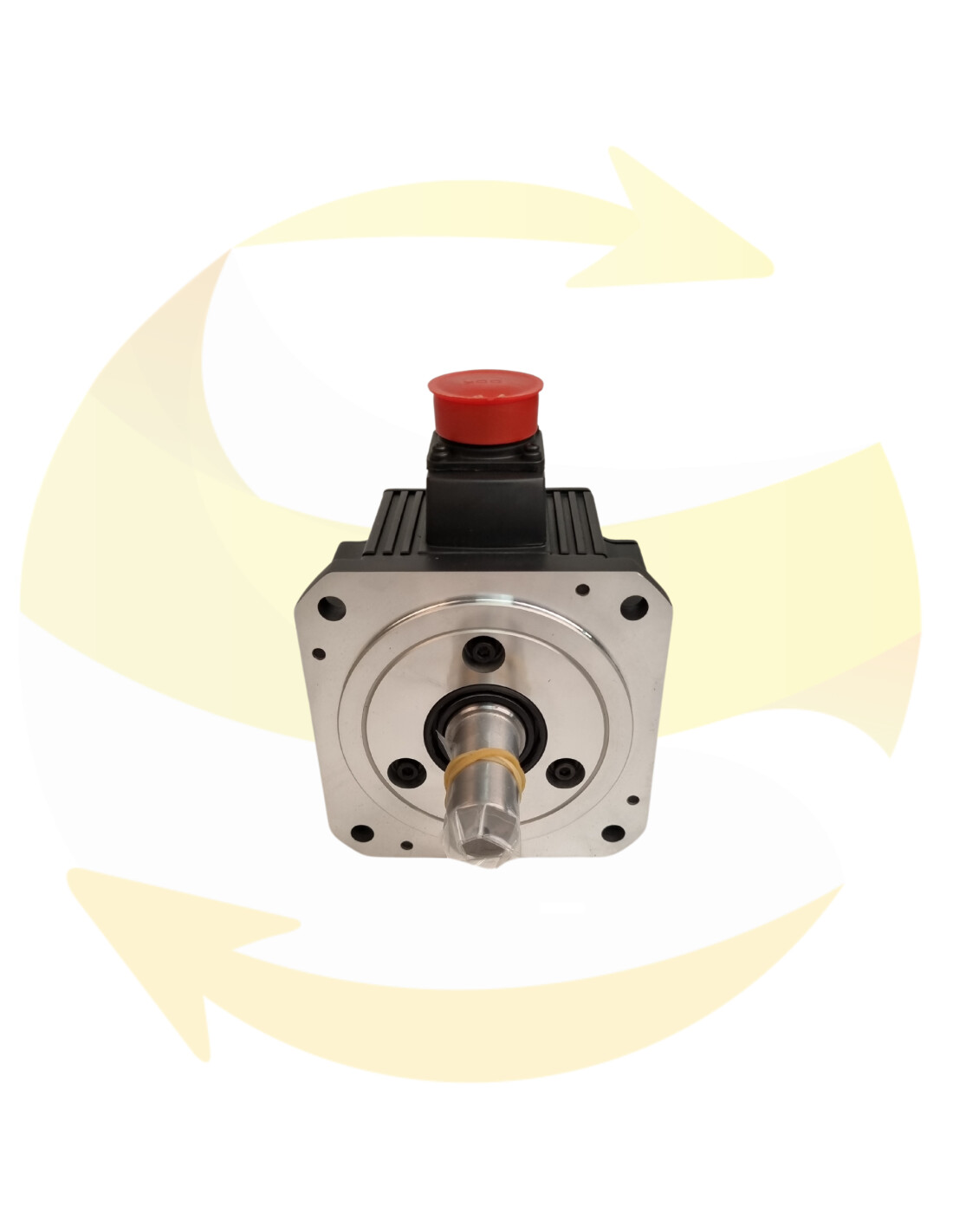

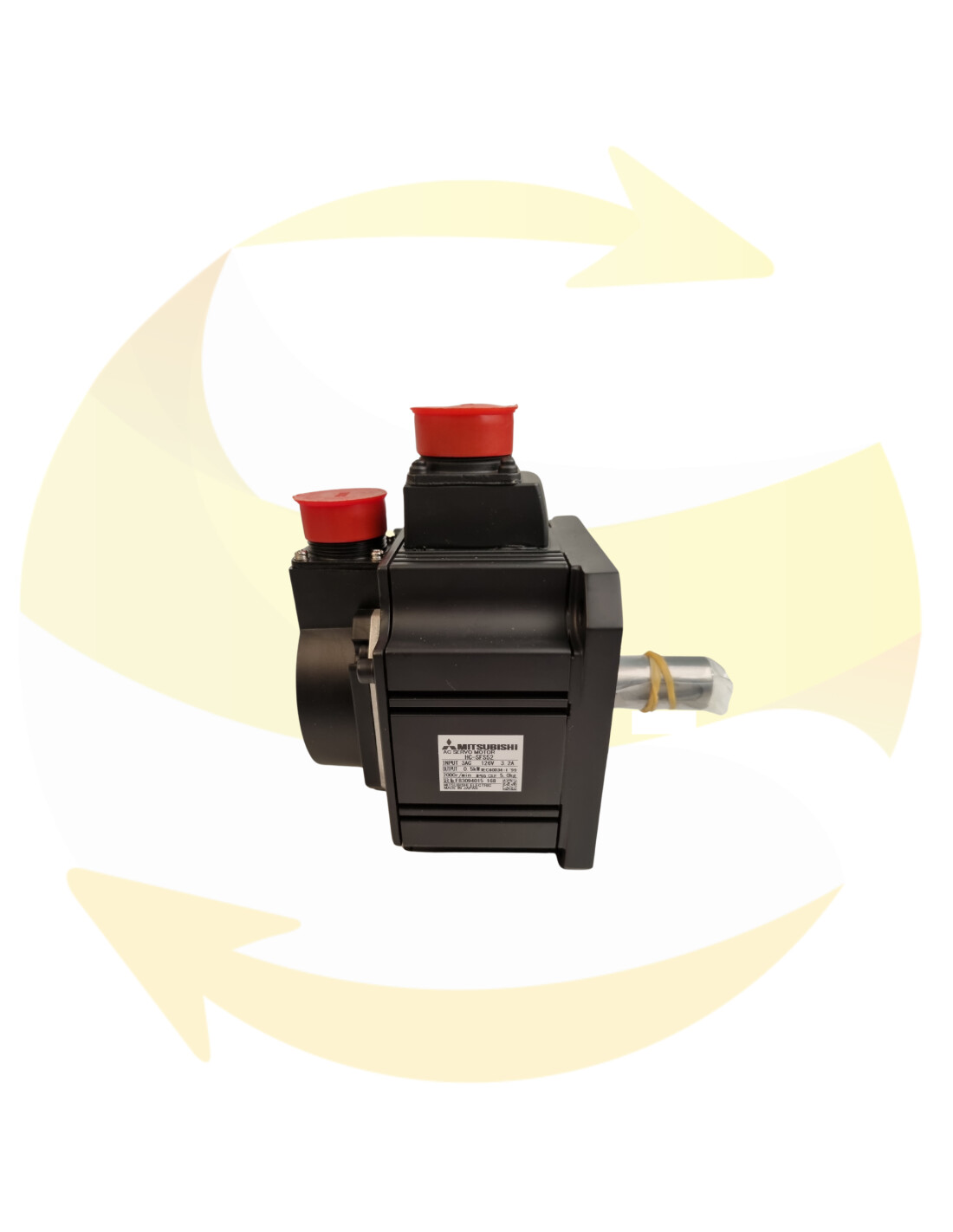

HC-SFS52 - Servomotor - MITSUBISHI

The MR-J2S AC servo amplifier with integrated positioning functions is the MR-J2S-A AC servo amplifier that integrates single-axis positioning functions. These functions perform a positioning operation by simply setting the position data (target positions), servo motor speeds, acceleration and deceleration time constants, etc. to indicate tables as if you were setting them in parameters. The servo amplifier is most suitable for setting up a simple positioning system without a program or for simplifying a system, for example.

There are 3-point tables as standard and they can be increased to 31 points using the MR Configurator (servo configuration software).

You can choose a configuration that suits your needs, e.g. a simple positioning system using external I/O signals (DI/O), operation using DI/O and RS-422 serial communications, or multiple drop operation using RS-422 serial communications.

All servos are equipped with an absolute position encoder as standard. An absolute position detection system can be configured by simply adding a battery to the servo amplifier. Once the home position is set, there is no need to return the home position when power is turned on, in the event of an alarm, etc.

The MR-J2S alternative servo amplifier with positioning function is easier to use and more functional by using it with the MR Configurator (servo configuration software).
