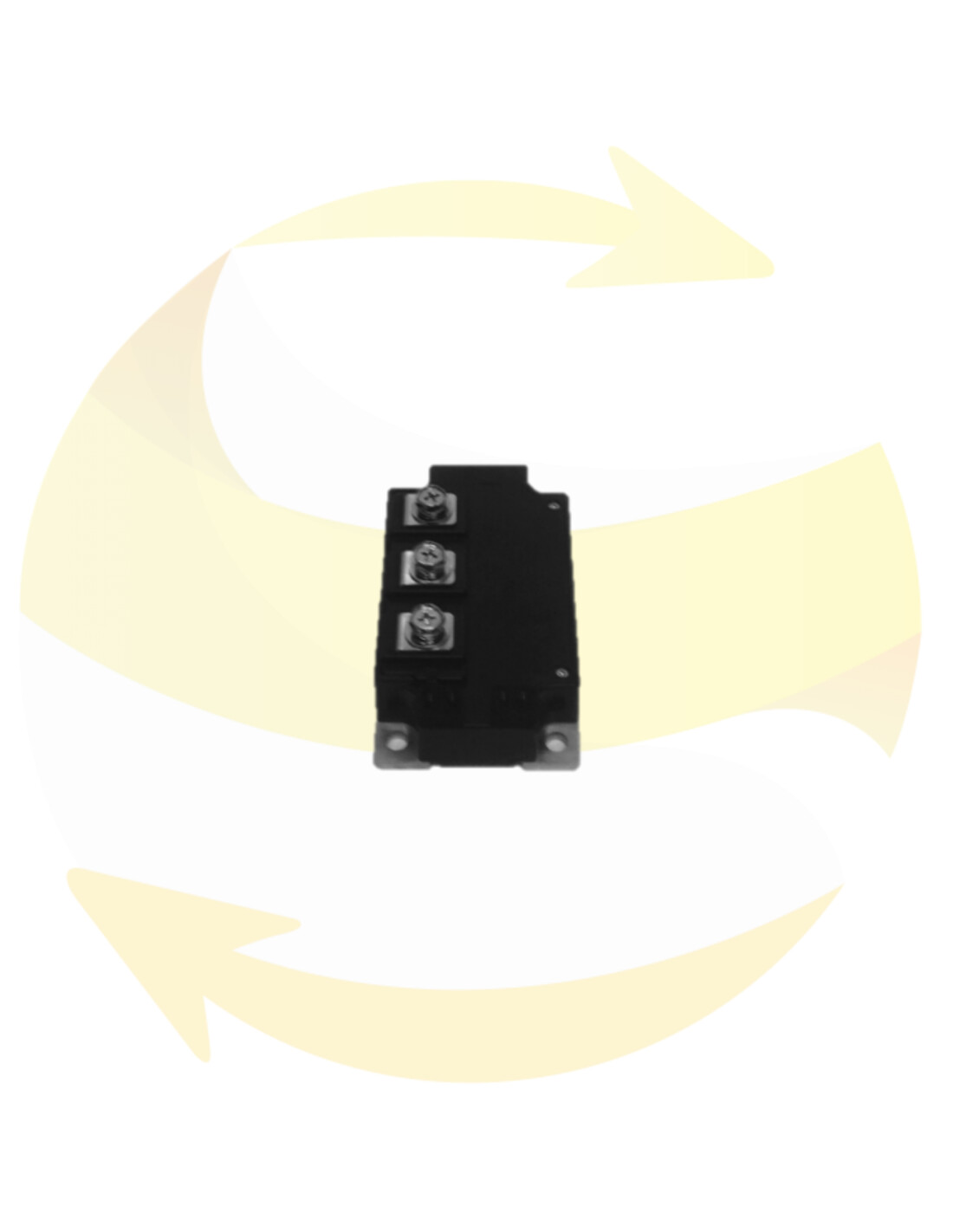

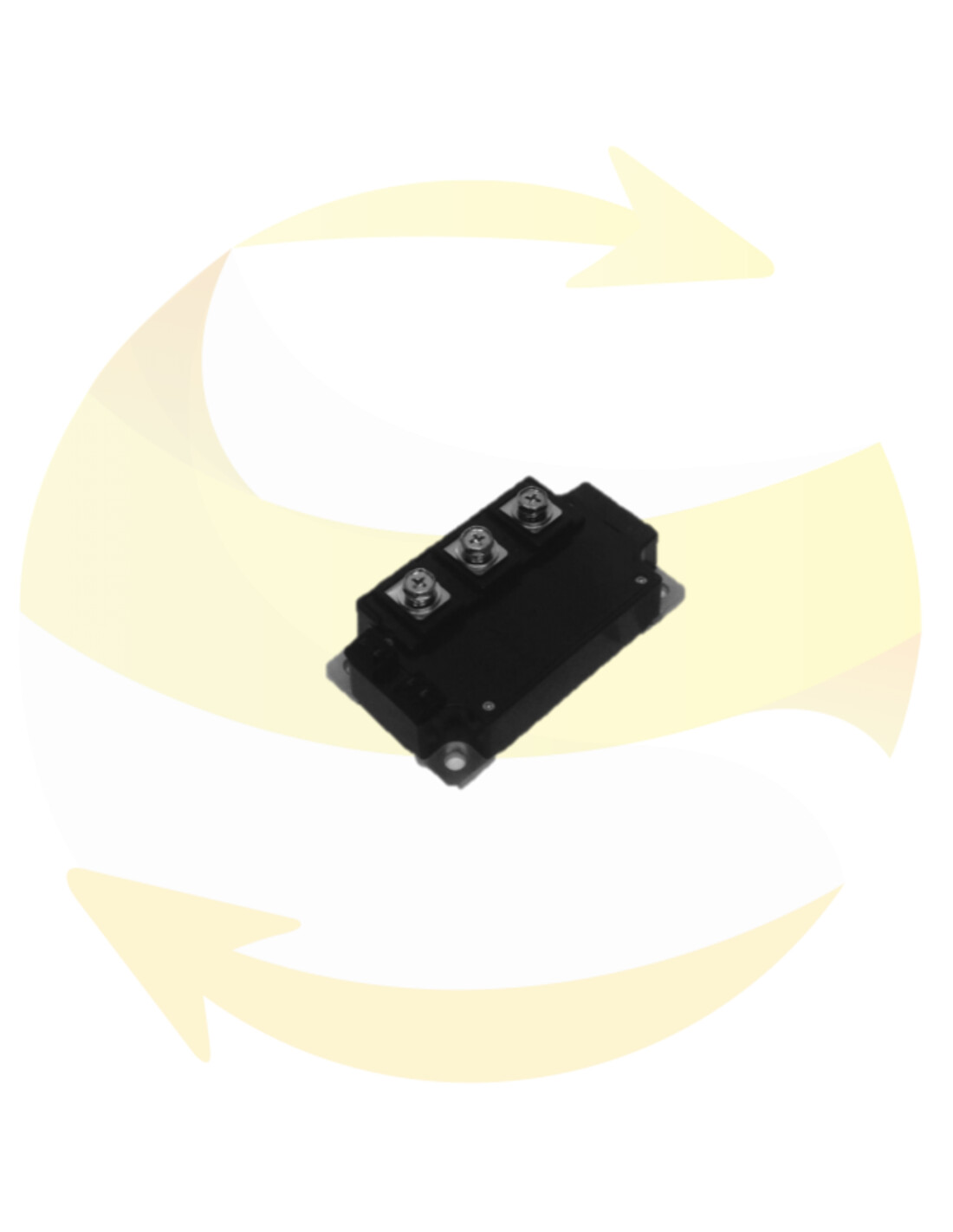

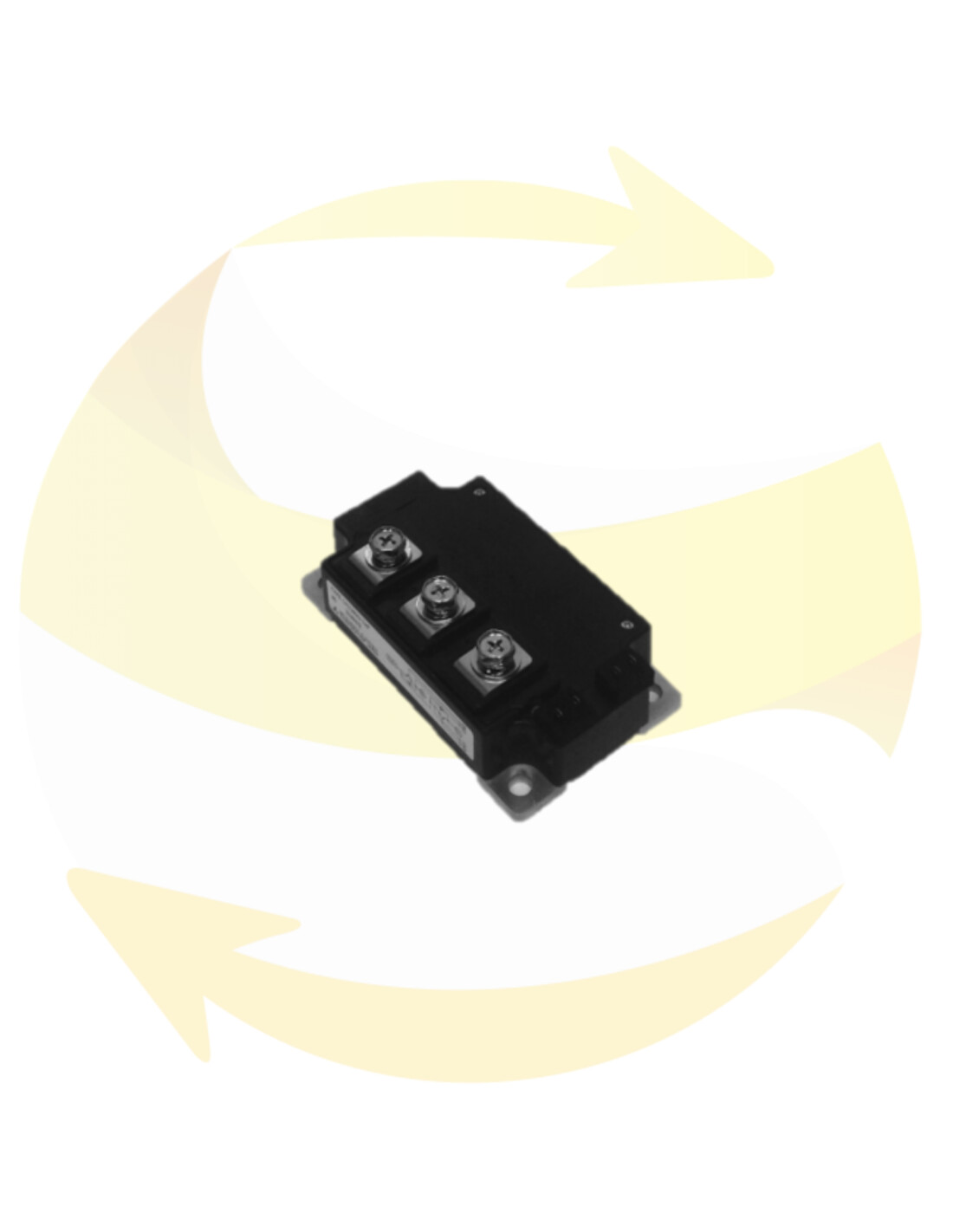

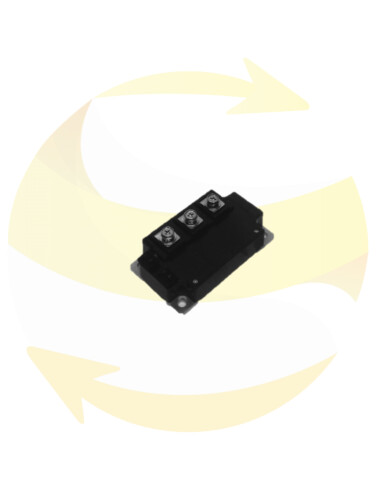

CM100DU-24F - IGBT Power module - MITSUBISHI
This MITSUBISHI power module reference CM100DU-24F is part of the range F SERIES MITSUBISHI
CM100DU-24F : 1200V, 100A, 500W, Isolated Type, High Power Switching
This power module CM100DU-24F is at your disposal in supply to replace your defective module and has a guarantee adapted to your needs.
New power module.
Mitsubishis new F-series IGBTs represent a significant advance over previous IGBT generations in terms of total power losses.
The device remains fundamentally the same as a conventional IGBT, and the advice given in the application notes General Considerations for IGBT and Intelligent Power Modules and Using IGBT Modules should be observed.
However the use of a trenchgate structure, and an integrated short circuit current control circuit, mean that there are sufficient differences in characteristics and behaviour to warrant further explanation.
Since the IGBTs introduction, successive generations of IGBT technology have featured steady improvements in onstate voltage and switching losses. However, improving the performance of existing IGBT technology has become increasingly difficult due to the constraints of the planar IGBT structure. The limitations of the planar IGBT arise partly from the resistance of the JFET region between adjacent cells in the MOSFET portion of the device, and partly from the forward voltage VF of the diode structure in the bipolar portion of the device. F-series IGBTs overcome the
first constraint by utilising a trench gate structure, in which the gate oxide and conductive polysilicon gate electrode are formed in a deep narrow trench below the chip surface. The second limitation is addressed by using a new proton irradiation process.
