VW3A16101 - Keypad - TELEMECANIQUE Expand

VW3A16101 - Keypad - TELEMECANIQUE

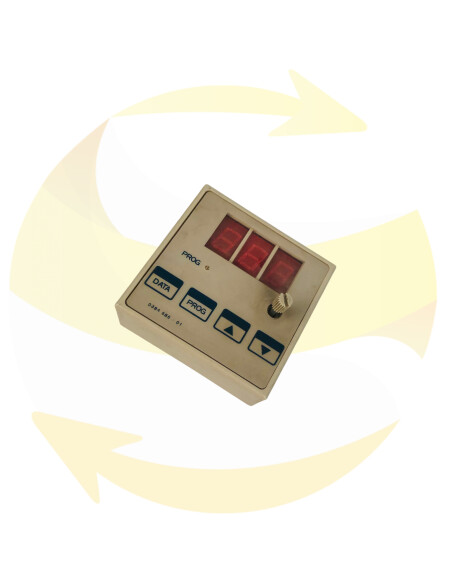

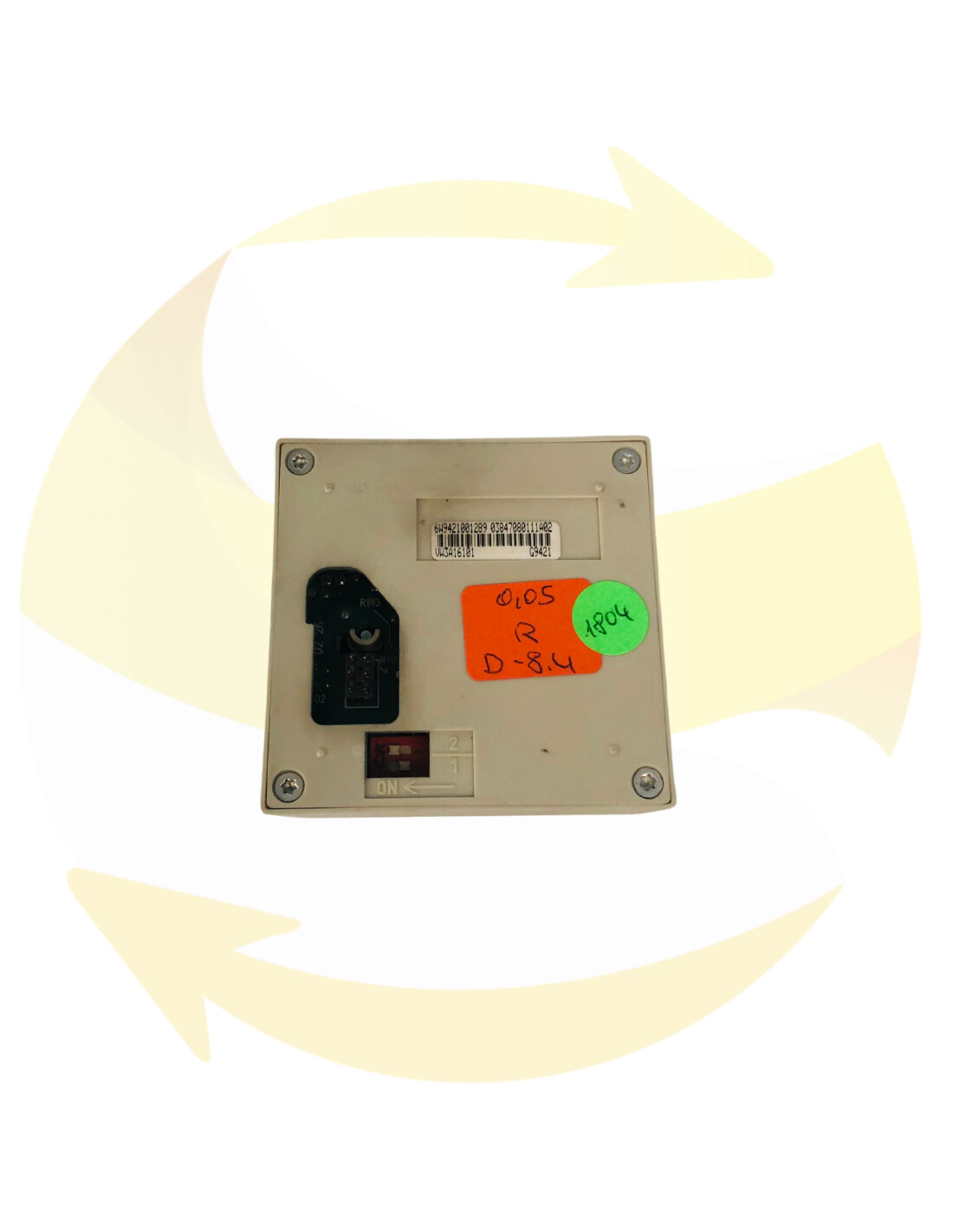

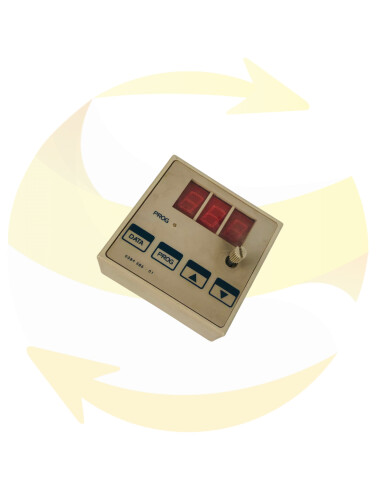

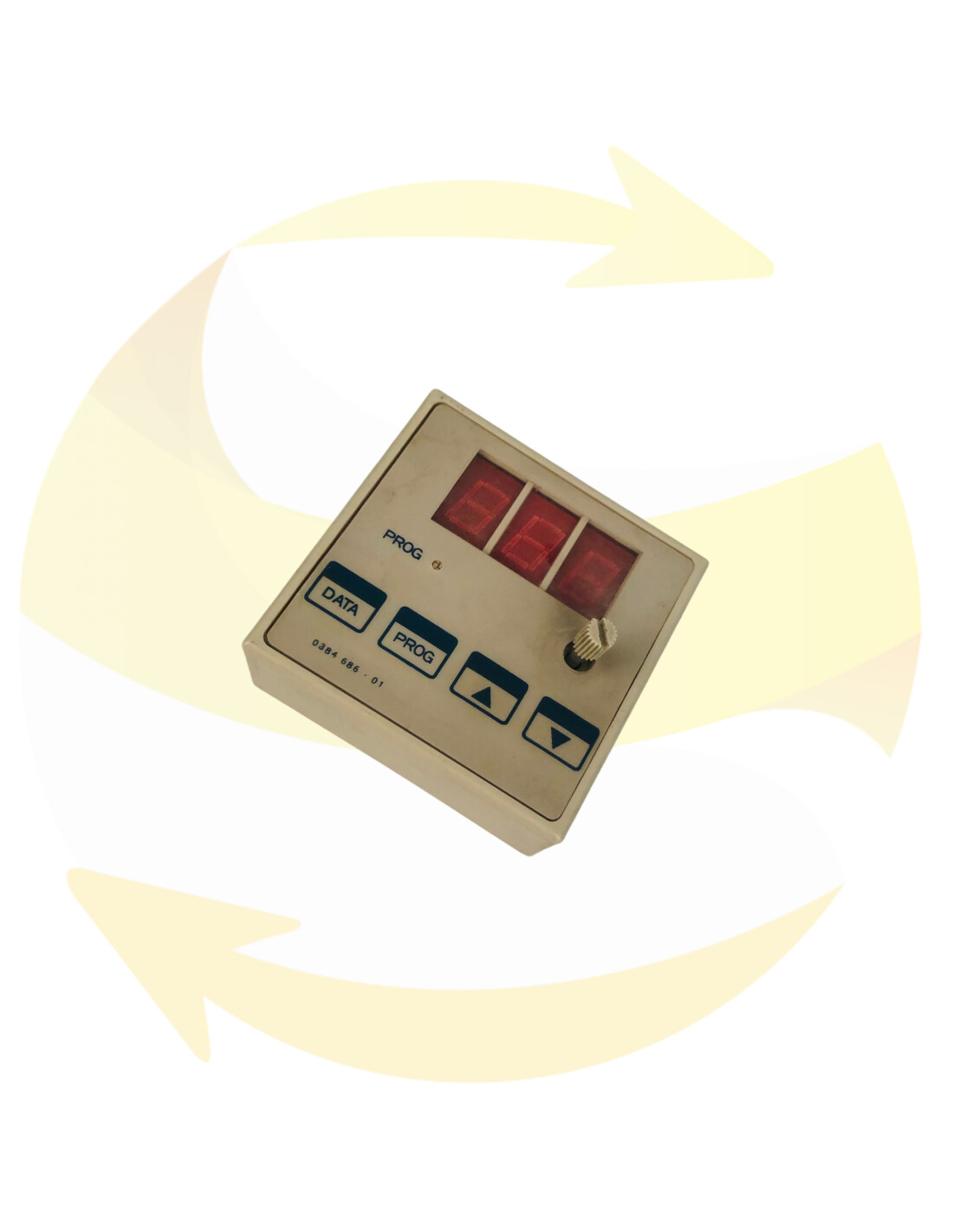

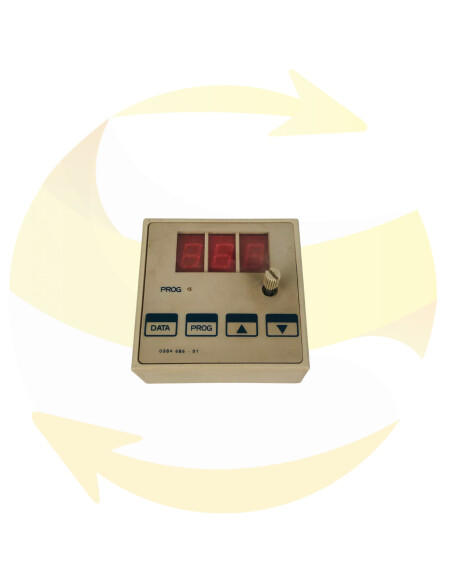

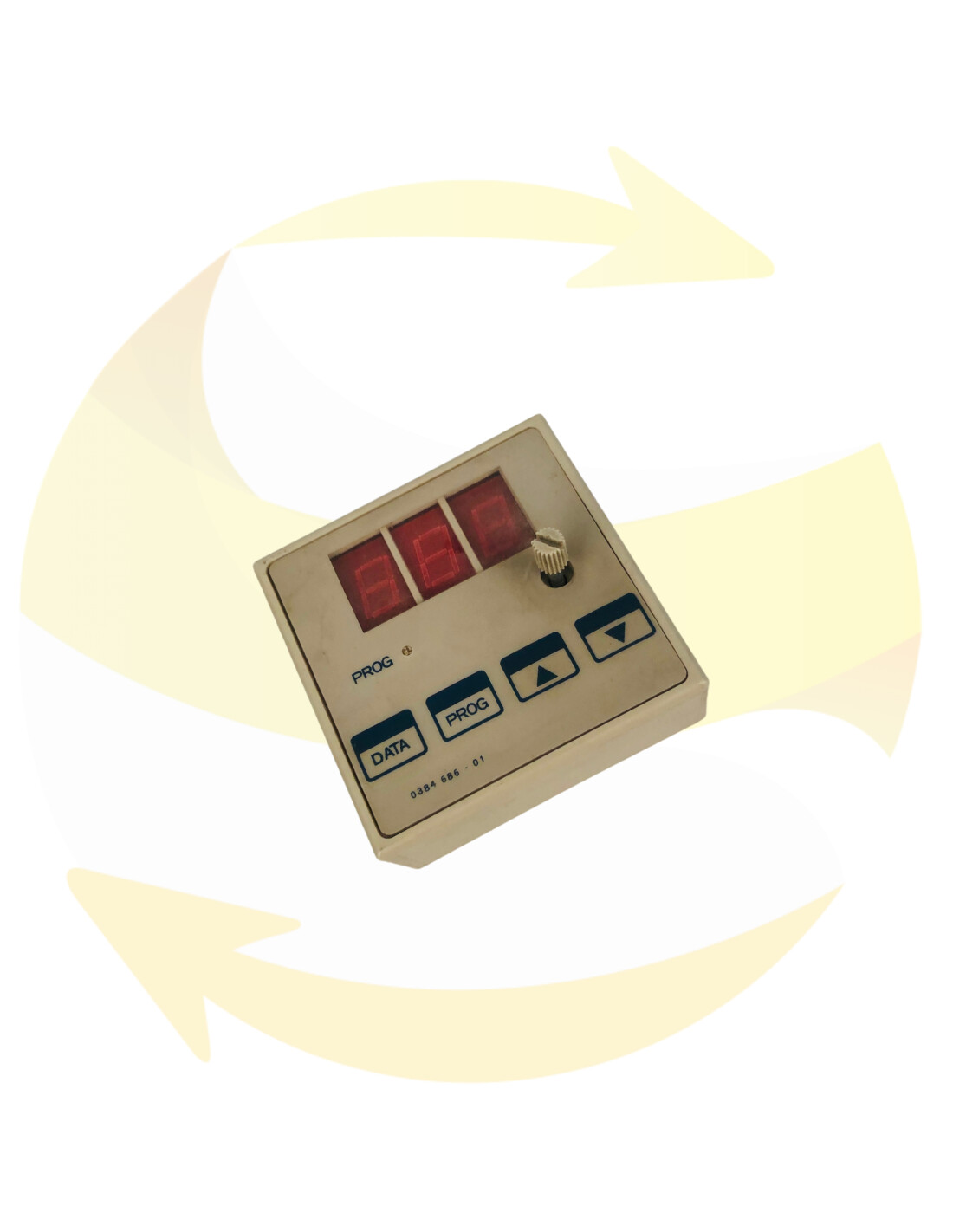

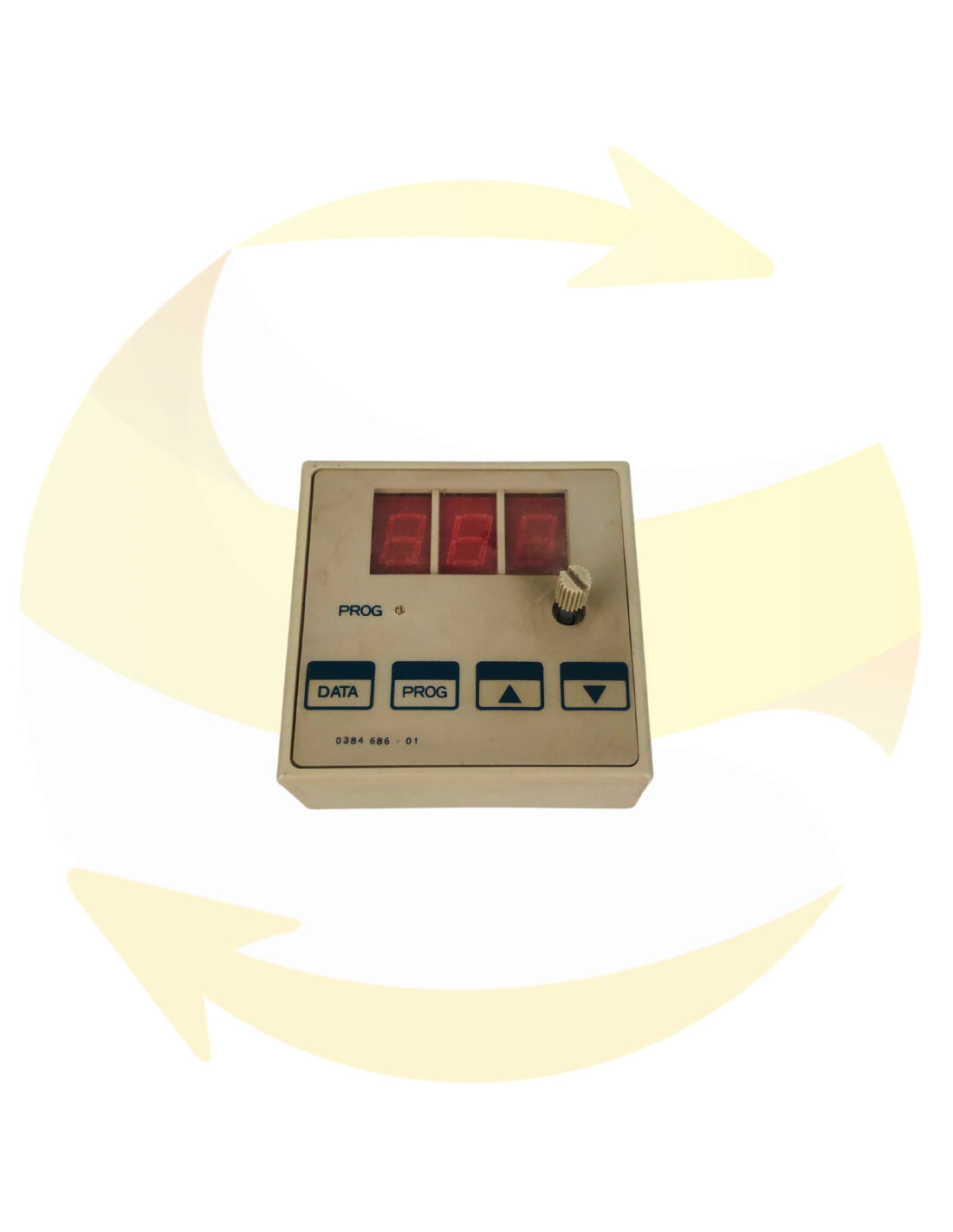

This keypad VW3A16101 and brand TELEMECANIQUE is a programming console of the range ALTIVAR16.

Used for ATV16U09M2 and ATV16U18M2.

This console VW3A16101 Télémécanique is at your disposal to replace your defective material and has a guarantee adapted to your needs.

More details

In stock, shipping within 24h.

125,00 €

livraison-2.pngQuick delivery

garantis2.pngWarranted systems

paiement-securise-SEI_1.jpgSecure Payment

Product options

standard exchange refurbished

Standard exchange service

Reconditioned and tested systems
6 to 12 months warranty

new systems

Standard exchange service

New systems
12 to 24 months warranty

supply refurbished

Supply service

Reconditioned and tested systems
6 to 12 months warranty

supply new

Supply service

New systems
12 to 24 months warranty

supply in the state

Supply service

Systems sold in the state
without warranty

The Altivar 16 AC drive for three-phase asynchronous squirrel cage motors incorporates the latest technology:

- Surface mount technology - 16-bit microprocessor
- ASIC circuit
- IPM power module

With its compact design and conformity to international standards, the Altivar 16 is a global product. A complete offering of options and accessories allows the Altivar 16 to meet all types of applications.

The Altivar 16 is factory-set to provide:

  • ●  Transient overtorque necessary for starting

  • ●  Maximum available torque at low speeds with no adjustment required (from 5 to 50/60 Hz)

  • ●  Automatic adjustment of acceleration and deceleration ramp times when the torque capabilities are exceeded.

In the Altivar 16, a high switching frequency (5 kHz, or 10 kHz for certain applications) produces a waveform with few harmonics.

This switching frequency is randomly modulated to ± 1 kHz, reducing motor noise and limiting losses in the drive.

The use of RFI filters (1) prevents radio frequency emissions from interfering with nearby antennas or conductors such as radios or televisions.

Each RFI filter kit contains in a single package:

- One filter module for the input of the drive allowing the Altivar 16 to conform to VDE871, CISPR11 and EN50011 regarding the limitation of radio frequency interference in the conduction mode

- One filter module for the output of the drive to limit interference from motor cables, ground leakage current and overvoltage at motor connections

The use of inductors on the input allows the Altivar 16 to run when supplied by lines with very low impedance or lines subject to interference from other input loads.

The use of inductors between drive and motor is recommended under certain conditions, such as when connections between drive and motor are very long, or when running several motors in parallel.

The dissipation of excess braking energy in an exterior resistor allows the Altivar 16 to function in quadrants 2 and 4 of the speed/torque curve.


- Machines with high inertia - Overhauling loads

- Machines with fast cycles

Height 6,5 cm / 2,5 in
Width 2,5 cm / 0,9 in
Length 6,5 cm / 2,5 in
Weight 0,1 kg / 0,2 lb
Family ALTIVAR 16
Reference VW3A16101
