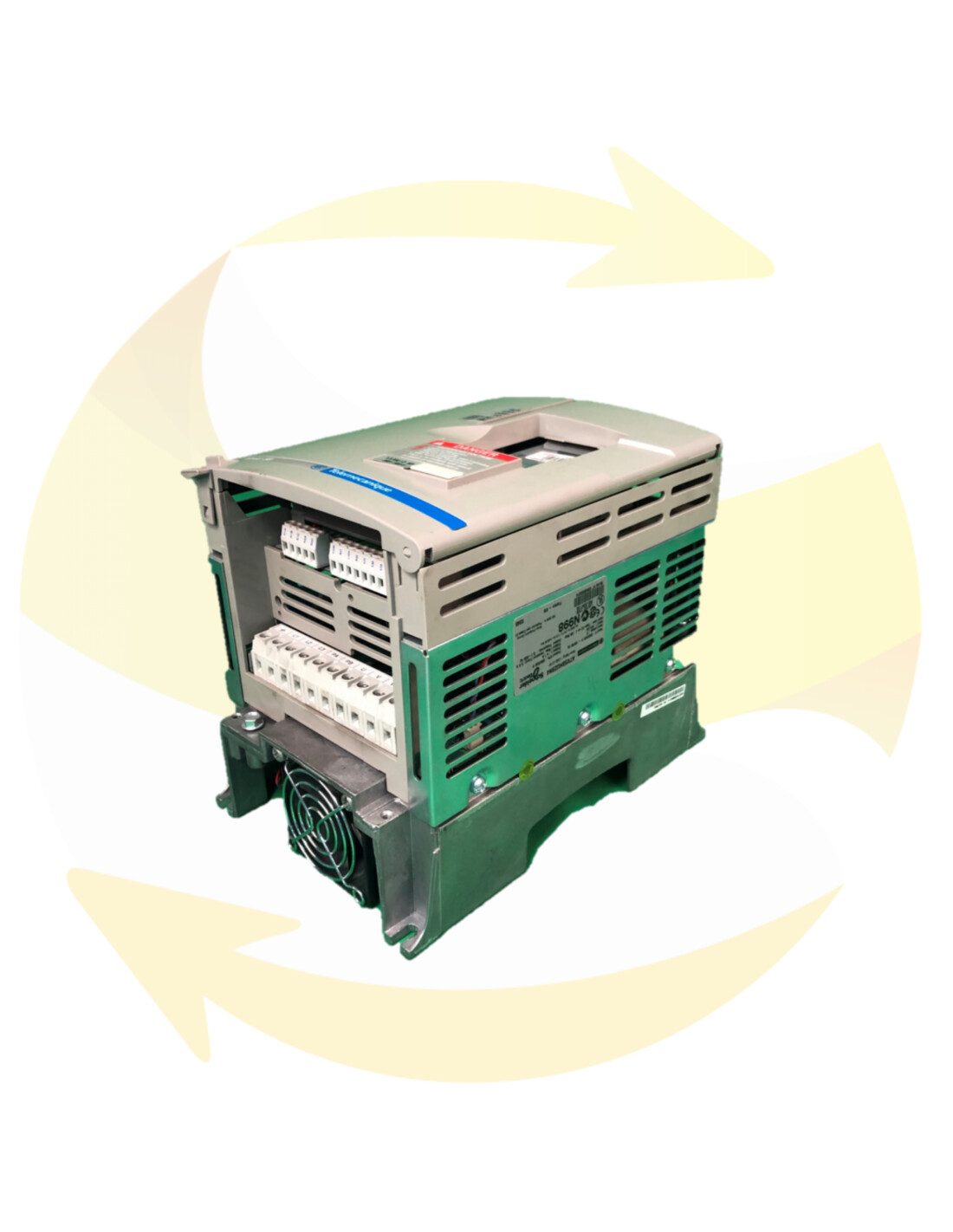

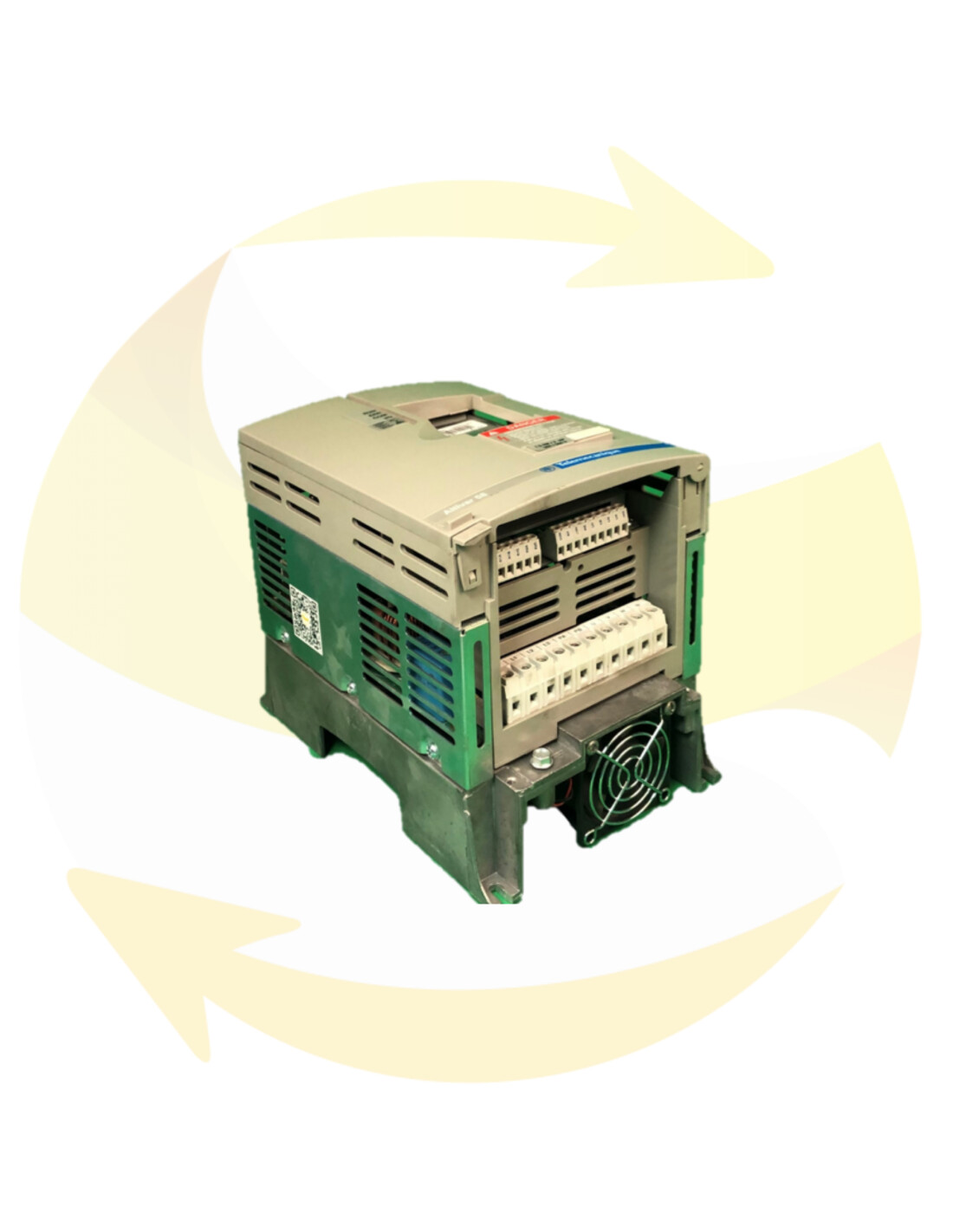

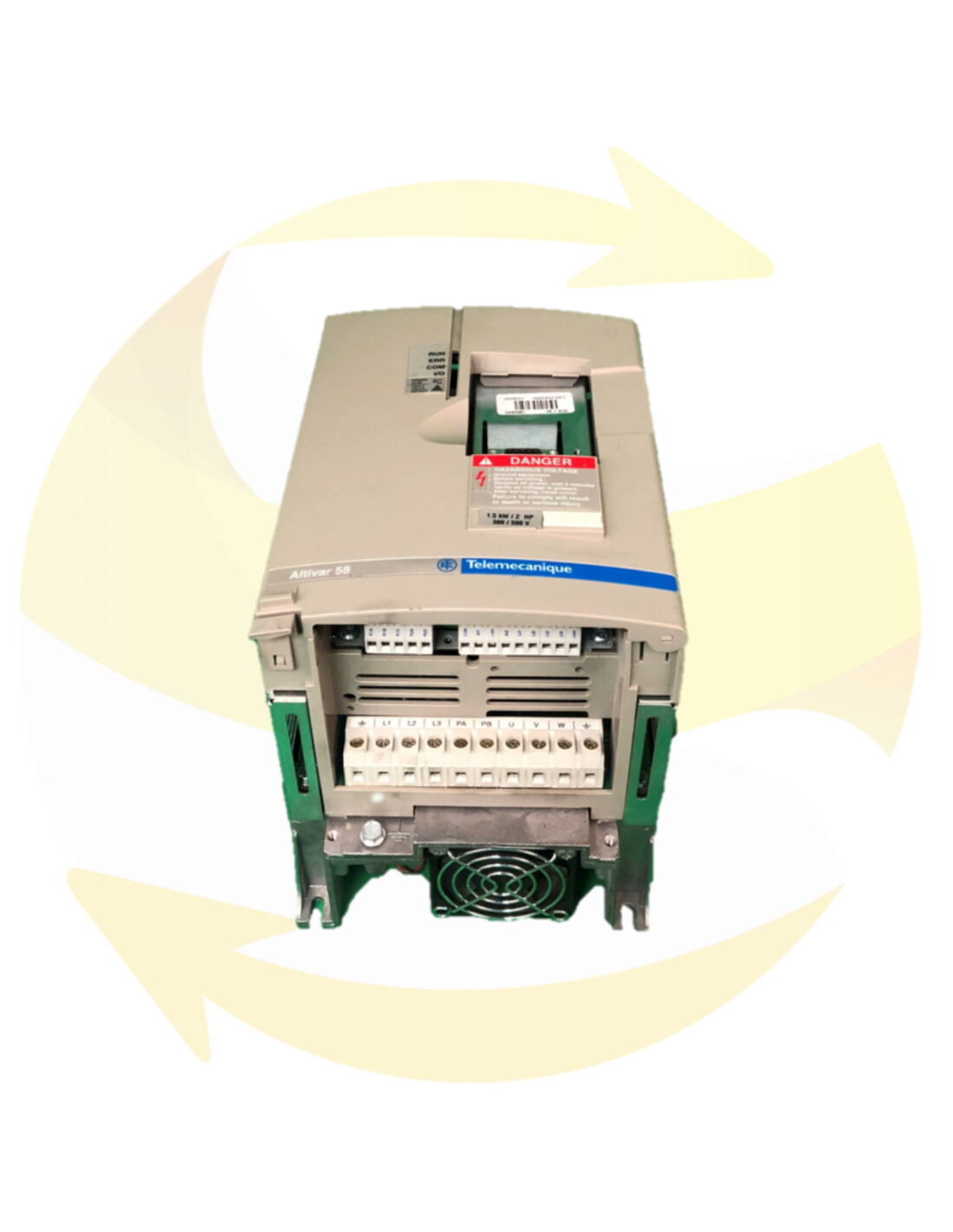

ATV58HU29N4 - Speed drive - TELEMECANIQUE
This reference speed drive ATV58HU29N4 and branded SCHNEIDER / TELEMECANIQUE is a variable speed drive for asynchronous motors. ALTIVAR Series 58.

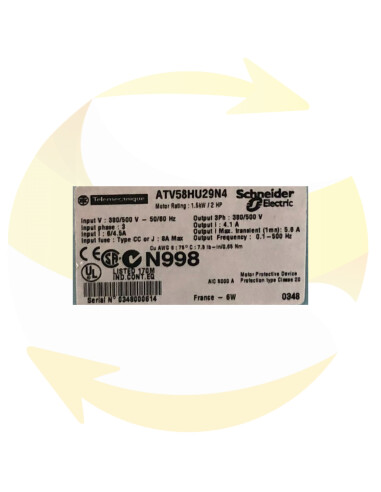

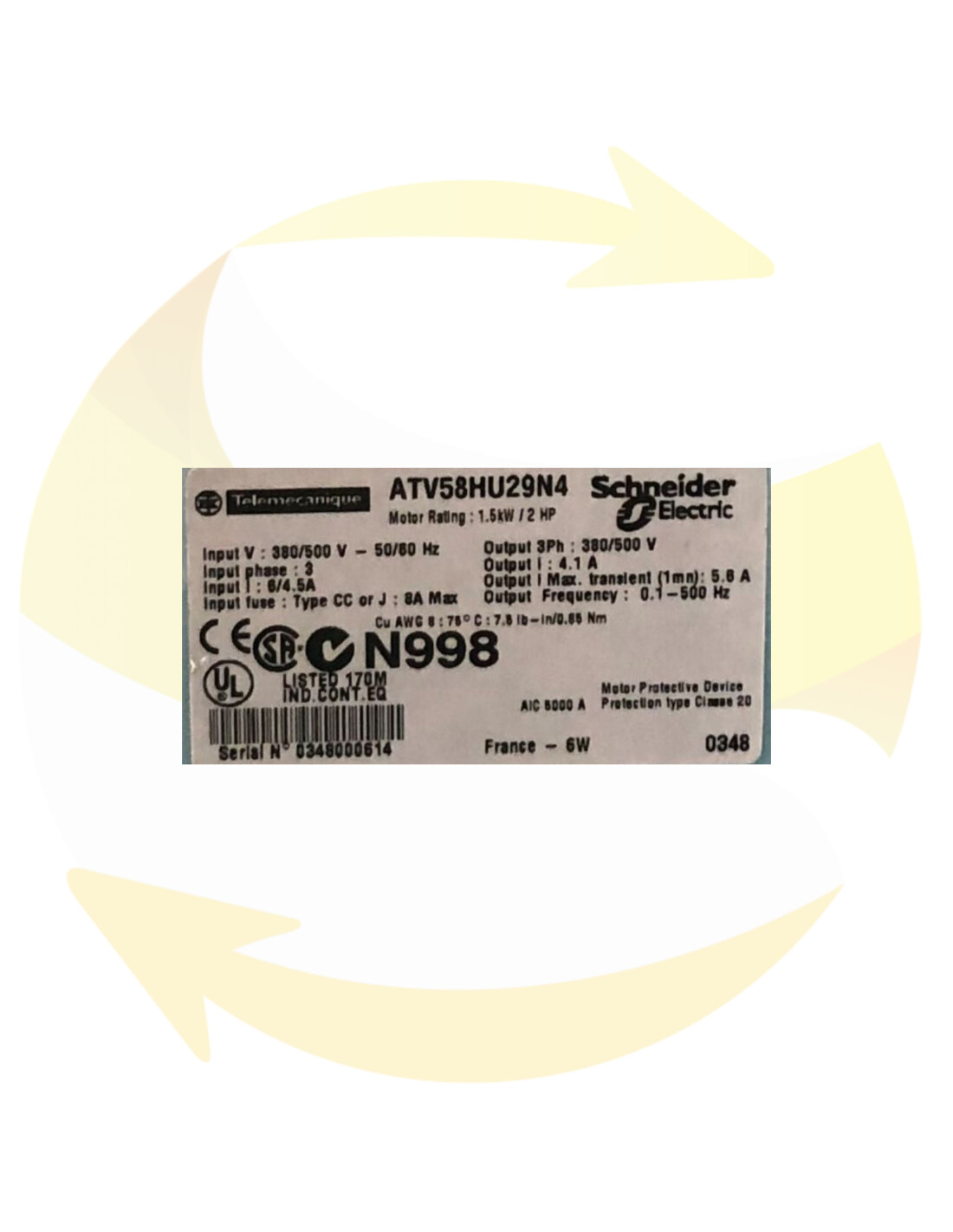

Speed drive : 1.5kW, 4.1A, 3PH, 50 / 60Hz, 380 / 500V, SQUARE D.
This ALTIVAR 58 (Schneider Electric) is at your disposal to replace your defective equipment and has a guarantee adapted to your needs.
Configurable:
Without derating:
0.5 - 1- 2 -4 kHz for ATV58HU41M2 to D23M2, ATV 58HU18N4 to D46N4
0.5 - 1 - 2 kHz for ATV58HD54N4 to D79N4 drives
Without derating with intermittent duty cycle or with derating with a steady-state rating:
8 - 12 - 16 kHz for drives ATV58p41M2 to D12M2,
ATV 58HU18N4 to D23N4
8 - 12 kHz for ATV drives 58HD28N4 to D46N4 4 - 8kHz for ATV drives 58D54N4 to D79N4
Short-circuit protection:
- between the output phases
- between the output phases and the ground
- on the outputs of internal sources
Thermal protection against overheating and overcurrent
Power-on and Over-voltage
Safety in the event of phase failure of the network (avoids
Single-phase, on all three-phase drives)
• Thermal protection integrated in the drive by permanent calculation of the I2t with taking into account the speed.
Storing the thermal state of the motor when the drive is switched off.
Modifiable function (via operating or programming terminal or PC software), depending on the type of ventilation of the motor
- Protection against phase cuts of the motor
- Protection by PTC probes with option card
