6SE6430-2UD31-1CA0

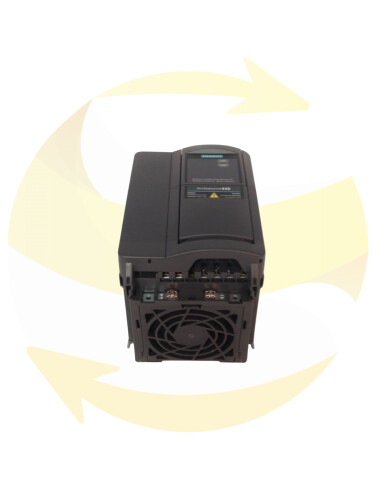

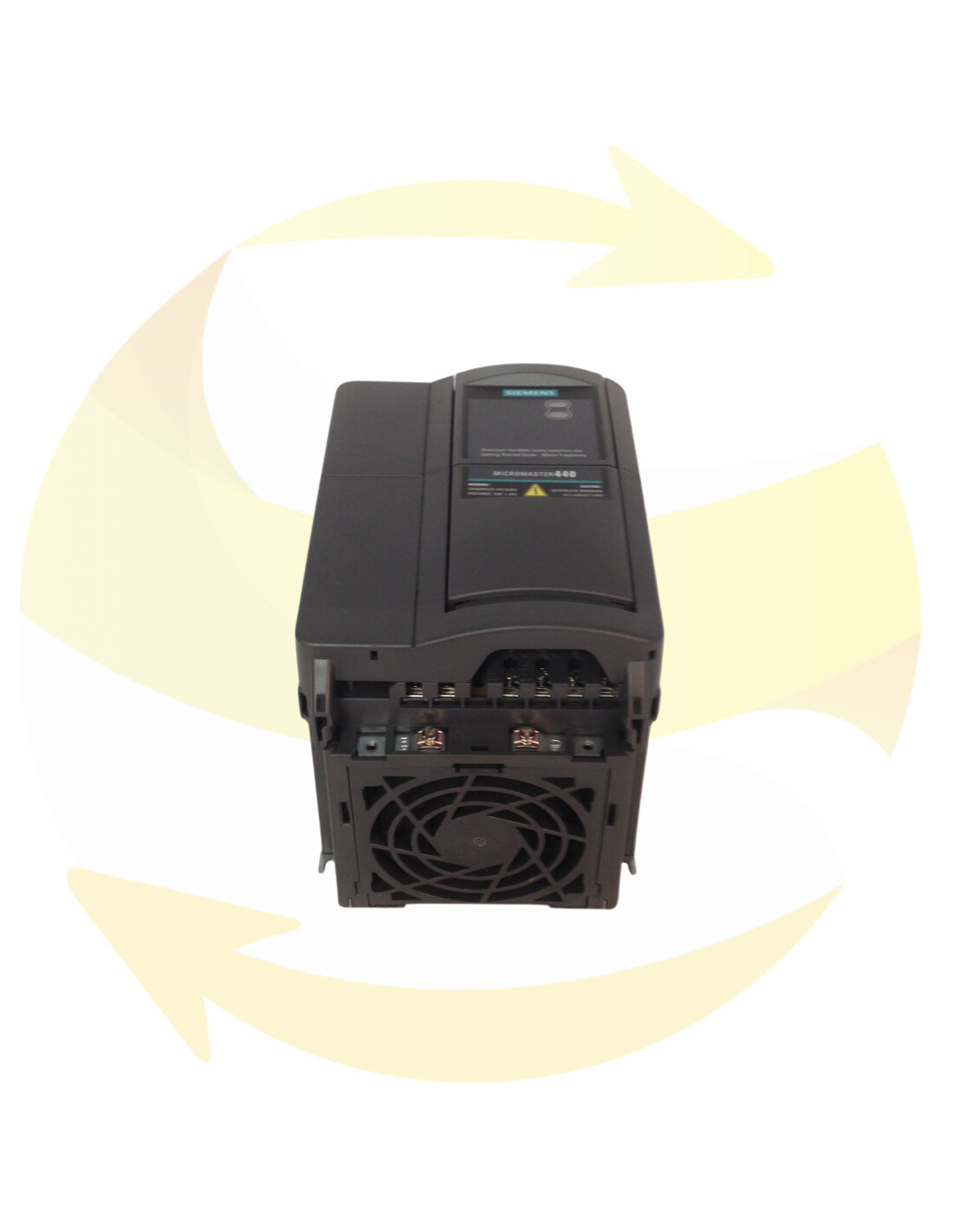

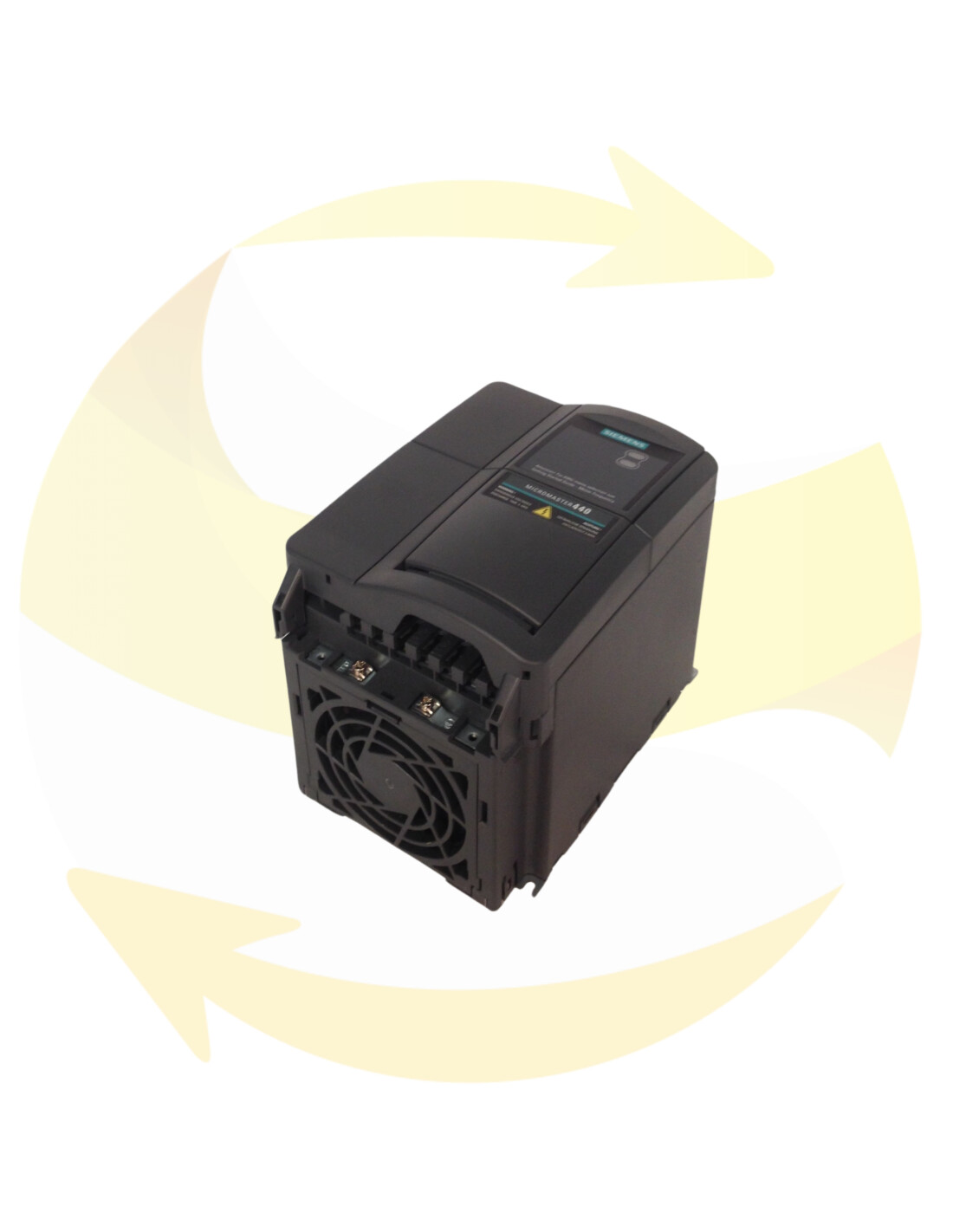

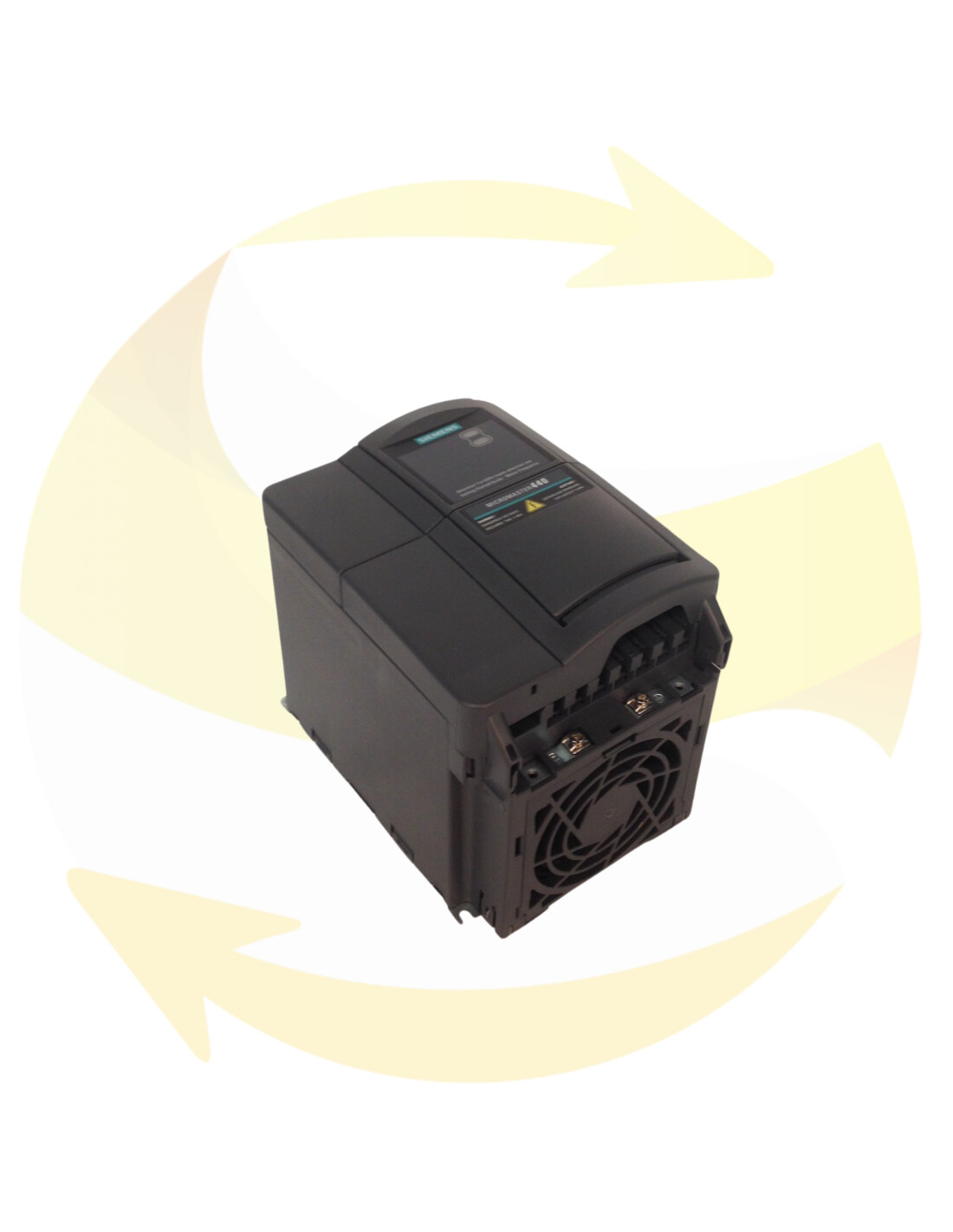

This reference inverter 6SE6430-2UD31-1CA0 and brand SIEMENS is a inverter of the MICROMASTER 430 range.

MICROMASTER 430 WITHOUT FILTER 3AC 380-480 V +10/-10% 47-63 HZ SQUARED TORQUE POWER 11 KW OVERLOAD 110% 60 S, 140% 3 S 245 X 185 X 195 (H X W X D) PROTECTION IP20 AMBIENT TEMP.

This SIEMENS inverter is at your disposal to replace your defective equipment and has a suitable guarantee.

In stock, ready to ship.
State
  • Refurbished Supply
Warranty
€990.00

System options

Exchange service with a refurbished unit

Standard Exchange Service

Reconditioned and tested systems

From 6 to 12
month warranty

Exchange service with a new unit

Standard Exchange Service

New systems

From 12 to 24
month warranty

Supply of a refurbished unit

Supply Service

Reconditioned and tested systems

From 6 to 12
month warranty

Supply of a new unit

Supply Service

New systems

From 12 to 24
month warranty

For parts only

Supply Service

Sold for parts – no warranty

Repair

Repair service

Repair will be made to damaged and defectiv units

From 3 to 18
month warranty

Livraison rapide

Fast
delivery

Livraison rapide

guaranteed
products

Livraison rapide

Secure
payment



The MICROMASTER 430 inverter is suitable fir a variety of variable-speed drive applications. Its flexibility provides for a wide spectrum of applications. It is especially suitable for use with industrial pumps and fans. The inverter is especially characterized by its customer-oriented performance and ease of use. It has more inputs and outputs than the MICROMASTER 420, an optimized operator panel with manual/automatic switchover, and adapted software functionality.

The MICROMASTER 430 inverter has a modular design.
The operator panels and communications modules can be easily exchanged.

■ Simple commissioning
■ Modular construction allows maximum configuration flexibility
■ Six programmable isolated digital inputs
■ Two scalable analog inputs can also be used as a 7th / 8th digital input
■ Three fully programmable relay uotputs (30 V DC/5 A, resistive 250 V AC/2 A, inductive)
■ Silent motor operation is selectable when using high switching frequencies (observe derating if neces- sary)
■ Complete inverter and motor protection
■ Control of up to three addi- tional drives on the basis of PID control (motor staging)
■ Operation of drive directly on mains (with external bypass circuit)
■ Energy saving mode
■ Detects running-dry of pumps (belt failure detection).

Height
24,5 cm / 9,6 in
Width
18,5 cm / 7,28 in
Length
19.5 cm / 7.67 in
Weight
5,7 kg / 12,57 lbs
Family
MICROMASTER 430
Reference
6SE6430-2UD31-1CA0
Refurbished
3003804070085
300110404393

Siemens is an international group of German origin specializing in high technology and present in the sectors of industry, energy and health. It was founded in 1847 by Werner von Siemens.
