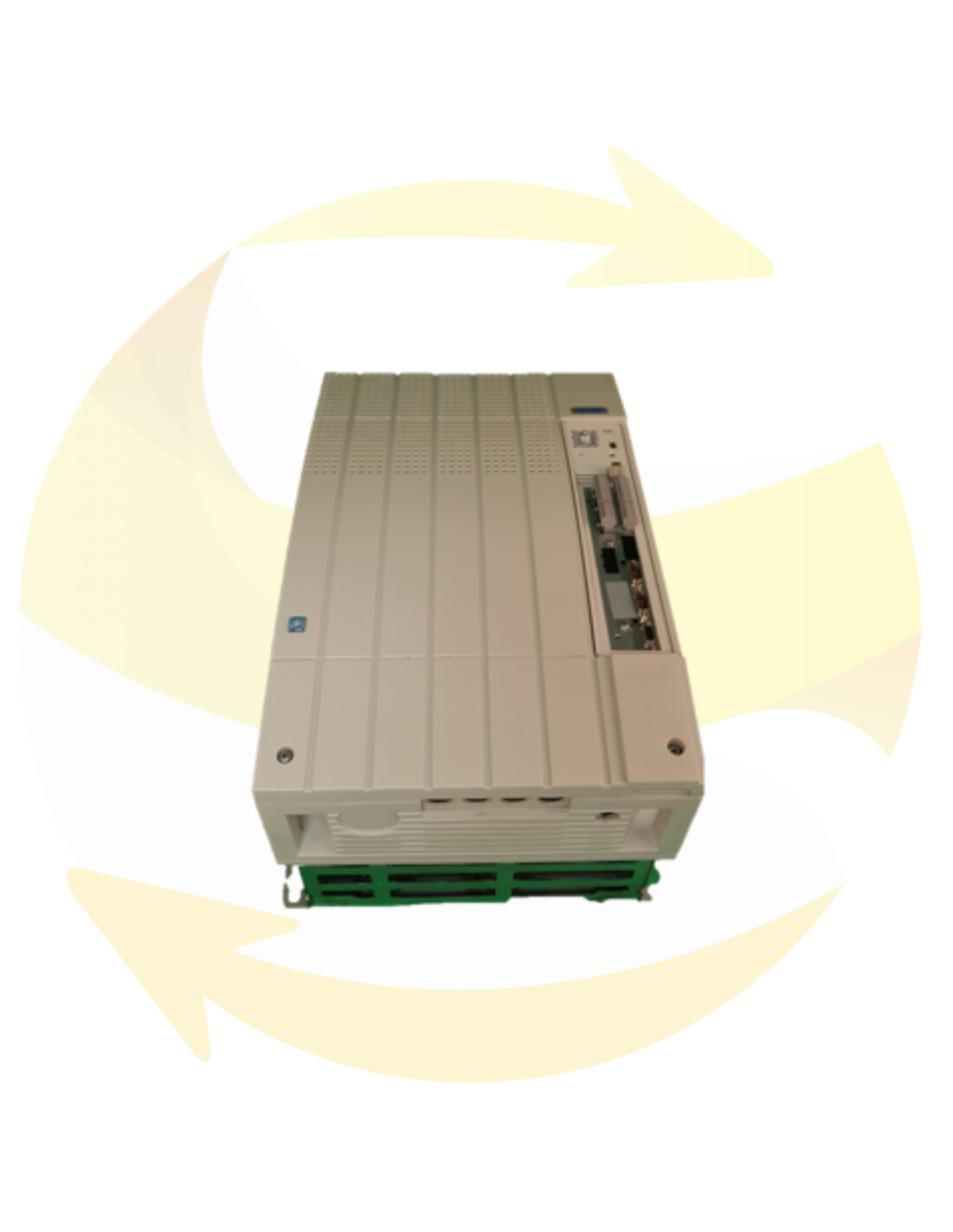

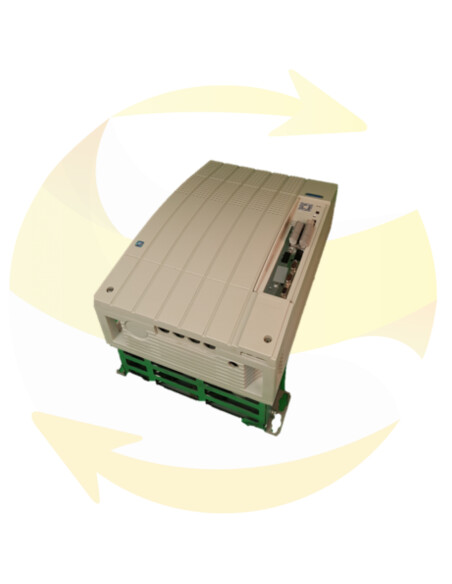

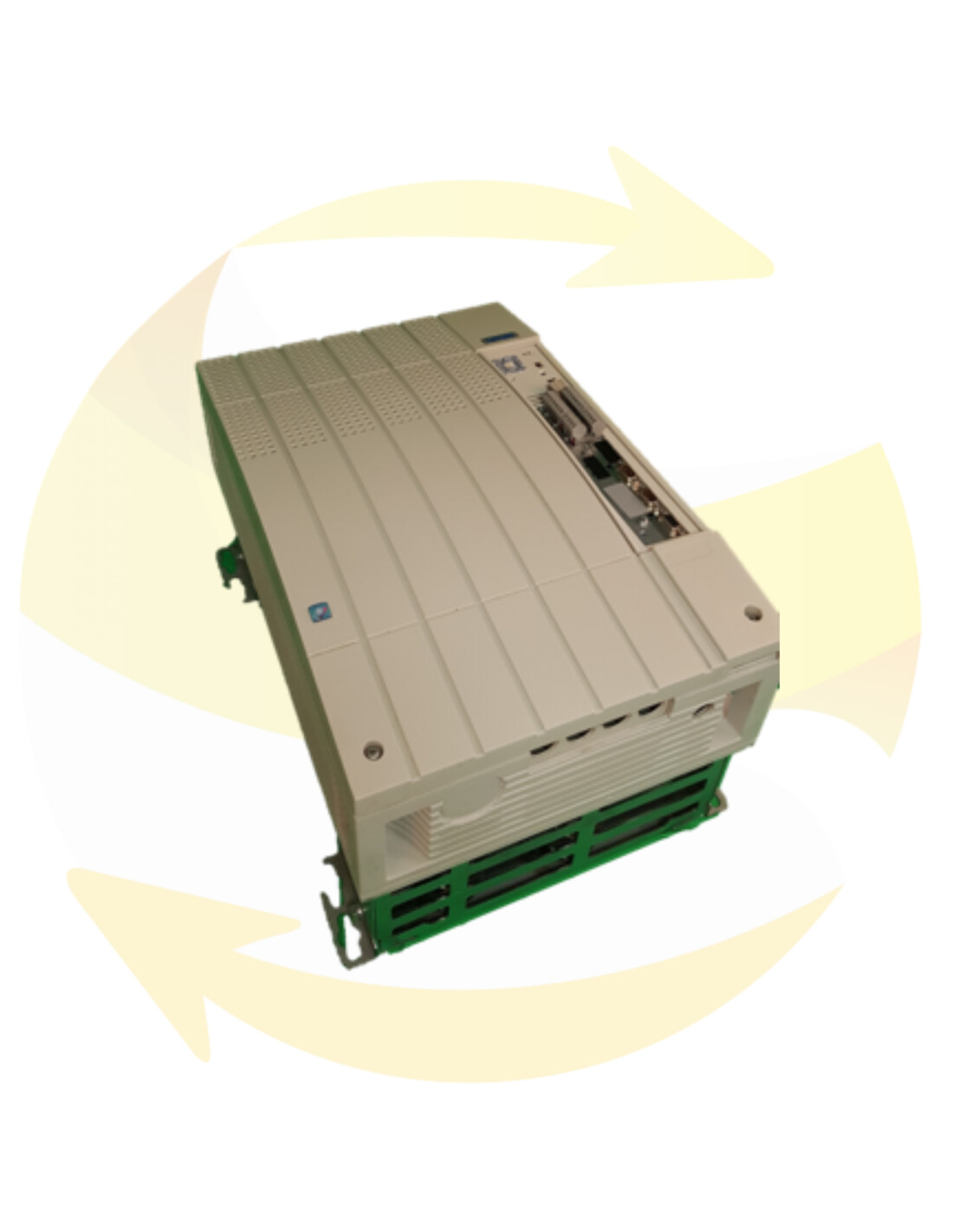

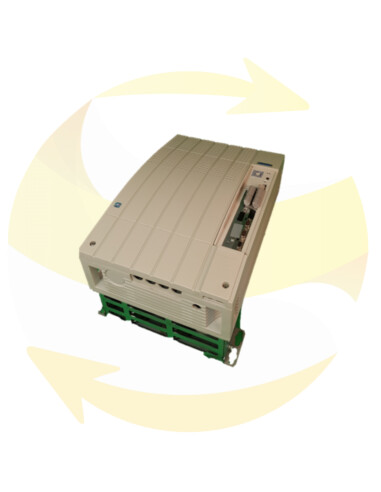

EVF9327-EV

This reference frequency converter EVF9327-EV and LENZE brand is a drive for VECTOR 8200 - 9300 series

Input: 3/AC 400V 50/60Hz

Output: 3/AC 0-400V 32A 15kW

This EVF9327-EV (Lenze) drive is at your disposal to replace your defective equipment and has a guarantee adapted to your needs.

In stock, ready to ship.
State
  • Refurbished Service Exchange
  • Refurbished Supply
Warranty
€2,490.00
VAT excluded

System options

Exchange service with a refurbished unit

Standard Exchange Service

Reconditioned and tested systems

From 6 to 12
month warranty

Exchange service with a new unit

Standard Exchange Service

New systems

From 12 to 24
month warranty

Supply of a refurbished unit

Supply Service

Reconditioned and tested systems

From 6 to 12
month warranty

Supply of a new unit

Supply Service

New systems

From 12 to 24
month warranty

For parts only

Supply Service

Sold for parts – no warranty

Repair

Repair service

Repair will be made to damaged and defectiv units

From 3 to 18
month warranty

Livraison rapide

Fast
delivery

Livraison rapide

guaranteed
products

Livraison rapide

Secure
payment



Application as directed / Scope -

- 820X / 821X / 822X / 824X controllers are intended for use in control cabinets.

- The 820X / 821X / 822X / 824X controllers are designed as components for controlling variable speed drives with three-phase AC motors to be assembled with other components to form a drive system. Drive systems are intended to be installed in a machine or to be built with other components to form a machine or plant.

- The drive systems with 820X / 821X / 822X / 824X controllers, which are installed according to the directives of typical CE drive systems, correspond to the CE EMC directive and the standards mentioned below.

- Typical CE drive systems are suitable for operation on public and non-public grid.

- Typical CE drive systems are intended for operation in industrial premises as well as in residential and commercial areas.

- Due to the earth potential reference of the RFI filters, the typical CE drive systems described are not suitable for connection to the IT network (network without reference potential to earth).

- Controllers are not household appliances, but are intended to be part of drive systems for commercial use.

Possible mounting positions for types 8201 to 8214

- In a vertical position at the rear of the control cabinet, the terminals point towards the front:
- With fastening rails attached.
- With special fixing unit on one or two DIN rails.
- Rotated by 90 ° (flast assembly at the back of the control cabinet):
- Insert the attached fixing rail into the guides of the heat sink.
- Horizontally with an additional fan.
- On a swivel frame for mounting depths <198 mm:
- Therefore, easy handling and installation of the front interfaces is possible.

Possible mounting positions for types 8215 to 8218

- In a vertical position at the rear of the control cabinet, the terminals point towards the front:
- With fastening rails attached.
- Thermal separation with external heat sink ("push-through technique").
- Variant V003 with thermal separation with external cooler in "Cold plate"
technical (for example with a convection cooler).

Possible mounting positions types 822X / 824X

- In a vertical position at the rear of the control cabinet, the terminals point towards the front:
- With attached mounting brackets.
- Thermal separation with external heat sink ("push-through technique").
- Variant V003 with thermal separation with external cooler in "Cold plate"
technical (for example with a convection cooler).

Height
25 cm / 9,8 in
Width
25 cm / 9,8 in
Length
35 cm / 13,7 in
Weight
18 kg / 39,6 lbs
Family
LENZE - VECTOR 8200 - 9300
Reference
EVF9327-EV
Refurbished

Lenze specializes in automation and drive technologies and is established in more than 60 countries. They develop, manufacture and sell innovative products, global solutions and complete systems.
