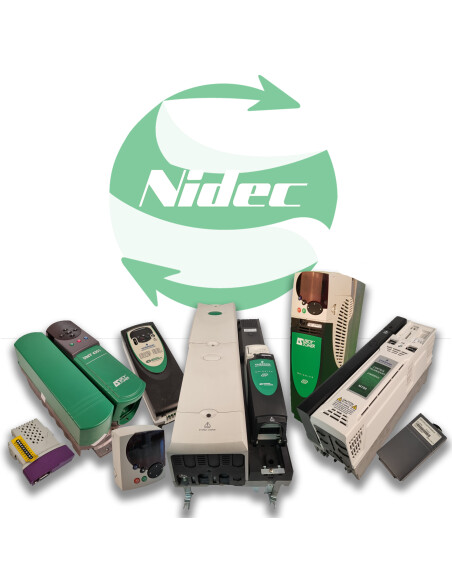

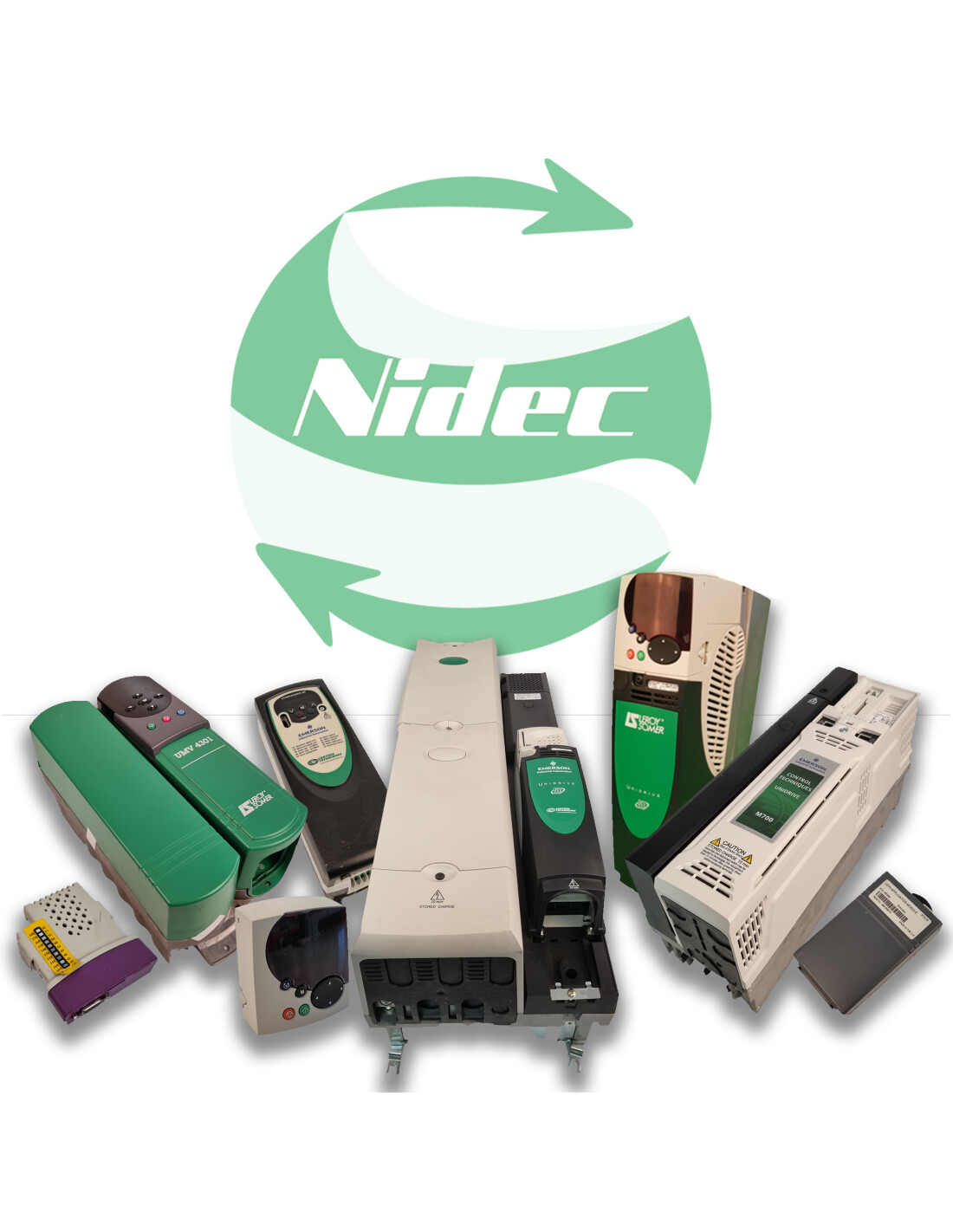

140x8/16 - DC drive - CONTROL TECHNIQUES
This speed variator for DC motor reference 140x8/16 and brand Control Techniques is a variator from the Midi-Maestro / Maxi-Maestro range.
Characteristics: 150Vdc, 8A.
This Control techniques variator is at your disposal to replace your defective equipment and has a suitable guarantee.
Variator tested on motor test bench.
Selectable options
Speed control with armature feedback
Speed control with feedback from the tachogenerator
Acceleration and deceleration ramps
Protection against tachometer loss
Adjustments
Full scale speed
Current limit
Dynamic gain
Derivative action
Reference speed offset compensation
Ramp gradient
Diagnostic functions
I²t LED indication
LED indication of tachometer generator loss
NORMAL LED indication of the dimmer
Digital output indicates drive status
Digital output indicates I2t limit
Analog output indicates motor current
Analog output indicates TPRC
The mechanical installation must take into account the entry points of electrical cables and installing a starter if necessary.
The drive must be located in an area free from dust, corrosive vapors, gases and any other liquids.
Two alternative arrangements for mounting the drive are offered. Depends on position of the mounting brackets, these are:
1. Surface mounted on panel or in an enclosure
2. Through an opening in a panel so that the drive heat sink protrudes from the the back of the panel. This arrangement can be used to mount the drive through the rear panel of a case to allow free flow of air around the heat sink and to minimize the increase in temperature inside the enclosure. This can be beneficial if the the case is intended to house a certain number of disks. Each mounting bracket is mounted to the heatsink using two self-tapping screws.
