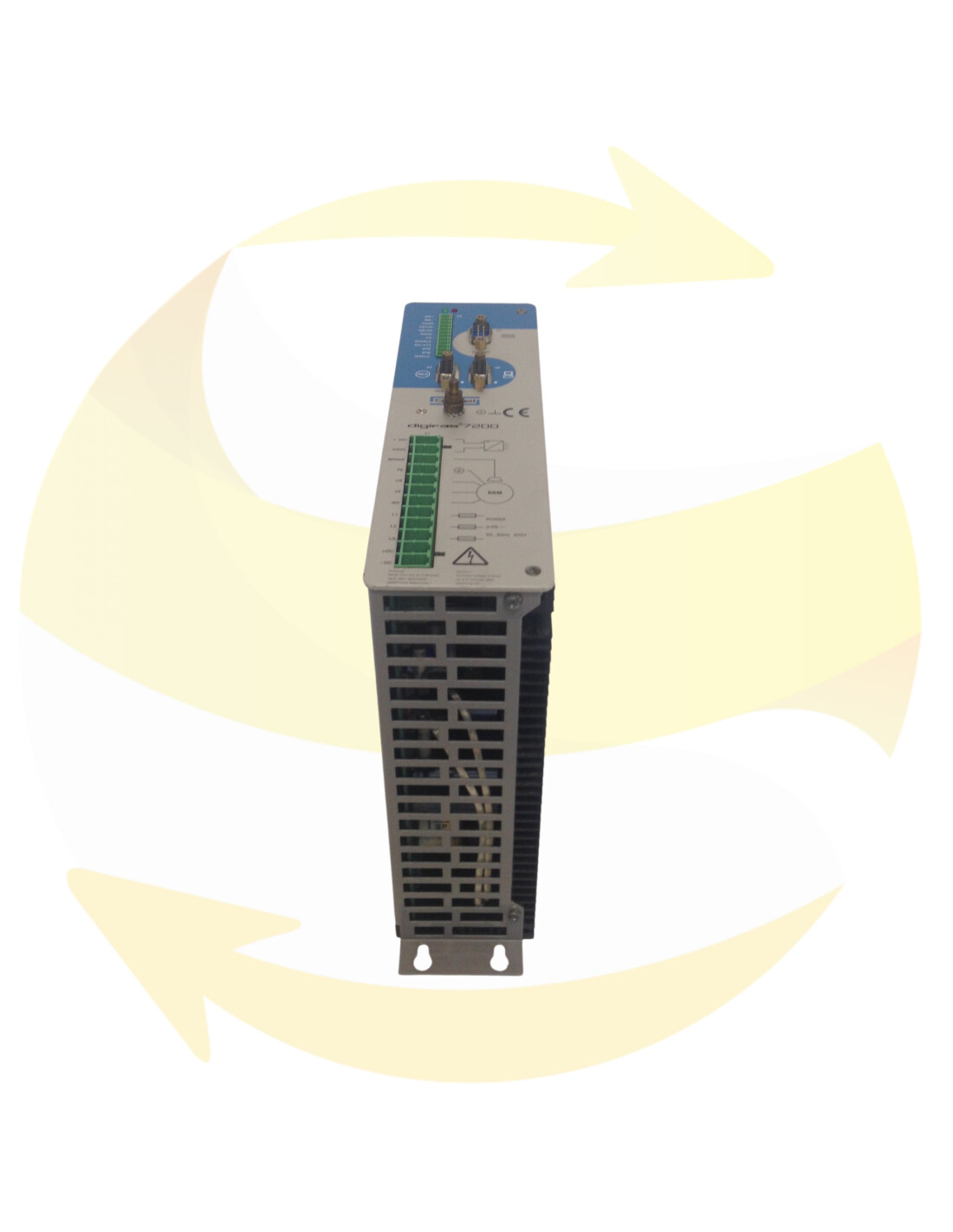

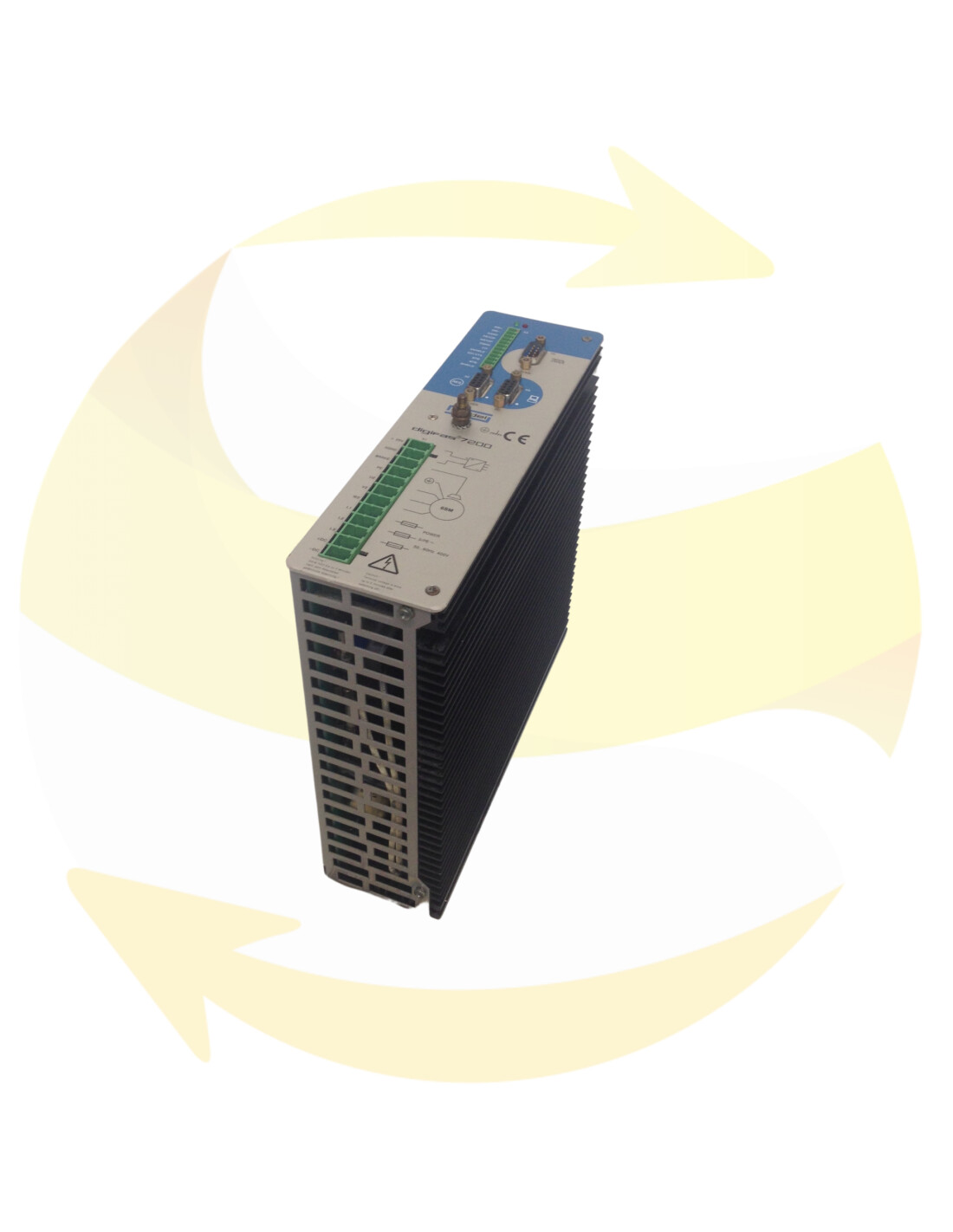

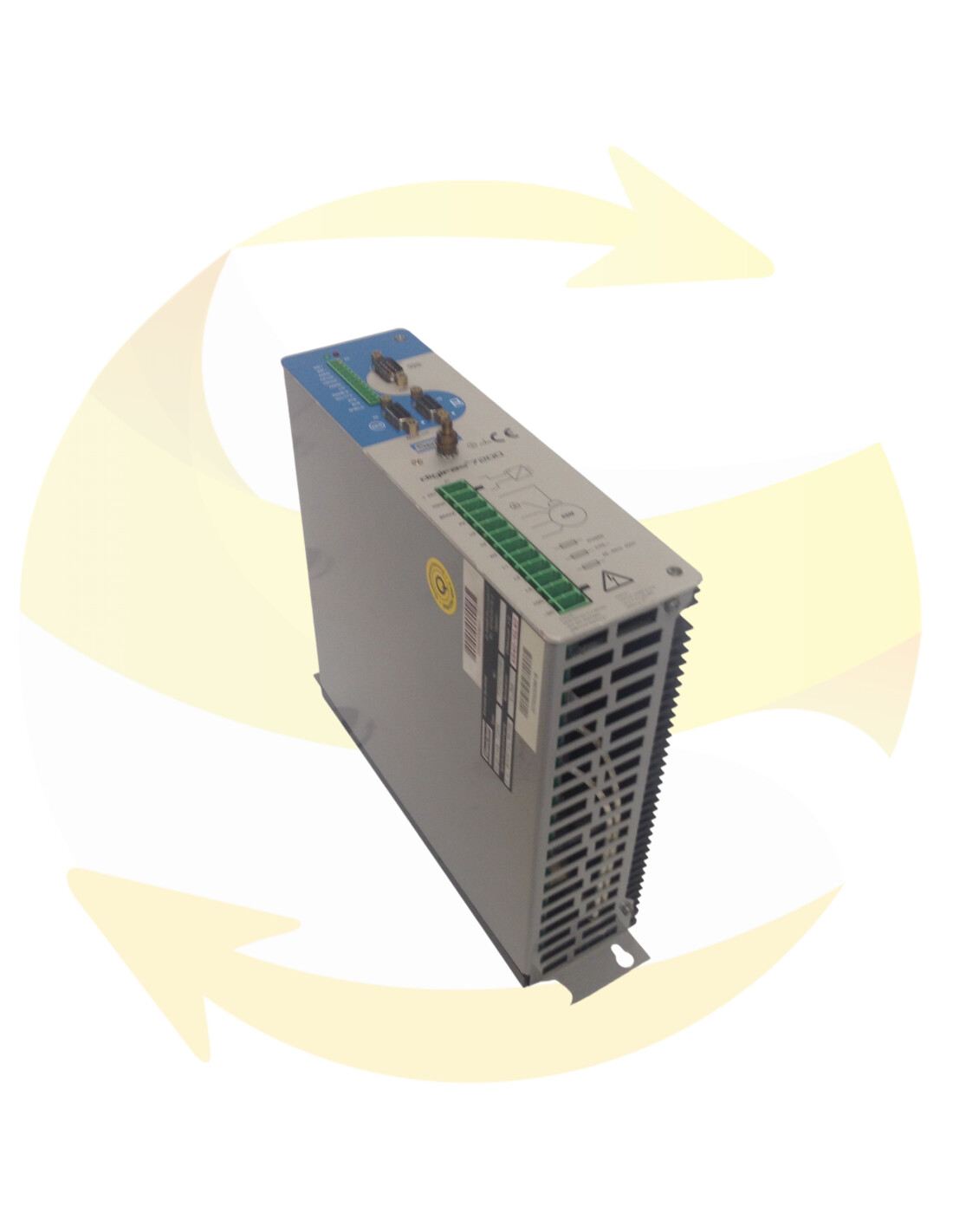

DIGIFAS 7201

This reference servo amplifier DIGIFAS 7201 and brand KOLLMORGEN is a servodrive of the range DIGIFAS 7200.

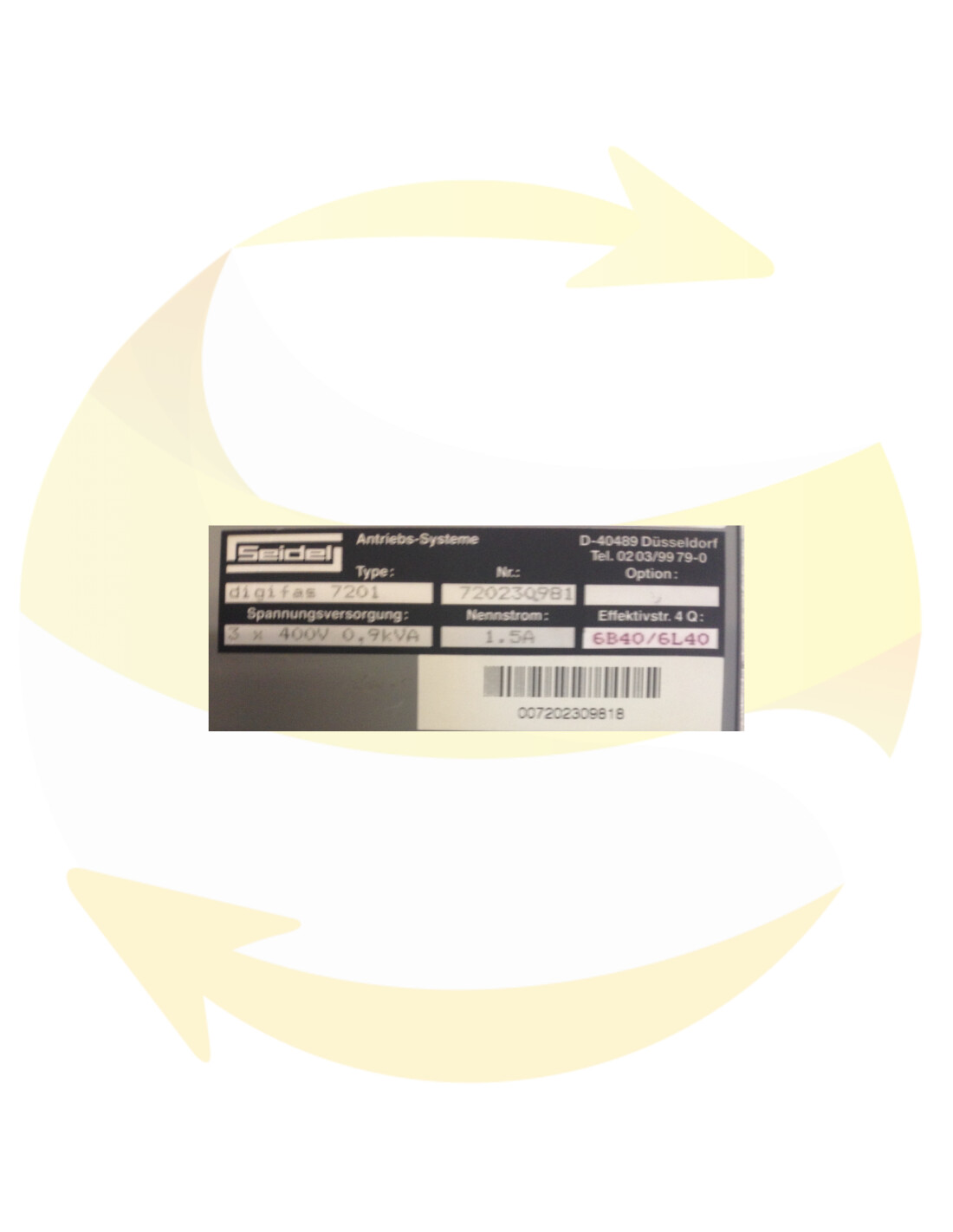

DIGIFAS 7201: 3x400V, 0.9kVA, 1.5A, 3.2kW, 50/60Hz. IP20

This KOLLMORGEN servo amplifier is at your disposal to replace your defective equipment and has a suitable guarantee.

In stock, ready to ship.
State
  • Refurbished Service Exchange
  • Refurbished Supply
Warranty
€780.00
VAT excluded

System options

Exchange service with a refurbished unit

Standard Exchange Service

Reconditioned and tested systems

From 6 to 12
month warranty

Exchange service with a new unit

Standard Exchange Service

New systems

From 12 to 24
month warranty

Supply of a refurbished unit

Supply Service

Reconditioned and tested systems

From 6 to 12
month warranty

Supply of a new unit

Supply Service

New systems

From 12 to 24
month warranty

For parts only

Supply Service

Sold for parts – no warranty

Repair

Repair service

Repair will be made to damaged and defectiv units

From 3 to 18
month warranty

Livraison rapide

Fast
delivery

Livraison rapide

guaranteed
products

Livraison rapide

Secure
payment



Use the digifasTM 7200 series of servo amplifiers only on a three-phase 400V industrial earthed mains supply to amplifier a synchronous servo-motor from the 6SM series.
The servo amplifier may only be operated in a closed switch cabinet, taking into account the environmental requirements.
The digifasTM 7200 series of servo amplifiers are exclusively intended for driving the 6SM series of brushless synchronous servo-motors under speed or torque control.
The servo amplifiers are installed as components of electrical equipment or machines and may only be operated as integral components of such equipment.

The digifas 7200 series of digital servo amplifiers are available in several versions :

Standard version digifas 72xx series
4 current types, with analog speed-setpoint input, incremental positional output, controllable motor-holding brake. In this standard version there is no position control capability in the servo amplifier. This function must be taken over by the automation equipment.
Options* : -IL-, -BV-

BIT CONNECT version digifas 72xx-SPS series
PLC interface, connection to a simple control via 10 I/O leads, controllable motor- holding brake. Execution of the motion data sets which are stored in the servo amplifier, 4 current types, digital setpoint input from the automation equipment, positional control in the servo amplifier.
Option* : -BV-

PULSE CONNECT version digifas 72xx-STEP series
Pulse-direction interface, connection to a stepper-motor controller or as a slave- controller to a digifasTM 7200 master-controller with incremental position control,
4 current types, controllable motor-holding brake, digital setpoint input from the automation equipment, positional control (cascade control) in the servo amplifier. Option* : -BV-

PROFIBUS CONNECT version digifas 72xx-L2/DP series
Connection to PROFIBUS-DP (SINEC-L2-DP), 4 current types, digital setpoint input from the automation equipment, positional control in the servo amplifier, controllable motor-holding brake.
Option* : -BV-

CAN CONNECT version, digifas 72xx-CAN series
Connection to CAN BUS, 4 current types, digital setpoint input from the automation equipment, positional control in the servo amplifier, controllable motor-holding brake.
Option* : -BV-

Height
27 cm / 10,6 in
Width
36 cm / 14,1 in
Length
7 cm / 2,7 in
Weight
3 kg / 6,6 lbs
Family
DIGIFAS 7200
Reference
DIGIFAS 7201
Refurbished
3001299957614
300380337032

With over 100 years of design and development expertise, Kollmorgen delivers breakthrough motion solutions unmatched in performance, reliability and ease-of-use. Through world-class knowledge in industrial automation, leading quality, and deep know-how in linking and integrating standard and custom products, Kollmorgen provides OEMs with the competitive advantage they need to succeed.
