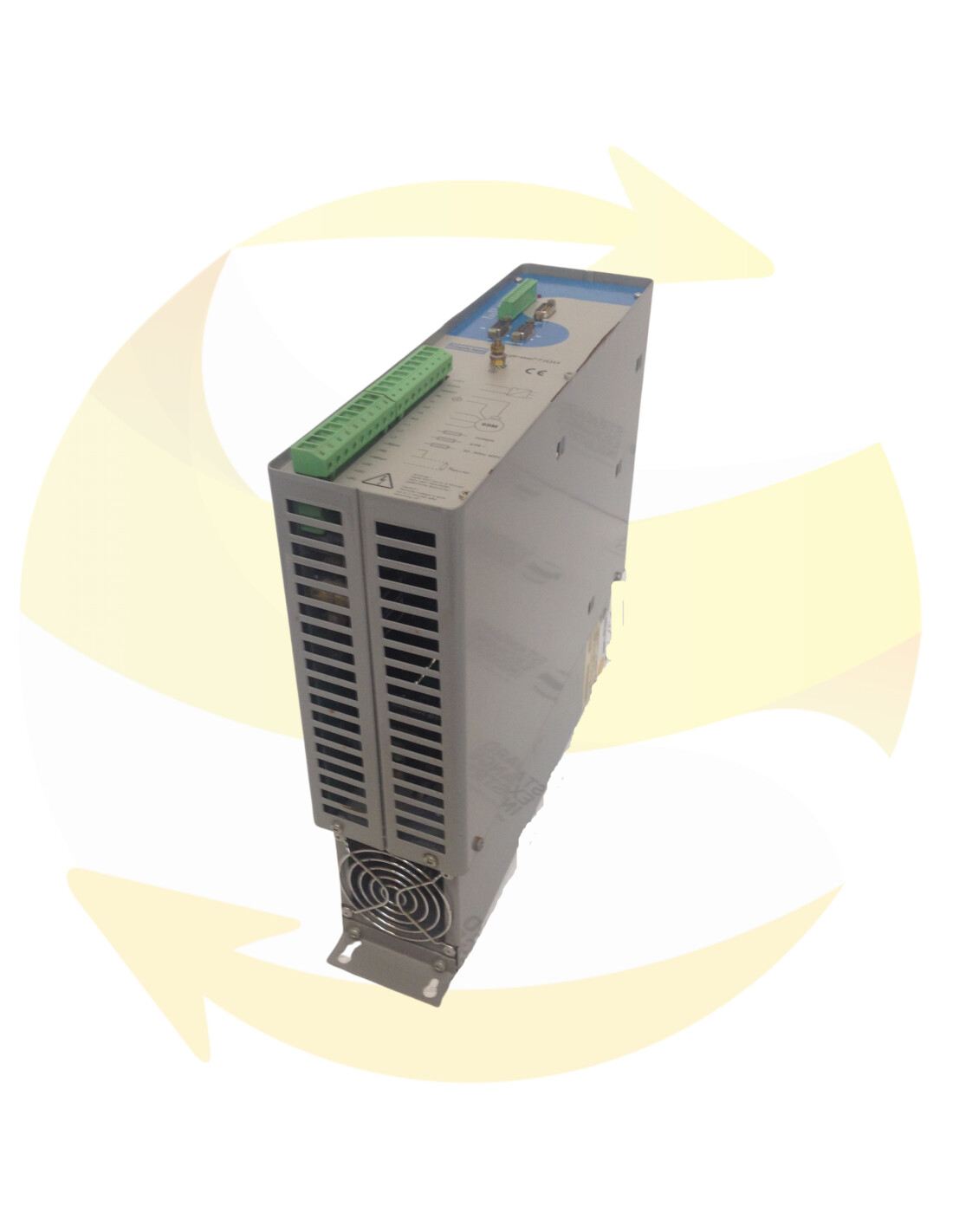

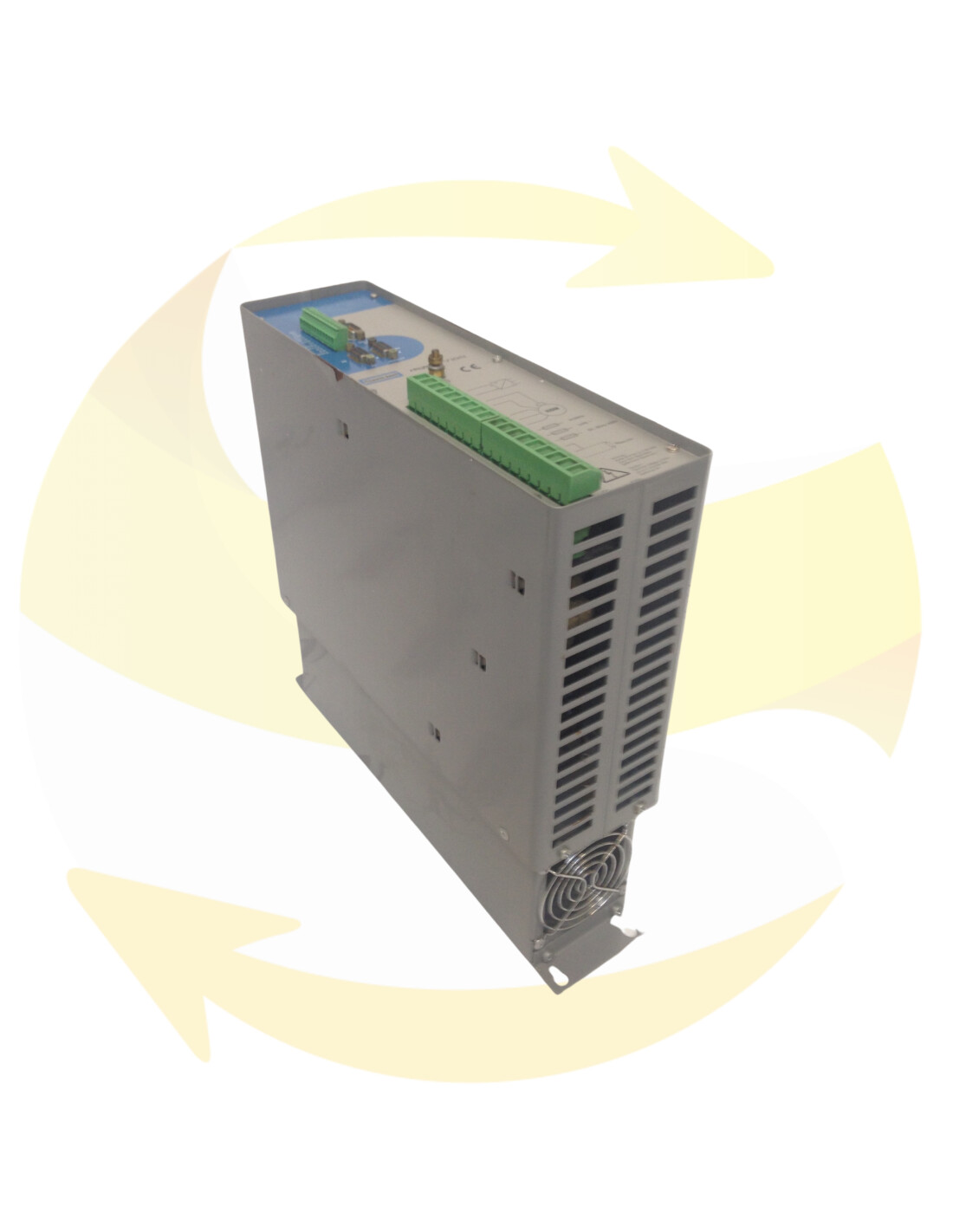

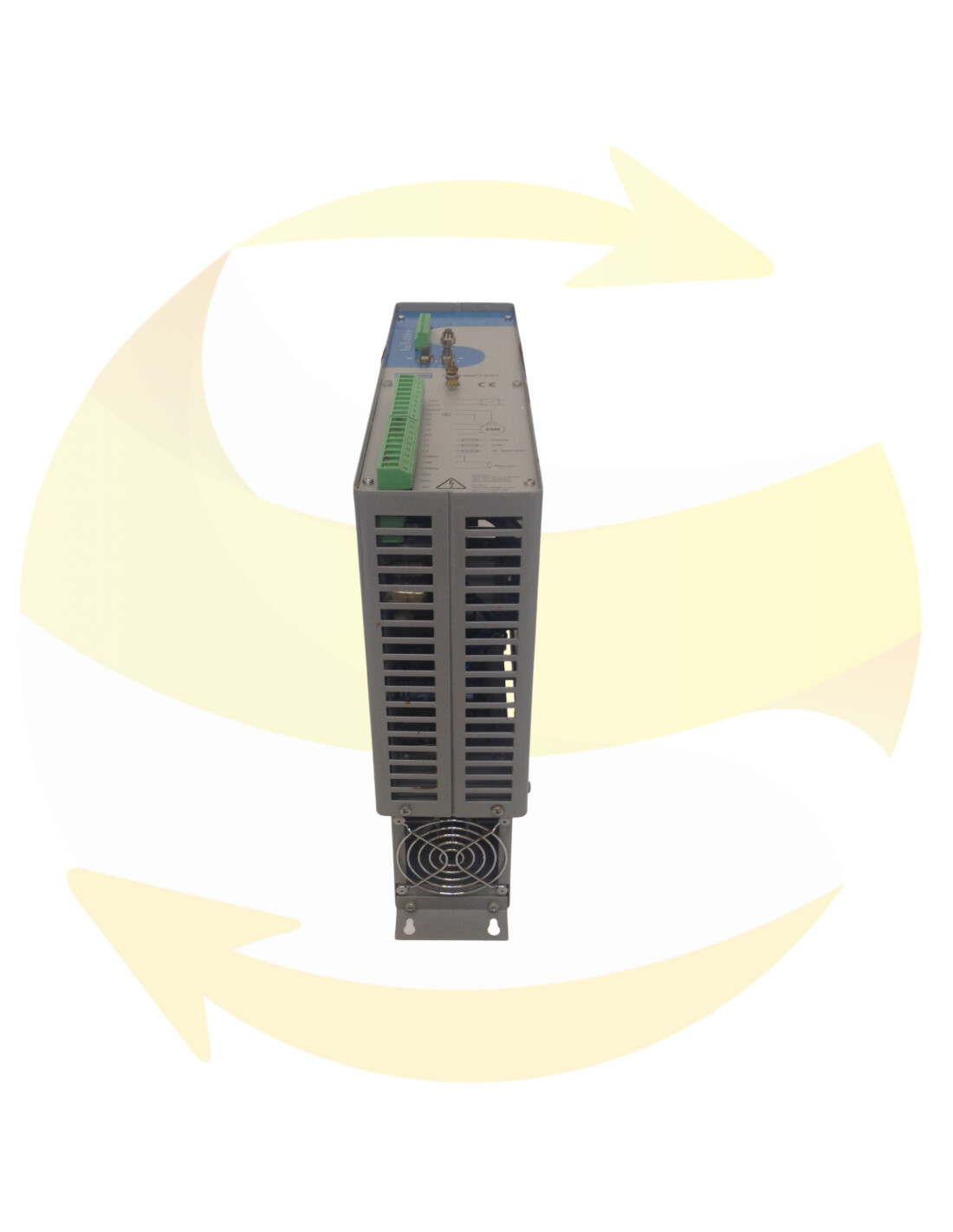

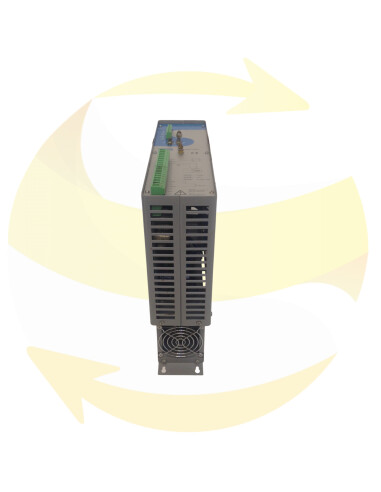

DIGIFAS 7103 - Servo amplifier - KOLLMORGEN

KOLLMORGEN KOLLMORGEN

Refurbished

This reference servo amplifier DIGIFAS 7103 and brand KOLLMORGEN is a drive of the range DIGIFAS 7100.

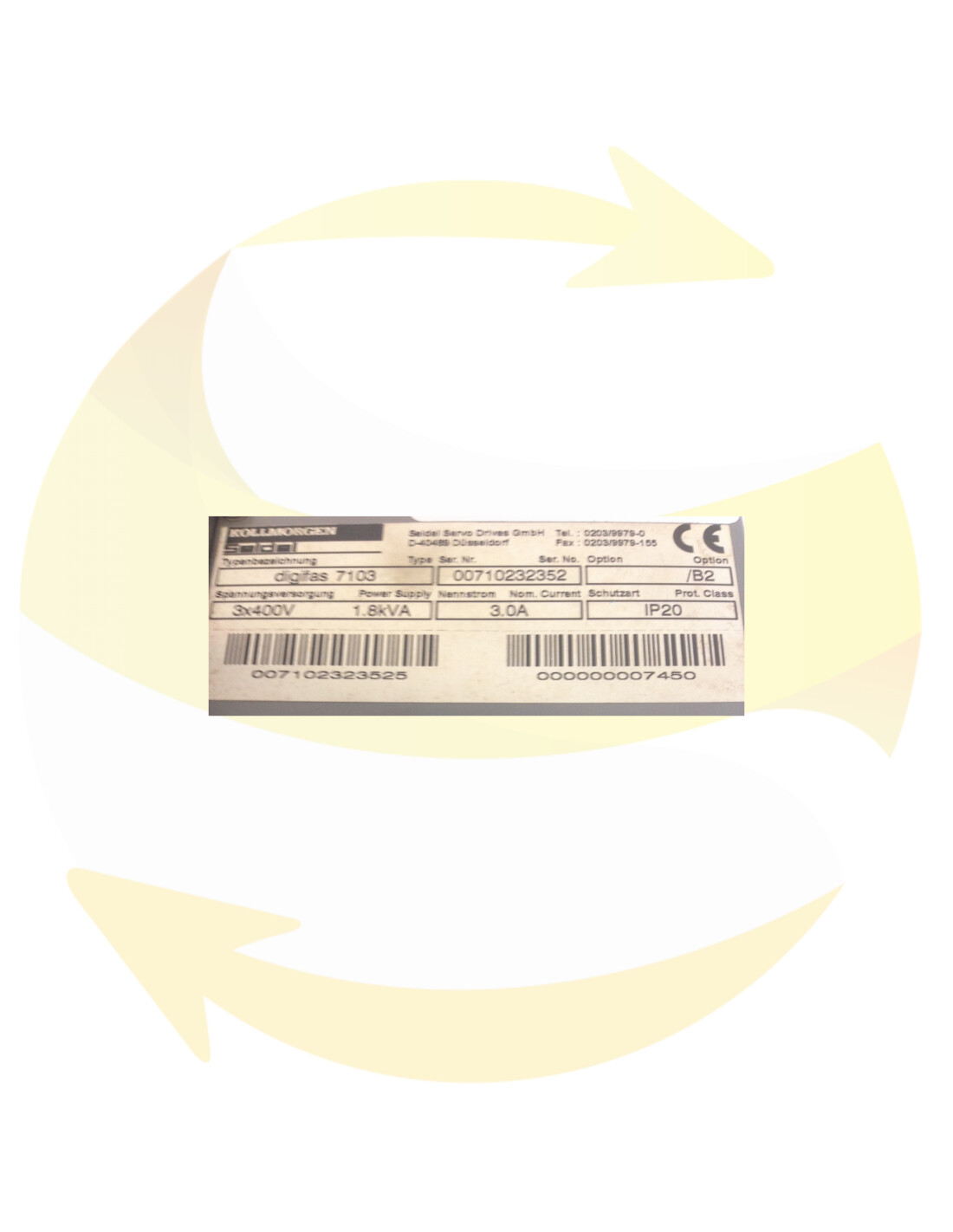

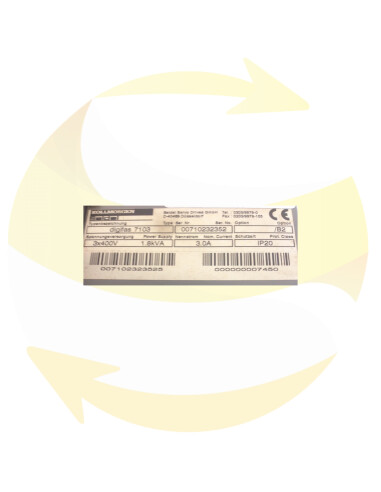

DIGIFAS 7103: 3x400V, 1.8kVA, 3A, 6.9kW, 50 / 60Hz. IP20

This KOLLMORGEN servo amplifier is at your disposal to replace your defective equipment and has a suitable guarantee.

More details

In stock, shipping within 24h.

Time left:

598,40 €

Before 680,00 €

-12%

livraison-2.pngQuick delivery

garantis2.pngWarranted systems

paiement-securise-SEI_1.jpgSecure Payment


Product options

standard exchange refurbished

Standard exchange service

Reconditioned and tested systems
6 to 12 months warranty

new systems

Standard exchange service

New systems
12 to 24 months warranty

supply refurbished

Supply service

Reconditioned and tested systems
6 to 12 months warranty

supply new

Supply service

New systems
12 to 24 months warranty

supply in the state

Supply service

Systems sold in the state
without warranty

Use the digifas 7100 series of servo-amplifiers only on a three-phase 400V earthed industrial mains supply to drive a synchronous servo-motor from the 6SM series.
The servo amplifier may only be operated in a closed switch cabinet, taking into account the environmental requirements.
The digifasTM 7100 series of servo-amplifiers are exclusively intended for driving the 6SM se- ries of brushless synchronous servo-motors under speed or torque control. The servo-amplifiers are installed as components of electrical equipment or machines and may only be operated as integral components of such equipment.

The digifasTM 7100 series of digital servo-amplifiers are available in several versions:

- Standard version digifas 7100 series
7 current types, with analog speed-setpoint input, incremental positional output, controllable motor holding brake. In this standard version there is no position control capability in the servo-amplifier.
This function must be taken over by the automation equipment.
Options* : -DISP-, -IL-

- BIT CONNECT version digifas 7100-SPS series
PLC interface, connection to a simple control via 10 I/O leads, execution of the motion data sets which are stored in the servo-amplifier,
7 current types, controllable motor holding brake, digital setpoint input from the automation equipment, positional control in the servo-amplifier.

PULSE CONNECT version digifas 7100-STEP series
Pulse-direction interface, connection to a stepper-motor controller or as a slave-controller to a digifasTM 7100 master-controller with incremental position control, 7 current types, controllable motor holding brake, digital setpoint input from the automation equipment, positional control (cascade control) in the servo-amplifier.

PROFIBUS CONNECT version digifas 7100-L2/DP series
Connection to PROFIBUS-DP (SINEC-L2-DP), 7 current types, controllable motor holding brake, digital setpoint input from the automation equipment, positional control in the servo-amplifier.

CAN CONNECT version, digifas 7100-CAN series
Connection to CAN BUS, 7 current types, controllable motor holding brake, digital setpoint input from the automation equipment, positional control in the servo-amplifier.

Height 37 cm / 14,5 in
Width 36 cm / 14,1 in
Length 10 cm / 3,9 in
Weight 7 kg / 15.3 lbs
Family DIGIFAS 7100
Reference DIGIFAS 7103

If Service exchange, thank you describe below the defect found on your defective part.
Allowed file formats are: GIF, JPG, PNG

loader

* required fields

No customer reviews for the moment.

Write a review

With over 100 years of design and development expertise, Kollmorgen delivers breakthrough motion solutions unmatched in performance, reliability and ease-of-use. Through world-class knowledge in industrial automation, leading quality, and deep know-how in linking and integrating standard and custom products, Kollmorgen provides OEMs with the competitive advantage they need to succeed.
