A06B-6102-H211 - Spindle Amplifier Module - FANUC

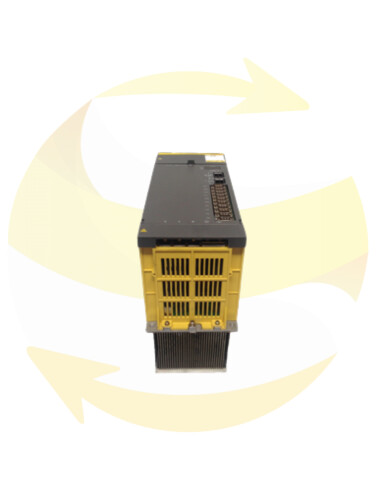

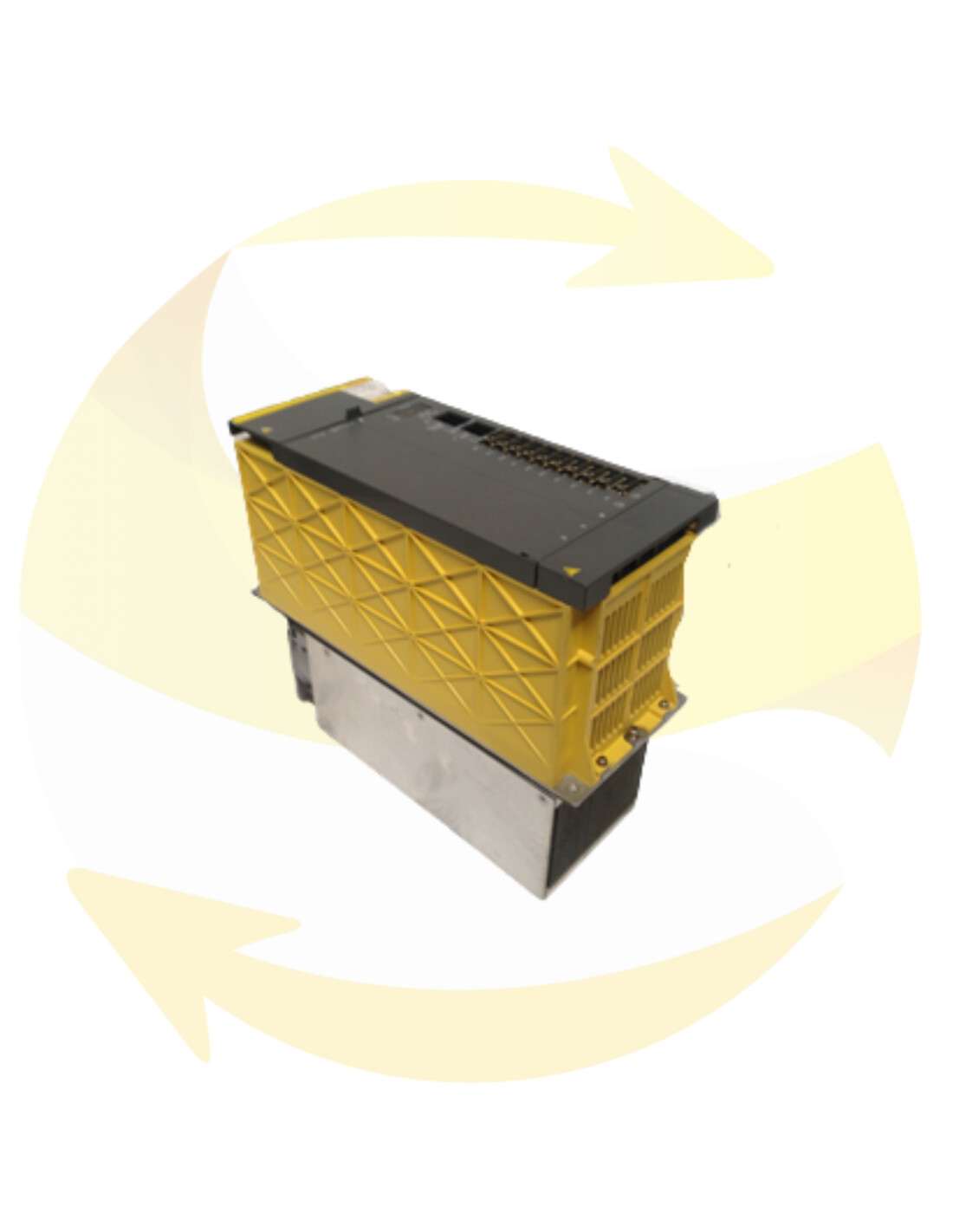

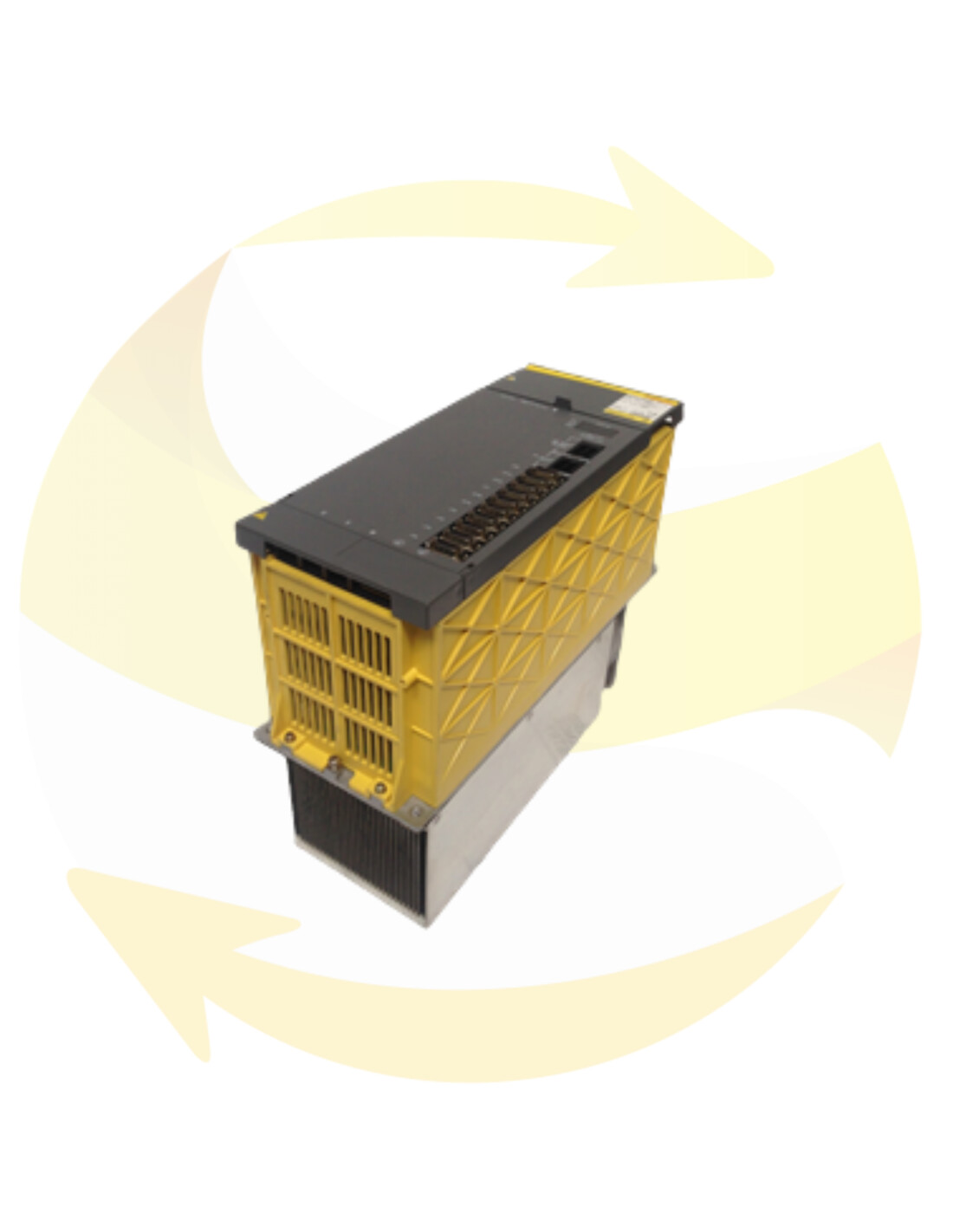

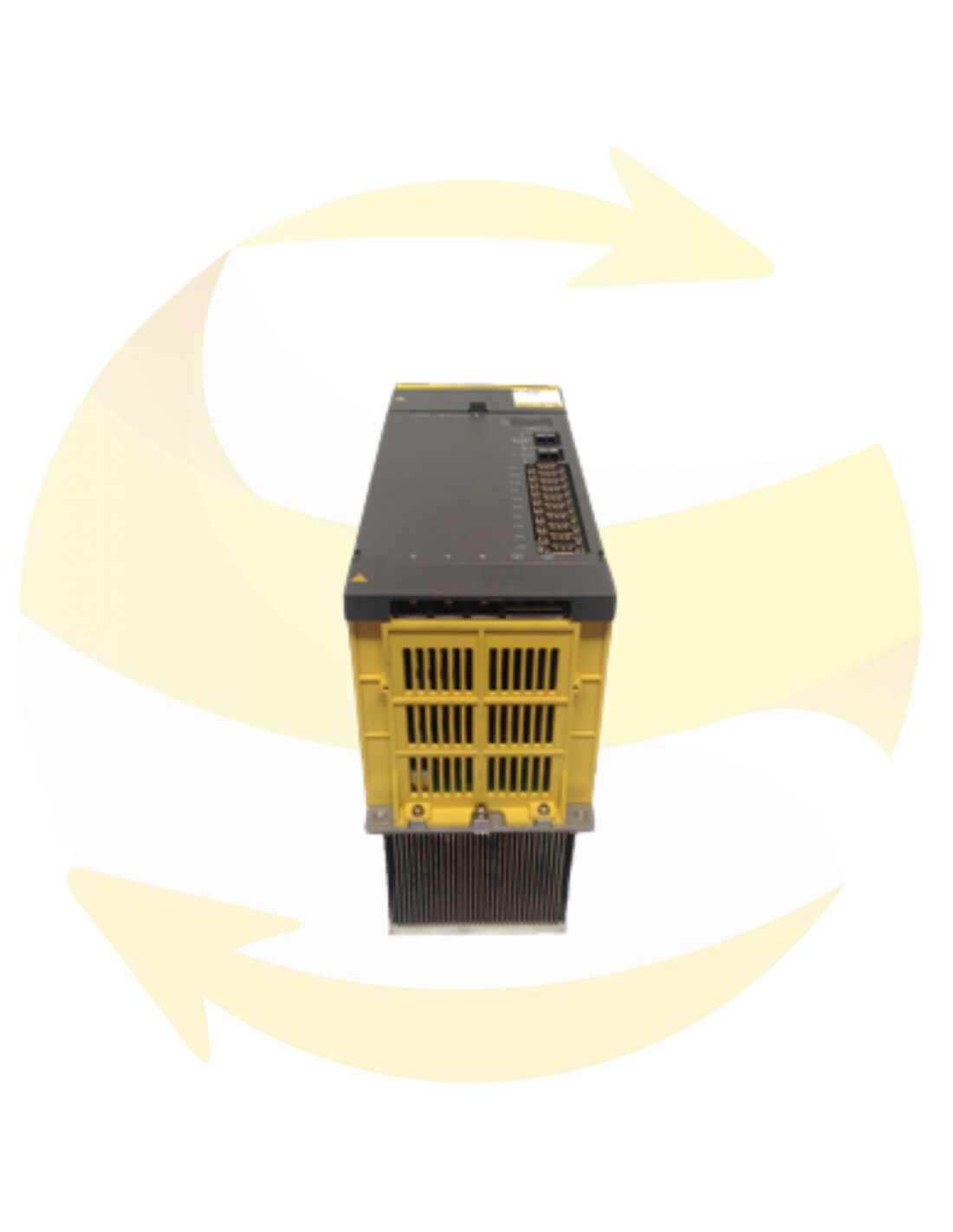

This FANUC reference spindle drive A06B-6102-H211#H520 is a Spindle Amplifier Module. Belongs to the Fanuc Alpha SPM-11-1 range
Alpha Fanuc series type 1 : Input : 283-325V, 17.5kW, output voltage : 230V ~ rated output current : 48A
This spindle amplifier module A06B-6102-H211#H520 is at your disposal to replace your defective equipment and has a guarantee adapted to your needs.
The spindle amplifier module drives a spindle motor. Select a spindle amplifier module according to the spindle motor being used.
There are three types of spindle amplifier module, as follows:
(1) Spindle amplifier module (SPM)
This module drives a spindle motor of the 200–V input series.
(2) Spindle amplifier module (SPMC)
This module drives the aC series spindle motor.
(3) Spindle amplifier module (SPM–HV)
This module drives a spindle motor of the 400V input series.
A servo motor detector signal is sent via the servo amplifier and is applied to the CNC through the FSB interface. Then, it is fed to two CPUs: a CNC CPU and a monitor CPU.
A spindle motor detector signal is sent via the spindle amplifier and is applied to the CNC connected through the serial interface. Then, it is fed to two CPUs: a CNC CPU and a CPU built into the spindle amplifier.
- α series servo amplifier
- α series spindle amplifier
- α series power supply module - αi series servo amplifier
- αi series spindle amplifier
- αi series power supply module
The CNC outputs a DO notifying of an alarm. If necessary, the spindle should be stopped. Because the DO output is not duplicated, this DO may not be output when a single failure is detected. In that case, the speed cannot be reduced, but the MCC is finally shut off and brought into the safe stop state.
If a spindle amplifier alarm or any other state in which the spindle motor cannot be controlled is encountered, immediate power-down is carried out.
Except FSSB I/O module, the hardware installation such as field wiring, power supply, etc. should be referred to connection manual (B-63003EN) for CNC units and (B-65162E) for servo amplifier. EMC problem should be referred to EMC guideline manual (A- 72937/E).
Degree of IP protection:
Servo Motors: IP55
Spindle Motors: IP54 with oil-seal, IP40 without oil-seal Servo and Spindle amplifiers: IP1x
CNC and other accessories: Ipxx
