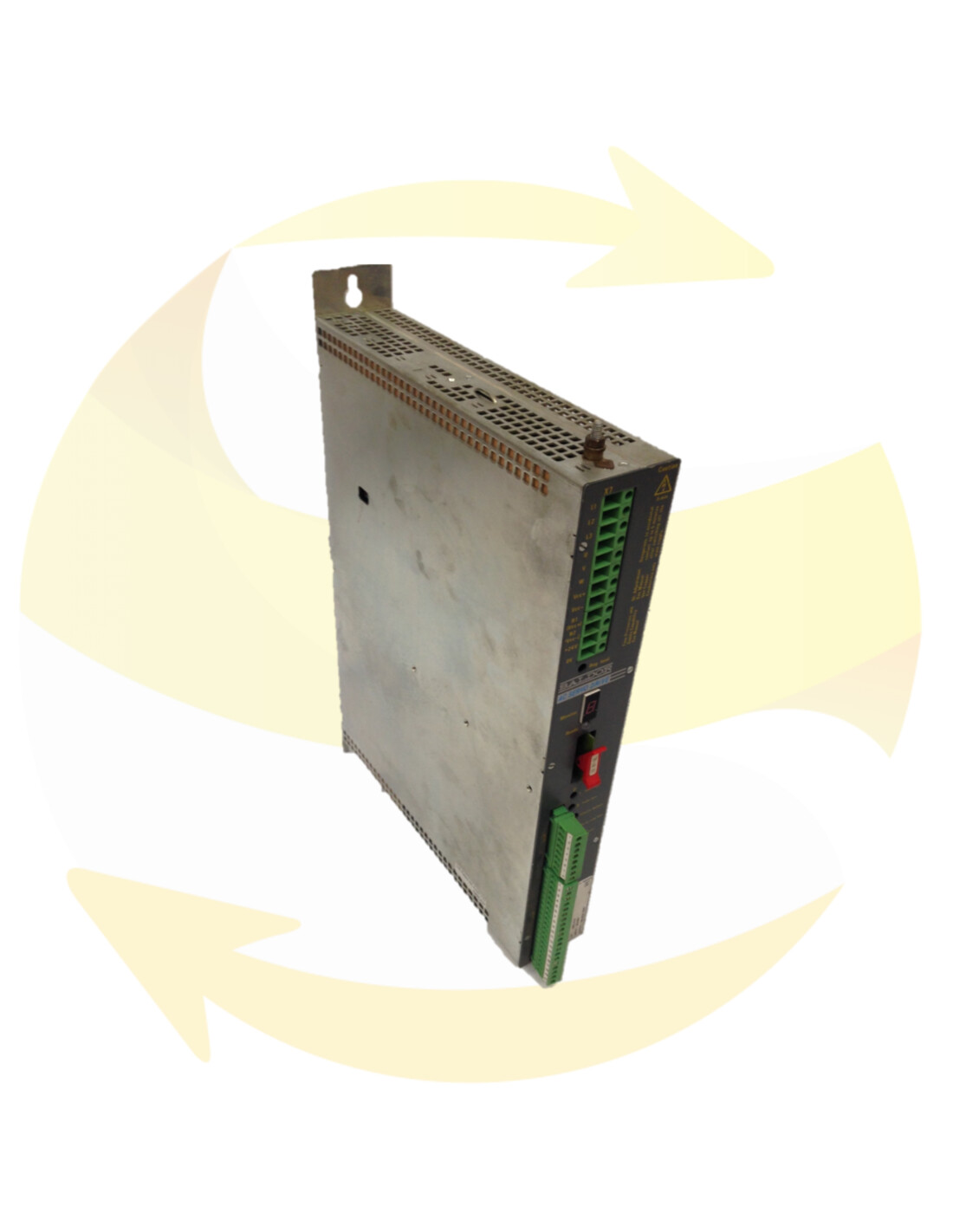

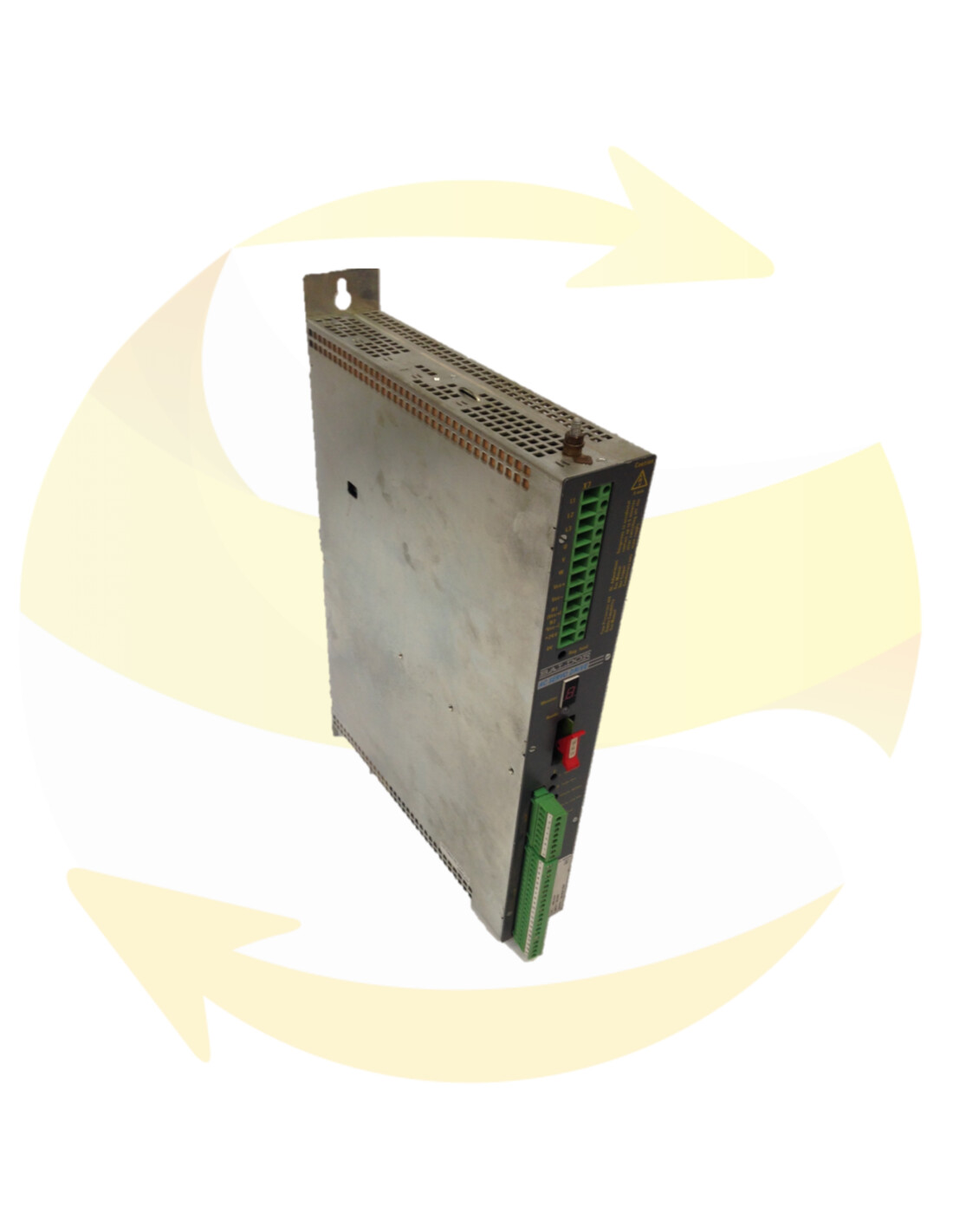

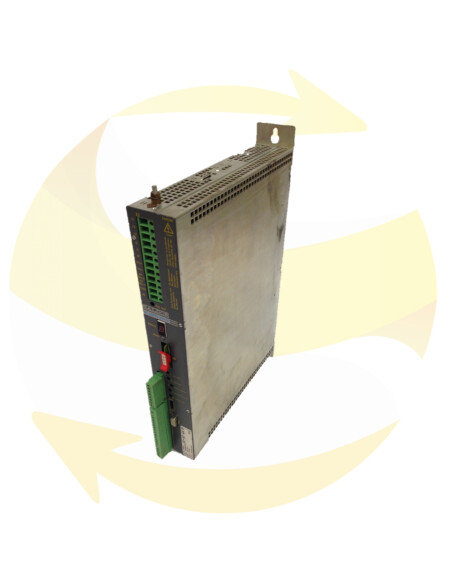

BSC1010 - Servo Controller - BALDOR Expand

BSC1010 - Servo Controller - BALDOR

BALDOR BALDOR

Refurbished

This brushless reference drive BSC1010 and BALDOR brand is a drive for Brushless AC motor. BSC 1000/1100 Series

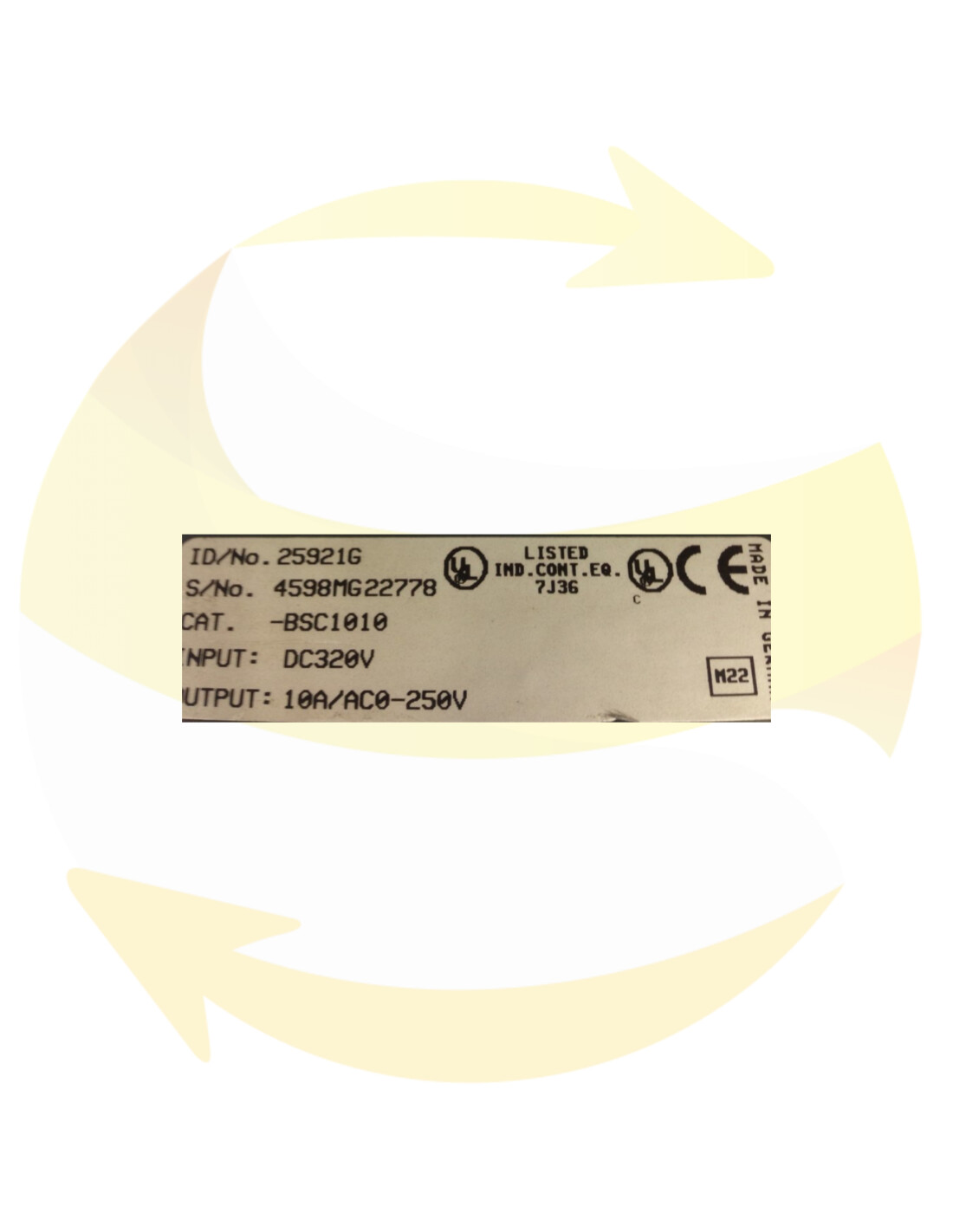

Input: DC320V Output: 10A / ACO-250V

This BALDOR drive is at your disposal to replace your defective equipment and has a guarantee adapted to your needs.

More details

In stock, shipping within 24h.

1 040,00 €

Livraison : 1 à 3 semaines

livraison-2.pngQuick delivery

garantis2.pngWarranted systems

paiement-securise-SEI_1.jpgSecure Payment


Product options

standard exchange refurbished

Standard exchange service

Reconditioned and tested systems
6 to 12 months warranty

new systems

Standard exchange service

New systems
12 to 24 months warranty

supply refurbished

Supply service

Reconditioned and tested systems
6 to 12 months warranty

supply new

Supply service

New systems
12 to 24 months warranty

supply in the state

Supply service

Systems sold in the state
without warranty

The BSC product is designed to serve the needs of machine designers and manufacturers. Baldor products have both UL and CE approvals.

Motors

Baldor servo controls are compatible with many motors from Baldor and other manufacturers. Motor parameters are provided with the PC software making the setup easy. Baldor compatible motors include:
- BSM–4R / 63A / 80A / 80B Series motors
- BSM–6R Series motors
- BSM–4F / 6F / 8F / 90A / 90B Series motors

The BSC1000/1100 is a resolver based servo control designed to be used with brushless servo motors. The control accepts a standard ±10 VDC to control brushless servo motors in either a velocity or current (torque) loop. The standard BSC 1100 series includes an internal power supply; the standard BSC 1000 series requires an external supply.

Physically, the two units are identical.

A power disconnect should be installed between the input power service and the control for a fail–safe method to disconnect power. The control will remain in a powered-up condition until all input power is removed from the control and the internal bus voltage is depleted.

Height 40 cm / 15,7 in
Width 27 cm / 10,6 in
Length 5,5 cm / 2,1 in
Weight 5,5 kg / 11 lbs
Family BSC 1000/1100
Reference BSC1010

If Service exchange, thank you describe below the defect found on your defective part.
Allowed file formats are: GIF, JPG, PNG

loader

* required fields

No customer reviews for the moment.

Write a review

As ABB's US Motors and Generators division, ABB Motors and Mechanical Inc. market, design, manufacture and supply services for industrial electric motors, generators and mechanical power transmission products. This company was previously known as Baldor Electric Company until its merger with ABB on March 1, 2018.


The US division, headquartered in Fort Smith, Arkansas, oversees 15 manufacturing sites in 8 states.


The company sells Baldor-Reliance and ABB industrial electric motors. The products are available in IEC and NEMA configurations and range from fraction to 100,000 horsepower.


The company also sells Dodge mechanical power transmission products, including mounted bearings, enclosed gears, couplings, sheaves and bushings.
