DKC01.1-040-7-FW / FWA-ECODRV-ASE-02VRS-MS - Ecodrive Controller - INDRAMAT Expand

DKC01.1-040-7-FW / FWA-ECODRV-ASE-02VRS-MS - Ecodrive Controller - INDRAMAT

INDRAMAT INDRAMAT

Refurbished

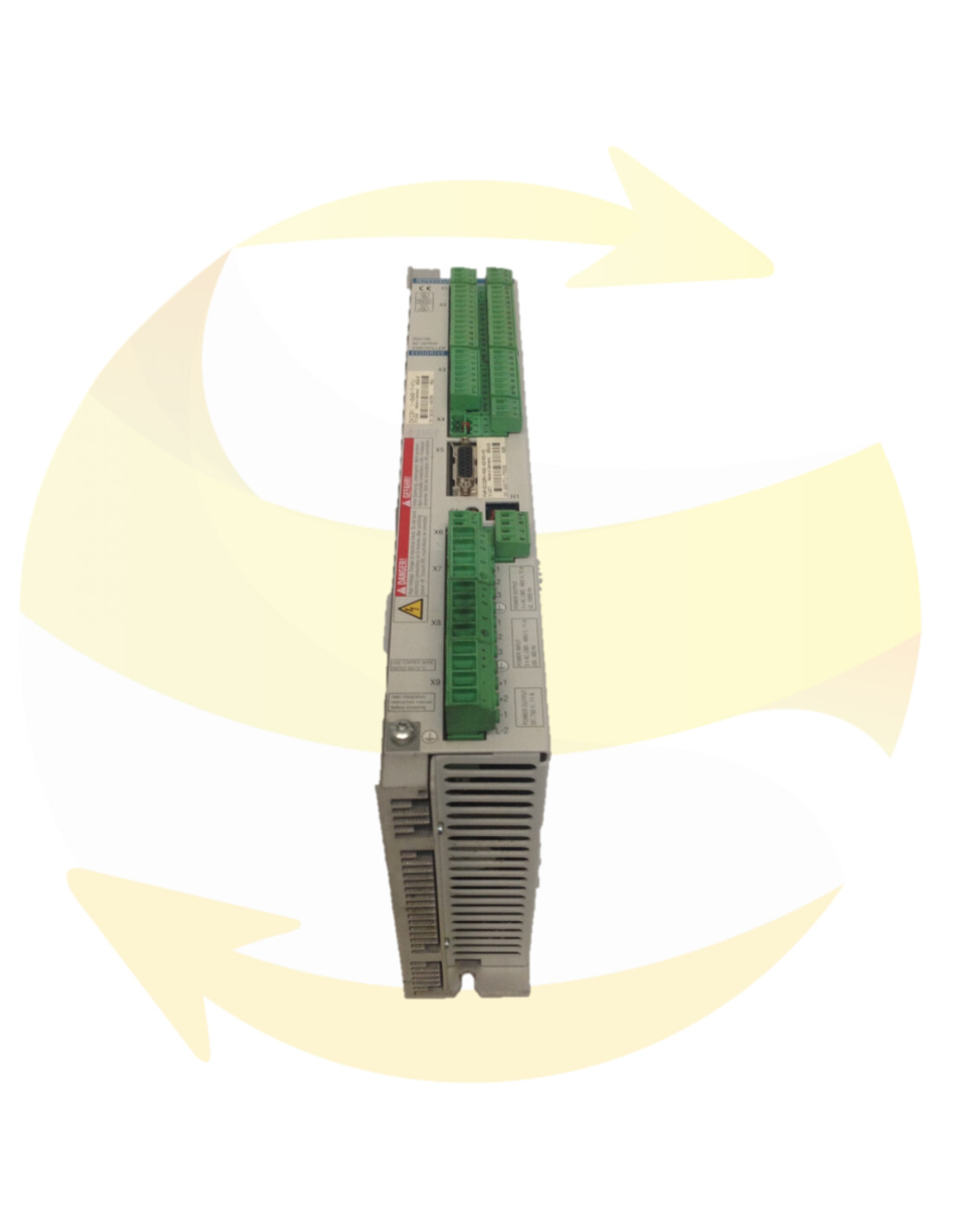

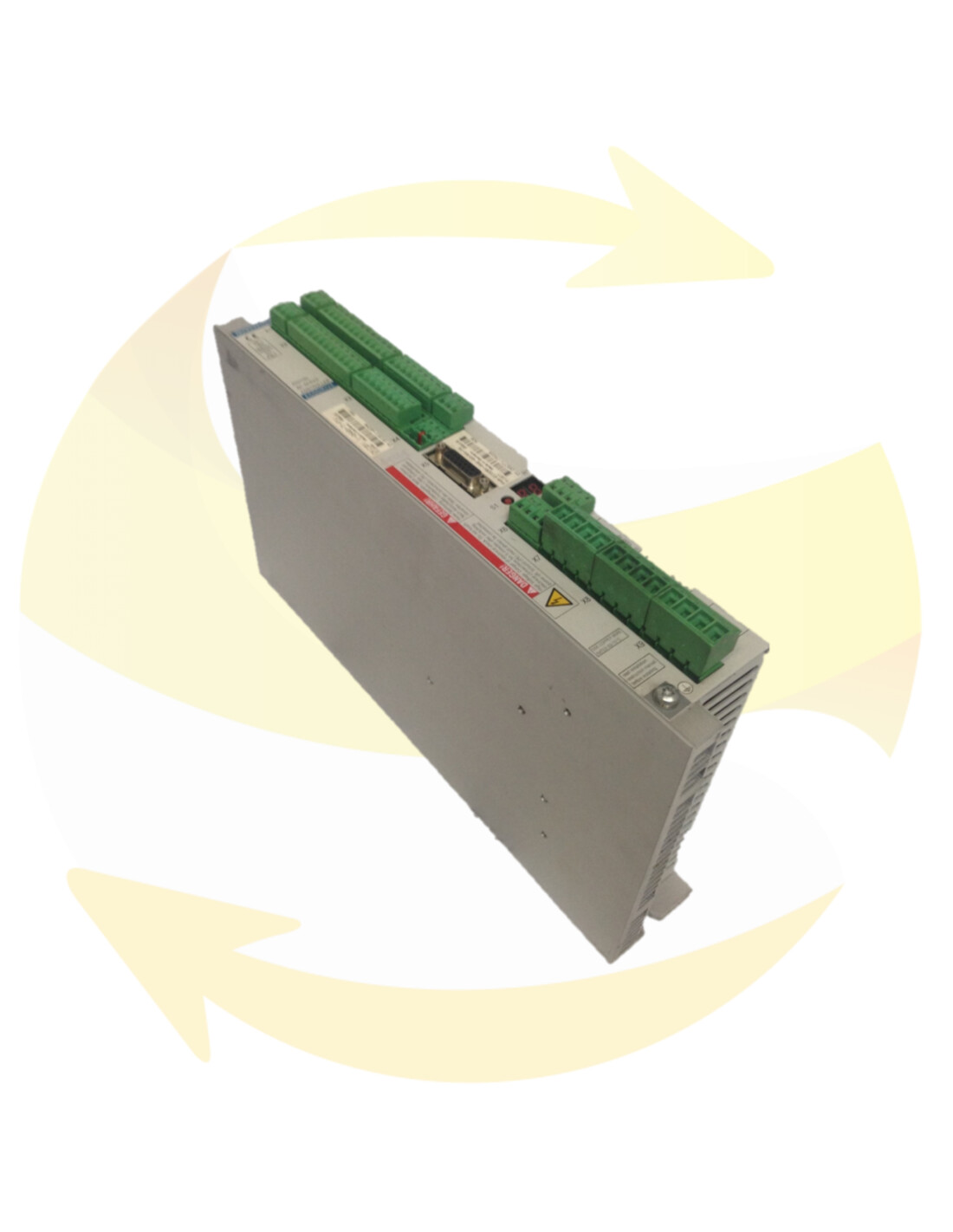

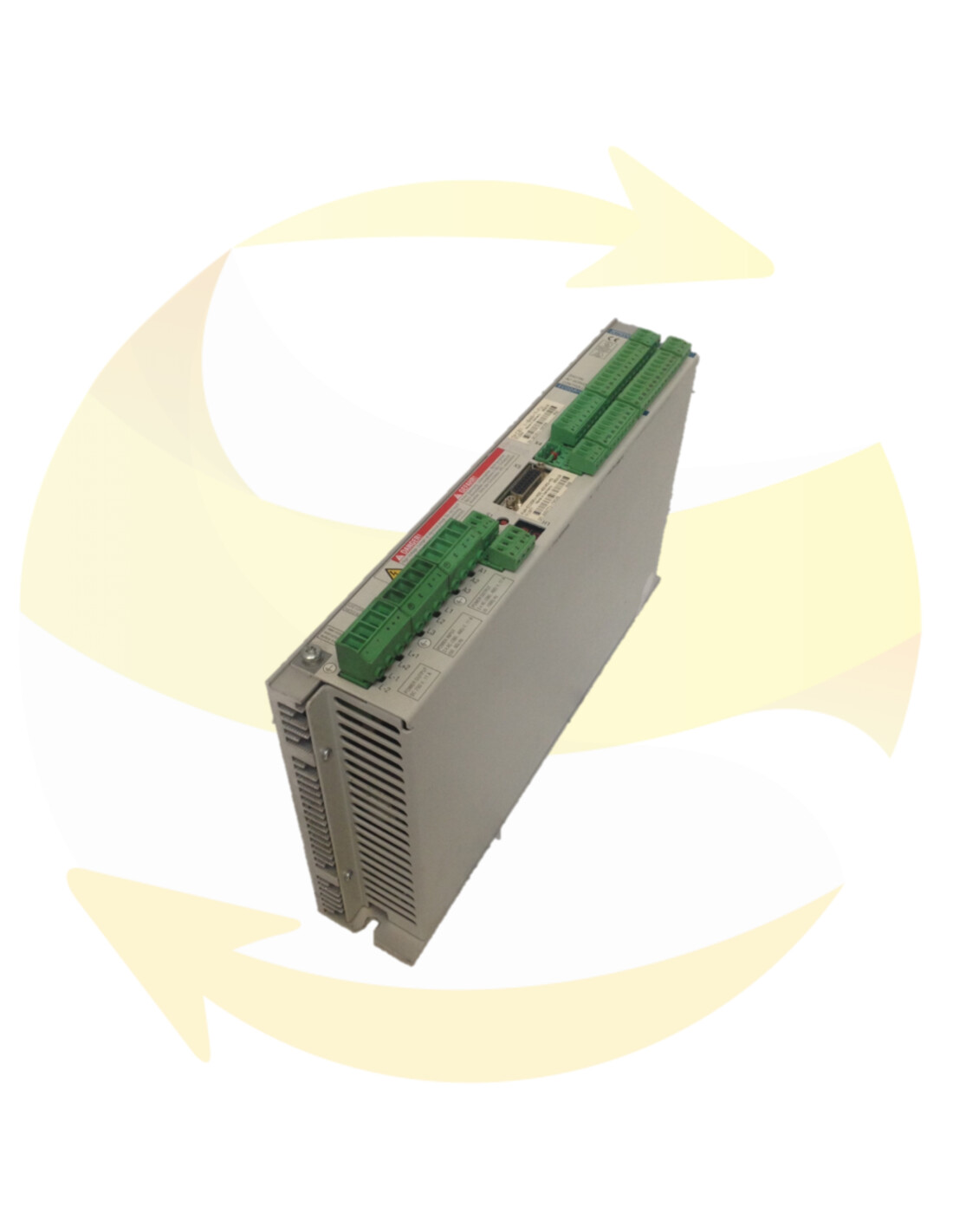

This reference INDRAMAT drive DKC01.1-040-7-FW belongs to the product range ECODRIVE DKC1.1 / DKC11.1

This drive is designed for INDRAMAT CNC machine tools and is used with INDRAMAT MKD motors.

This INDRAMAT drive is at your disposal to replace your defective equipment and has a guarantee adapted to your needs.

More details

In stock, shipping within 24h.

710,00 €

Livraison : 1 à 3 semaines

livraison-2.pngQuick delivery

garantis2.pngWarranted systems

paiement-securise-SEI_1.jpgSecure Payment


Product options

standard exchange refurbished

Standard exchange service

Reconditioned and tested systems
6 to 12 months warranty

new systems

Standard exchange service

New systems
12 to 24 months warranty

supply refurbished

Supply service

Reconditioned and tested systems
6 to 12 months warranty

supply new

Supply service

New systems
12 to 24 months warranty

supply in the state

Supply service

Systems sold in the state
without warranty

ECODRIVE is a digital intelligent automation system which provides a cost effective way to control single and multiple axis tasks.
ECODRIVE can be used to accomplish all kinds of control tasks in different fields. It is typically used in such applications as:
• Handling systems
• Packaging machinery
• Assembly systems
• Printing machines

An ECODRIVE consists of a drive controller and a MKD servo motor. There are presently four drive controllers available, each with different control interfaces.
• DKC01.1 with analog, stepper motor, and positioning interfaces
• DKC11.1 with analog interface
• DKC02.1 with SERCOS interface
• DKC03.1 with PROFIBUS-DP interface

• Up to 32 position settings can be stored in the DKC01.1 and DKC11.1. These settings can be selected via parallel inputs. If block selection is conducted via a serial interface (RS232/RS485), then it is possible to use up to 64 positioning blocks. The DKC01.1 executes position settings independently.
• The drive controller can conform to mechanical transmission elements such as gear ratios or feed constants.
• All position, speed, and acceleration data can be weighted rotary or linear depending on axial kinetics.
• An internal homing procedure can help create a reference position.
• The axis can be controlled via the jog function for set-up operations.
• The positioning speed can be influenced with the Feedrate Override.
• Limit switch inputs and parametrical position limits are available to set travel range limits.
• The drive controller status can be determined via status outputs.

• The scaling factor of the analog velocity command value can be set in the DKC.
• The output of the actual position value can be either incremental or absolute.
• Regardless of the command value, the drive controller can be brought to a standstill via a logic input and kept drift free under active control.

• The number of steps per rotor revolution is adjustable between 16 and 65536.
• The maximum stepping frequency is independent of the load. As the position of operation is monitored, it is technically impossible for steps to be "left out".
• The stepper motor interface can be set to three standard signal definitions for trading signals between control and drive controller systems.
− Quadrature signals
− Forward/backward signals
− Step and direction signals
• An internal homing procedure can help create a reference position.
• The axis can be controlled via the jog function for set-up operations.
• The homing and jogging speeds can be influenced via the Feedrate Override.
• Limit switch inputs and parametrical position limits are available to set travel range limits.
• The drive controller status can be determined via status outputs.

Direct Power Supply Connection
The drive controller can be connected directly to single and three phase 230V power supplies or three phase power supplies ranging from 380V to 480V without transformers. A power rectifier, DC bus capacitor, and bleeder are included as standard equipment.
Integrated Brake Activation
The optional brake in MKD motors is activated directly via the drive controller.
Actual Position Value Measurement
ECODRIVE measures the actual position value via the motor feedback
system
• Incremental position measurement (standard)
The actual position value will be set at a random value when the power supply is first turned on. To give the actual position value a fixed reference point, the reference point must be set with a defined homing procedure.
• Absolute position measurement (optional)
After the power supply has been turned on, the absolute actual position value in relation to a fixed reference point is immediately available. Thus, completing the homing procedure is unnecessary.
Actual Position Value Output
The DKC01.1 has an actual position value output for transmission of the actual position value to an NC control. Actual position values can be transmitted in either incremental or absolute format.
• Incremental Actual Position Value Output
5V-TTL incremental encoder signals with an adjustable counter are given as an output. Incremental actual position value output is possible with both actual position value and absolute actual position value acquisition.
• Absolute Actual Position Value Output
The absolute actual position value is transmitted in the standard SSI- format for position encoders. The output of the absolute actual position value is only possible when using a motor with an absolute encoder (optional).
Integrated Diagnostic Display
All internal condition and error analysis is displayed via a dual position seven segment display.
Easy Installation
The installation and diagnostic program DRIVETOP helps with a user-
friendly installation via the serial RS-232 interface on a PC

Height 36 cm / 14,1 in
Width 23 cm / 9 in
Length 6,5 cm / 2,5 in
Weight 5 kg / 11 lbs
Family ECODRIVE DKC01.1/DKC11.1

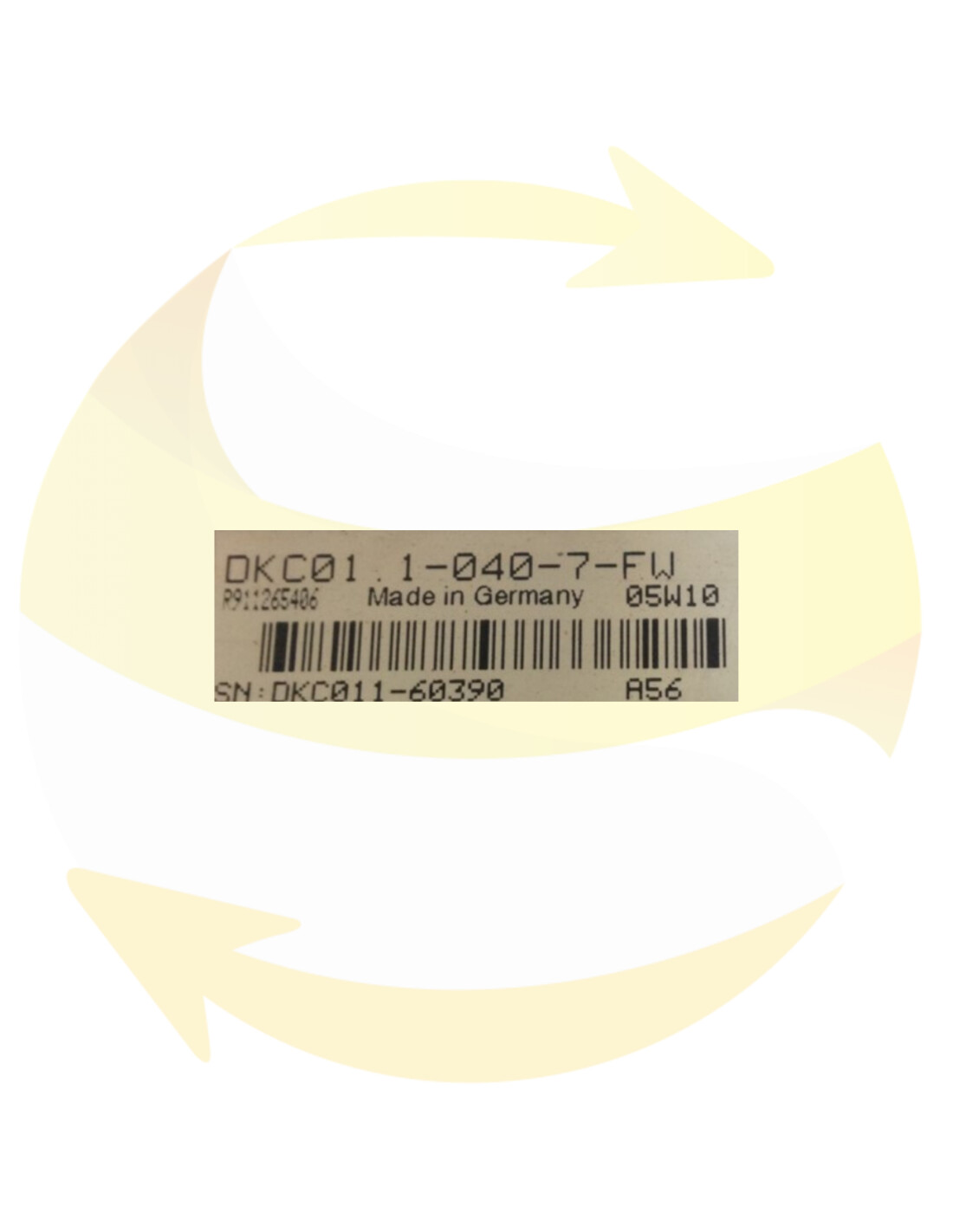

Reference DKC01.1-040-7-FW/ASE-02VRS-MS
