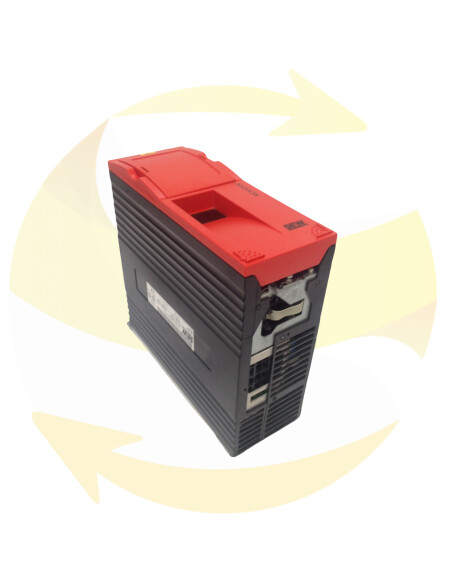

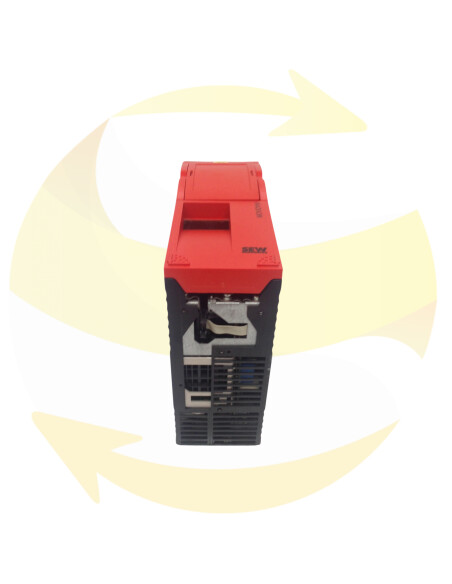

MKS51A005-503-50 - Servo controller - SEW Expand

MKS51A005-503-50 - Servo controller - SEW

SEW EURODRIVE SEW EURODRIVE

Refurbished

This reference servo controller MKS51A005-503-50 and SEW brand is a servo controller for three-phase AC motors. MOVIDYN series.

Servo controller of 5 kW, 3x380-500 Vac, 50 / 60Hz, 4.5A AC. Switch-mode power supply: 29 W.

This SEW drive is at your disposal to replace your defective equipment and has a warranty adapted to your needs.

More details

In stock, shipping within 24h.

1 280,00 €

Livraison : 1 à 3 semaines

livraison-2.pngQuick delivery

garantis2.pngWarranted systems

paiement-securise-SEI_1.jpgSecure Payment


Product options

standard exchange refurbished

Standard exchange service

Reconditioned and tested systems
6 to 12 months warranty

new systems

Standard exchange service

New systems
12 to 24 months warranty

supply refurbished

Supply service

Reconditioned and tested systems
6 to 12 months warranty

supply new

Supply service

New systems
12 to 24 months warranty

supply in the state

Supply service

Systems sold in the state
without warranty

Servo controllers of the MOVIDYN unit series are microprocessor-controlled pulse inverters that control speed ant torque of permanent-field DFS/DFY synchronous motors. They can be powered with a supply voltage of 380...500 Vac with 50/60 Hz and deliver output currents of 5 to 60 Aac. In addition to the amplifier system with power supply modules to wich axis modules (maximum 6) can be connected, a compact servo controller that combiens the functions of the power supply and axis modules is available for smaller currents (5 to 15 A).

All electronic inputs and outputs are potiential-free to the power supply voltage since the complete electronics is supllied by a separate power supply.
This also makes it possible to supply the units by feeding 24 Vdc externally and set the paramaters without using the supply voltage.

MAS axis Modules : The axis modules are connected with the DC link and the protective conductor via bus bars. A separate 24 Vdc bus is used for the voltage supply of the contorl electronics. A data bus is installed at the bottom sides of the units for interconnected communication of the units.

MKS Compact servo controller : The compact servo controller combines the functions of the power supply module and axis module of the modular servo controller

Height 28 cm / 11 in
Width 28 cm / 11 in
Length 11 cm / 4,3 in
Weight 4,7 kg / 10,36 lbs
Power 5 kW
Family MOVIDYN
Reference MKS51A005-503-50
