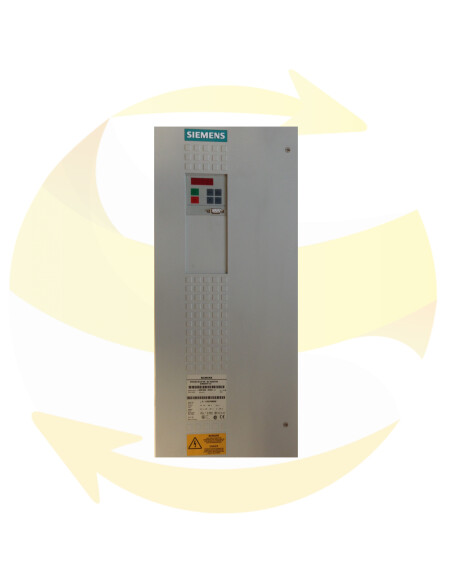

6SE7026-0TD61 - Inverter - SIEMENS
Inverter 6SE7026-0TD61 and SIEMENS brand. SIMOVERT MASTERDRIVES Vector Control. This inverter belongs to the SIMOVERT range.
SIMOVERT MASTERDRIVES INVERTER VECTOR CONTROL COMPACT UNIT, IP20 510-650V DC, 59 A NOM. POWER RATE: 30kW
This Siemens 6SE7026-0TD61 inverter is at your disposal to replace your defective equipment and has a guarantee adapted to your needs.
The inverter is a power electronics component for feeding three-phase drives in the output range from 2.2 kW to 37 kW.

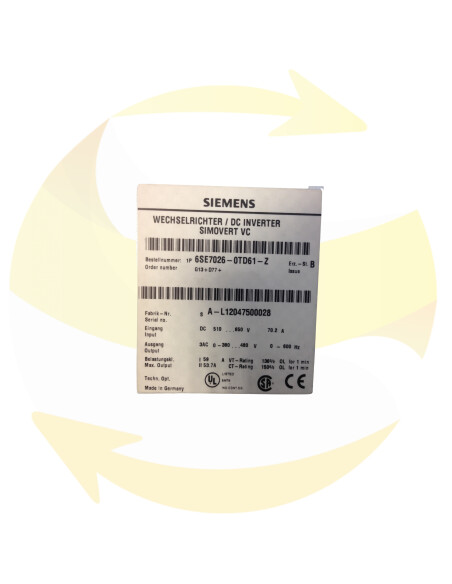

The unit can be operated from a DC system with a voltage in the range of the values indicated on the rating plate (270...310 / 510...650 / 675...810 V).
The inverter enables a three-phase system with a variable output frequency between 0 Hz and a maximum of 600 Hz to be generated from the DC link voltage with the pulse width modulation method (PWM).
The internal 24 V DC voltage is supplied through an integral power supply unit.
The unit is controlled by the internal closed-loop control electronics, the functions are provided by the unit software.
Operator control is via the PMU operator control panel, the user friendly OP1S operator contol panel, the terminal strip or via the serial interfaces of a bus system. For this purpose, the unit is provided with a number of interfaces and six slots for the use of optional boards. Pulse encoders and analog tachometers can be used as encoders on
