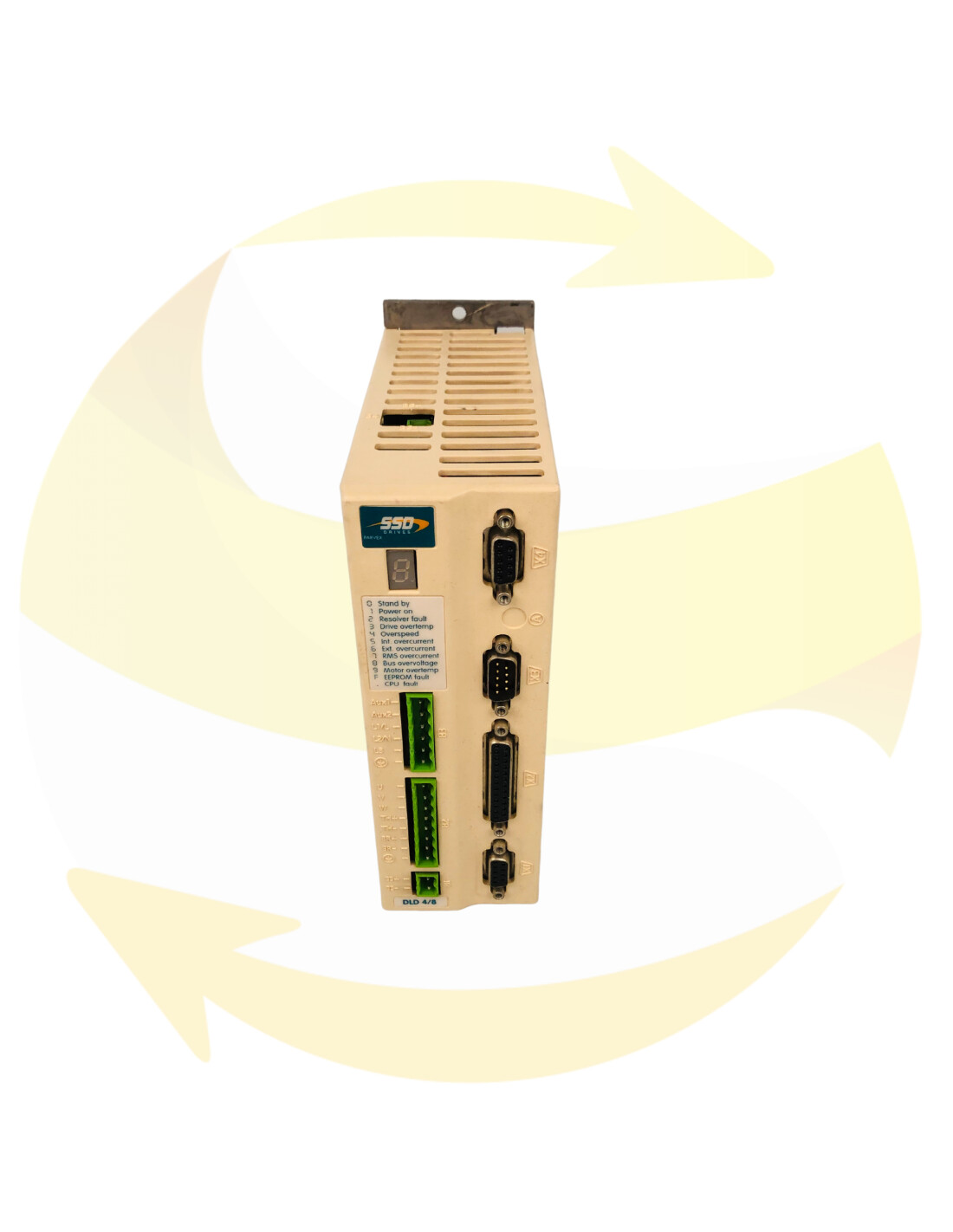

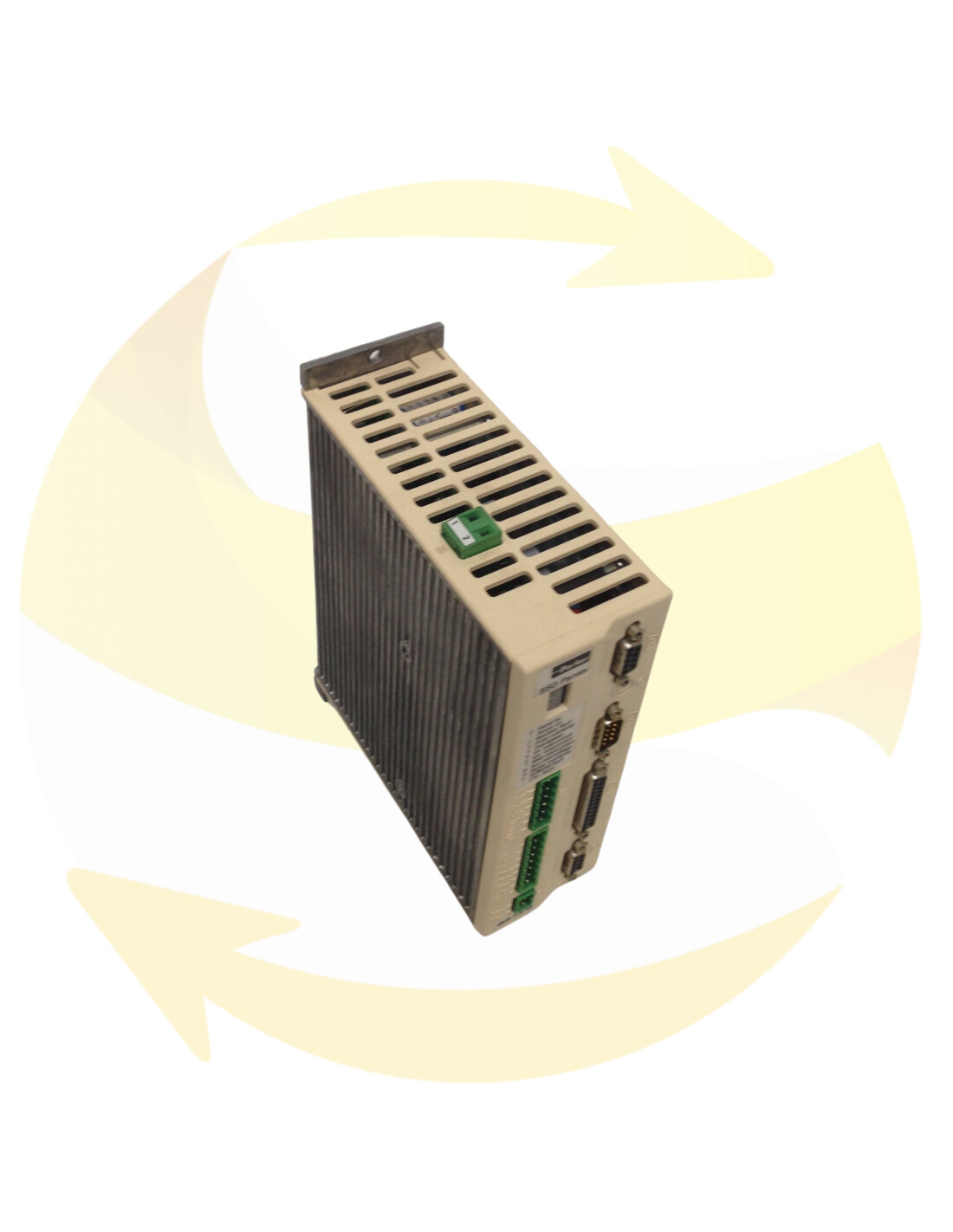

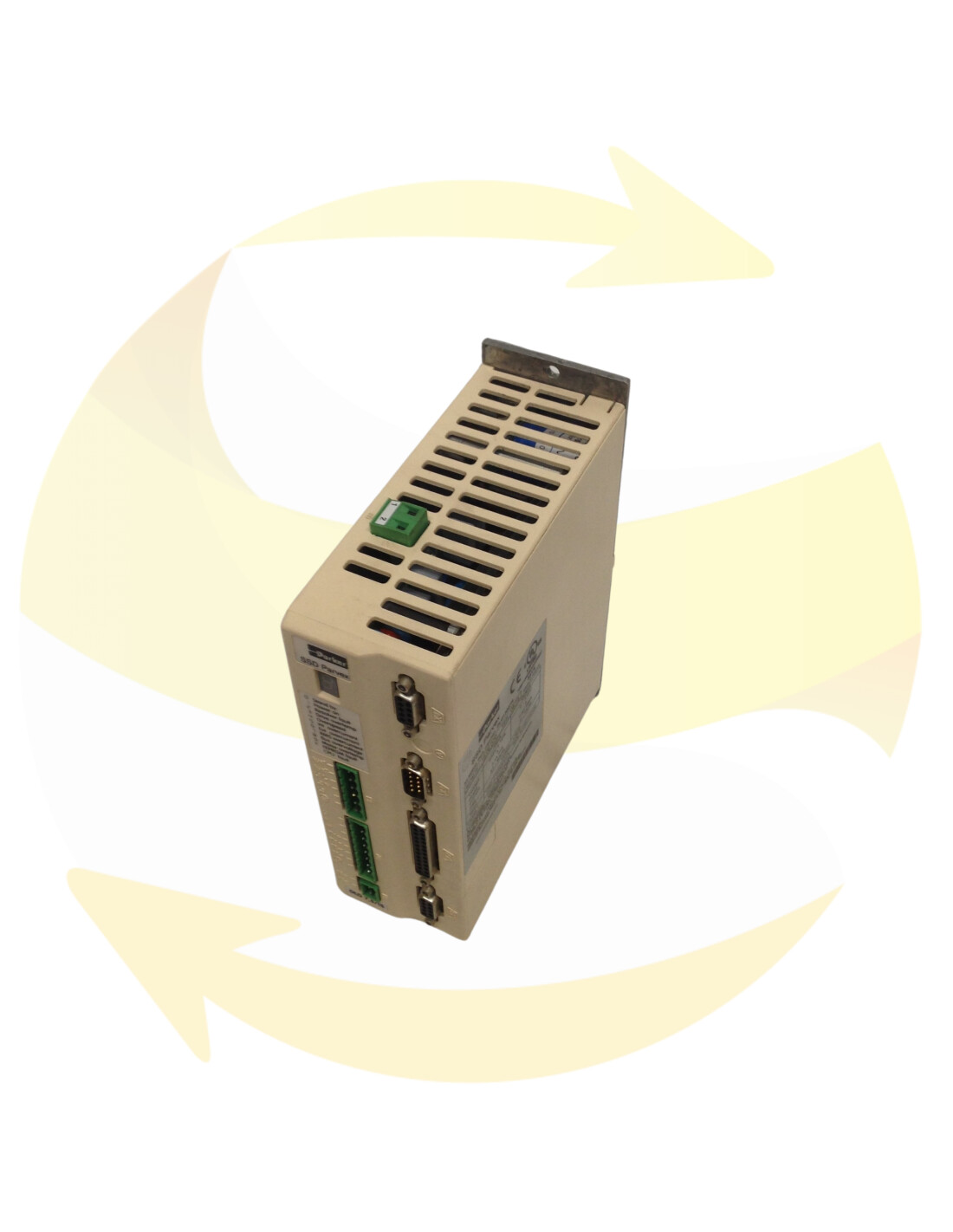

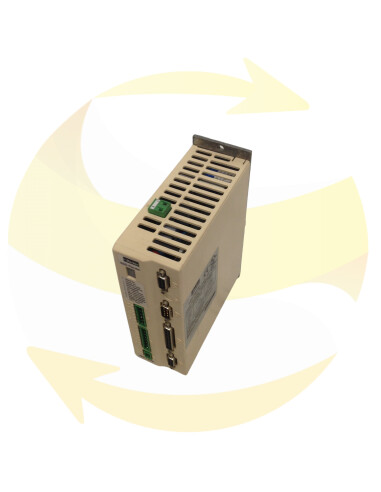

DLD13002R - Digital servoamplifier - PARKER SSD PARVEX
This reference servoamplifier DLD13002R and PARKER SSD PARVEX is a servo drive from the DIGIVEX series.
DLD13002R : 230V three phase 50/60Hz, 2A/4A, 375W
This PARKER SSD PARVEX digital servoamplifier is at your disposal to replace your defective equipment and has a suitable guarantee.
This servo drive is 100% tested with an NX servomotor.
The DLD is ideal for low power applications where small footprint and precise speed control are required.
Combined with NX servomotors, it is a powerful and economical servo system solution.
230 Vac direct supply
Integrated EMC filter
Integrated braking
compactness
7-segment diagnostic display
Easy setup with Parvex Motion Explorer
DLD
Input/output
2- Analog inputs (14 bits and 10 bits, ± 10V diff.)
2- Analogue outputs (± 10V), configurable
5- Optocoupled logic inputs
3- Optocoupled logic outputs
Resolver input
230Vac auxiliary input
Incremental encoder emulation output
