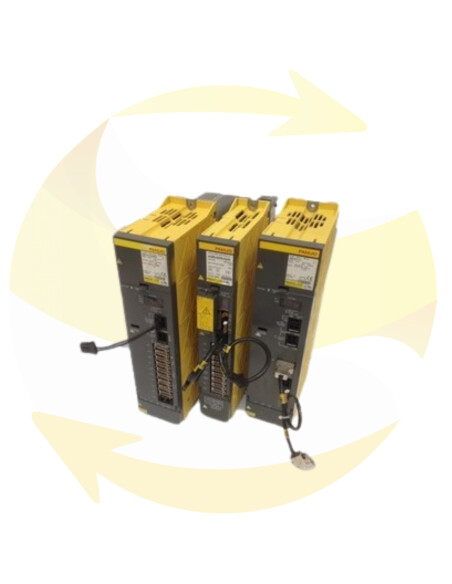

A06B-6066-H005 - Servo Amplifier - FANUC
A06B-6066-H005 - Servo Amplifier - FANUC
A06B-6066-H005 - Servo Amplifier - FANUC
A06B-6066-H005 - Servo Amplifier - FANUC
A06B-6066-H005 - Servo Amplifier - FANUC
A06B-6066-H005 - Servo Amplifier - FANUC
A06B-6066-H005 - Servo Amplifier - FANUC
A06B-6066-H005 - Servo Amplifier - FANUC

A06B-6066-H005 - Servo Amplifier - FANUC

A06B-6066-H005

This drive A06B-6066-H005 and brand FANUC is a Servo Amplifier. This drive belongs to the Fanuc Amplifier Serie C range. Consisting of 1 axis AC

Fitted with Fanuc 0MC, 0TC, 15, 16, 18 controls

This servo amplifier A06B-6066-H005 Fanuc is at your disposal to replace your defective equipment and has a guarantee adapted to your needs

Servo amplifier tested on FANUC test bench.

In stock, ready to ship.
State
  • Refurbished Service Exchange
  • Refurbished Supply
Warranty
€1,910.00
VAT excluded

System options

Exchange service with a refurbished unit

Standard Exchange Service

Reconditioned and tested systems

From 6 to 12
month warranty

Exchange service with a new unit

Standard Exchange Service

New systems

From 12 to 24
month warranty

Supply of a refurbished unit

Supply Service

Reconditioned and tested systems

From 6 to 12
month warranty

Supply of a new unit

Supply Service

New systems

From 12 to 24
month warranty

For parts only

Supply Service

Sold for parts – no warranty

Repair

Repair service

Repair will be made to damaged and defectiv units

From 3 to 18
month warranty

Livraison rapide

Fast
delivery

Livraison rapide

guaranteed
products

Livraison rapide

Secure
payment



The digital AC servo consists of the following.
The position command data from the NC machining program, for example, is processed by the NC controller, which turns it into position command data for each axis. The position command data of each axis is transmitted to a high-performance microprocessor mounted within the NC controller.

In this microprocessor, the position, velocity and current are all controlled on the basis of this data, and it outputs a PWM control signal.

The PWM control signal is fed to a separate servo amplifier, which amplifies this PWM control signal to the required power level for the AC servo motor.
The motor driving current from the servo amplifier, and the motor position data and velocity data passes from the pulse coder, are both fed back to the NC controller.

During parameter setting, an alarm may request that the power be turned off, however, continue setting without turning off power until all parameters are set.
When setting the parameters, keep the system in the emergency stop state. In the excitation state, setting values on the menu can be updated, but the internal data cannot be updated; the parameters are not actually updated.

Before setting a closed loop system (using a separate position detector), the user should check the operation of the machine in a semi-closed loop system (using the pulse coder on the motor).

Height
38 cm / 14,9 in
Width
9 cm / 3,5 in
Length
31 cm / 12,2 in
Weight
7 kg / 15.3 lbs
Family
FANUC SERIE C
Reference
A06B-6066-H005
Refurbished
3006231118283
300410133498

FANUC is a Japanese manufacturer of industrial robots, machining centers and numerical controls for machine tools

Since its creation in 1956, when the company’s founder, Dr. Seiuemon Inaba, introduced the concept of digital controls, FANUC has always been at the forefront of manufacturing techniques in the world. Moving from the automation of a single machine in the late 1950s to the automation of entire production lines over the following decades.
