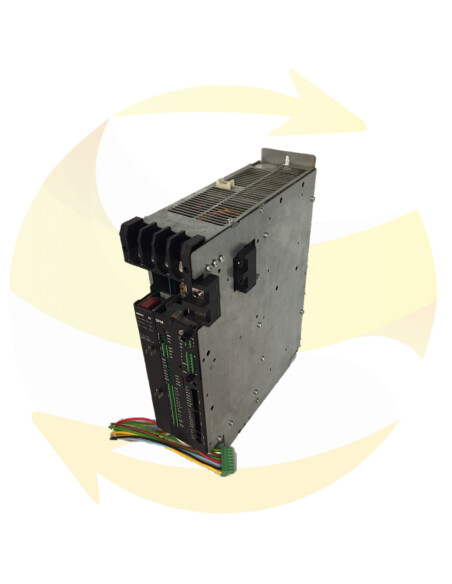

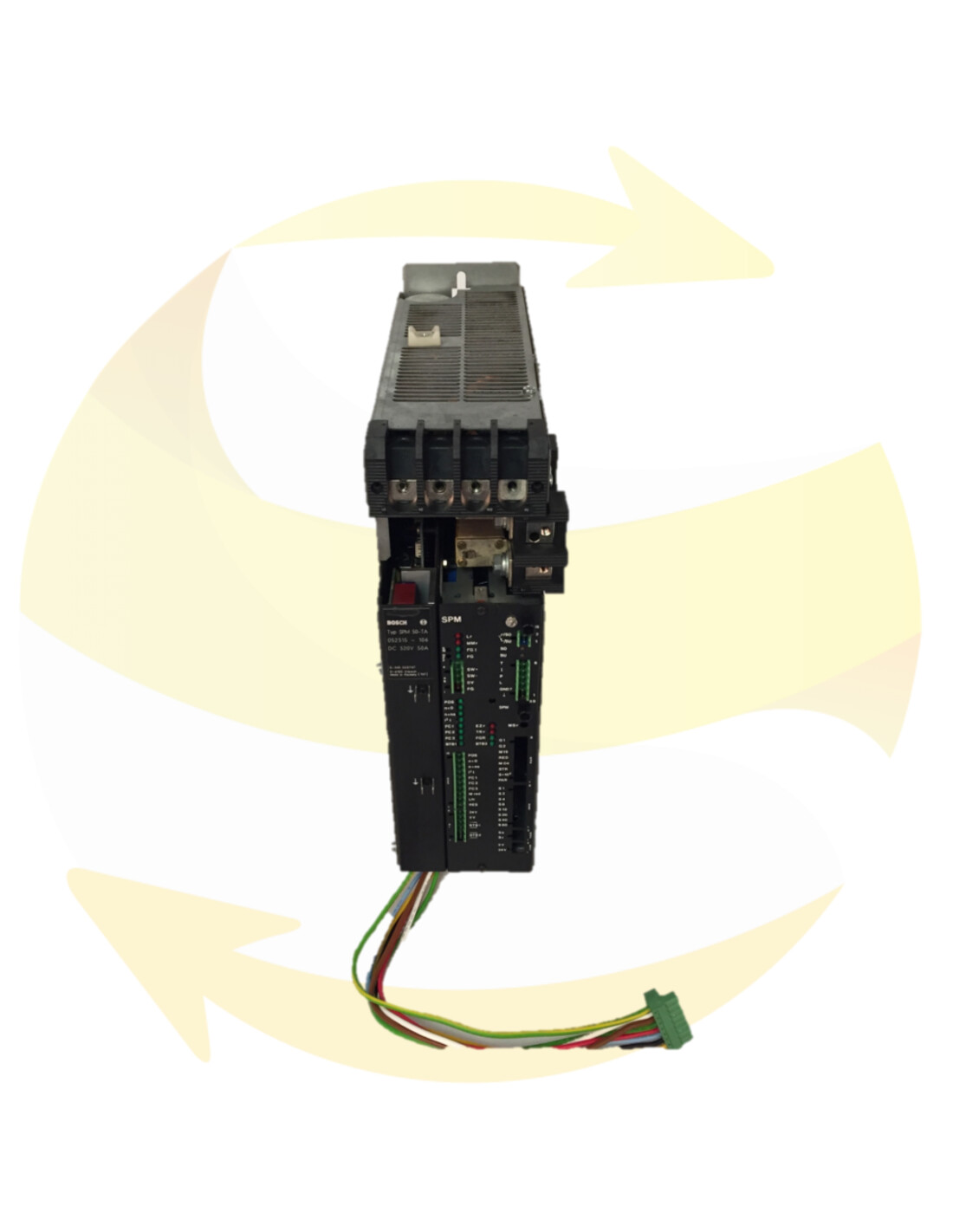

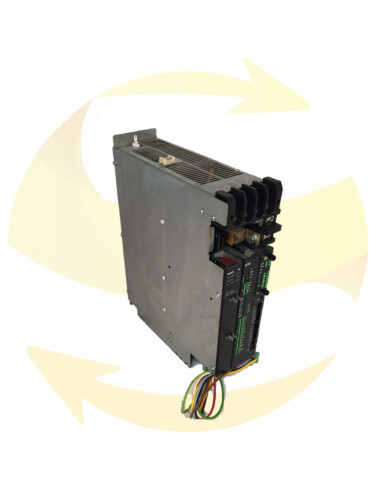

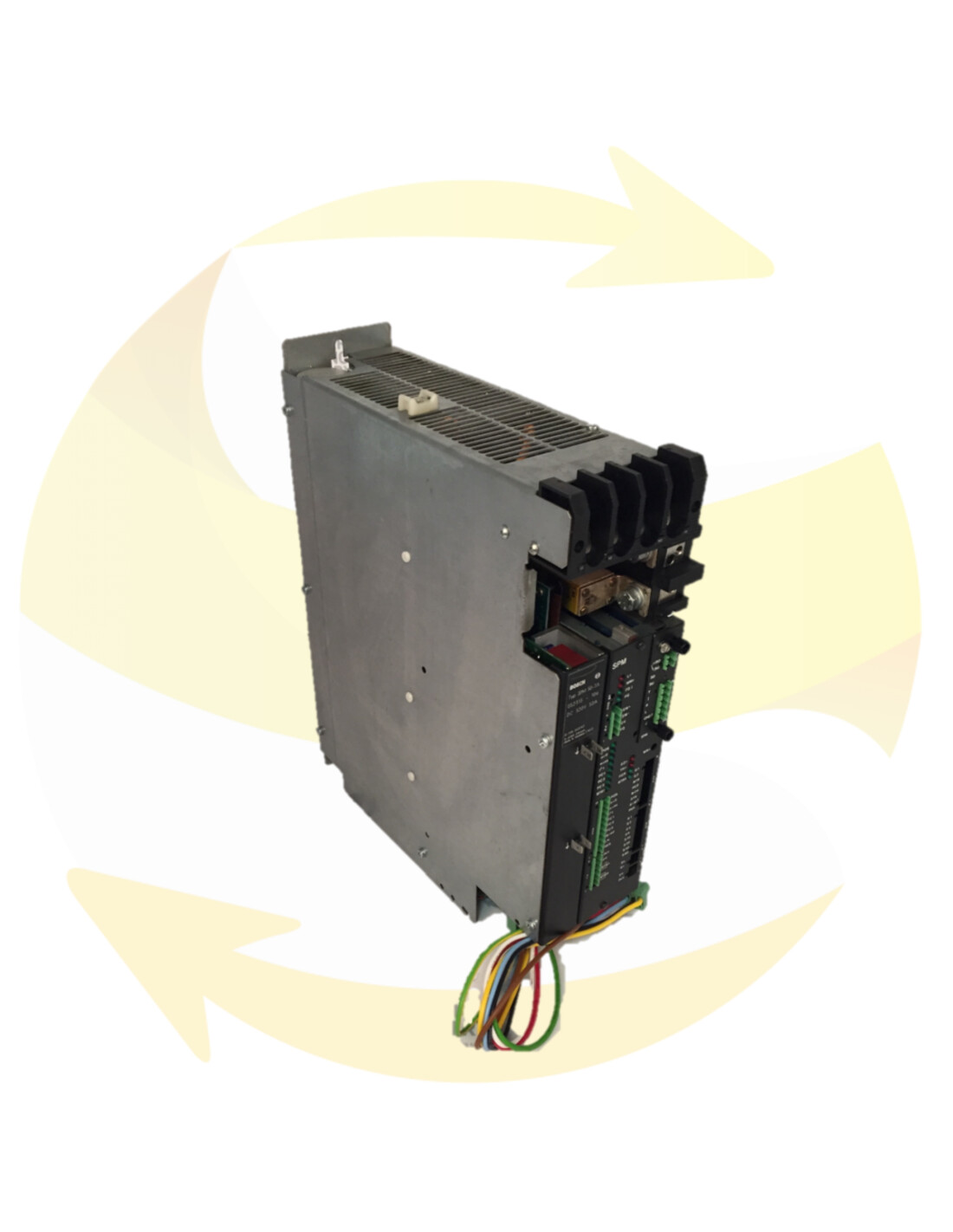

SPM 25

This SPM 25 spindle amplifier module and BOSCH brand is available in stock. This spindle drive belongs to the SERVODYN-T range.

SPM 25 : DC 520V, 25A

This SPM 25 spindle amplifier module is at your disposal to replace your defective equipment and has a guarantee adapted to your needs.

In stock, ready to ship.
State
  • Refurbished Supply
Warranty
€1,100.00
VAT excluded

System options

Exchange service with a refurbished unit

Standard Exchange Service

Reconditioned and tested systems

From 6 to 12
month warranty

Exchange service with a new unit

Standard Exchange Service

New systems

From 12 to 24
month warranty

Supply of a refurbished unit

Supply Service

Reconditioned and tested systems

From 6 to 12
month warranty

Supply of a new unit

Supply Service

New systems

From 12 to 24
month warranty

For parts only

Supply Service

Sold for parts – no warranty

Repair

Repair service

Repair will be made to damaged and defectiv units

From 3 to 18
month warranty

Livraison rapide

Fast
delivery

Livraison rapide

guaranteed
products

Livraison rapide

Secure
payment



Bosch inverter systems are modular in construction. At least one power supply and one servo module are necessary to constitute an operational installation.
The power supply module generates a DC link voltage and various supply voltages (for logic and pilot circuits) from the mains (3 x 380 - 3 x 415 V).
The individual modules are connected to each other by pluggable cables which are supplied with them.
In an installation with several modules, up to 10 SM modules can be connected to a power module, depending on the size of the modules.
Since the mechanical construction and the electrical connection to the power supply module are the same as for the ASM system (inverter system for standard asynchronous motors) as well as the SPM system (inverter system for controlled spindle drives), combinations of these systems are possible (for example 3 SM modules and 1 SPM module for the main spindle)

Bosch AC inverters from the SM ..- T range allow optimum use of Bosch brushless servo motors.
Associated with a rotor position recognition function and a brushless tachometer, the servo module regulates the torque and speed of the motor.
In an inverter stage with power semiconductors, voltages and currents are generated so that the machine can produce the required torque at any speed.

The status and errors are indicated on the LEDs of the spindle modules SPM ..− TD (−TB). In addition to the LEDs for individual faults, LEDs FC1 to FC2 also display an error code:

Logical error LED LF, red
- The LED lights up if the supply cycle is faulty or if one of the supply voltages is missing. BTB 2 opens, the output stage is immediately blocked.

MMF measurement system error LED, red
- The LED lights up in the event of faulty encoder signals due to a faulty motor encoder, a cable break or a faulty supply voltage. BTB 2 opens, the output stage is immediately blocked.

Internal FGI trigger LED, green
- The LED lights up when the power section is activated. Assessment of BTB1, FG, FGR, FGZ, LF and the trigger delay.

FG release LED external, green
- The LED lights up during external triggering.

POS pin in LED position, green
- The LED lights up when the spindle has reached its correct position in the SRI and SRE operating modes (position detection for more than 50 ms).

I2t overload protection LED, green
- The LED lights up during operation. It goes out when the individual transistors of the inverter are stopped or are loaded too high at low motor speeds. At frequencies <5 Hz, a maximum of about 0.9 IN rms can be used continuously. At higher currents, the internal FGI trigger is blocked after a maximum of 2 seconds. The I2t message is a pre-warning and arrives at a stator frequency <5 Hz at least 0.5 s before the internal FGI trip unit is blocked. With SPM ...− TD, BTB1 is opened with the message I2t.

Possible causes of an I2t message:
- Incorrectly connected motor phases
- Motor phase failure
- pin blocked
- creeping short circuit in the motor, if message at stator frequencies <5 Hz

Height
38 cm / 14,9 in
Width
10 cm / 3,9 in
Length
32 cm / 12,5 in
Weight
12 kg / 26,4 lbs
Family
SERVODYN - T
Reference
SPM 25
Refurbished
3001834571145
300418207313
