1398-DDM-009-DN

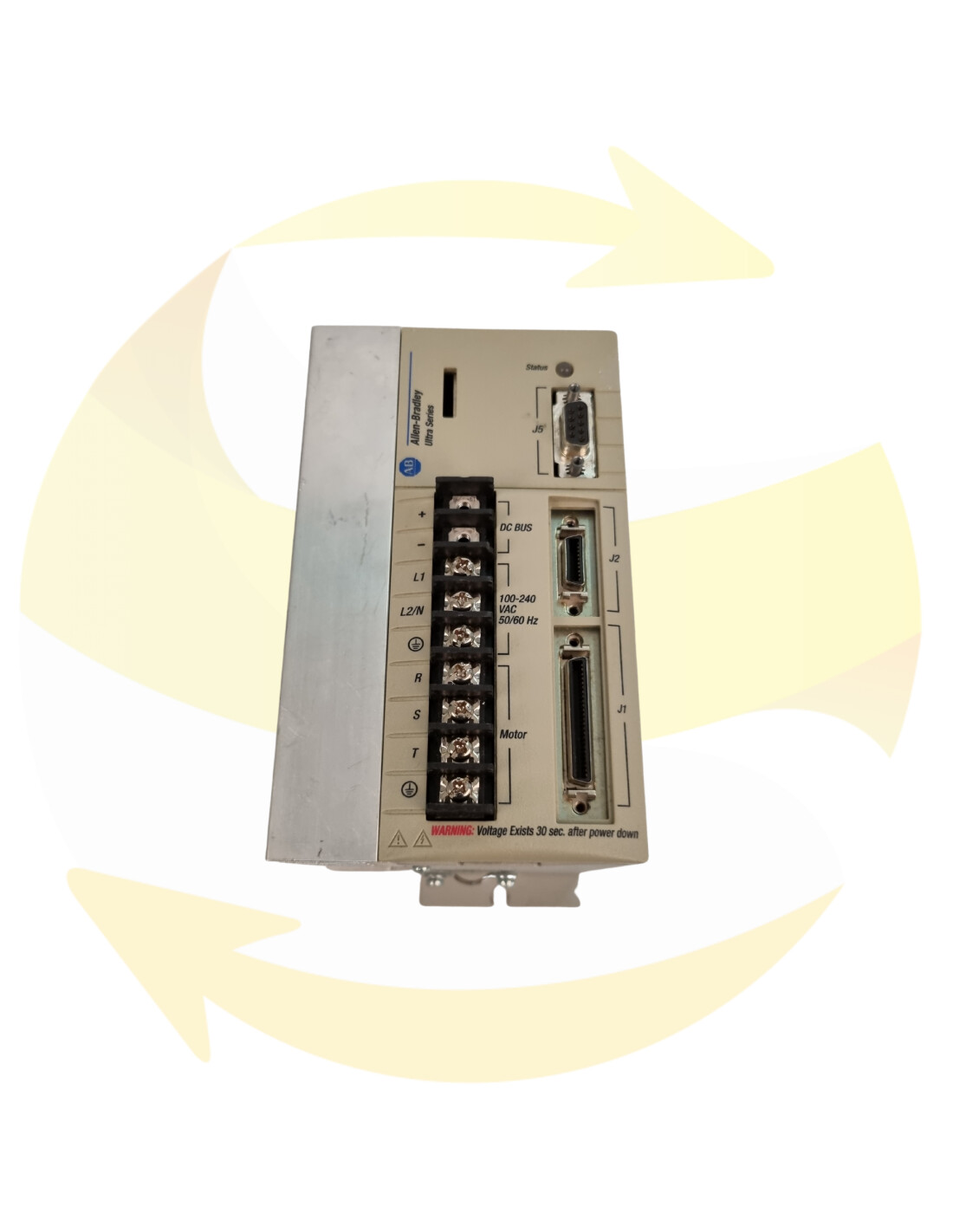

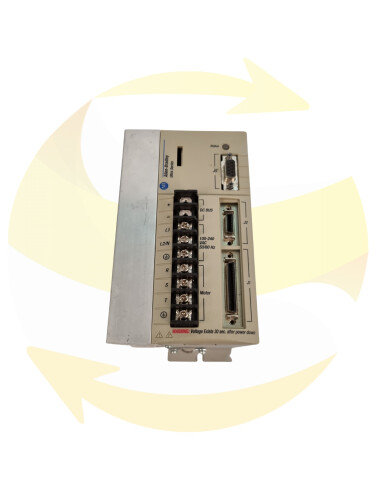

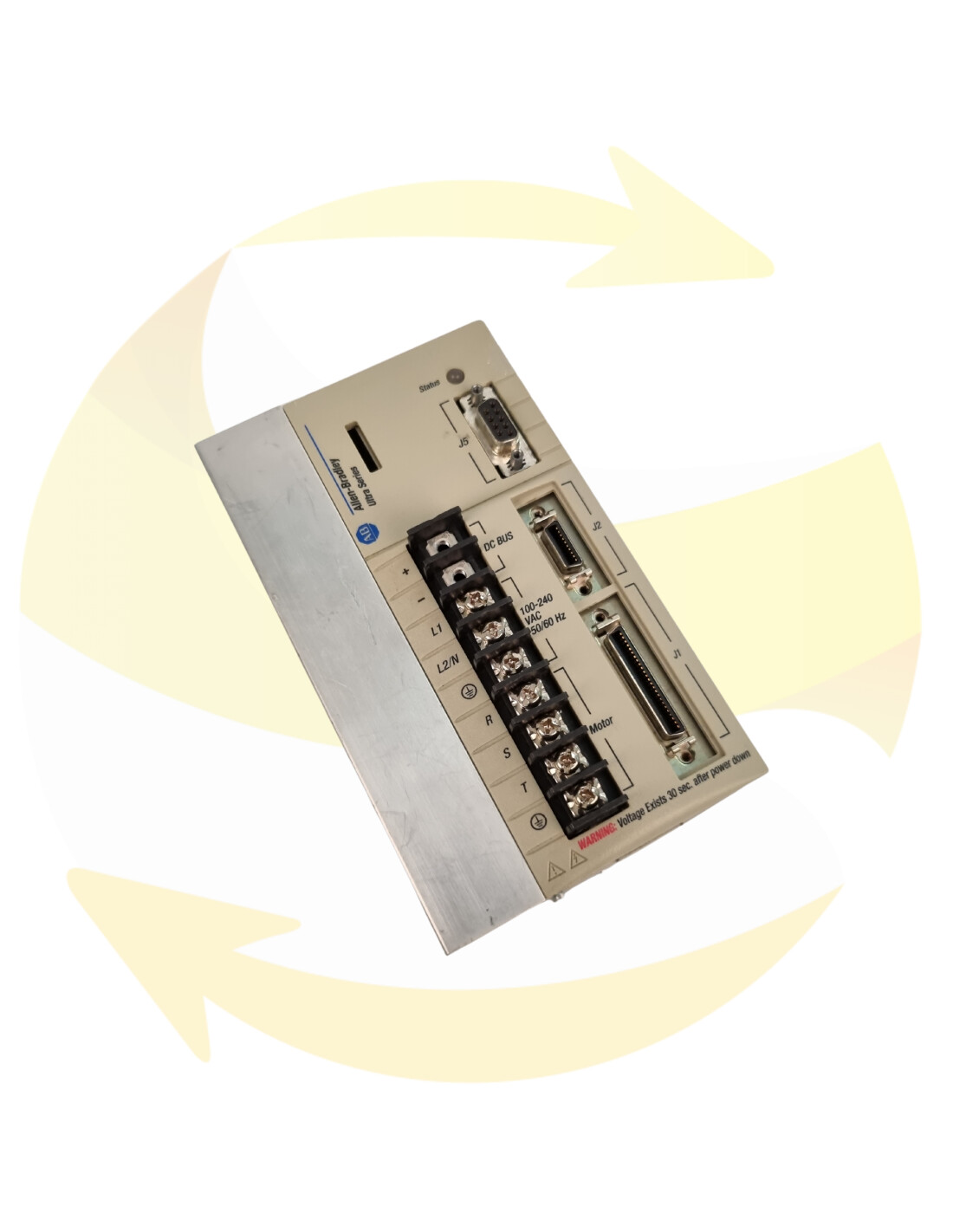

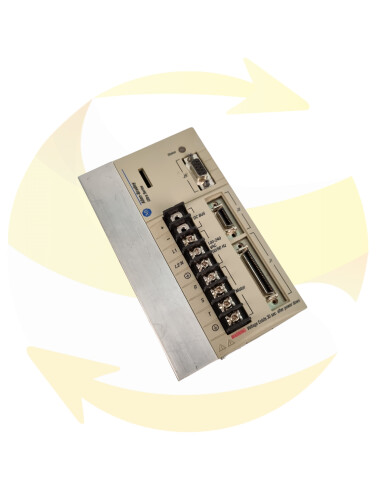

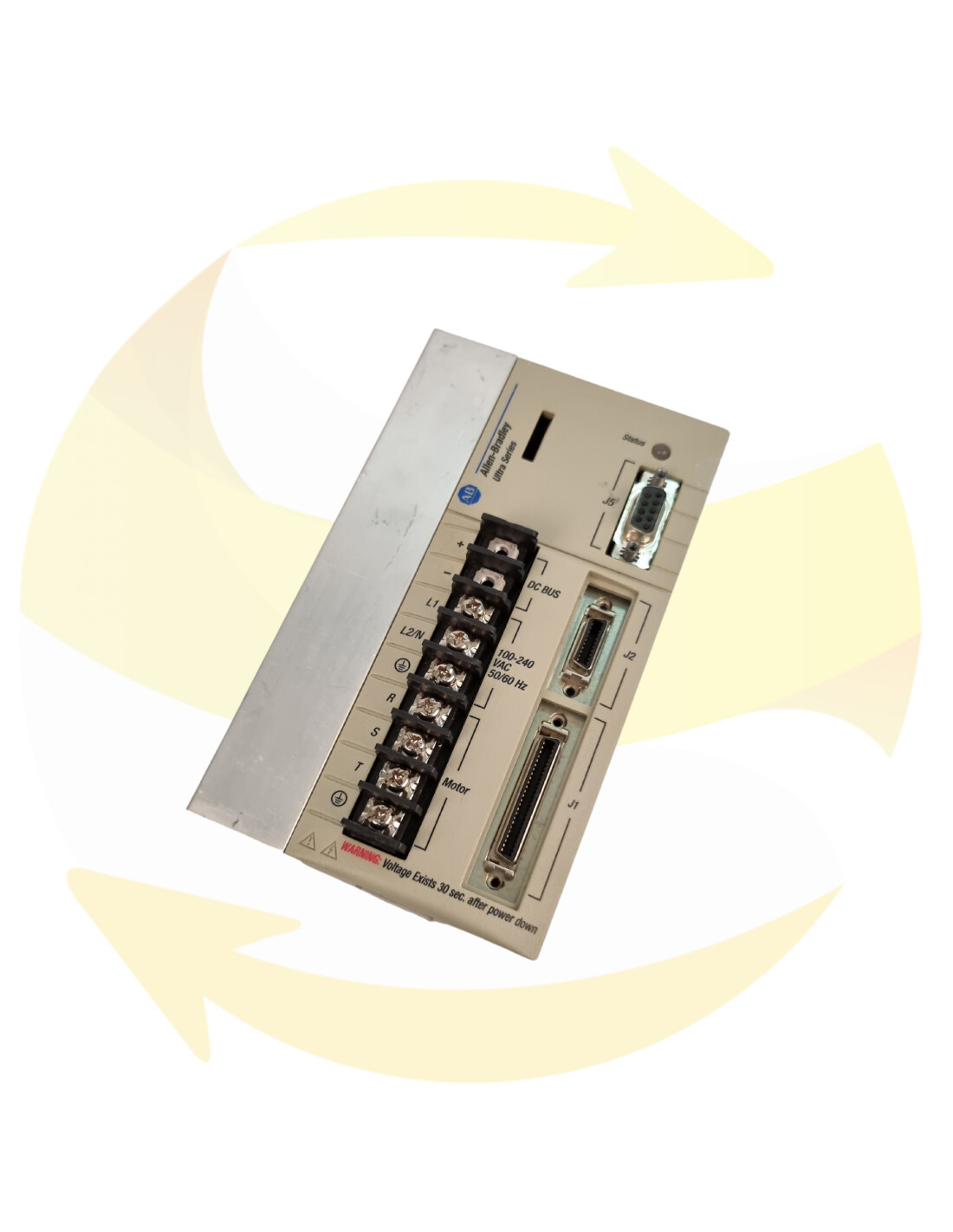

This 1398-DDM-009-DN and ALLEN BRADLEY reference positioning drive is a 1398 ULTRA SERIES drive.

Positioning controller: Output current / PH 15A, DC output current / PH: 5A. Power: 1.0kW.

This positioning controller ALLEN BRADLEY is at your disposal to replace your defective equipment and has a guarantee adapted to your needs.

In stock, ready to ship.
State
  • Refurbished Supply
Warranty
€1,190.00
VAT excluded

System options

Exchange service with a refurbished unit

Standard Exchange Service

Reconditioned and tested systems

From 6 to 12
month warranty

Exchange service with a new unit

Standard Exchange Service

New systems

From 12 to 24
month warranty

Supply of a refurbished unit

Supply Service

Reconditioned and tested systems

From 6 to 12
month warranty

Supply of a new unit

Supply Service

New systems

From 12 to 24
month warranty

For parts only

Supply Service

Sold for parts – no warranty

Repair

Repair service

Repair will be made to damaged and defectiv units

From 3 to 18
month warranty

Livraison rapide

Fast
delivery

Livraison rapide

guaranteed
products

Livraison rapide

Secure
payment



The 1398 ULTRA Series is a family of single-axis digital and positioning servo drives designed to offer flexibility and performance for a wide range of applications. The ULTRA 100TM and 200TM digital servo drives offer you versatility and ease of use. Using the WindowsTM-based Ultra Master software, you can quickly set up, commission, and troubleshoot ULTRA 100 and 200 drives. TheULTRA Plus positioning servo drives combine control and drive functionality to create powerful single-axis motion controllers. Using the graphical Windows-based GMLTM Ultra software, you can quickly program, commission, and troubleshoot ULTRA Plus drives.

ULTRA 100 Features

ULTRA 100 servo drives deliver flexibility and performance in a very compact size. Each ULTRA 100 drive provides:
• 115/230V AC, single-phase input
• Built-in logic power supplies (external 12 to 24V I/O logic power required)
• The ability to drive sinusoidal AC brushless motors
• Advanced control algorithms for leading-edge velocity loop bandwidth, fully digital current, velocity, and position loops
• A 14-bit A/D convertor for velocity command input
• An internally-shielded filter for electromagnetic compatibility (EMC)
• Several analog or digital command interfaces:
• Indexing—absolute with the Homing feature, incremental, or (optional)
• DeviceNet (optional)
• ±10 Volt analog interface—position, velocity, or torque control
• Presets (from one to eight binary inputs)—torque or velocity control
• Quadrature encoder digital interface—electronic gearing position follower
• Step/direction digital interface—position control
• CW/CCW (step up/step down) interface—position control
• Operating mode override—alternate movement interface
• Four dedicated I/O plus six user-selectable, optically isolated digital inputs and outputs (sourcing/active high):
• Two dedicated inputs
• Two dedicated outputs
• Four user-selectable inputs
• Two user-selectable outputs
• One analog input for external current limit
• One analog output for variable monitoring or torque sharing
• Unlimited I/O capability over DeviceNet
• A serial port for RS-232/RS-485 host communication

Height
19,81 cm / 7,8 in
Width
13 cm / 5,1 in
Length
6,5 cm / 2,5 in
Weight
2 kg / 4,4 lbs
Family
1398 - ULTRA SERIES
Reference
1398-DDM-009-DN
Refurbished
3000018853213
300187657586

Allen-Bradley is the brand-name of a line of Factory Automation Equipment manufactured by Rockwell Automation. The company, with revenues of approximately US $6.4 billion in 2013, manufactures programmable logic controllers (PLC), human-machine interfaces, sensors, safety components and systems, software, drives and drive systems, contactors, motor control centers, and systems of such products.
Rockwell Automation also provides asset-management services including repair and consulting. Rockwell Automation's headquarters is in Milwaukee, Wisconsin.
