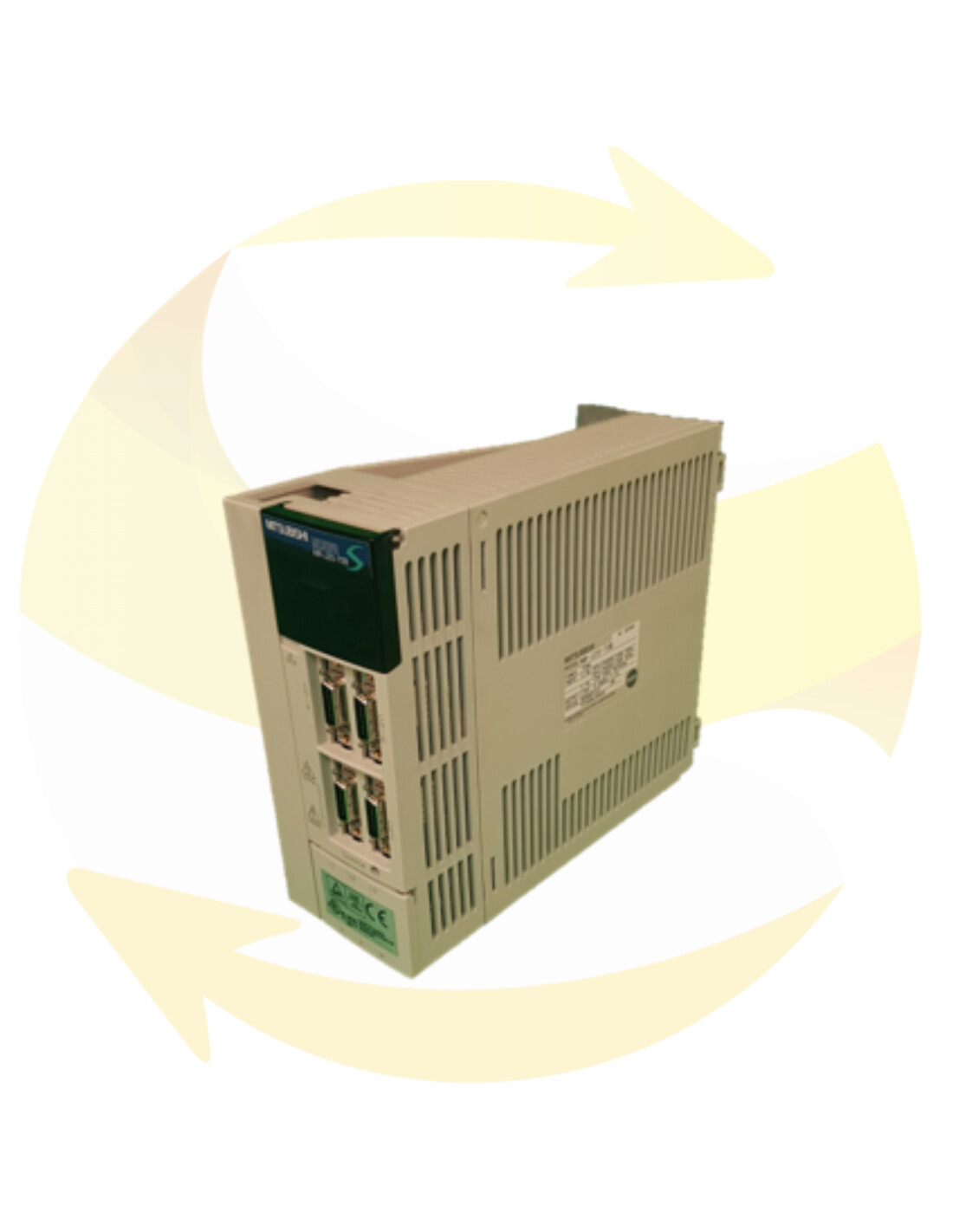

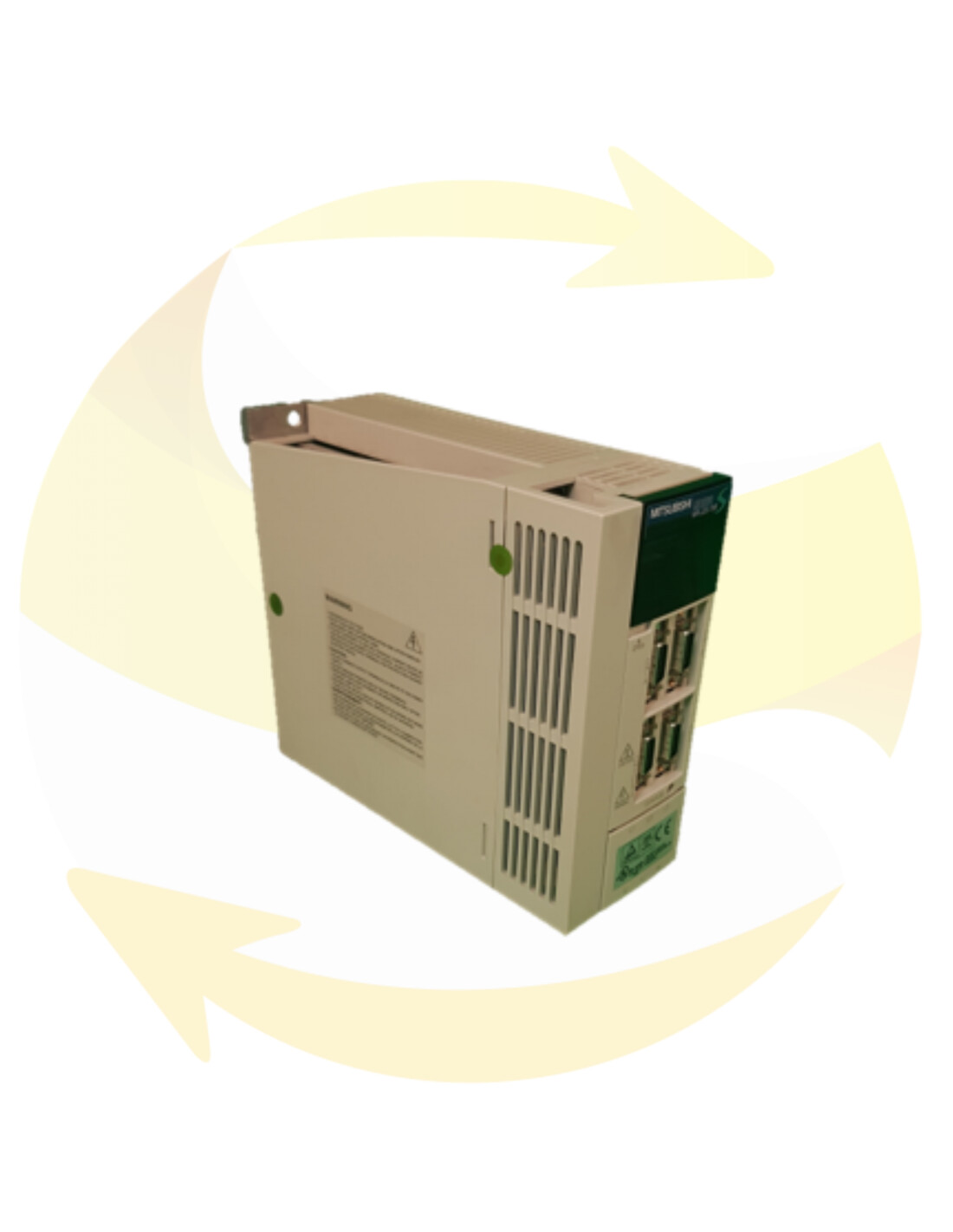

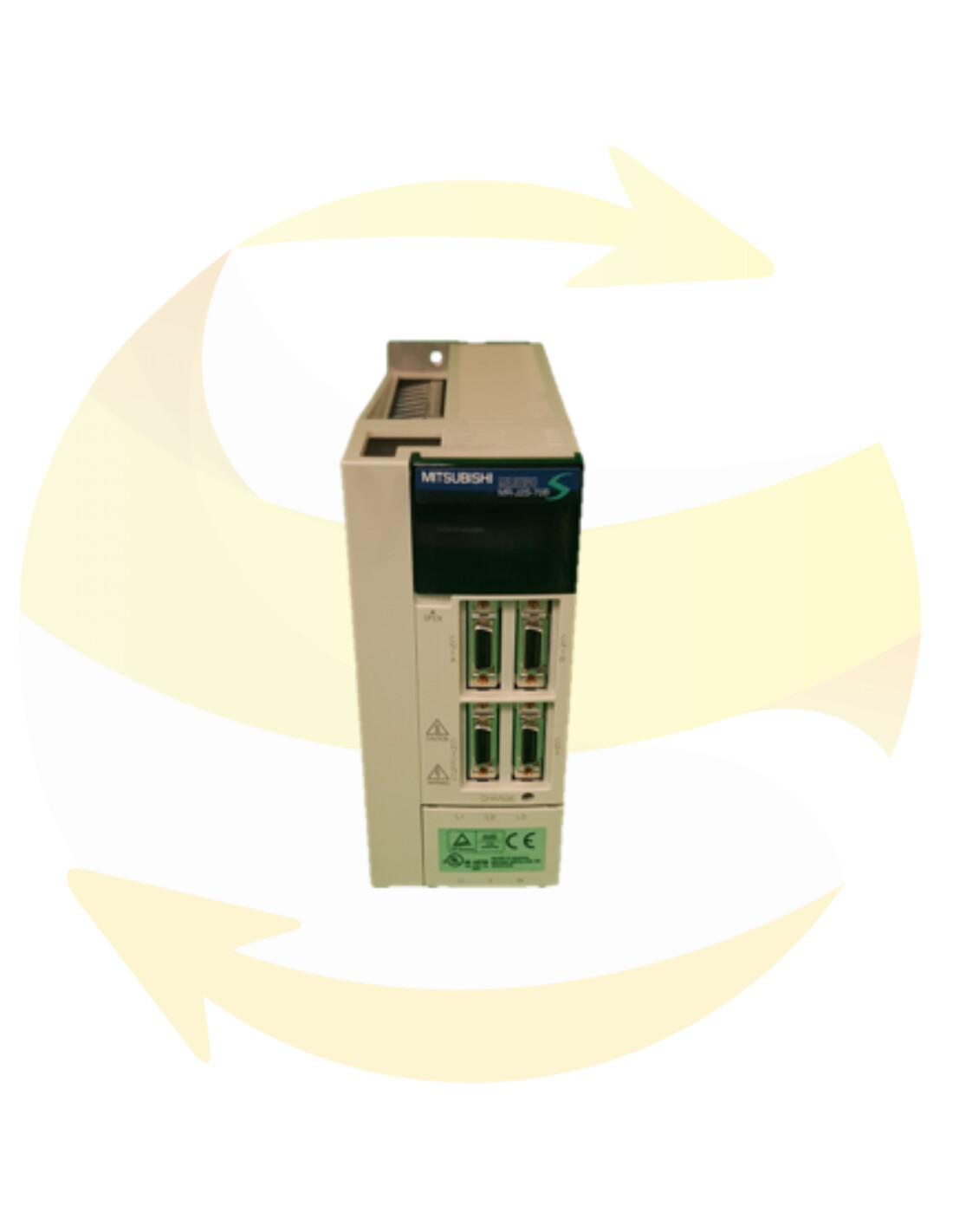

MR-J2S-70CP - Servo Amplifier - MITSUBISHI
This MITSUBISHI servo amplifier, reference MR-J2S-70CP is an AC servo drive. It belongs to the MELSERVO-J2-Super series.
0,7 kW Mitsubishi AC servo drive for HC-KFS73,HC-MFS73,HC-UFS72/73 servo motors.
This MR-J2S-70CP servo amplifier is at your disposal to replace your defective equipment and has a warranty adapted to your needs.
Servo amplifier 100% tested on MITSUBISHI motors.
The MR-J2S-CP AC servo amplifier with built-in positioning functions is the MR-J2S-A general-purpose AC servo amplifier which incorporate single-axis positioning functions. These functions perform positioning operation by merely setting the position data (target positions), servo motor speeds, acceleration and deceleration time constants, etc. to point tables as if setting them in parameters. The servo amplifier is the most appropriate to configure a program-free, simple positioning system or to simplify a system, for example.
There are 3 points of point tables as standard, and they can be increased up to 31 points by using the MR Configurator (servo configuration software).
You can choose a configuration suitable for your purpose, e.g. simple positioning system using external I/O signals (DI/O), operation using DI/O and RS-422 serial communication, or multi drop operation using RS-422 serial communication.
All servo motors are equipped with an absolute position encoder as standard. An absolute position detection system can be configured by merely adding a battery to the servo amplifier. Once the home position has been set, home position return is not required at power on, alarm occurrence, etc.
The MR-J2S-CP AC servo amplifier with positioning function is made easier to use and higher in function by using it with the MR Configurator (servo configuration software).
