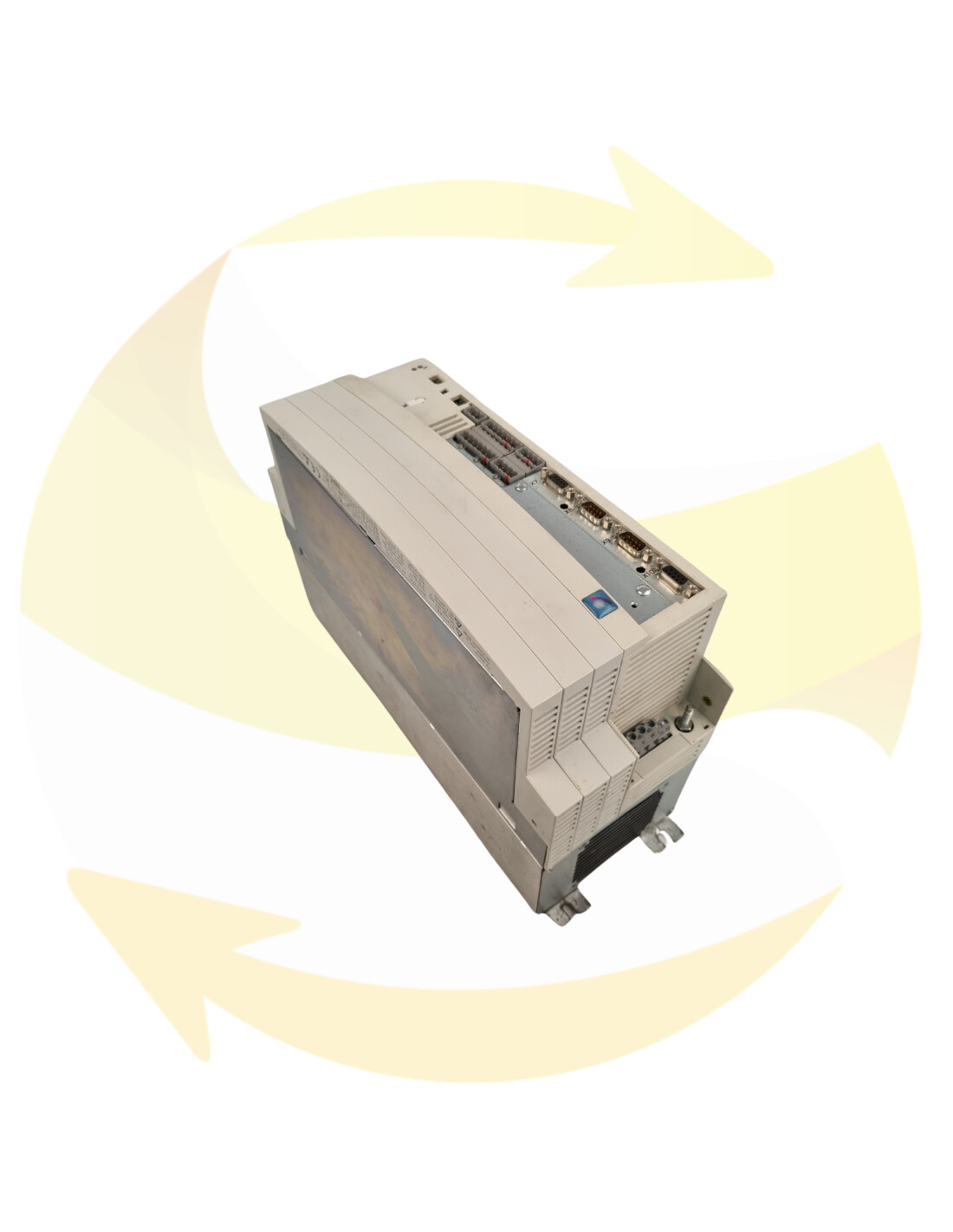

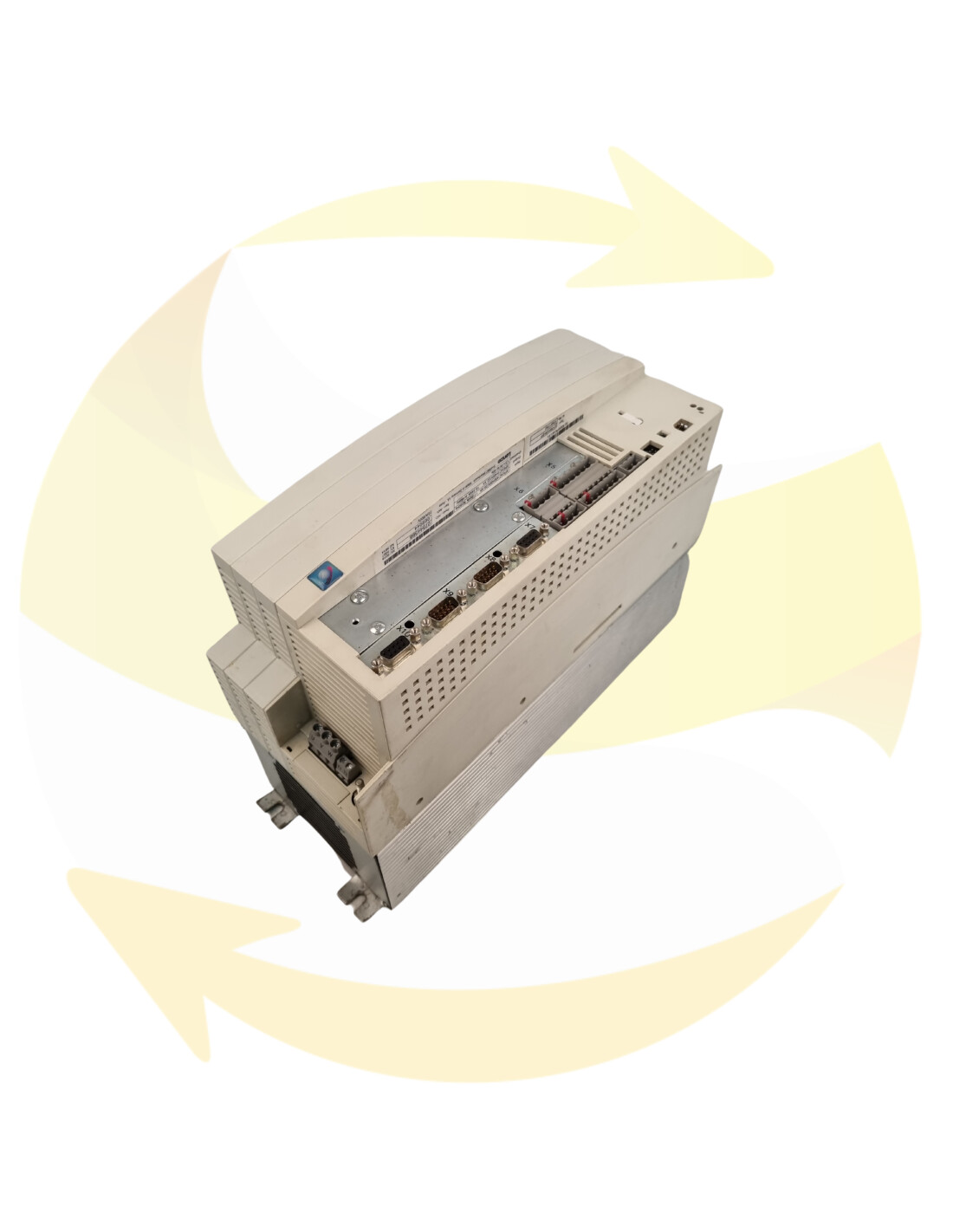

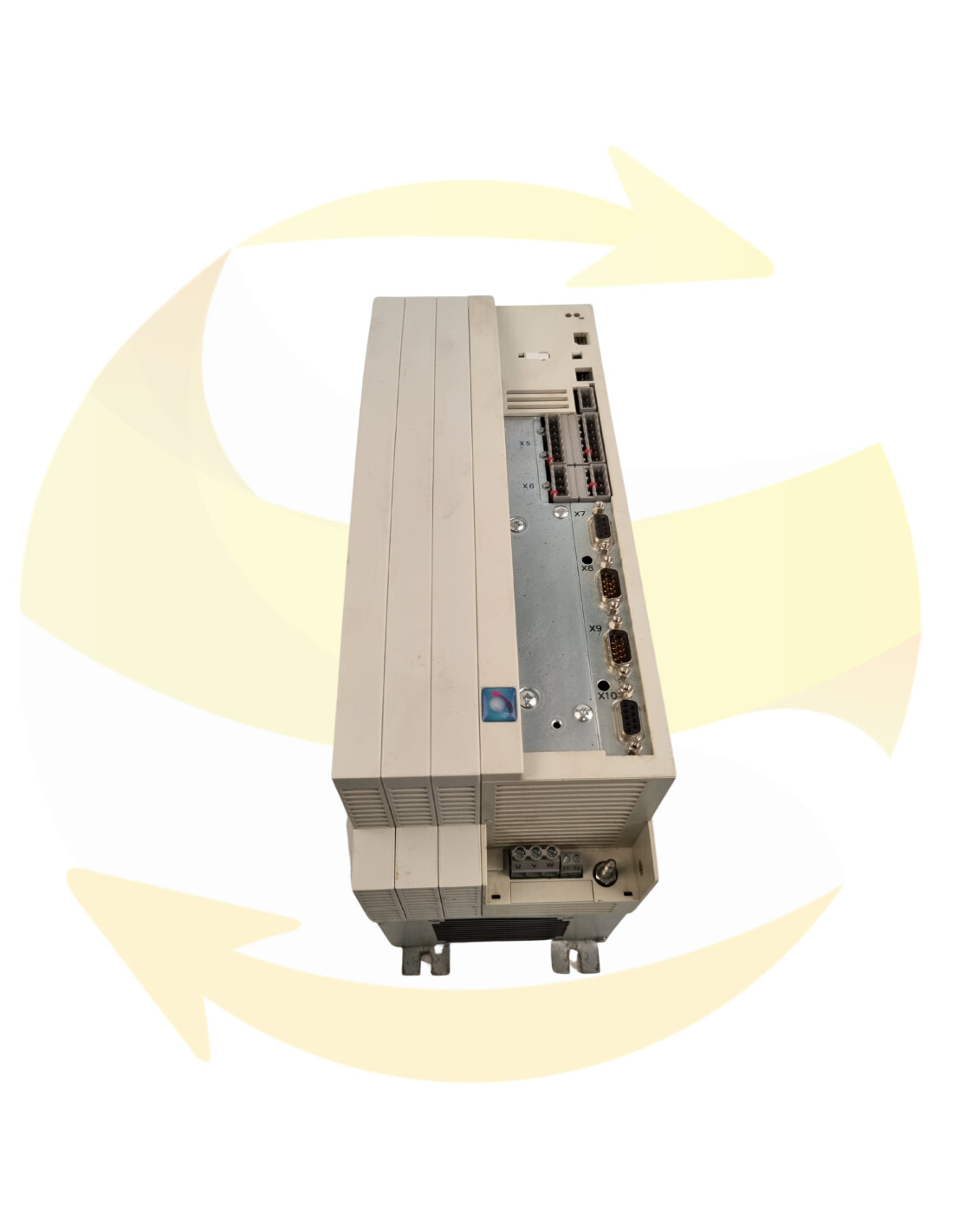

Lenze EVS9326-EP Servo Drive – 9300 Series Servo Position Controller

The servo drive model EVS9326-EP is part of the Lenze 9300 series, dedicated to precise control of brushless motors in demanding automation architectures. Designed for axis control requiring repeatable positioning, it provides closed-loop control of position, speed and torque with dynamics suited to industrial cycle rates. This brushless controller is aimed at integrators, maintenance departments and engineering teams who need to stabilize an existing axis or ensure a reliable replacement in case of obsolescence. Powered by three-phase 400/480 V, it delivers a rated power of 11 kW and a rated current of 20.5 A, covering a wide range of drives for packaging, handling and assembly machinery. The 9300 control logic simplifies commissioning of independent or coordinated axes while offering methodical parameterization and useful diagnostic functions for B2B environments.

Technical specifications

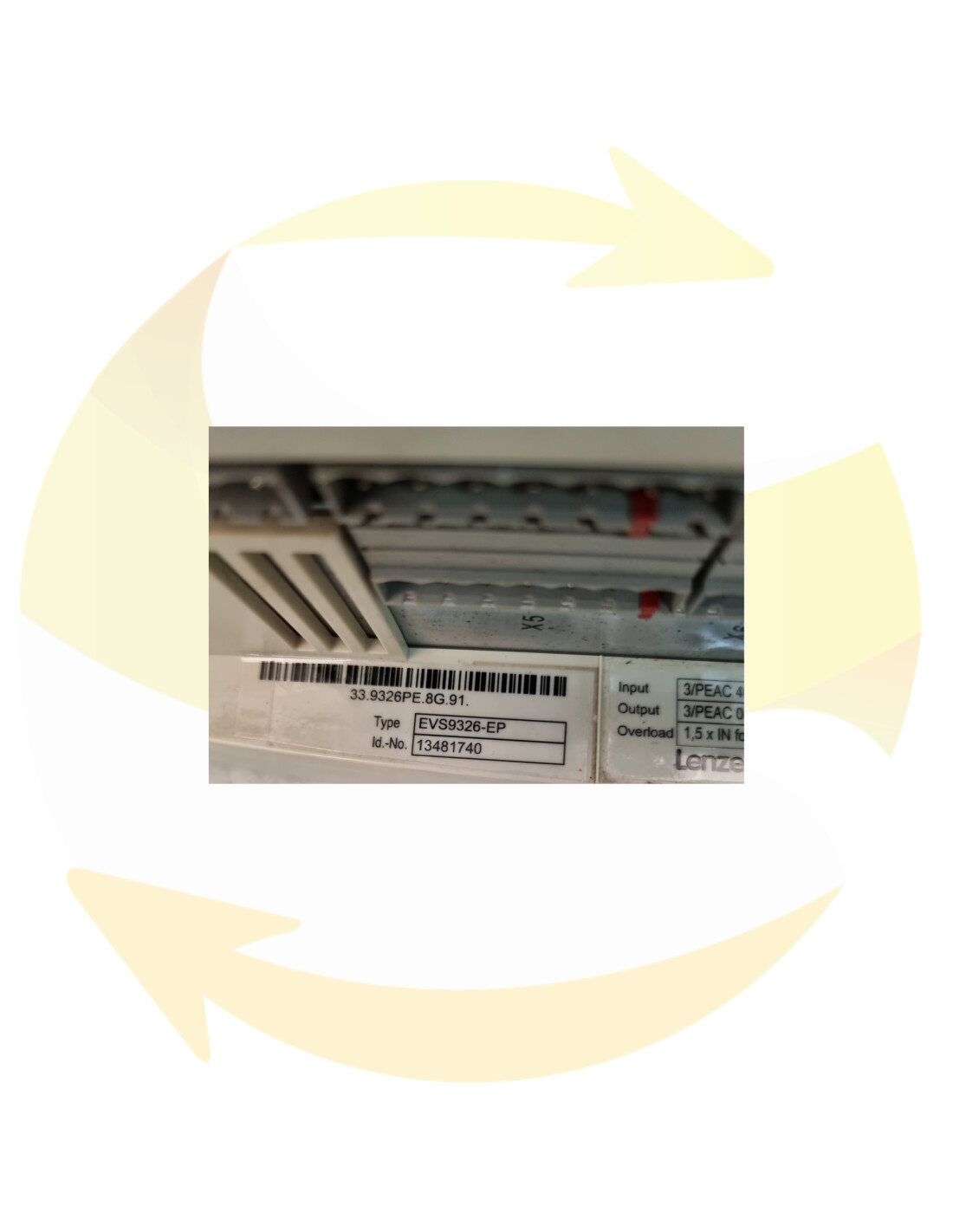

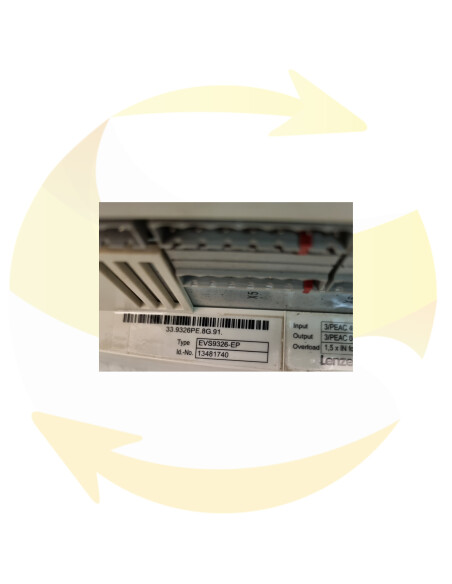

• Manufacturer reference: EVS9326-EP
• Range: Lenze 9300, Servo Position Controller
• Manufacturer: Lenze
• Type: Positioning servo controller for brushless motors
• Supply voltage: 400/480 V AC three-phase, 50/60 Hz
• Rated power: 11 kW, approximately 15 HP
• Rated output current: 20.5 A
• Output voltage: matched to the motor and supply, depending on 9300 series configuration
• Control mode: closed-loop control, position, speed and torque
• Switching frequency: configurable within the 9300 range, value depending on application settings
• Protection rating: cabinet mounting; protection level depends on the enclosure and environment

Overview of the Lenze 9300 range

The Lenze 9300 series groups motion-oriented servo drives that have been installed in numerous automation systems. Designed for precision and stable control, the range has been widely adopted on packaging, processing and material handling lines. Positioning is central to the control architecture, with standardized functions to manage transitions between speed profiles, angle or displacement setpoints, and torque limits. This functional consistency simplifies migrations and secures on-site replacements, especially during unplanned shutdowns.

• 9300 Servo Position Controller: dedicated to positioning tasks, axis synchronization and simple to intermediate trajectory control, prioritising tracking accuracy and repeatability.
• 9300 speed/torque control: configurations focused on maintaining speed or torque for drives where dynamic stability and efficiency are required, depending on the series variants.

The model EVS9326-EP belongs to the Servo Position Controller family. It is used for single axes or integrated into multi-axis groups when trajectory control and accurate stop positioning are required without drift.

Industrial applications

This Lenze servo drive integrates into many automation machines where axis accuracy directly affects process quality. Packaging, internal logistics and assembly industries will find a stable, well-documented brushless controller suited to continuous production environments.

• Packaging: axis indexing, longitudinal cutting, product feeding with precise positioning each cycle.
• Material handling and conveying: axis translation, orientation, electronic stops to pace flows without mechanical shocks.
• Assembly and light robotics: tool positioning, screwing, pick-and-place operations requiring repeatability within tolerances.
• Printing and converting: registration control, roll drives with workstation-adjustable speed profiles.
• Intralogistics: shuttles and divert stations where control of stroke and deceleration reduces mechanical wear.

Integration and communication

The EVS9326-EP is cabinet-mounted and connected to a three-phase 400/480 V supply. It drives Lenze-compatible brushless motors or equivalents, respecting the rated specifications. Integration into an automation architecture is typically via a programmable logic controller or a numerical controller, using I/O and communication modules available for the 9300 series. Optional cards allow, depending on the version, connection to common industrial fieldbuses, facilitating insertion into new or existing systems.

Commissioning is carried out using Lenze software tools designed for the 9300 range and the local interface. Structured parameter sets guide the user from motor identification to the control loops, with maintenance-oriented diagnostics. For replacements, methodical transfer of position, speed and torque setpoints and limits restores the expected axis behaviour without prolonged testing, limiting downtime.

Availability and warranty

The Lenze EVS9326-EP servo drive is offered new or remanufactured, as a standard exchange or via repair depending on the condition of your equipment. Each remanufactured unit is bench-tested, and SEI services come with a 6 to 24 months warranty depending on the selected service. Standard Exchange Industry ships within 24 to 72 hours to over 120 countries. In the event of a line stoppage or a retrofit project, our technical team assists you to validate motor compatibility, define the control strategy and secure integration into your PLC or numerical controller. Contact us to confirm availability and choose the solution best suited to your lead time and operating budget.
