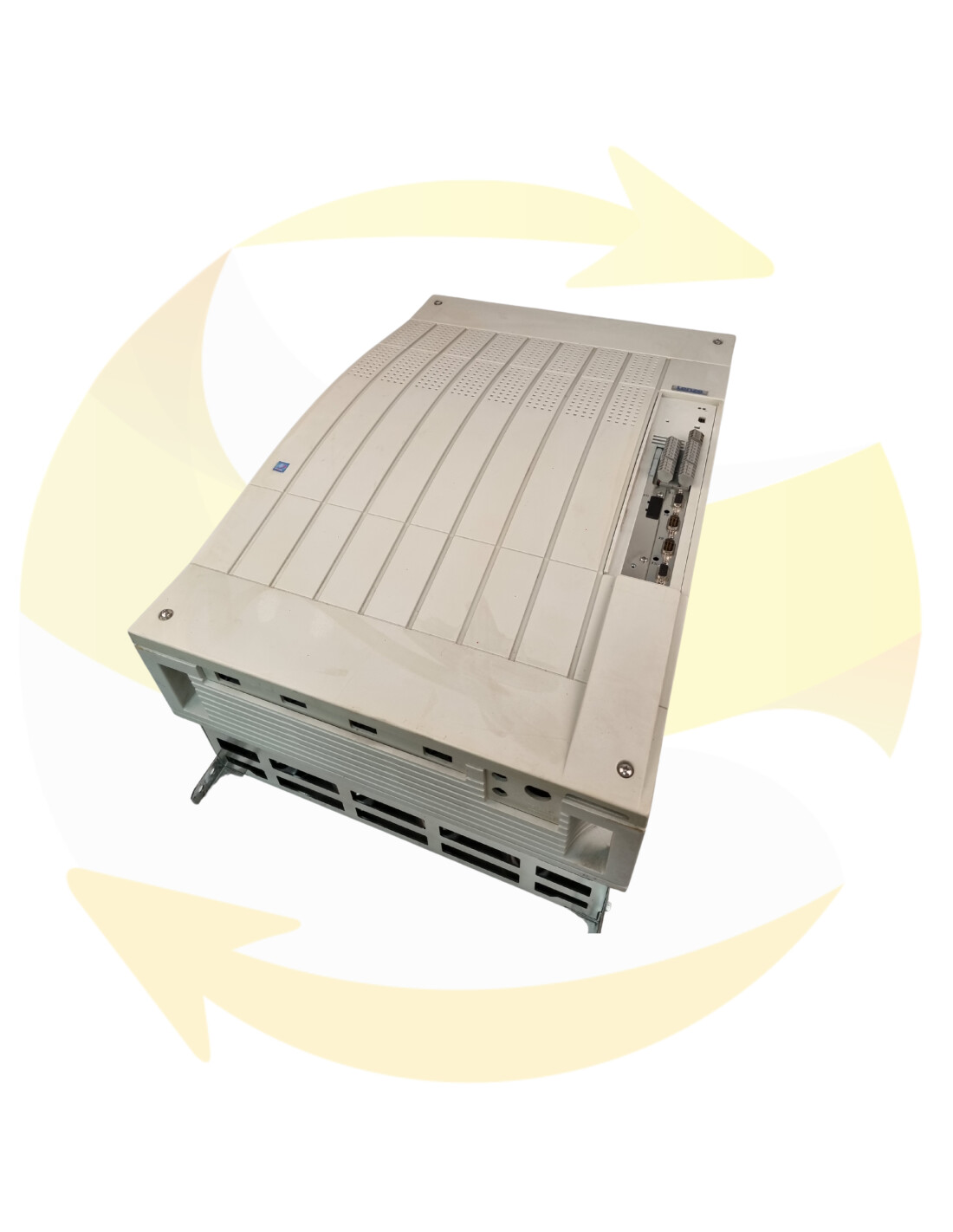

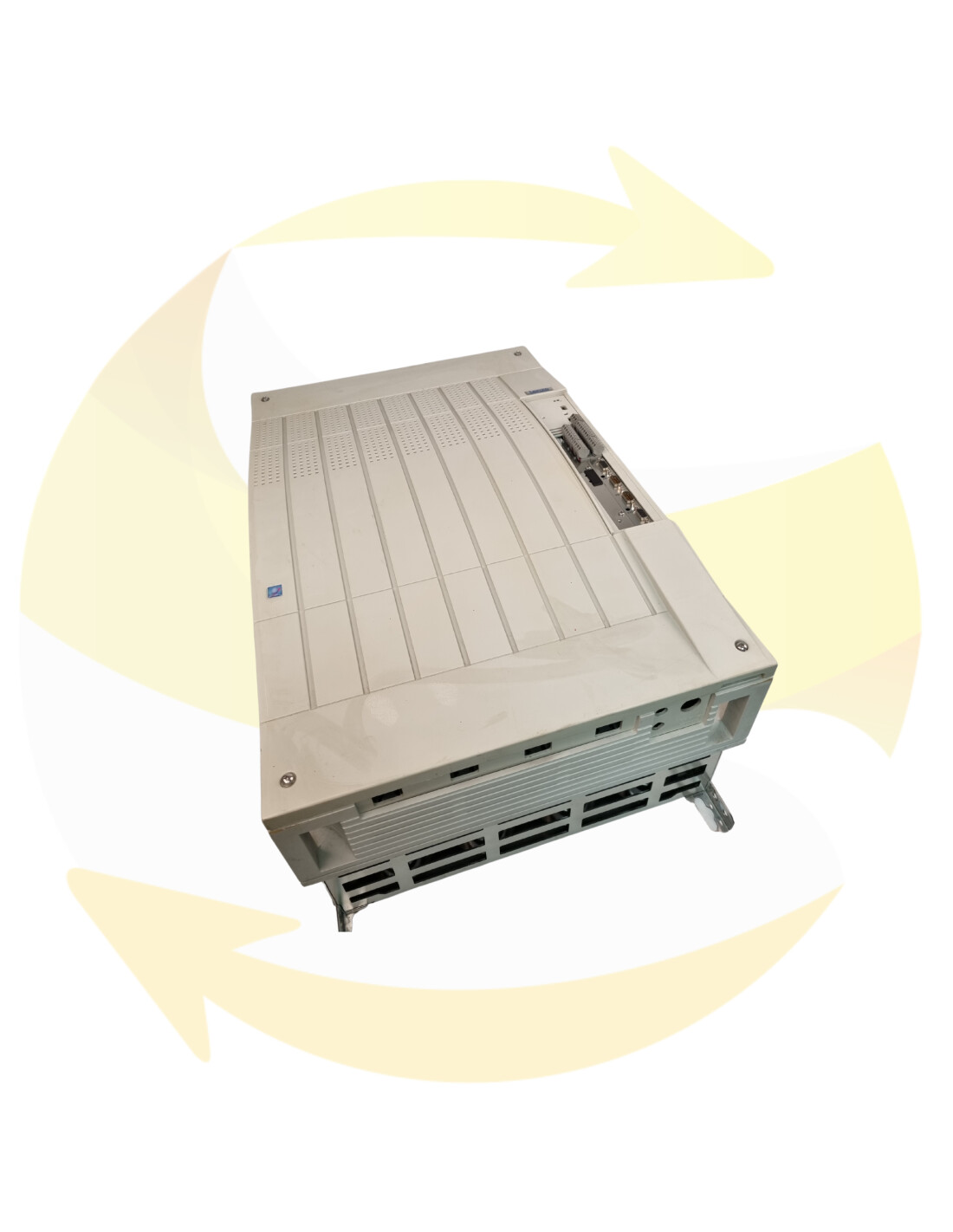

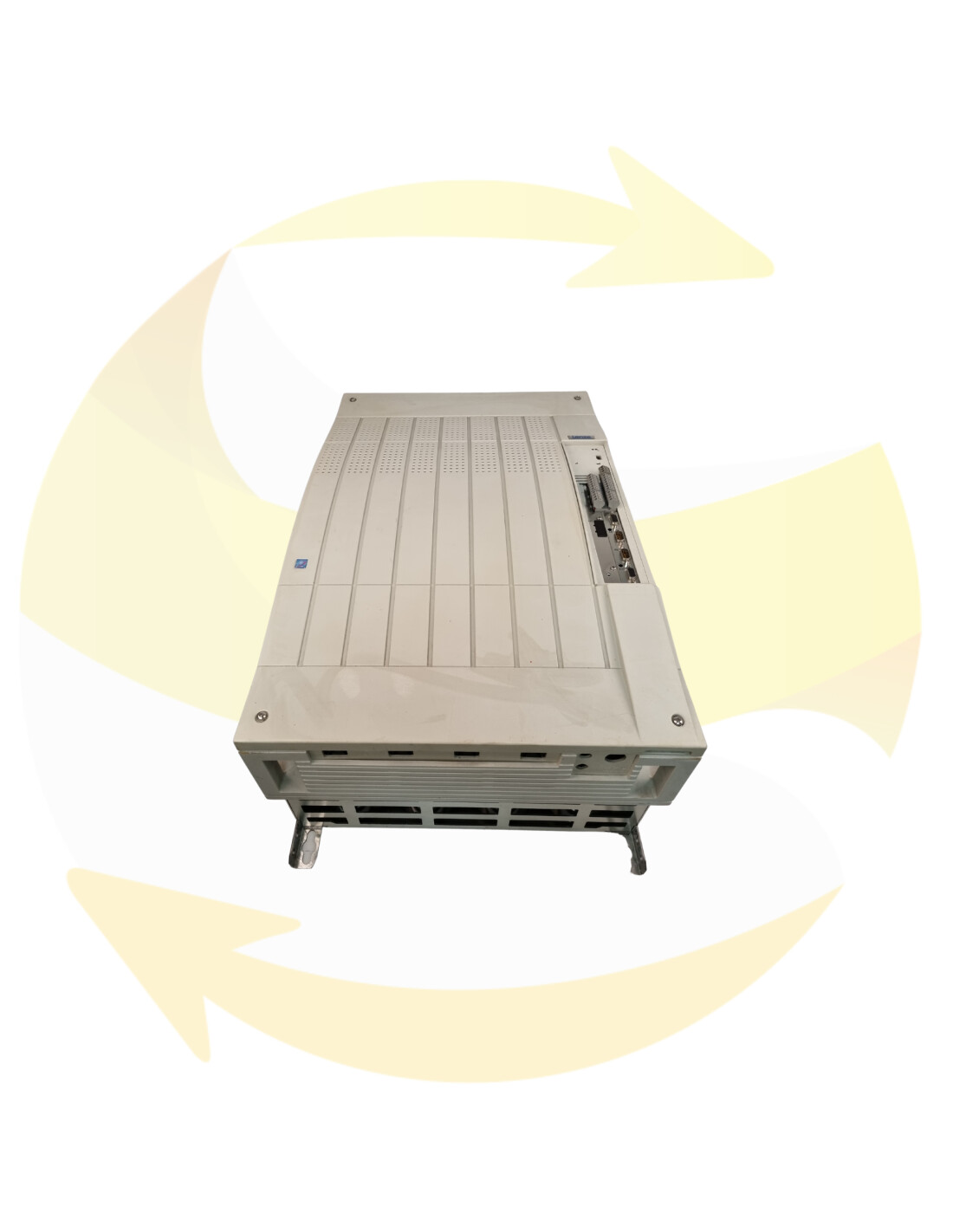

LENZE EVS9332-ES servo drive, 9300 series

The LENZE EVS9332-ES is part of the 9300 series, a family of servo inverters designed for precise control of brushless servomotors in demanding automation applications. This brushless controller is aimed at maintenance teams, system integrators and machine builders seeking stable speed and position regulation, reliable cabinet integration and fast service continuity in the event of a line stoppage. Powered by 400 V three-phase, 50/60 Hz and rated for IP20 cabinet mounting, it integrates easily into single- or multi-axis drive architectures. The 9300 series covers a wide power range from 0.37 to 75 kW, enabling project and maintenance standardization on a single technical platform. For supply, exchange or repair, Standard Exchange Industry helps secure your production with short shipping times and a warranty tailored to the chosen service.

Technical specifications

• Manufacturer reference: EVS9332-ES
• Range: Lenze 9300 servo inverters
• Manufacturer: LENZE
• Type: Servo drive, brushless motor controller
• Supply voltage: 400 V AC three-phase, 50/60 Hz
• Series nominal power: 0.37 to 75 kW, EVS9332-ES positioned at the high end of the range
• Motor output: three-phase for brushless servomotors, suitable for speed and position applications
• Control mode: closed-loop speed and position regulation
• Protection rating: IP20, for cabinet mounting
• Functional category: Brushless controllers
• Integration: single- or multi-axis servo architecture within Lenze 9300 systems

Overview of the LENZE 9300 range

The Lenze 9300 series groups servo inverters intended for axis control where controlled dynamics and high repeatability are required. Deployed across many industrial sectors, it provides a solid base for both new machines and the refurbishment of existing installations. The 9300 platform emphasizes engineering consistency, cabinet integration compatibility and service continuity. It offers a broad power coverage, facilitating stock and maintenance standardization while maintaining consistent axis behavior at the CNC and automation control level.

• Dedicated servo functions: precise speed and position control, suitable for indexing, synchronization and programmed trajectory applications.
• Wide power range: 0.37 to 75 kW to cover everything from small indexing axes to more powerful drives for handling or process units.

On lines with multiple coexisting axes, the 9300 series enables a coherent architecture, from simple follower drives to coordinated systems, with common operating logic and streamlined maintenance. The EVS9332-ES, positioned in the upper part of the range, is suited to drives requiring high available torque and thermal sizing for extended production cycles.

Industrial applications

Designed for environments where control precision and reliability are critical, this servo drive integrates into many applications. It meets synchronization, repetitive positioning and speed profile management requirements under a programmable logic controller or numerical control, while providing the robustness needed for industrial production rates.

• Packaging: conveyor synchronization, tooling indexing, web tension control.
• Material handling and intralogistics: translation and lift axes, shuttles, palletising.
• Assembly and light robotics: auxiliary axis positioning, gantries, manipulators.
• Textile and paper-board: winder and unwinder drives with speed control.
• Special machines: indexing stations, dosing systems, intermittent feed mechanisms.

Integration and communication

The EVS9332-ES is installed in a cabinet using a 400 V three-phase supply and a direct connection to the brushless servomotor. Speed and position control are handled internally, reducing PLC load and simplifying wiring topology. In an automation architecture, the servo drive communicates with the PLC and numerical control via I/O signals and, depending on configuration, via optional communication cards when network integration is required. This modular approach allows the communication layer to be adapted to the existing infrastructure, from simple links to fieldbuses, without changing the axis sizing.

For commissioning, the 9300 series philosophy favours structured parameterisation and dedicated servo functions for loop tuning, to achieve stable and repeatable behaviour. Maintenance teams thus have a consistent framework to copy parameters between similar axes, document parameter sets and secure restart after intervention. In operation, the drive behaves like a frequency inverter dedicated to the servo, controlled by the programmable logic controller or the numerical control depending on the machine architecture.

Availability and warranty

Standard Exchange Industry offers the LENZE EVS9332-ES for supply, exchange or repair. Each refurbished unit is tested on a bench according to industrial practices to validate load operation and loop stability. Shipping is provided within 24 to 72 h depending on stock and destination. Our services include a warranty of 6 to 24 months depending on the chosen service, to secure your restart and minimise downtime risk. If you are unsure about compatibility, our technical teams can advise you on the 9300 series reference corresponding to the required power level, supply voltage and expected servo functions for a controlled integration into your drive architecture.
