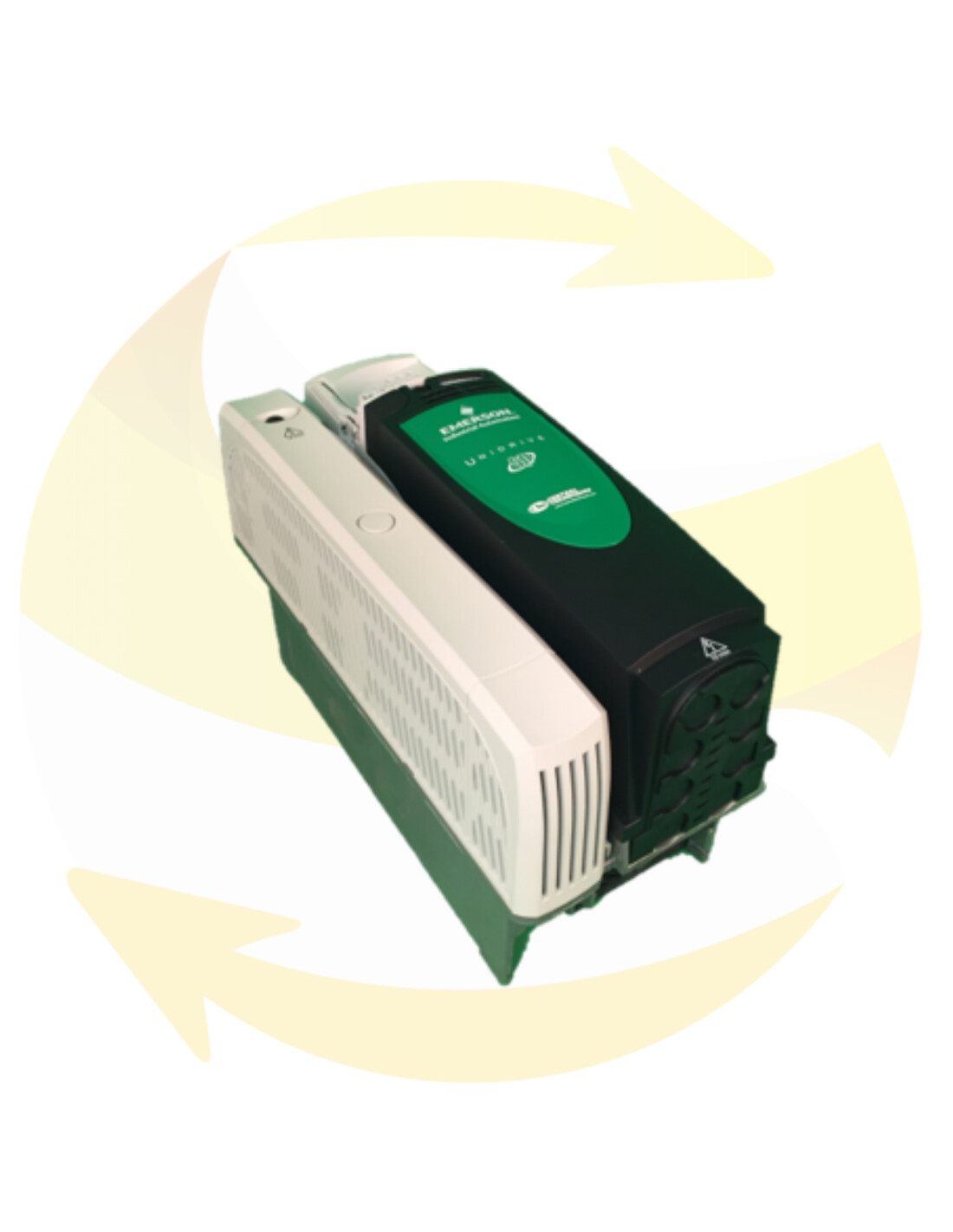

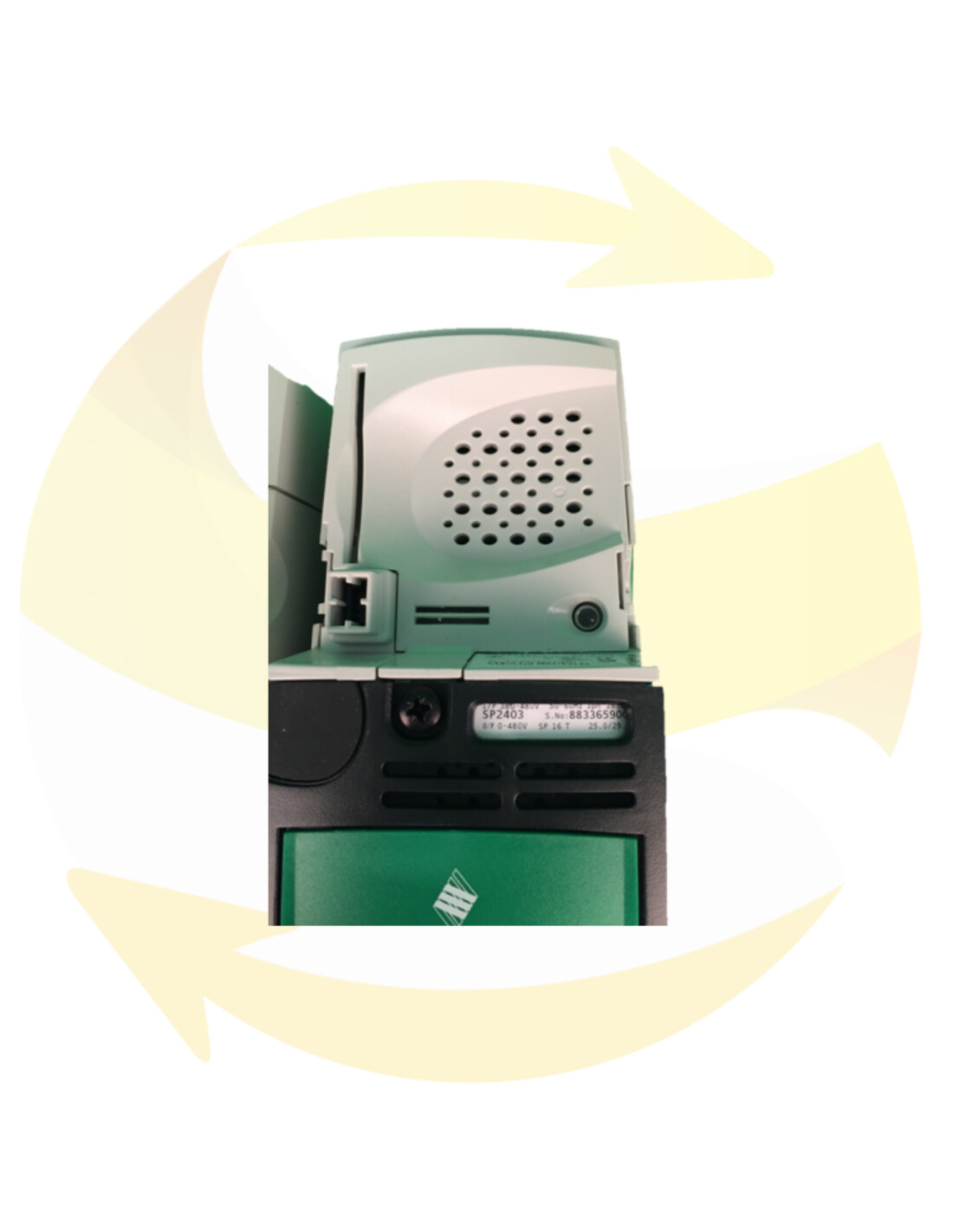

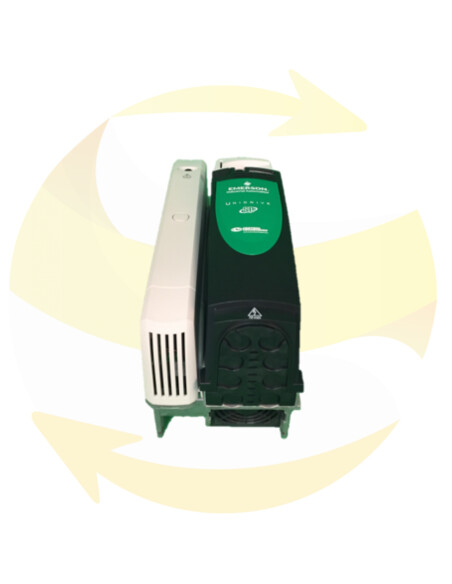

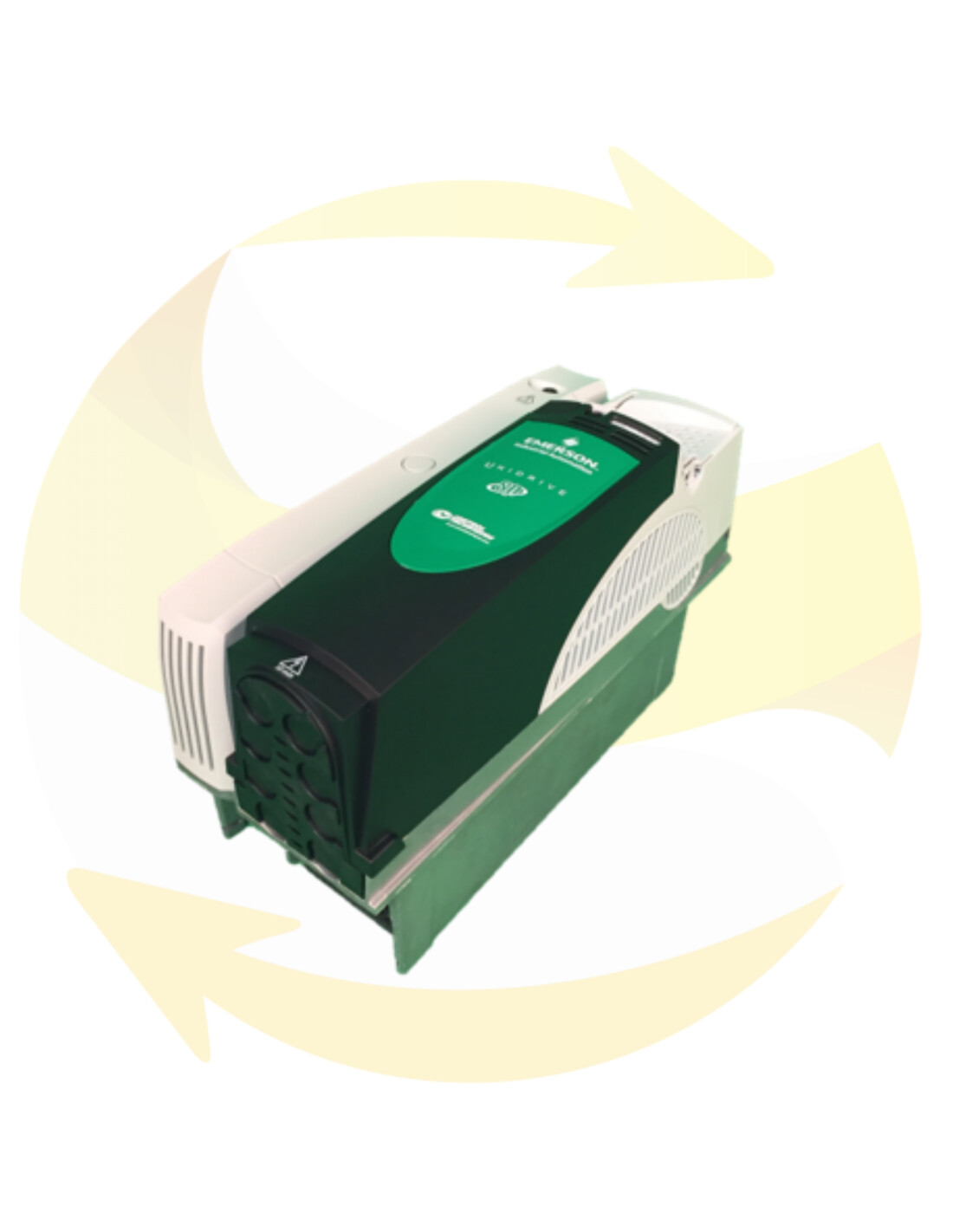

SP2403

This SP2403 reference and CONTROL TECHNIQUES brand is a drive of the UNIDRIVE SP range.

SP2403 : 380V three-phase network at 480V, 11kW, 29A.


This CONTROL TECHNIQUES drive is at your disposal to replace your defective equipment and has a suitable guarantee.

Drive tested on engine test bench.

In stock, ready to ship.
State
  • Refurbished Supply
Warranty
€1,860.00
VAT excluded

System options

Exchange service with a refurbished unit

Standard Exchange Service

Reconditioned and tested systems

From 6 to 12
month warranty

Exchange service with a new unit

Standard Exchange Service

New systems

From 12 to 24
month warranty

Supply of a refurbished unit

Supply Service

Reconditioned and tested systems

From 6 to 12
month warranty

Supply of a new unit

Supply Service

New systems

From 12 to 24
month warranty

For parts only

Supply Service

Sold for parts – no warranty

Repair

Repair service

Repair will be made to damaged and defectiv units

From 3 to 18
month warranty

Livraison rapide

Fast
delivery

Livraison rapide

guaranteed
products

Livraison rapide

Secure
payment



The UNIDRIVE SP is a standard inverter for the supply of asynchronous motors with or without encoder and self-synchronous motors (Brushless). By parameterization, the UNIDRIVE SP can therefore be configured in the following operating modes :

• Open Loop Flow Vector Control (OPEn LP)
Thanks to its calculation power, the drive controls separately the magnetizing current and the active current with a standard asynchronous motor. The rotor speed and position are calculated to control the torque and speed of the motor.
This mode of operation allows, without speed feedback, to obtain very high performances and is therefore suitable for the majority of applications. When this mode is not suitable for certain applications (several motors powered by a single drive, etc ...), a mode (U / F) can be used.

• Closed Loop Flow Vector Control (CL VECt)
Using this mode on a standard asynchronous motor provides better control of motor torque and speed over a wider speed range (including zero speed) with increased dynamic performance. The motor must be equipped with an incremental encoder, sincos, SSI, EnDat or a resolver to give the position and speed of the rotor.

• Servo (Brushless) (SErVO)

The use of this mode with a self-synchronous motor (motor with permanent magnets in the rotor) and equipped with an incremental encoder, SSI, SinCos, EnDat or a resolver allows very high dynamic performances.

• Regenerative mode operation (rEgEn)

The performances of the UNIDRIVE SP are perfectly compatible with use in the 4 quadrants of the torque-speed plane.

• Operation in "RFC" mode (Rotor Flux Control)

This mode allows near loop closed loop vector mode performance without the need for a speed sensor. The drive uses currents, voltages and motor parameters to estimate the flow amplitude and the motor speed.
The "RFC" mode does not generate instability, unlike the open loop vector mode (eg high power motor used at low frequencies with low load).

Height
36.8 cm / 14.48 in
Width
15,5 cm / 6,1 in
Length
21,5 cm / 8,4 in
Weight
7 kg / 15.3 lbs
Family
UNIDRIVE SP
Reference
SP2403
Refurbished
3006590949429
300785747627

Control Techniques is a leading manufacturer of AC and DC speed variation, servo motors and power conversion technologies for commercial and industrial applications. Their innovative products are used in the most demanding applications, requiring performance, reliability and energy efficiency.

Nidec Control Techniques has been at the forefront of industrial-driven drive technology for more than 40 years. They are dedicated to the advancement of automation. From product development to their headquarters to their 45 automation centers around the world, Nidec Control Techniques provides industry-relevant solutions. They guarantee high performance, reliability and energy efficiency in all applications.
