6SE6440-2UD21-5AA1

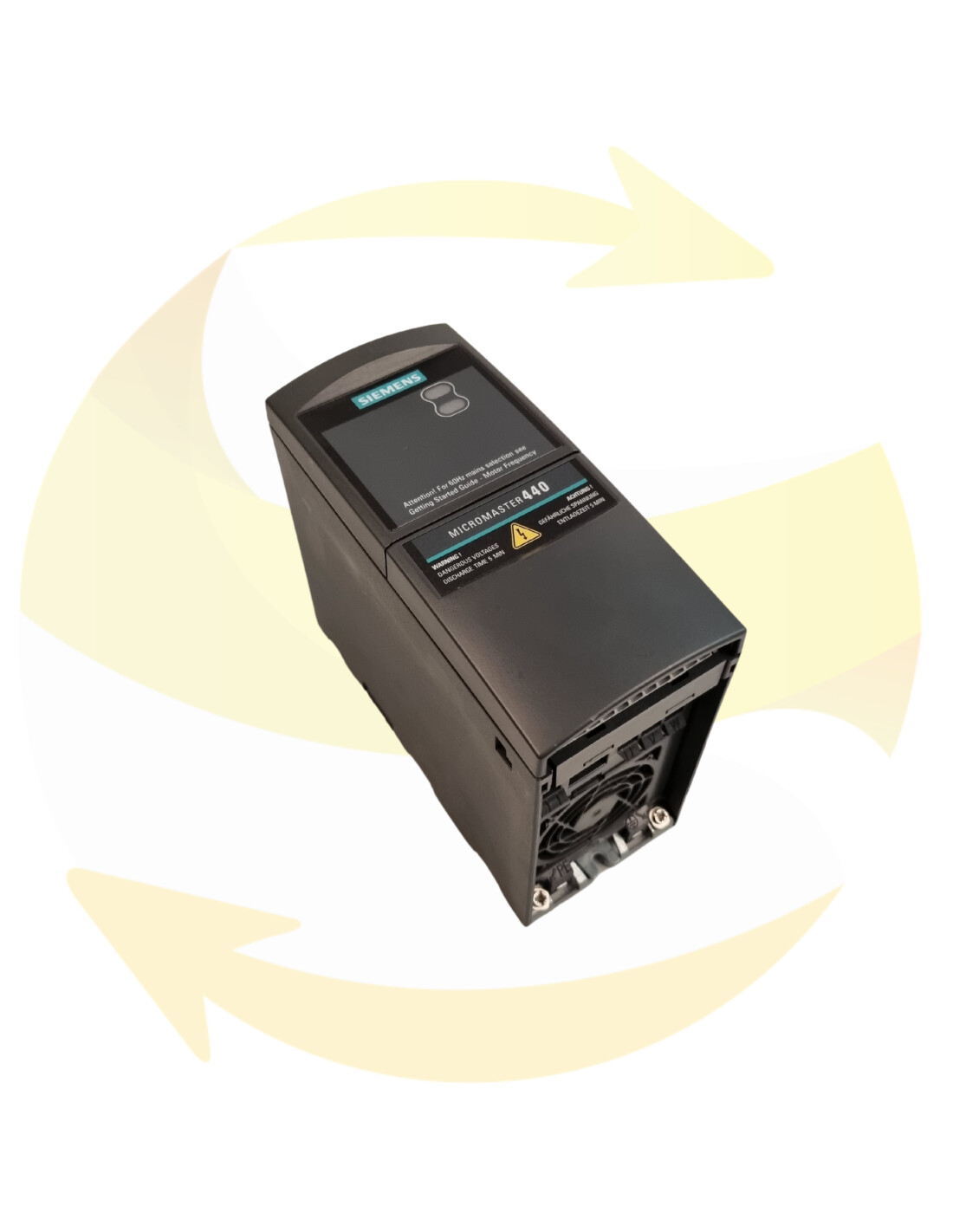

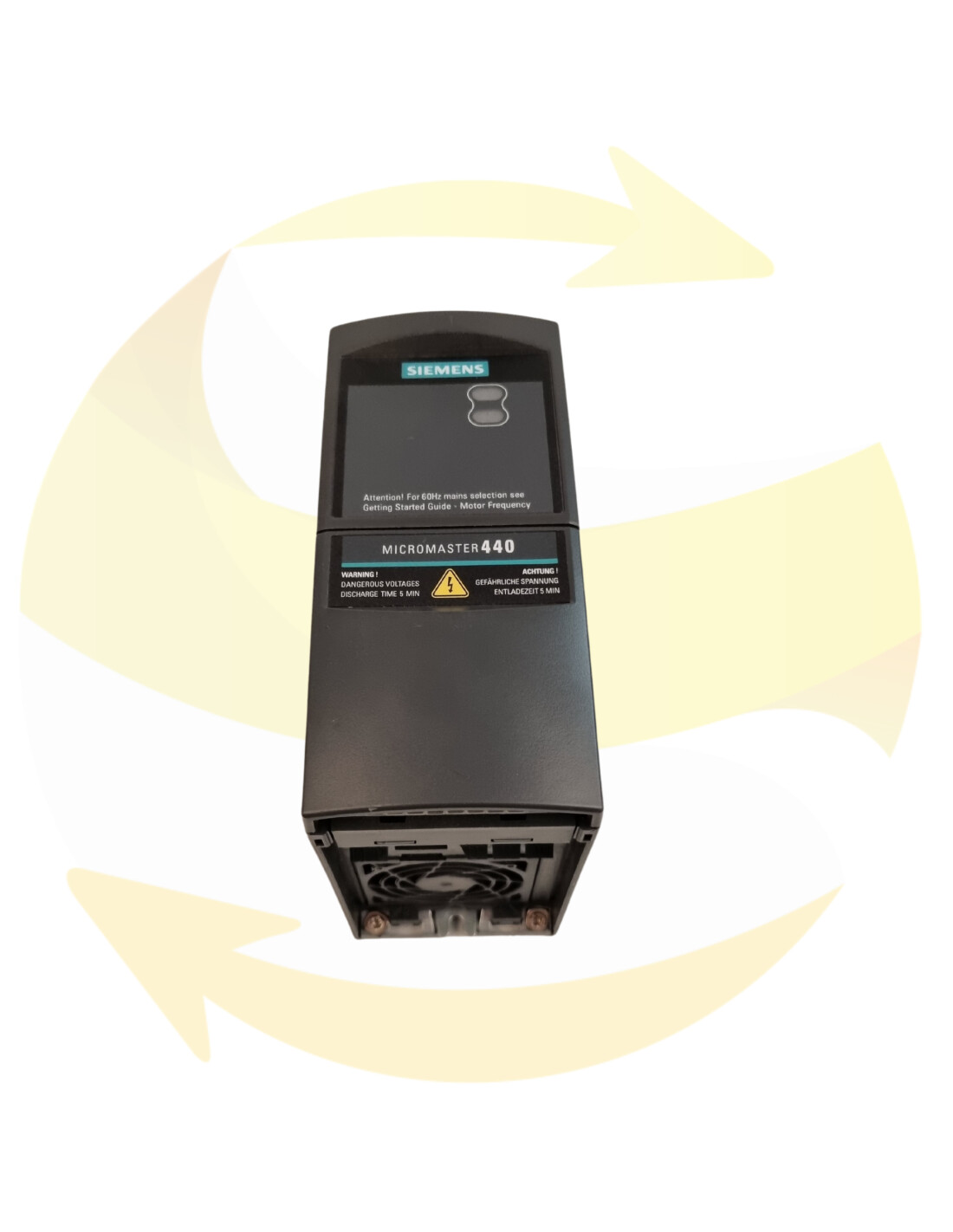

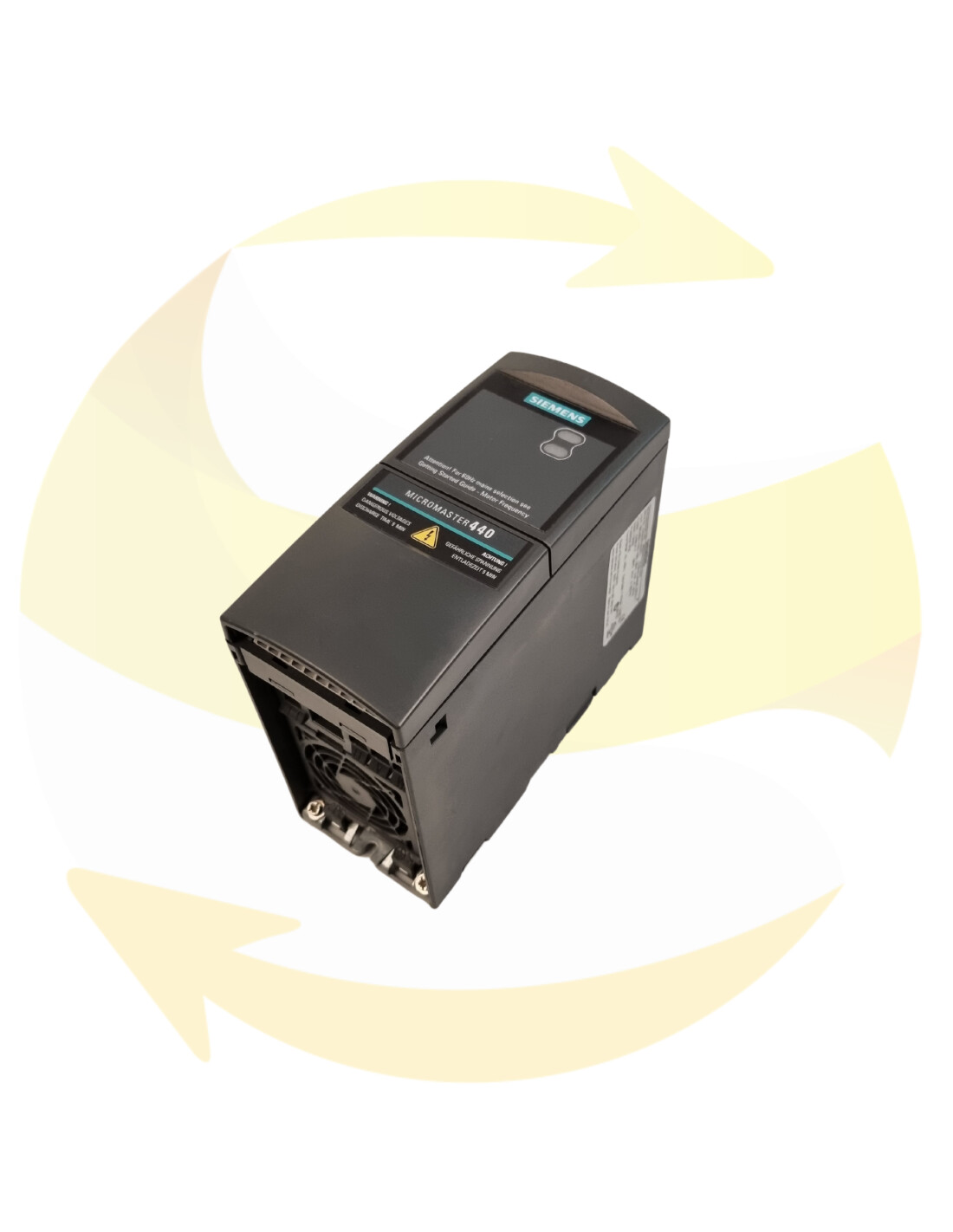

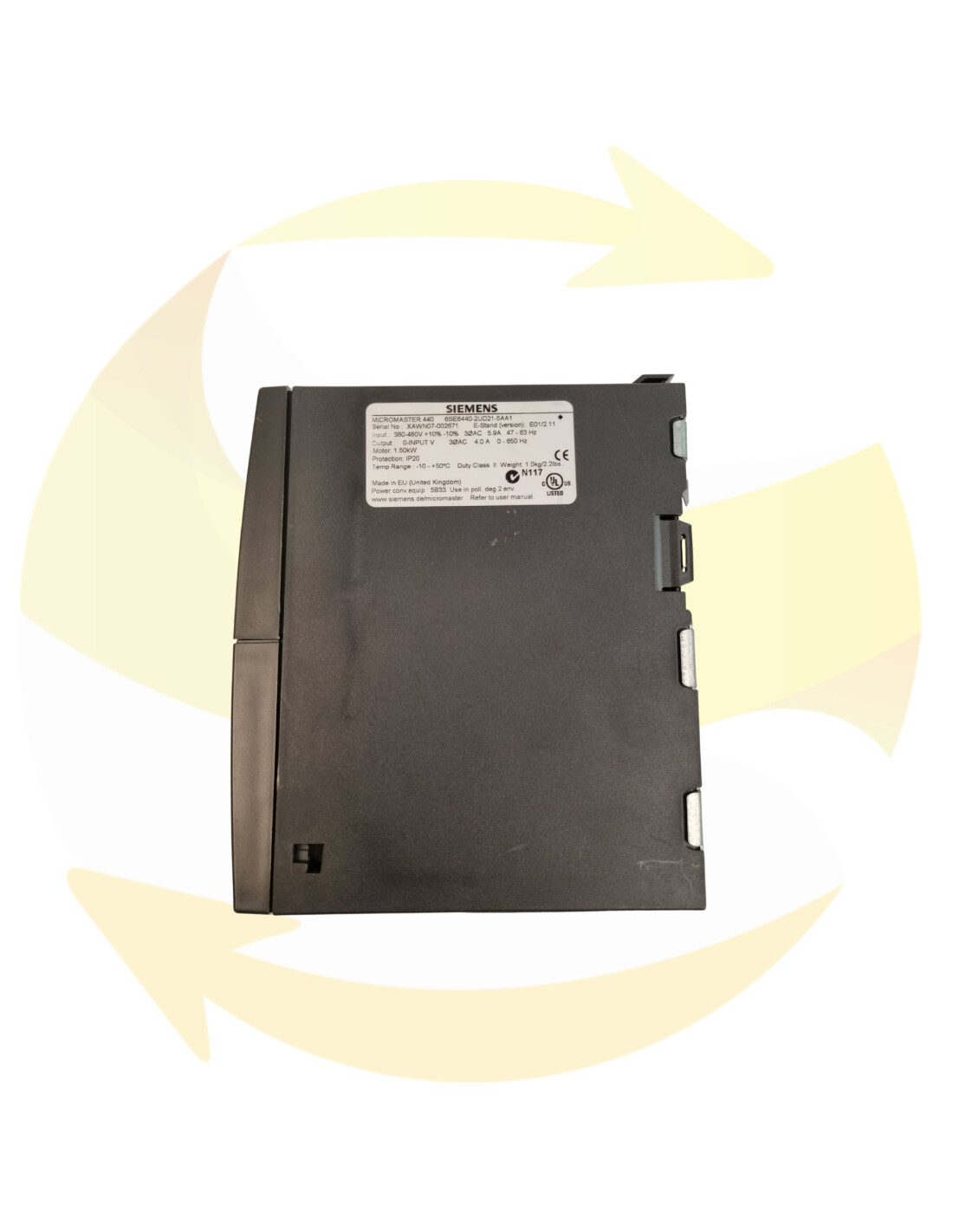

This reference inverter 6SE6440-2UD21-5AA1 and brand SIEMENS is a drive of the MICROMASTER 440 range.

MICROMASTER 440 without filter 3 380-480 V AC + 10 / -10% 47-63Hz constant torque 1.5kW overload 150% 60S, 200% 3S quadratic torque 1.5kW Protection rating IP20.

This SIEMENS inverter is at your disposal to replace your defective equipment and has a suitable guarantee.

In stock, ready to ship.
State
  • Refurbished Supply
Warranty
€350.00

System options

Exchange service with a refurbished unit

Standard Exchange Service

Reconditioned and tested systems

From 6 to 12
month warranty

Exchange service with a new unit

Standard Exchange Service

New systems

From 12 to 24
month warranty

Supply of a refurbished unit

Supply Service

Reconditioned and tested systems

From 6 to 12
month warranty

Supply of a new unit

Supply Service

New systems

From 12 to 24
month warranty

For parts only

Supply Service

Sold for parts – no warranty

Repair

Repair service

Repair will be made to damaged and defectiv units

From 3 to 18
month warranty

Livraison rapide

Fast
delivery

Livraison rapide

guaranteed
products

Livraison rapide

Secure
payment



■Applications
The MICROMASTER 440 inverter is suitable for a variety of variable-speed drive applications. Its flexibility provides for a wide spectrum of applications.
These also include cranes and hoisting gear, high-bay warehouses, production machines for food, beverages and tobacco packaging machines etc. applications which require the frequency inverter to have a higher functionality and dynamic response than usual.

The inverter is especially characterized by its customer-oriented performance and ease of use. Its large supply voltage range enables it to be used all over the world.

■Design
The MICROMASTER 440 The MICROMASTER 440 has a modular design.
The operator panels and the modues can be easyly exchanged.

■ International Standards
The MICROMASTER 440 inverter complies with requirements of the EU low-voltage guideline ; filtered versions also comply with EU EMC guideline.
The MICROMASTER 440 inverter has the EU marking.

■Main Characteristics
- Simple commissioning.
- Modular construction allows maximum configuration flexibility.
- Six programmable isolated digital inputs
-Two scalable analog inputs (0Vto10V,0mAto20mA) can also be used as a 7th/ 8th digital input.
- Two programmable analog outputs (0 mA to 20 mA)
- Three fully programmable relay outputs (30 V DC/5 A, resistive 250 V AC/2 A, inductive)
- Silent motor operation is selectable when using high switching frequencies (observe derating if necessary)
- Complete inverter and motor protection.

Height
17 cm / 6,6 in
Width
15 cm / 5,9 in
Length
7,7 cm / 2,9 in
Weight
1,2 kg / 2,6 lbs
Family
MICROMASTER 440
Reference
6SE6440-2UD21-5AA1
Refurbished
3005428263232
300284530676

Siemens is an international group of German origin specializing in high technology and present in the sectors of industry, energy and health. It was founded in 1847 by Werner von Siemens.
