BUM60-03/06-54-B-000 - Power unit - BAUMÜLLER

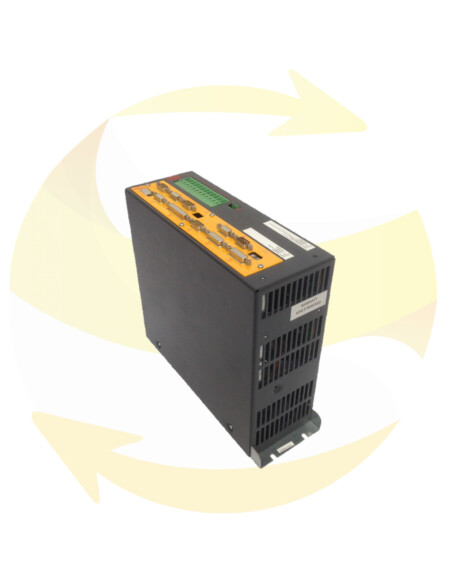

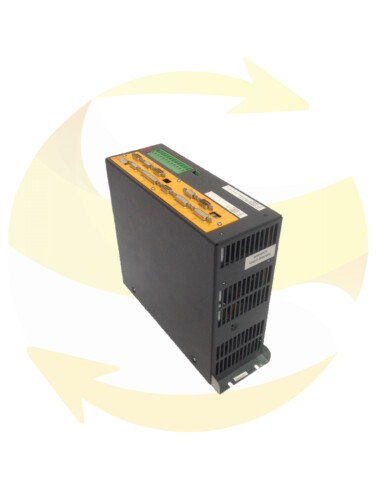

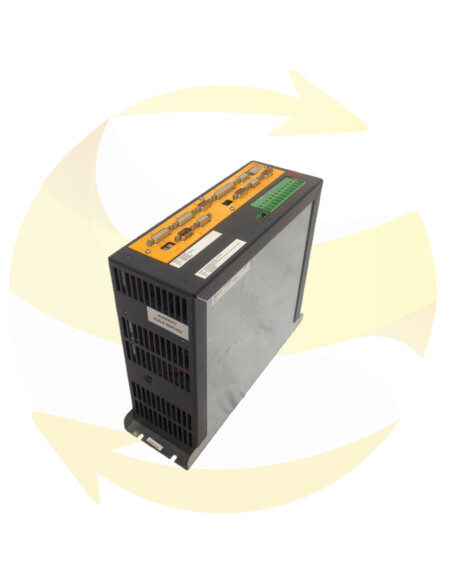

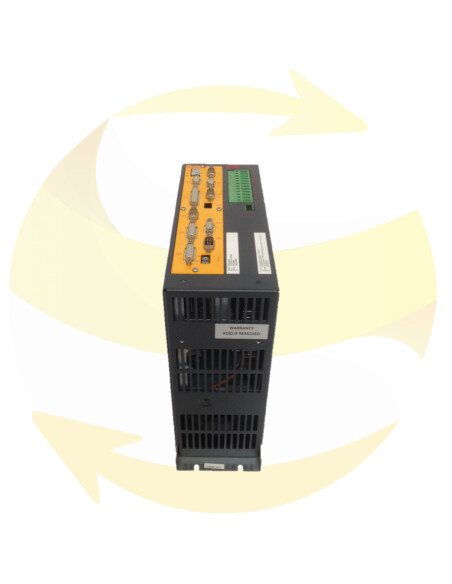

This BAUMÜLLER BUM60-03/06-54-B-000 power supply unit is designed to complement the BAUMÜLLER modular system. Series : BUM60-30 and BUM60-31.
BUM60-03/06-54-B-000 : 1,1kW, 3 x AC 400 - 480V 50 / 60Hz, 16A, 60W
This BUM60-03/06-54-B-000 power supply unit is at your disposal to replace your defective equipment and has a guarantee of operation adapted to your needs.
The mono power unit BUM 60 complements the Baumüller Modular System in the medium performance range.
Plug-in analog controller cards are supposed to be used for closed-loop control.
The mono power unit BUM 60 consists of the feed current converter on the mains side and the motor-end inverter.
The whole unit BUM 60 consists of the three parts feed current converter on the mains side, mo- tor-end inverter and controller plug-in card.
- Feed current converter on the mains side
The feed current converter is an non-controllable B6 rectifier with starting current load relief and ballast circuit.
- Starting current load relief
Because of the intermediate circuit capacity without starting current load relief, a direct switch-on of the unit would lead to an inadmissibly high level of impulse current. To avoid this impulse current, the starting current is limited by a resistor.
- Ballast circuit
In certain operation modes feeds the motor energy to the unit. This energy is stored and leads to a higher intermediate circuit voltage. To avoid reaching the over voltage switch-off thresh- old, the feed-back energy is transformed to heat in an internal or external ballast resistor.
- Motor-end inverter
The motor-end inverter comprises the IGBT power unit and the accompanying detectors. The detectors supply on the one hand measurement signals and on the other hand the self-pro- tection facilities of the power electronic. The control of the inverter is run by the controller.
