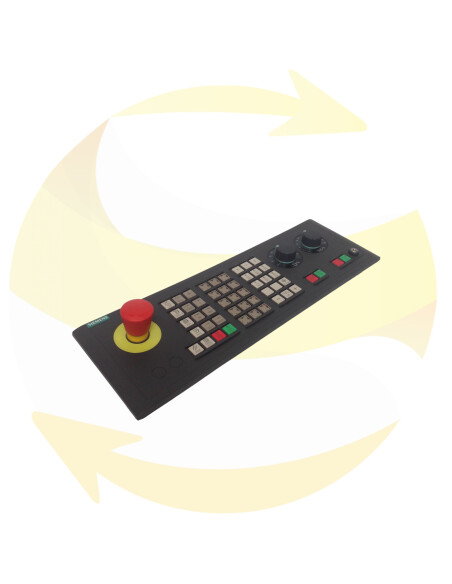

6FC5203-0AF22-0AA2 - Control Panel - SIEMENS
This keyboard 6FC5203-0AF22-0AA2 and brand SIEMENS is a keyboard used for the range SINUMERIK 810D powerline / 840Di / 840D powerline.

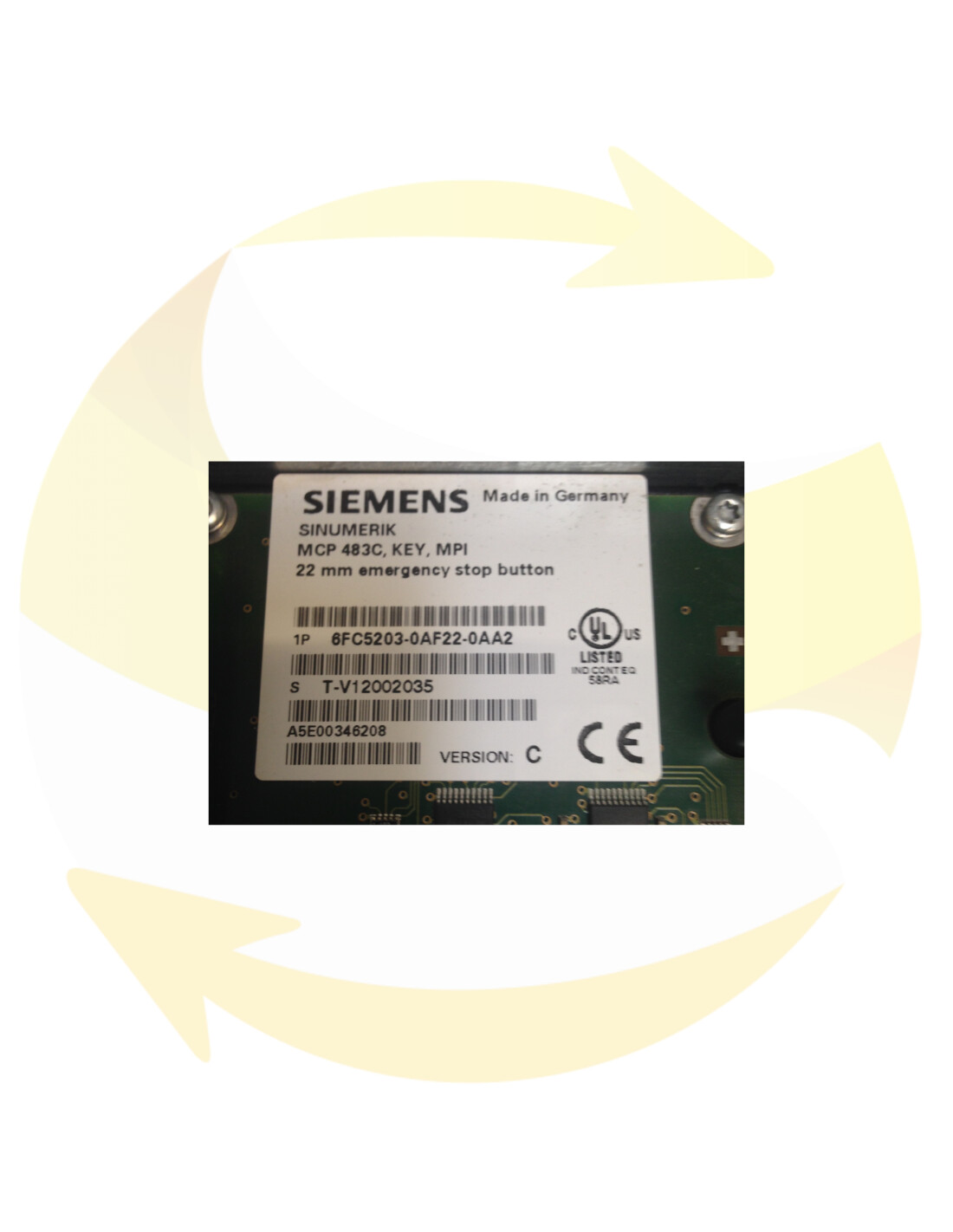

SINUMERIK MCP 483C MECHANICAL CONTROL PANEL, MPI, 19 "WIDTH, MECHANICAL KEYS, 22 MM SAFETY
This Siemens 6FC5203-0AF22-0AA2 Keyboard is at your disposal to replace your defective equipment and has a guarantee adapted to your needs.

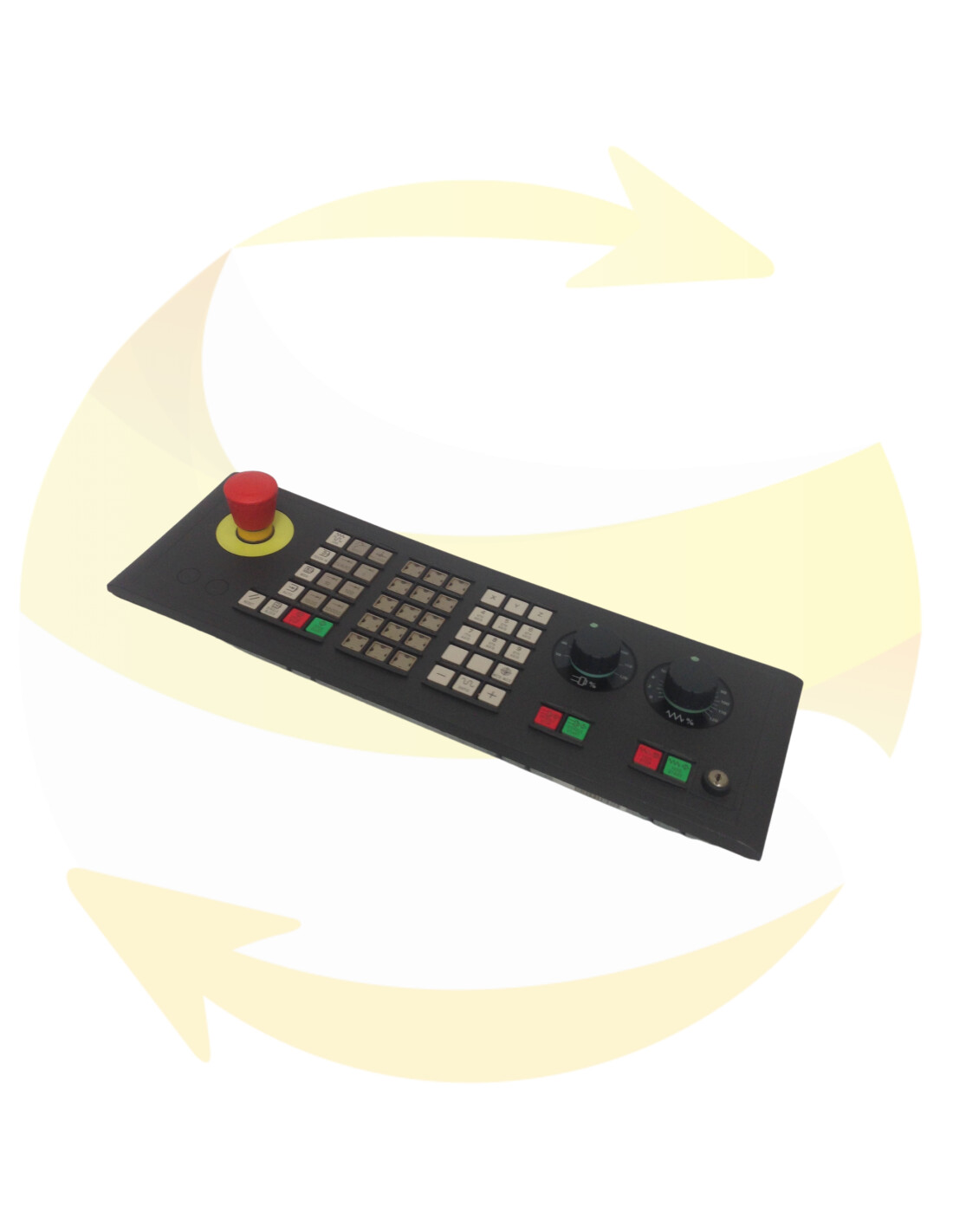

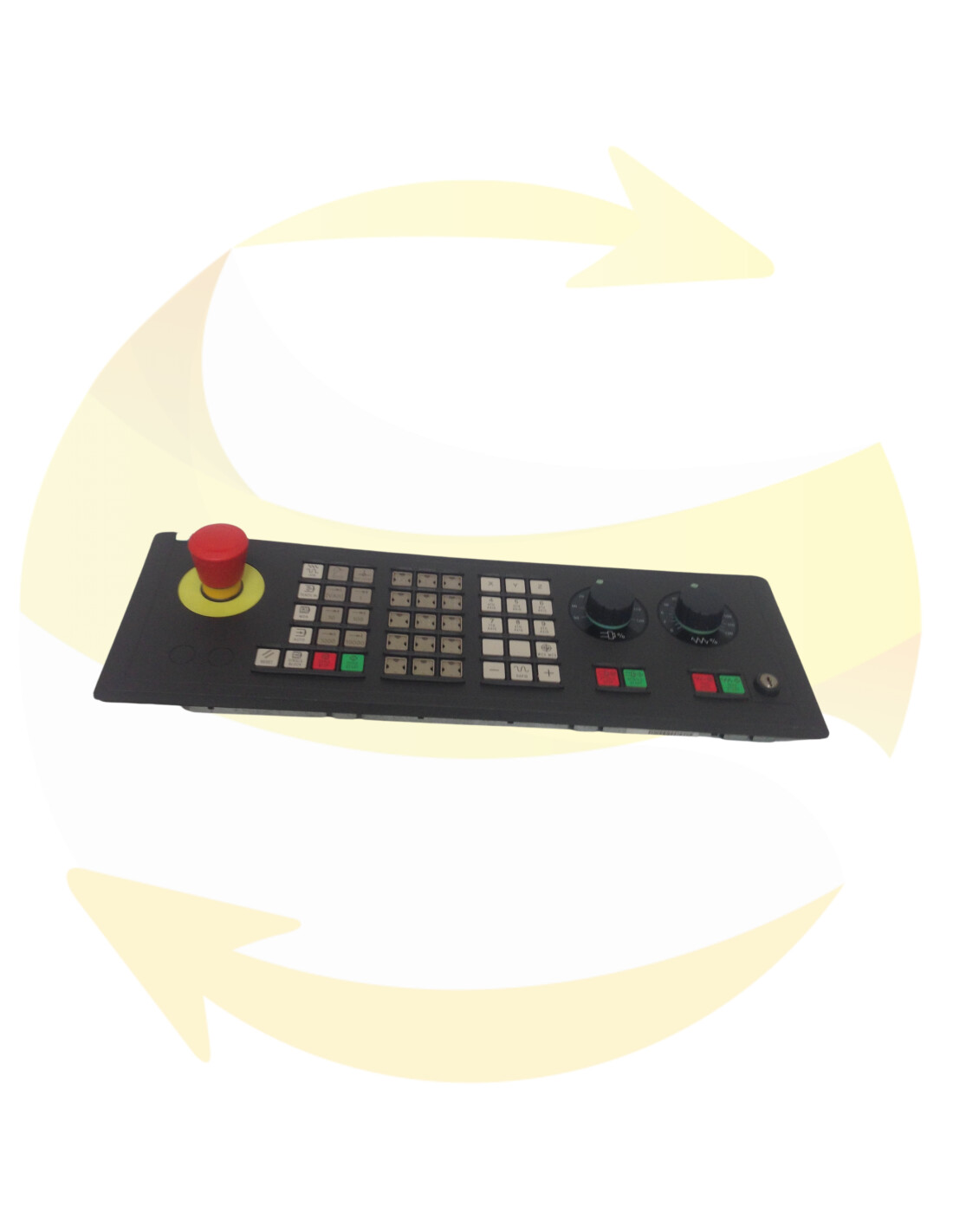

The machine control panel MCP 483C SINUMERIK with its new design facilitates the control of the machine's functions. It is intended for the machine control of lathes, milling machines, grinders and special machines.
For a machine-specific adaptation, all keys have interchangeable cabochons. The cabochons are laser detectable. Alternatively, you can use transparent cabochons.
Ordering elements:
• Function mode selection keys and function keys
50 keys including 48 with LEDs Direction control keys for milling machines with superimposing movement (direction keys for movement direction keys for lathes delivered in bulk) 17 user keys (in standard version)
• Spindle control with spindle speed correction (16-position selector)
• Advance control with speed / advance speed control (23-position selector)
• Key switch (4 positions and 3 different keys)
• Emergency stop button (2 x (1 opening contact + 1 closing contact))
Key type:
• Mechanical keys
Interface:
• MPI interface
Possibility of extension:
• 2 locations for control auxiliaries (d = 16 mm)
Integration
The machine control panel SINUMERIK MCP 483C is usable for:
• SINUMERIK 810D powerline / 840Di / 840D powerline
The newly designed MCP 483 SINUMERIK machine control panel with membrane keypad makes machine operation easy and user-friendly. It provides machine control of milling machines, lathes and, more particularly, grinding machines.
For machine-specific adaptations, there are
46 keys and two locations with markable strips to be inserted for control aids. A DIN A4 film (for laser printers) for marking insertable strips is included in the scope of supply.
