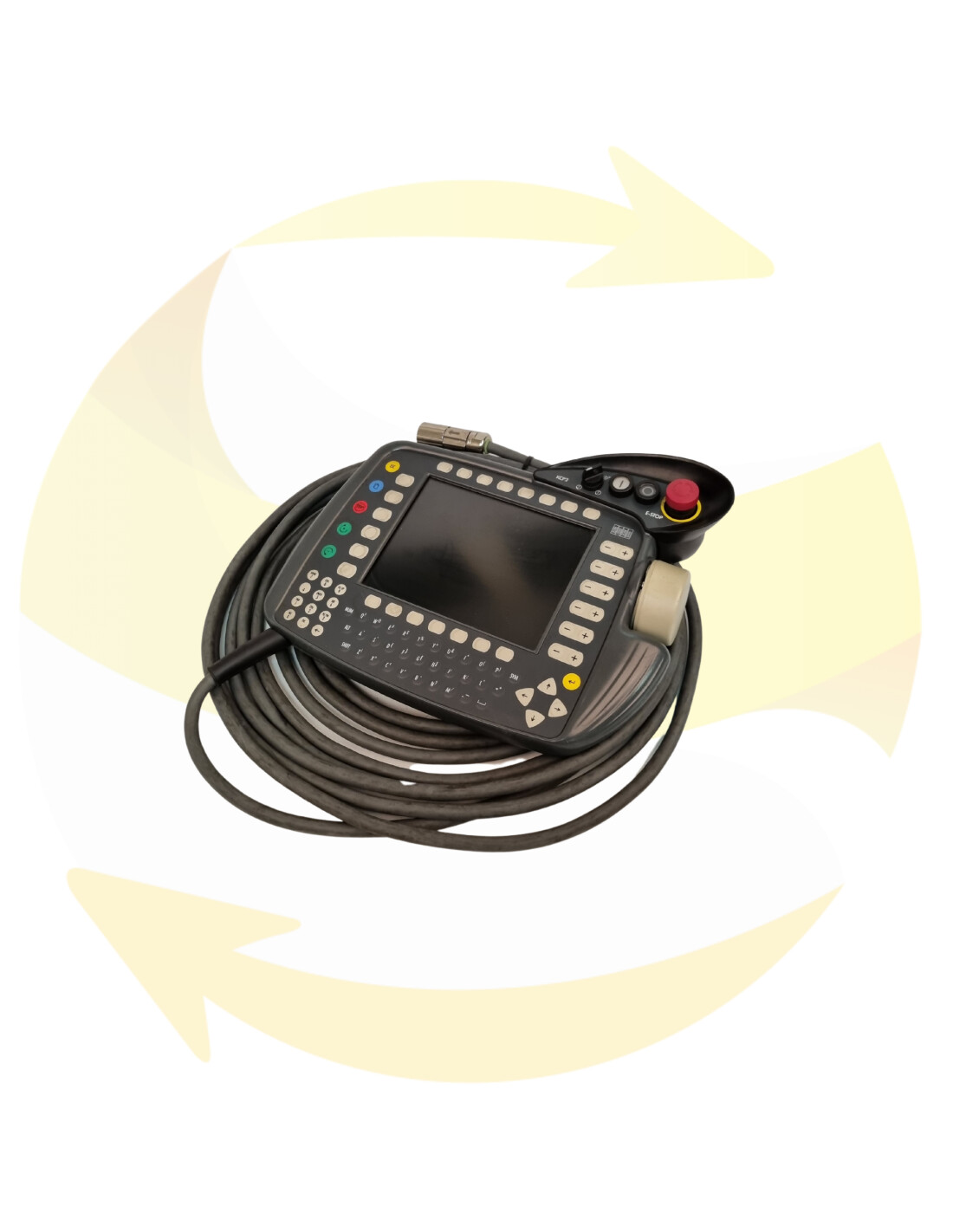

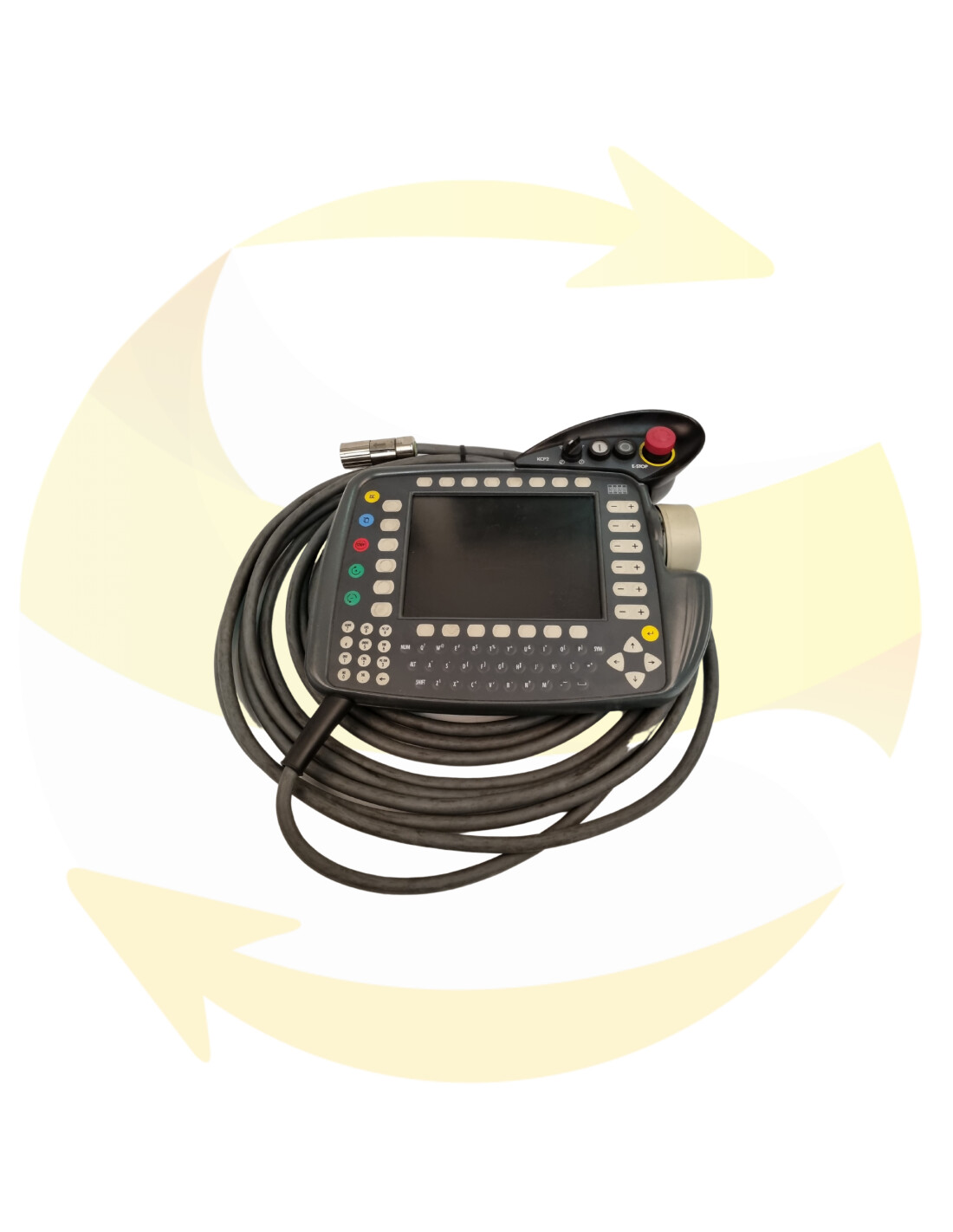

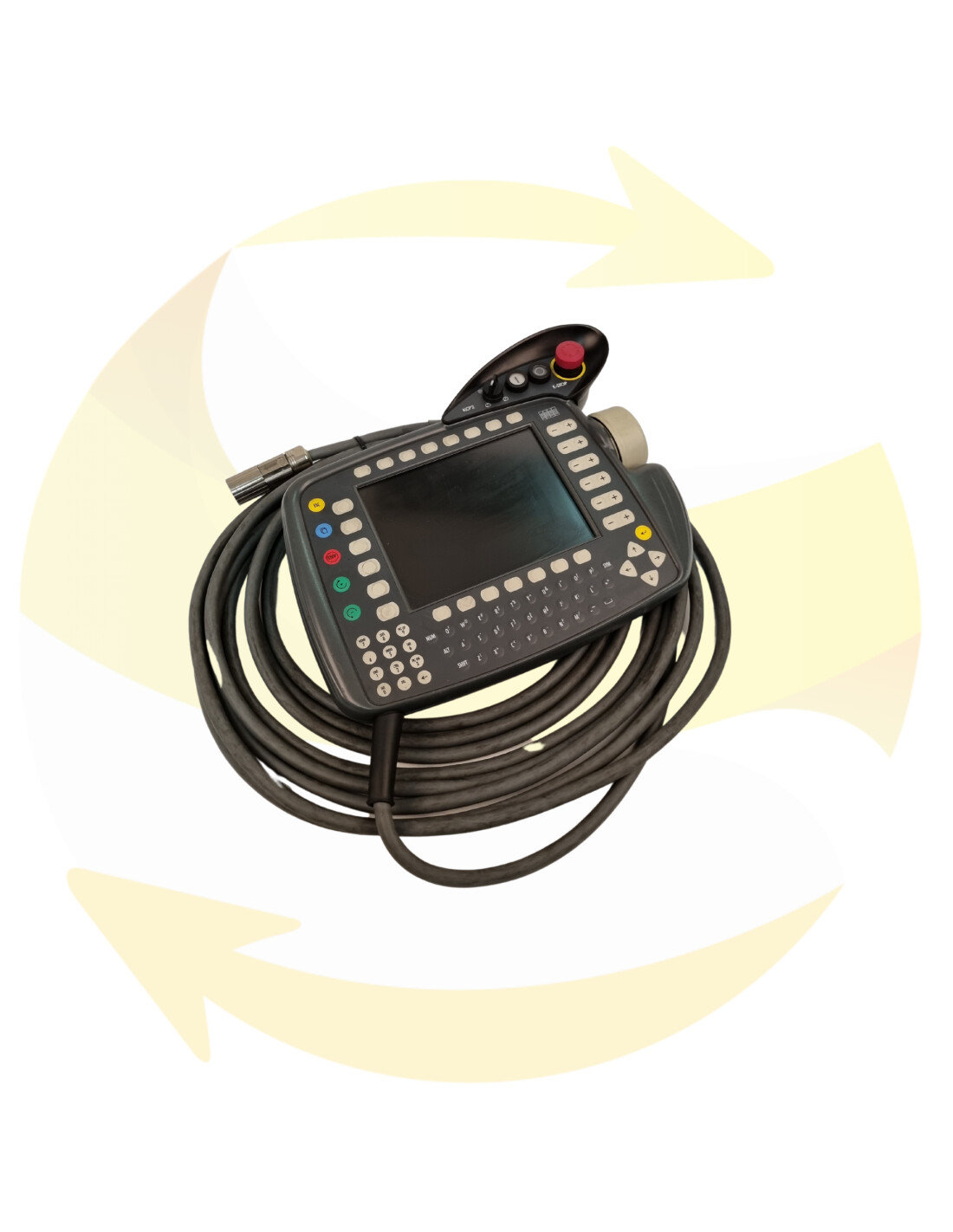

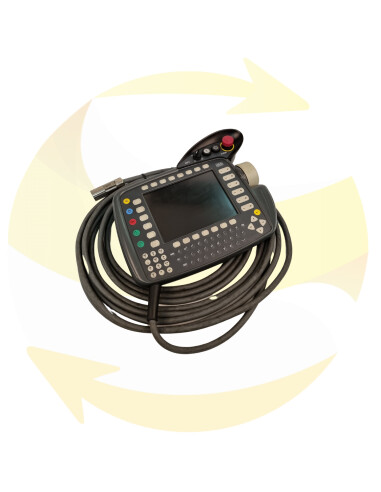

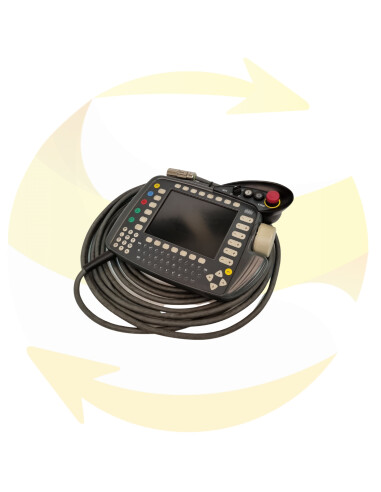

KCP2 00-107-264 - Teach Pendant - KUKA
This KCP2 00-107-264 and KUKA reference Teach Pendant is a control panel for KUKA KR C2 and KR C3 robot cabinets.
This Teach Pendant KUKA is at your disposal to replace your defective material and has a guarantee adapted to your needs.
The hand-held programming unit, characterized by its ergonomic design, enables the control and control of the robot KR C2 to form the man / machine interface.
The microcontroller sends keypad data and status data to the PC via a standard CAN bus. This is how the BPP is initialized as well as parameterized by the command.
The information displayed is serially transmitted via a separate interface at high speed.
The KCP features an 8-inch graphic color display (640x480 VGA resolution), a membrane keyboard, a 6D mouse, and EMERGENCY STOP controls, shutdown / start drives, mode selector and d 'dead man.
A DIN socket can also be used to connect an MF II keyboard to the KCP. The Ethernet connection allows archiving on a PC.
The Windows user interface guides the operator to enable fast and efficient programming:
- Commissioning of the robot control
- Creation of a program
- Test and correction of the program
- Program control (Start, Stop)
- Observations and diagnoses during the current production.
The display shows the following items:
- User programs, program status
- Interruption, override
- Program, travel
- Actual values, tracking error
- Online correction, calibration
- Position of the robot, type of movement
- Interface signals, messages
- Help display
KUKA is considered one of the world’s leading suppliers of industrial robots. The company’s core competencies include the development and production as well as the commercialization of industrial robots, control cabinets, software and linear units.
